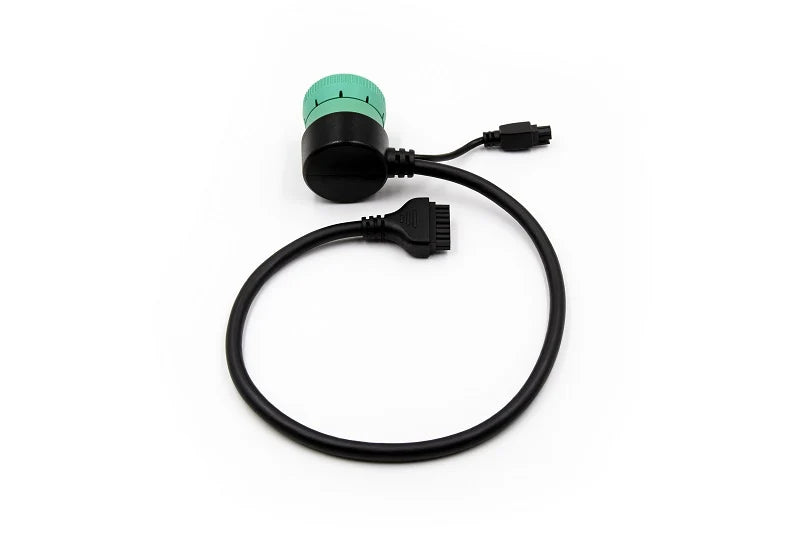

EZ LYNK Auto Agent 2 Heavy-Duty 9-Pin Cable - 100EE00C06

The EZ LYNK Auto Agent 2 Heavy-Duty 9-Pin Cable, part number 100EE00C06, connects Auto Agent 2 hardware to compatible heavy-duty vehicle diagnostic ports. The cable uses a weatherproof 9-pin Deutsch-style connection and supports SAE J1939 high- and low-speed heavy-duty communication applications.

Key Features & Specs:

• Part Number: 100EE00C06
• UPC: 857449007080
• Series: Auto Agent 2
• Auto Agent Compatibility: Auto Agent 2 only
• Connector: 9-pin weatherproof heavy-duty connector
• Protocol: SAE J1939
• Baud Support: High-speed and low-speed variants
• Cable Length: 20 in
• Color: Black / green connector identification
• ELD Compatibility: Compatible with supported EZ LYNK ELD applications
• Package Weight: 0.33 lb
• Package Dimensions: 5.375 x 3.25 x 2.625 in
• Quantity: Each

Fitment:

• Compatible heavy-duty vehicles using the supported 9-pin SAE J1939 diagnostic connection

What's Included:

• Auto Agent 2 heavy-duty 9-pin diagnostic cable

Warranty: 90 days (retailer catalog data)
