DESCRIPTION
2011-19 CHEVY SILVERADO 2500HD | GMC SIERRA 2500HD 2WD/4WD
Fabtech’s 4" Performance systems utilize their proven heavy duty construction and design features for a robust suspension upgrade. The 4" system features high arched lower control arm crossmembers constructed of 1/4" thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the near stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.
FEATURES
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Rear Block & U-bolt Kit

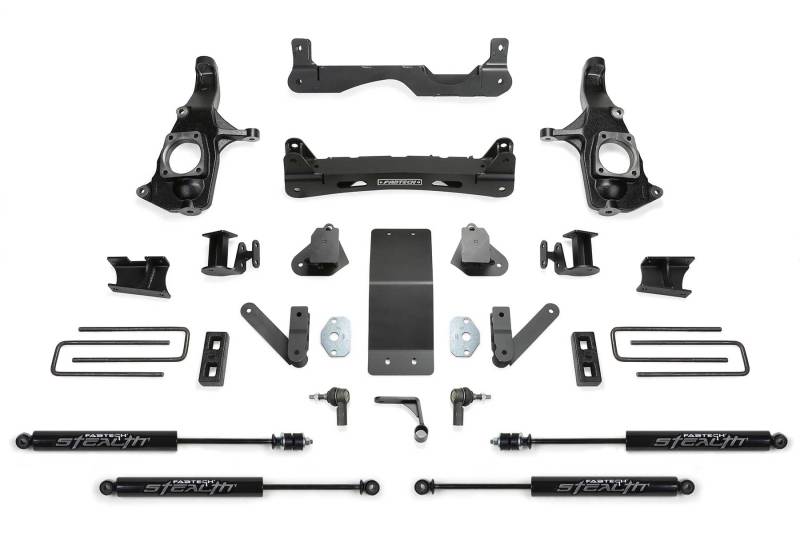

PART NUMBERS
QTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS21230 | COMPONENT BOX 1 |
1 | FTS21231 | COMPONENT BOX 2 |
1 | FTS21232 | COMPONENT BOX 3 |
2 | FTS6338 | FRONT STEALTH SHOCK |
2 | FTS6019 | REAR STEALTH SHOCK |
ADDITIONAL INFORMATION
YEAR
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
MAKE
CHEVY, GMC
MODEL
C2500HD, K2500HD
DRIVE
2WD, 4WD
LIFT
4"
TIRES & WHEELS
- Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming
- Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5 3/4in BS w/minor trimming
INCLUDED SHOCKS
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
