Fabtech 17-20 Ford F250/350 4WD 4in 4 Link System - Component Box 2
Fabtech 17-20 Ford F250/350 4WD 4in 4 Link System - Component Box 2
Fabtech 17-20 Ford F250/350 4WD 4in 4 Link System - Component Box 2
Click to zoom in

Fabtech 17-20 Ford F250/350 4WD 4in 4 Link System - Component Box 2

Fabtech
FABFTS22217
In stock
Lift Kits
$866.25 $658.35
$658.35

customers are viewing this product
Fabtech 17-20 Ford F250/350 4WD 4in 4 Link System - Component Box 2

Component box for a specific part number. Contains necessary parts for your lift kit needs.

Fabtech’s 4” 4 Link Conversion System for the Ford F250/F350 is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide near zero caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds.

The front suspension receives the finest shock upgrade on the market with the Dirt Logic 4.0 Coilover conversion. It will provide outstanding damping capacity offroad with a quality on road ride. This Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The Dirt Logic is constructed with a stainless steel body for maximum corrosion resistance. It comes with a giant 4" diameter aluminum remote reservoir that mounts horizontally above the Coilover to allow for full compression travel with oversized tires.

The rear suspension receives a 5" lift block, extended bump stop brackets and Dirt Logic 2.25 shocks for a balanced ride quality.

This 4 Link system with the Dirt Logic 4.0 Coilovers is the pinnacle of all Super Duty suspension systems for owners that demand the best.

System includes a free 5 year 60,000 mile powertrain warranty.

Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understanding of each these components, please see below.

FEATURES

  • 2″ OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Track Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

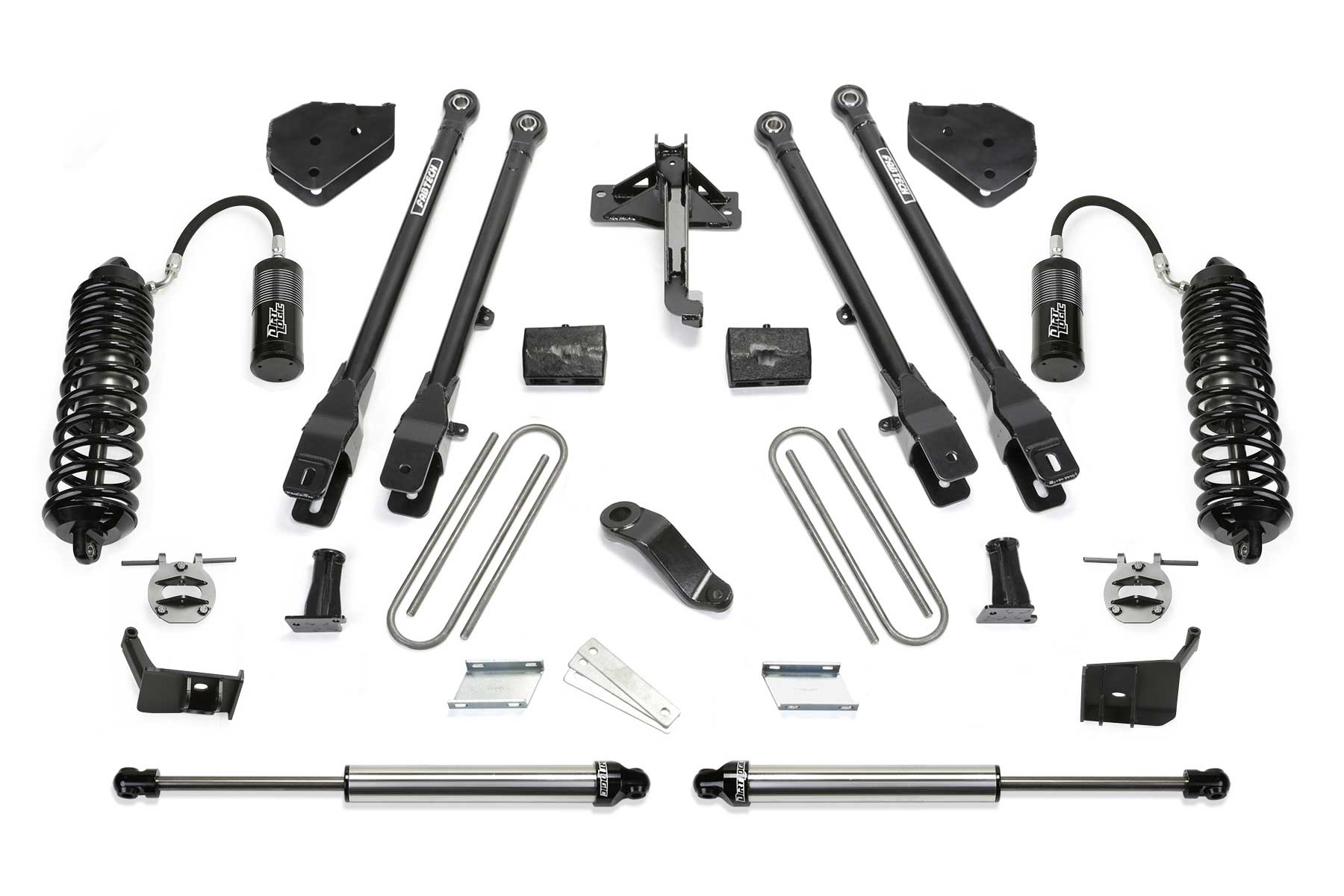

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS22221 COMPONENT BOX 1
1 FTS22217 COMPONENT BOX 2
1 FTS22309 REAR BLOCK KIT
1 FTS835242D FRONT DIRT LOGIC 4.0 RESI COILOVER (DRIVER)
1 FTS835242P FRONT DIRT LOGIC 4.0 RESI COILOVER (PASSENGER)
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK



This Part Fits:



Year Make Model Submodel
2017-2020 Ford F-250 Super Duty King Ranch
2017-2020 Ford F-250 Super Duty Lariat
2018-2020 Ford F-250 Super Duty Limited
2017-2020 Ford F-250 Super Duty Platinum
2017-2020 Ford F-250 Super Duty XL
2017-2020 Ford F-250 Super Duty XLT
2017-2020 Ford F-350 Super Duty King Ranch
2017-2020 Ford F-350 Super Duty Lariat
2018-2020 Ford F-350 Super Duty Limited
2017-2020 Ford F-350 Super Duty Platinum
2017-2020 Ford F-350 Super Duty XL
2017-2020 Ford F-350 Super Duty XLT
