Fabtech 19-21 Ram 1500 4WD 6in Basic Sys w/Stealth
Fabtech 19-21 Ram 1500 4WD 6in Basic Sys w/Stealth
Fabtech 19-21 Ram 1500 4WD 6in Basic Sys w/Stealth
Click to zoom in
Load image into Gallery viewer, Fabtech 19-21 Ram 1500 4WD 6in Basic Sys w/Stealth
Load image into Gallery viewer, Fabtech 19-21 Ram 1500 4WD 6in Basic Sys w/Stealth
Load image into Gallery viewer, Fabtech 19-21 Ram 1500 4WD 6in Basic Sys w/Stealth

Fabtech 19-21 Ram 1500 4WD 6in Basic Sys w/Stealth

2 sold in last 8 hours
Fabtech
FABK3086M
Out of stock
Lift Kits
$2,763.60 $2,487.23
  DESCRIPTION 2019-23 RAM 1500 4WD This lift kit is a great choice for Ram owners looking to keep that stock ride yet want big tires and wheels. The factory...

Fabtech 19-21 Ram 1500 4WD 6in Basic Sys w/Stealth
Description



DESCRIPTION

2019-23 RAM 1500 4WD

This lift kit is a great choice for Ram owners looking to keep that stock ride yet want big tires and wheels. The factory suspension is relocated with heavy duty bolt on bracketry that will provide years of trouble free service.

The lift kit features Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for stock load carrying capacity with a great highway ride.

The Basic lift kit includes front coilover spacers that utilize the factory Coilover shocks for a stock like ride and rear Stealth monotube shocks.

FEATURES

CROSSMEMBERS

1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.

STEERING KNUCKLES

Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.

COILOVER SPACERS

Thick wall tubing and 1/4" thick steel is used to build these 6" lift spacers retaining the factory Coilover shocks for a stock ride.

SKID PLATE

A heavy duty front differential skid plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.

DIFFERENTIAL MOUNTS

Integrated differential mounts on the crossmembers properly reposition the front diff for the precise CV and driveshaft angle throughout the entire steering and suspension travel range.

SWAY BAR BRACKETS

Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop.

REAR COIL SPRING SPACERS

Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort.

REAR TRACK BAR BRACKET

The bolt on relocation bracket re-centers the rear axle for the new ride height while retaining the factory roll center of the vehicle.

STEALTH SHOCKS

These extended length monotube shocks have a nitro carborized piston rod for corrosion resistance and resist rock chipping. Stealth shocks have a great highway ride with good offroad damping capacity.

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS23200 COMPONENT BOX 1
1 FTS23201 COMPONENT BOX 2
1 FTS23038 COMPONENT BOX 3
2 FTS6353 REAR STEALTH SHOCKS



TIRES & WHEELS

  • Tire Size – 35/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming
  • Tire Size – 37/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/cutting

INSTRUCTIONS

PDF DOWNLOADS

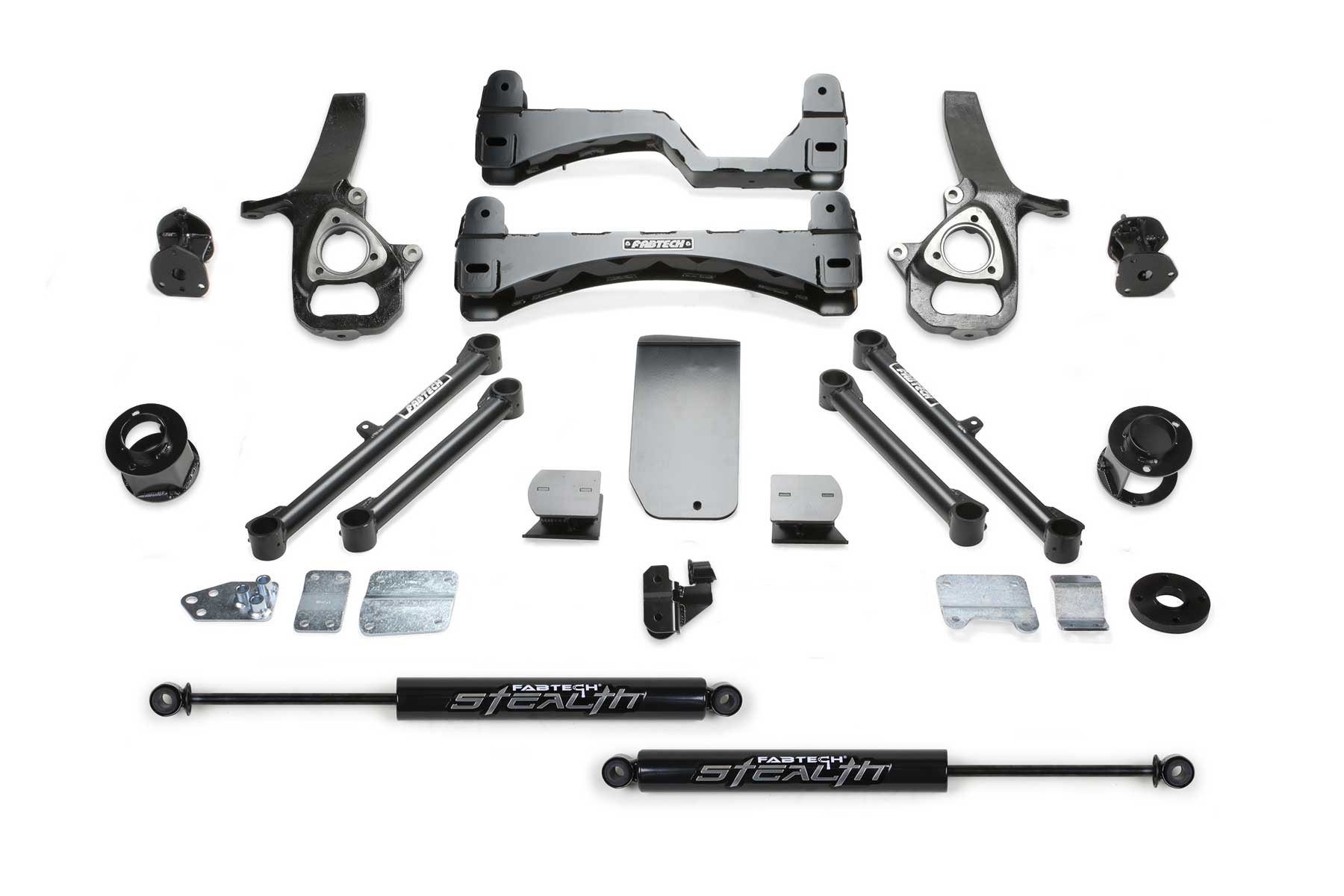

Includes:

  • 1 x fabFTS23038 Fabtech 13-17 Ram 1500 4WD 6in Basic System - Component Box 3
  • 1 x fabFTS23200 Fabtech 2019 Ram 1500 4WD 6in Lift System - Component Box 1
  • 1 x fabFTS23201 Fabtech 2019 Ram 1500 4WD 6in Lift System - Component Box 2
  • 2 x fabFTS6353 Fabtech 2019 Ram 1500 Rear Stealth Shock Absorber
