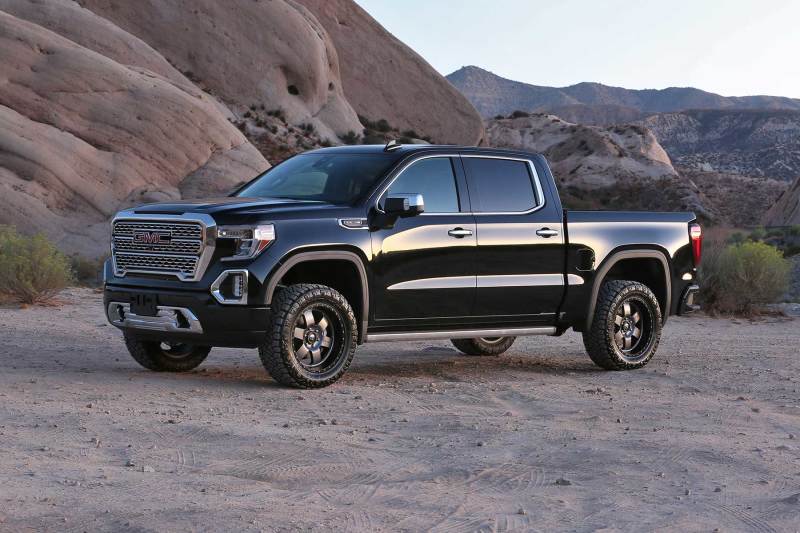

This quality Upper Control Arm system provides a 3" increased ride height over stock without creating suspension bind at full droop. Lift is accomplished with spacers that utilizes the factory coilover shocks for a stock ride.

The Fabtech Upper Control Arms address the geometry of the front suspension with the new ride height for proper align-ability. Heavy duty ball joints allow for extended travel to eliminate binding.

Due to the GM suspension geometry there are no differential drop brackets required for the CV axles to operate properly. Rear lift comes from 1.5" blocks and u-bolts.

FEATURES

• Value priced system with Fabtech quality
• Increased ground clearance
• Extended range upper ball joints provide a smooth quiet ride
• Increased fender clearance compared to a Leveling Kit for 33” tall tires
• Suspension can be restored to stock
• Easy installation

PART NUMBERS

ADDITIONAL INFORMATION
MAKE
CHEVY, GMC

MODEL
K1500

DRIVE
2WD, 4WD

LIFT
3"

TIRES & WHEELS

• Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
• Tire Size – 295/65R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
• Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming
• Tire Size – 295/55R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

INSTRUCTIONS
