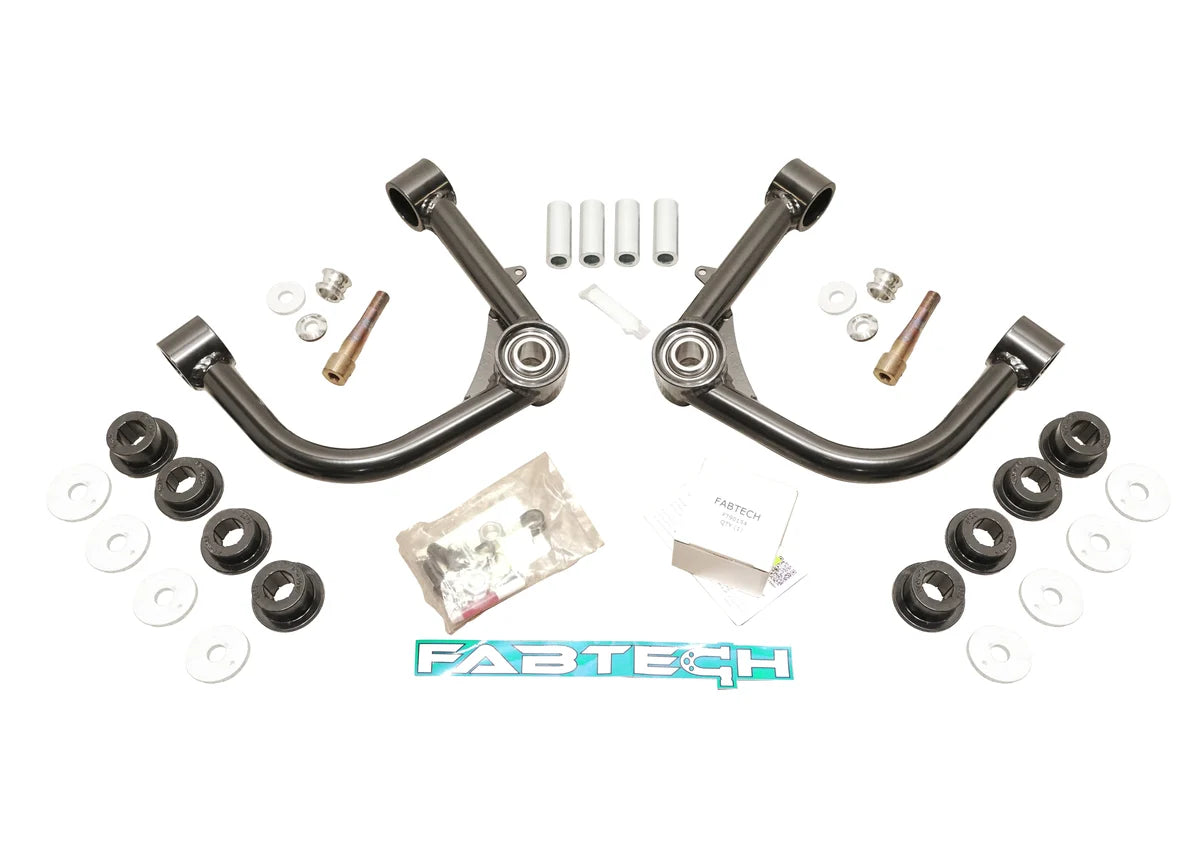

Fabtech 2024 Toyota Tacoma 4WD (Ex. TRD Pro Models) 3in Uniball Upper Control Arm Kit

Fabtech 2024 Toyota Tacoma 4WD (Ex. TRD Pro Models) 3in Uniball Upper Control Arm Kit

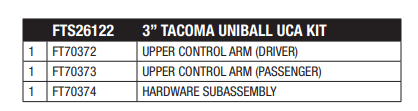

FTS26122 3” TACOMA UNIBALL UCA KIT
1 FT70372 UPPER CONTROL ARM (DRIVER)
1 FT70373 UPPER CONTROL ARM (PASSENGER)
1 FT70374 HARDWARE SUBASSEMBLY

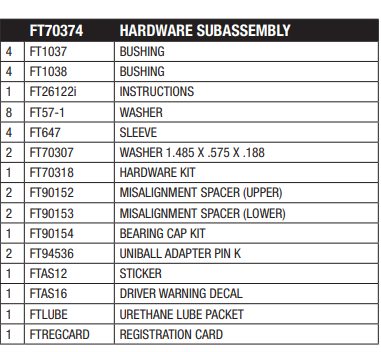

FT70374 HARDWARE SUBASSEMBLY
4 FT1037 BUSHING
4 FT1038 BUSHING
1 FT26122i INSTRUCTIONS
8 FT57-1 WASHER
4 FT647 SLEEVE
2 FT70307 WASHER 1.485 X .575 X .188
1 FT70318 HARDWARE KIT
2 FT90152 MISALIGNMENT SPACER (UPPER)
2 FT90153 MISALIGNMENT SPACER (LOWER)
1 FT90154 BEARING CAP KIT
2 FT94536 UNIBALL ADAPTER PIN K
1 FTAS12 STICKER
1 FTAS16 DRIVER WARNING DECAL
1 FTLUBE URETHANE LUBE PACKET
1 FTREGCARD REGISTRATION CARD

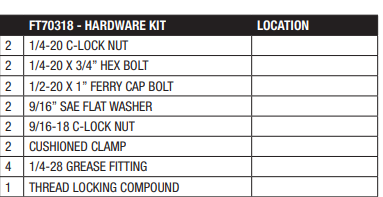

FT70318 - HARDWARE KIT LOCATION
2 1/4-20 C-LOCK NUT
2 1/4-20 X 3/4” HEX BOLT
2 1/2-20 X 1” FERRY CAP BOLT
2 9/16” SAE FLAT WASHER
2 9/16-18 C-LOCK NUT
2 CUSHIONED CLAMP
4 1/4-28 GREASE FITTING
1 THREAD LOCKING COMPOUND

Additional information

Tires & Wheels

• Tire Size – 33/12.50R18 Wheel Size – 18X9 W/4 1/2″ BS w/minor trimming
• Tire Size – 33/12.50R20 Wheel Size – 20X9 W/4 1/2″ BS w/minor trimming
