Fabtech 2024 Toyota Tacoma 4WD (Ex. TRD Pro Models) Dirt Logic 2.5 Reservoir Coilovers 3in - Pair

Fabtech 2024 Toyota Tacoma 4WD (Ex. TRD Pro Models) Dirt Logic 2.5 Reservoir Coilovers 3in - Pair

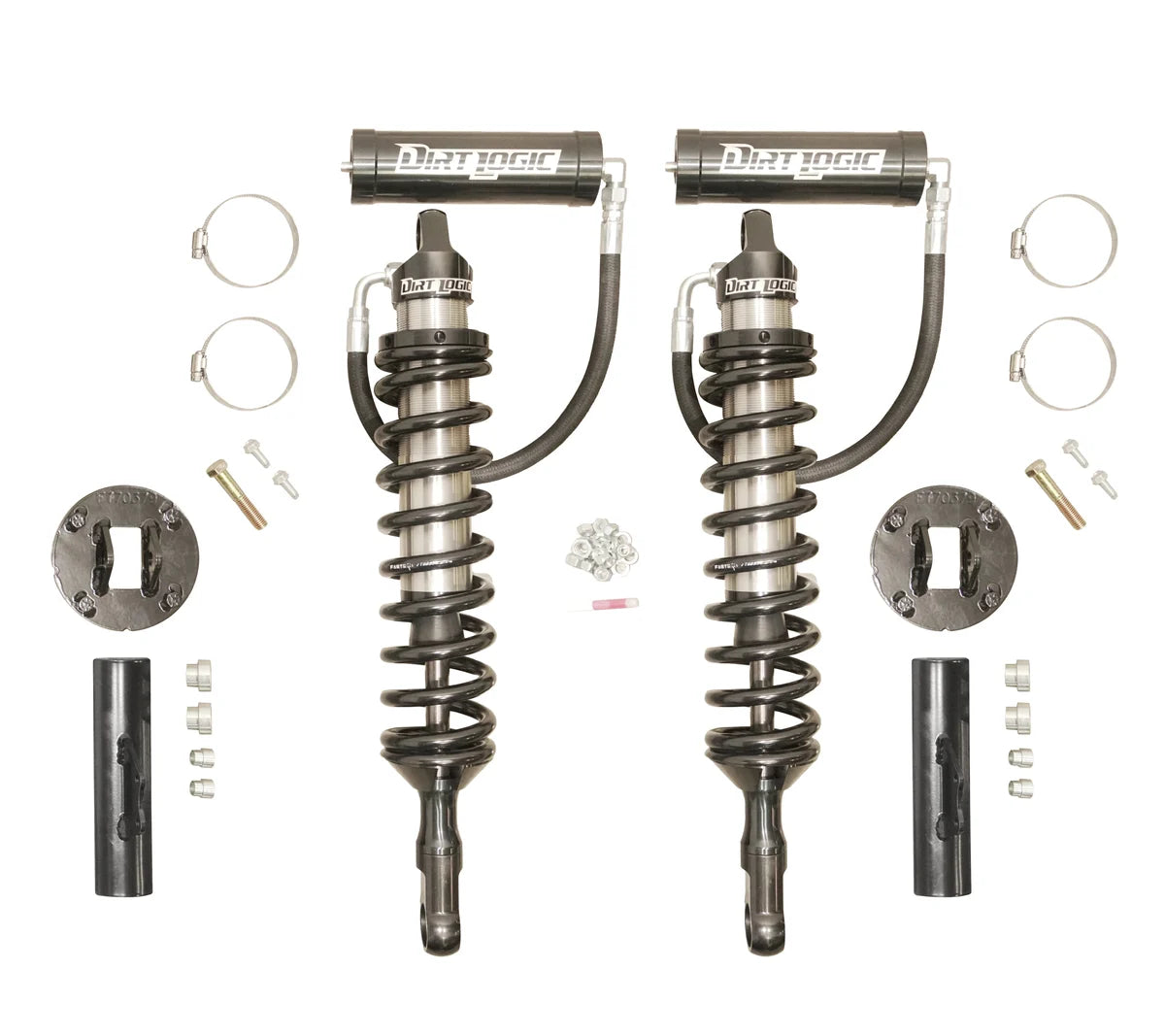

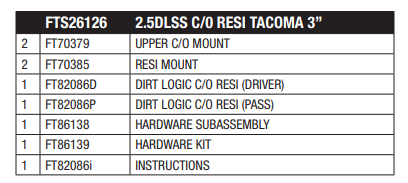

FTS26126 2.5DLSS C/0 RESI TACOMA 3”
2 FT70379 UPPER C/O MOUNT
2 FT70385 RESI MOUNT
1 FT82086D DIRT LOGIC C/O RESI (DRIVER)
1 FT82086P DIRT LOGIC C/O RESI (PASS)
1 FT86138 HARDWARE SUBASSEMBLY
1 FT86139 HARDWARE KIT
1 FT82086i INSTRUCTIONS

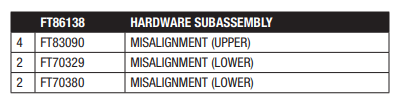

FT86138 HARDWARE SUBASSEMBLY
4 FT83090 MISALIGNMENT (UPPER)
2 FT70329 MISALIGNMENT (LOWER)
2 FT70380 MISALIGNMENT (LOWER)

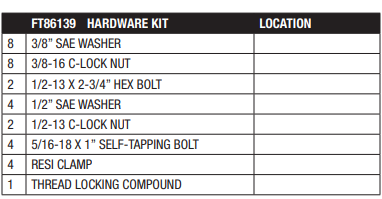

FT86139 - HARDWARE KIT LOCATION
8 3/8” SAE WASHER
8 3/8-16 C-LOCK NUT
2 1/2-13 X 2-3/4” HEX BOLT
4 1/2” SAE WASHER
2 1/2-13 C-LOCK NUT
4 5/16-18 X 1” SELF-TAPPING BOLT
4 RESI CLAMP
1 THREAD LOCKING COMPOUND

Additional information

Tires & Wheels

• Tire Size – 33/12.50R18 Wheel Size – 18X9 W/4 1/2″ BS w/minor trimming
• Tire Size – 33/12.50R20 Wheel Size – 20X9 W/4 1/2″ BS w/minor trimming

FOOTNOTES

Some models may not sit level after install.
 Does not fit TRD Pro models.
 Does not fit models equipped with Adaptive Variable Suspension (AVS) Shocks.
 Does not fit models with rear leaf springs.
 Does not fit TrailHunter models.
