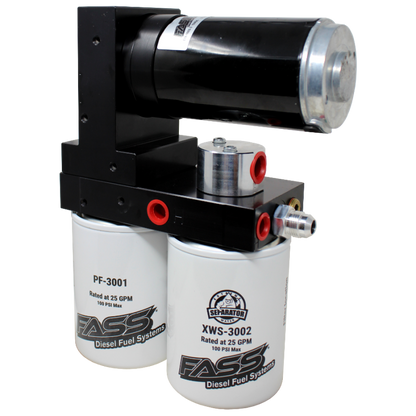

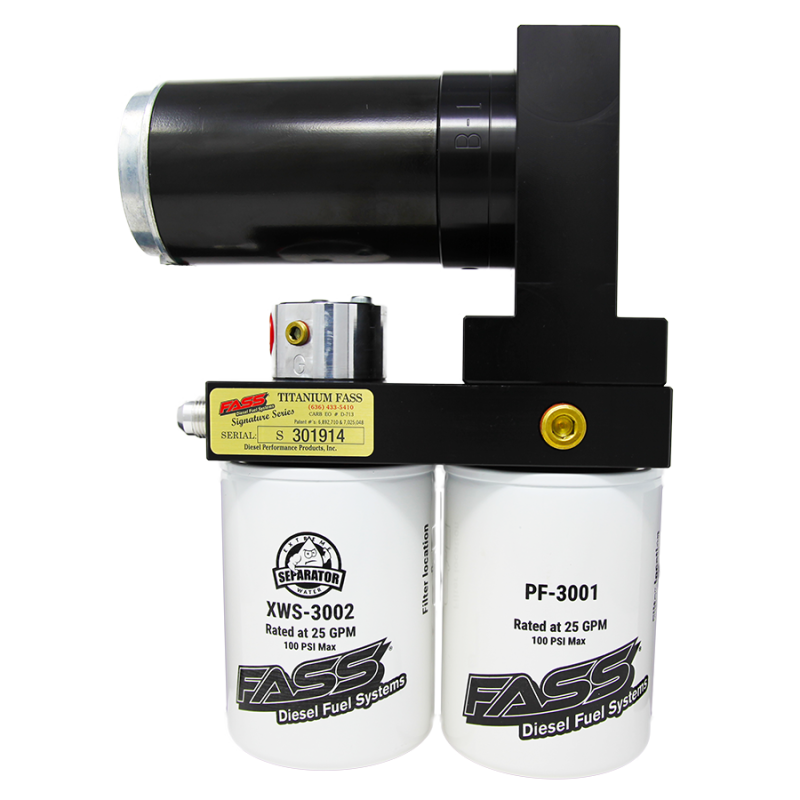

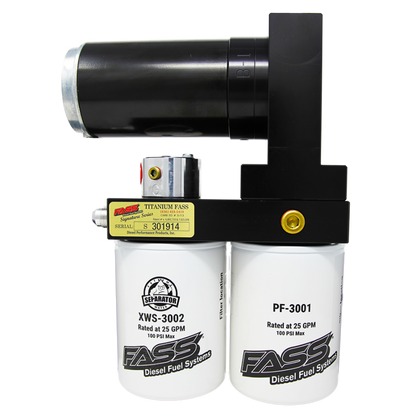

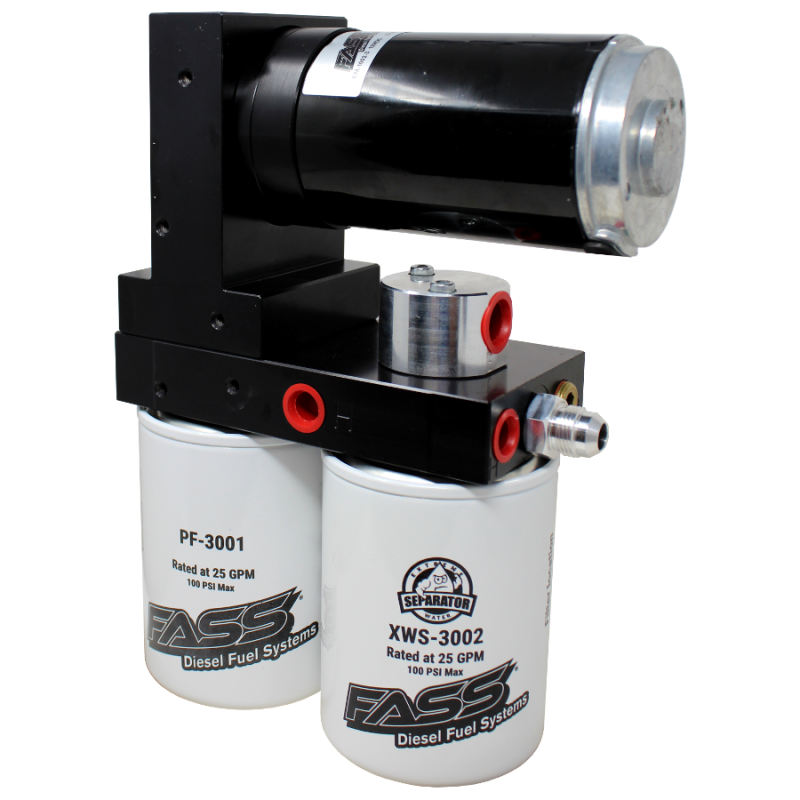

FASS Titanium Signature Series 220 GPH Diesel Fuel System for 2017-2022 Ford F-250/F-350 Power Stroke - TSF18250F220G

The FASS Titanium Signature Series TSF18250F220G is an application-specific diesel lift-pump and filtration system for 2017-2022 Ford F-250/F-350 Power Stroke. The supplied catalog rates this configuration at 250F / 220 GPH / 65 PSI. It is designed to improve fuel delivery while separating entrained air and vapor and providing high-efficiency diesel filtration before fuel reaches the injection system.

Key Features

• Patented FASS air and vapor separation process
• Diesel particulate filtration down to 2 microns absolute
• Removes over 99% of free water from diesel fuel
• Improves fuel lubricity by at least 10% by removing entrained air and vapor
• Application-specific fuel lines, fittings, and mounting configuration should be verified before installation

Specifications

• Brand: FASS Diesel Fuel Systems
• Product Type: Titanium Signature Series Fuel System
• Series: Titanium Signature Series
• Manufacturer Part Number: TSF18250F220G
• Store SKU: fassTSF18250F220G
• Fitment / Application: 2017-2022 Ford F-250/F-350 Power Stroke
• Flow / Pressure: 250F / 220 GPH / 65 PSI
• Catalog Performance Level: Super Extreme
• Additional Notes: Cab-and-chassis applications may require modifications.; Fuel pressure and flow may be adjustable with the appropriate spring change.

Fitment and Compatibility

Verify the complete year, model, engine, cab/bed configuration, horsepower demand, fuel-tank setup, and required operating pressure before ordering. Matching only the year range does not guarantee fitment.
