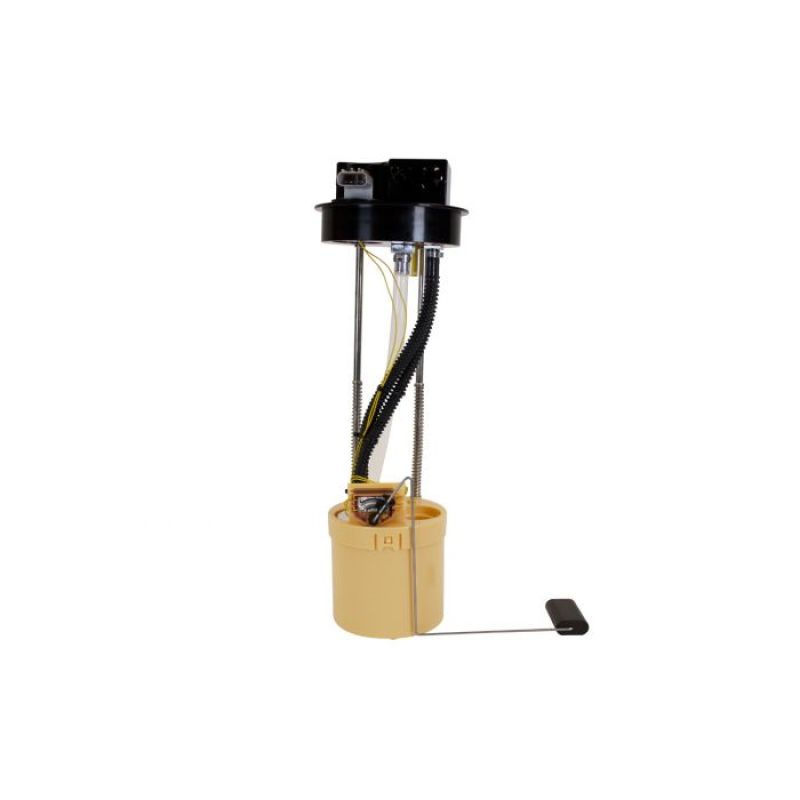

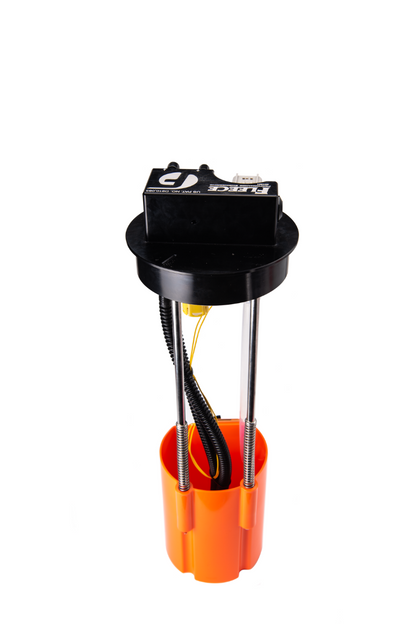

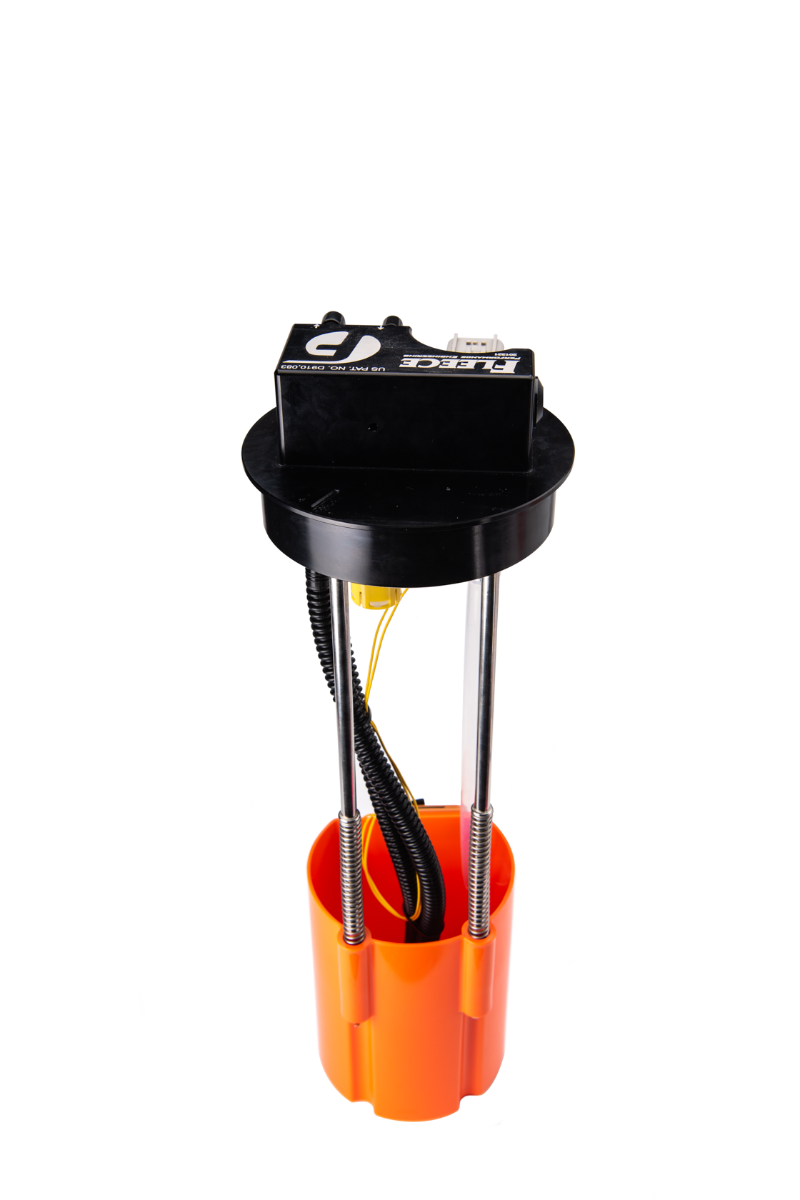

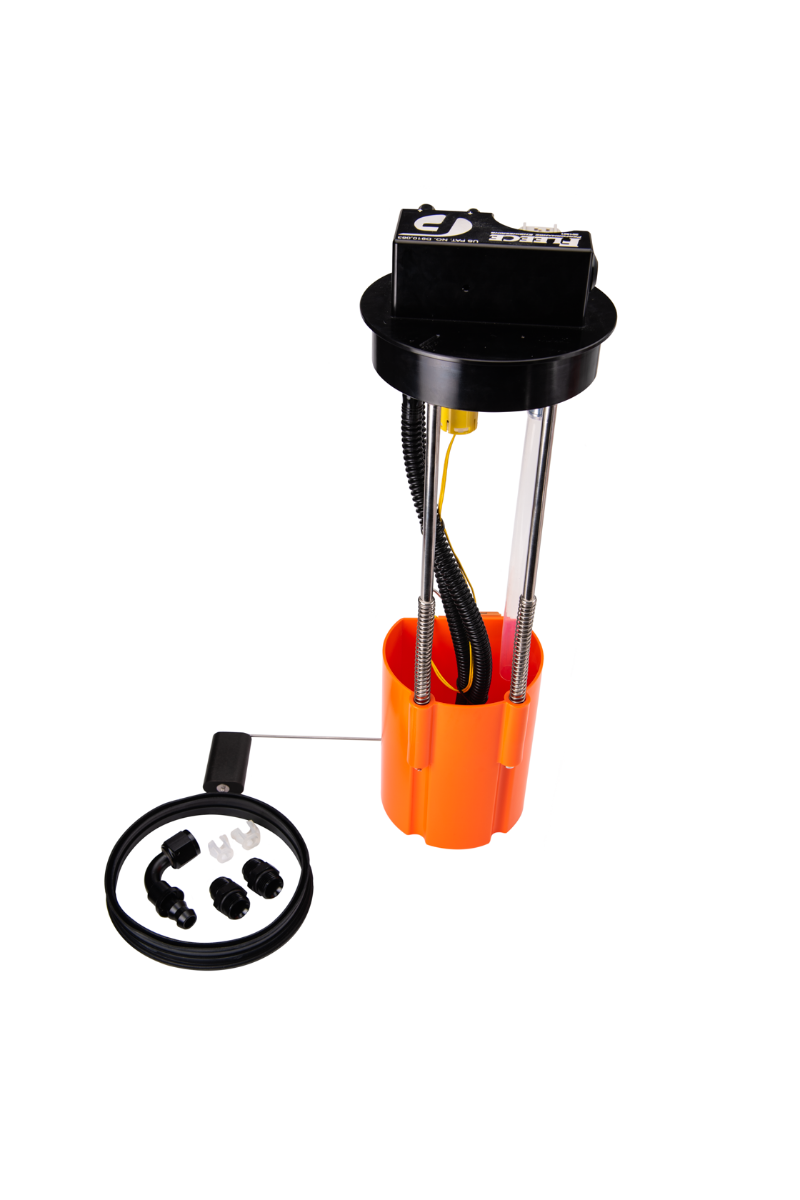

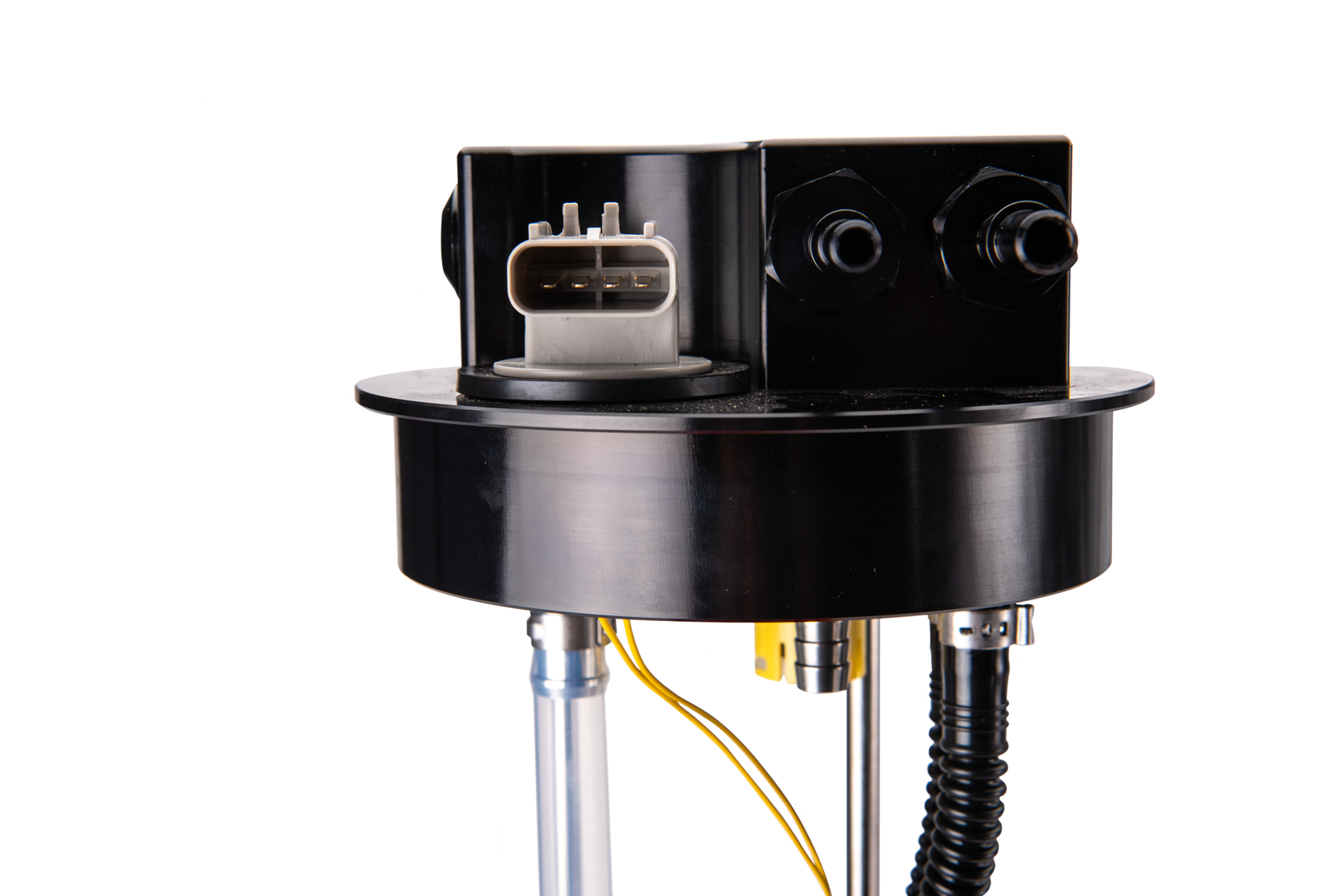

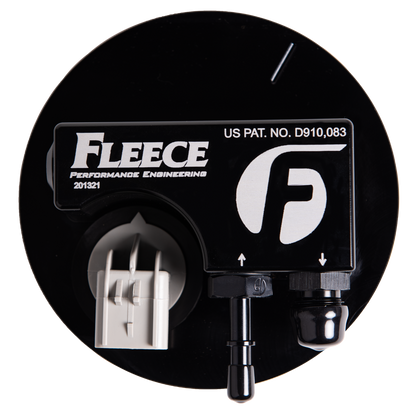

Fleece SureFlo Sending Unit for 2003-2004 Dodge Ram 2500/3500 - FPE-SF-CUMM-0304

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-CUMM-0304
• Product Type: Performance sending unit
• Tank Location: In-tank
• Port Size: Dual -8 AN

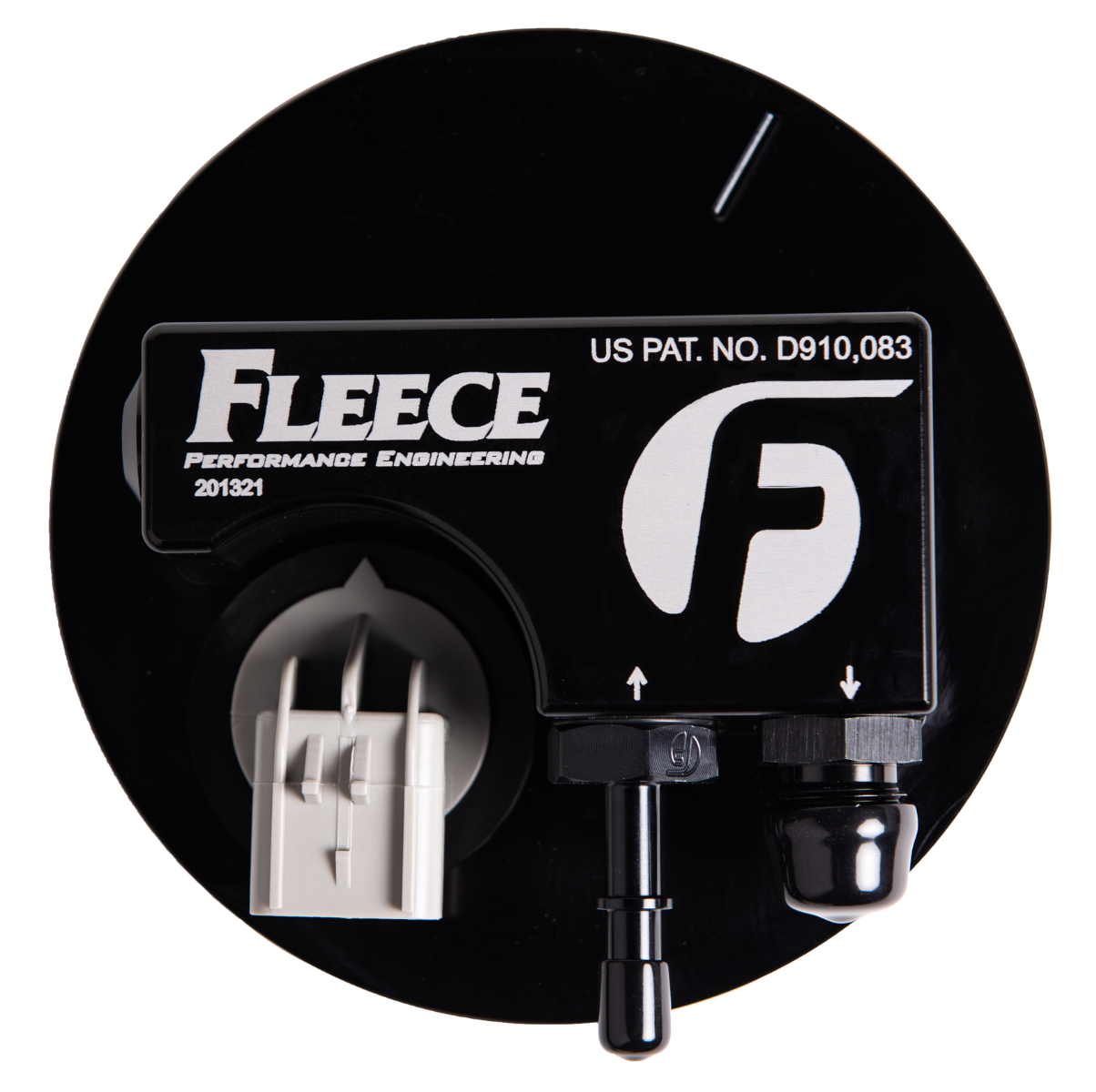

• Cap Material: Billet aluminum
• Fuel Sender: New electronics and float included

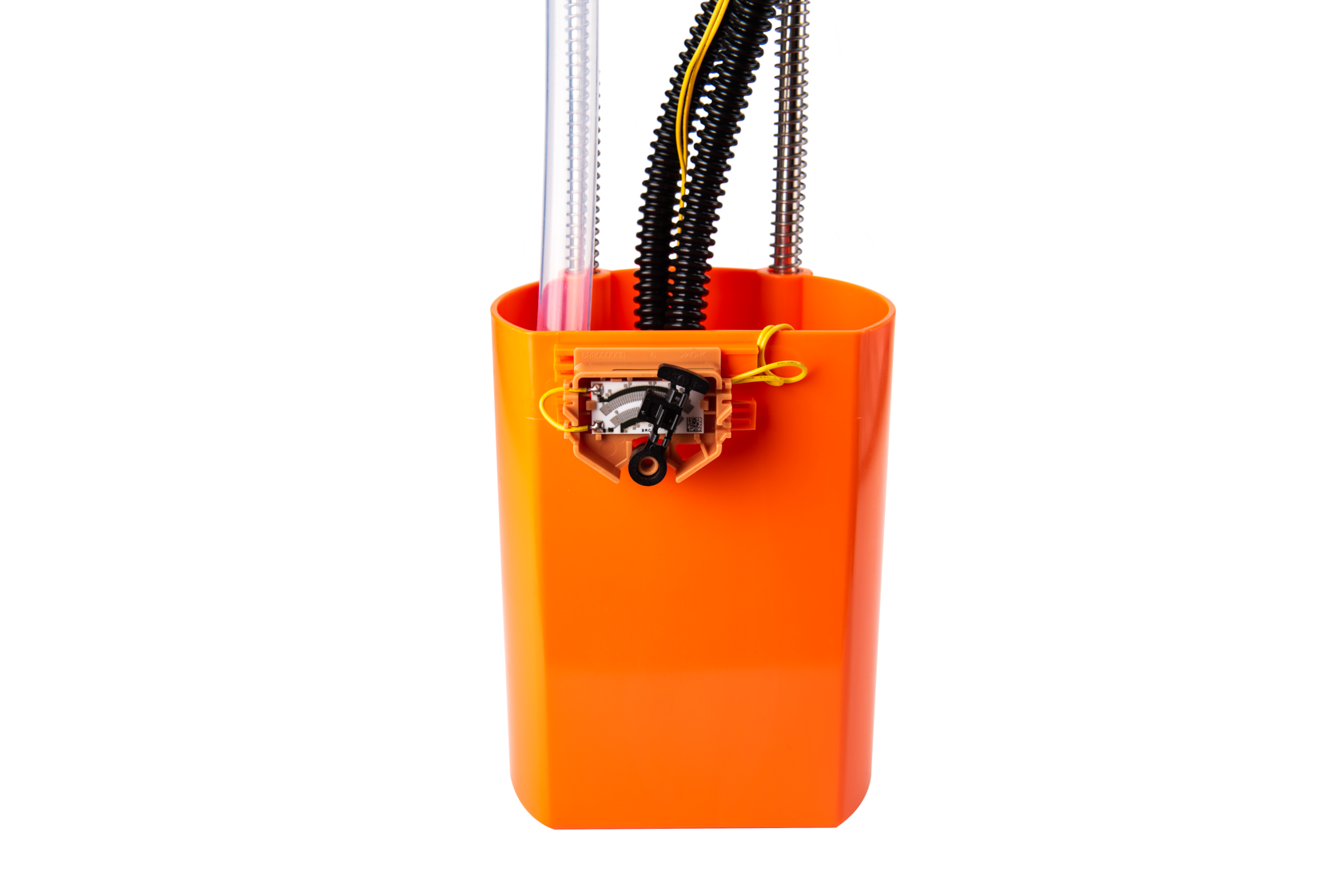

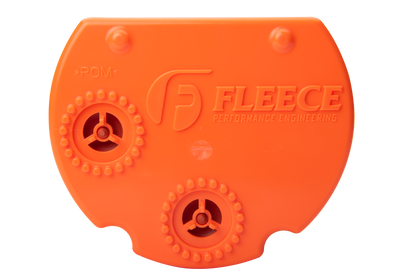

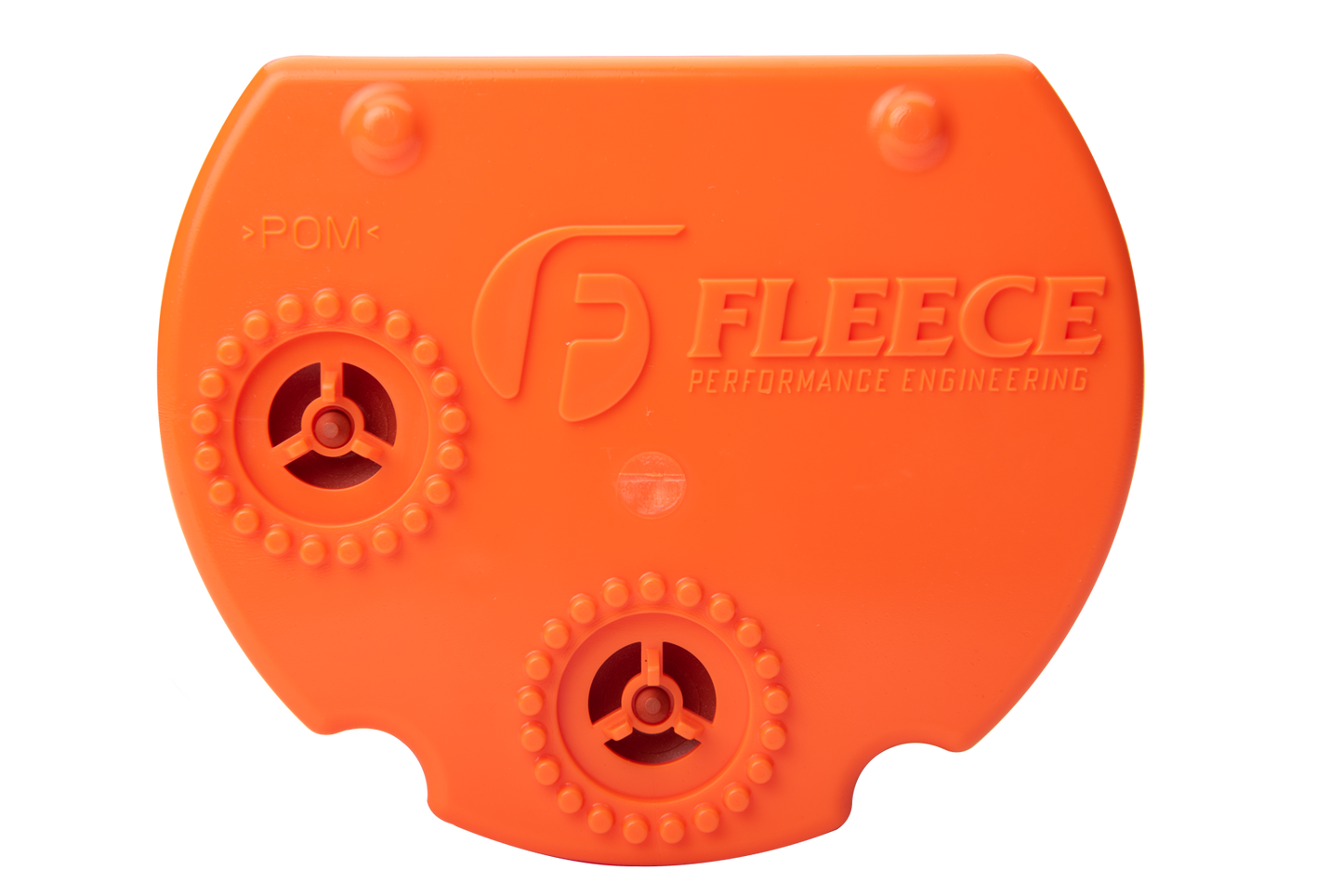

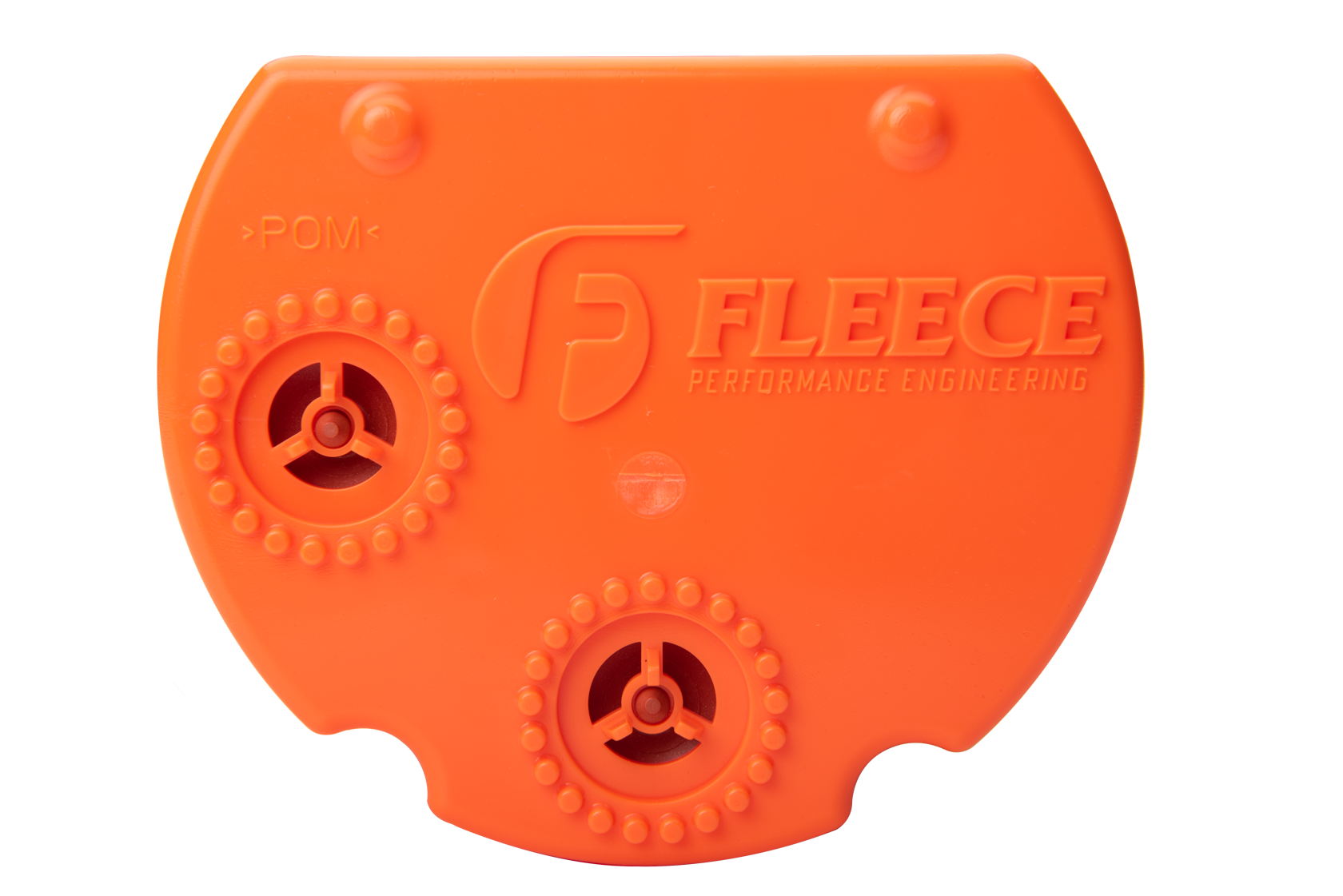

• Fuel Pickup: Integrated bucket with one-way check valves
• Fuel Line Connection: Factory-style quick disconnects
• Installation: No tank cutting, drilling, sump, or draw straw required
• Pump Use: External aftermarket lift pumps or custom fuel systems
• AirDog Compatibility: Tested up to 220 GPH
• FASS Compatibility: Tested up to 290 GPH
• Seal Included: New O-ring or flange seal
• Float Arm Note: Float arm is positioned opposite the factory sending unit
• Aftermarket Tank Fitment: Refer to Fleece fitment data for Titan and S&B fuel tanks
• Warranty: 1-year limited parts warranty

Fitment:

• 2003-2004 Dodge Ram 2500 5.9L 24-Valve Cummins
• 2003-2004 Dodge Ram 3500 5.9L 24-Valve Cummins

Upgrade the fuel pickup system in your 2003-2004 Dodge Ram 2500 or 3500 Cummins with the Fleece Performance SureFlo Sending Unit. Part FPE-SF-CUMM-0304 installs in the factory sending-unit location for a clean connection to an external aftermarket lift pump or custom fuel lines. Its integrated fuel bucket draws and returns fuel at the bottom of the tank to help reduce air ingestion and quarter-tank fuel supply issues, without drilling the tank or adding a sump or draw straw. New fuel-level electronics and a float are included for reliable fuel-gauge operation.
