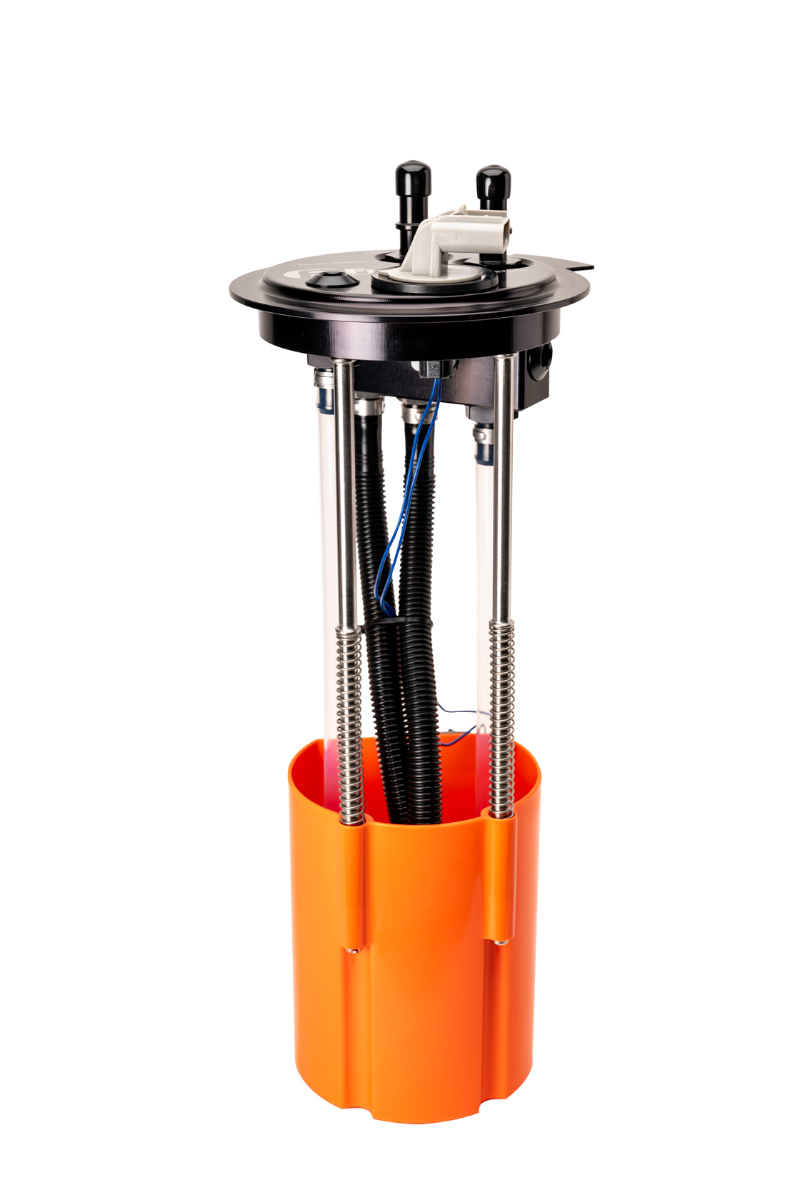

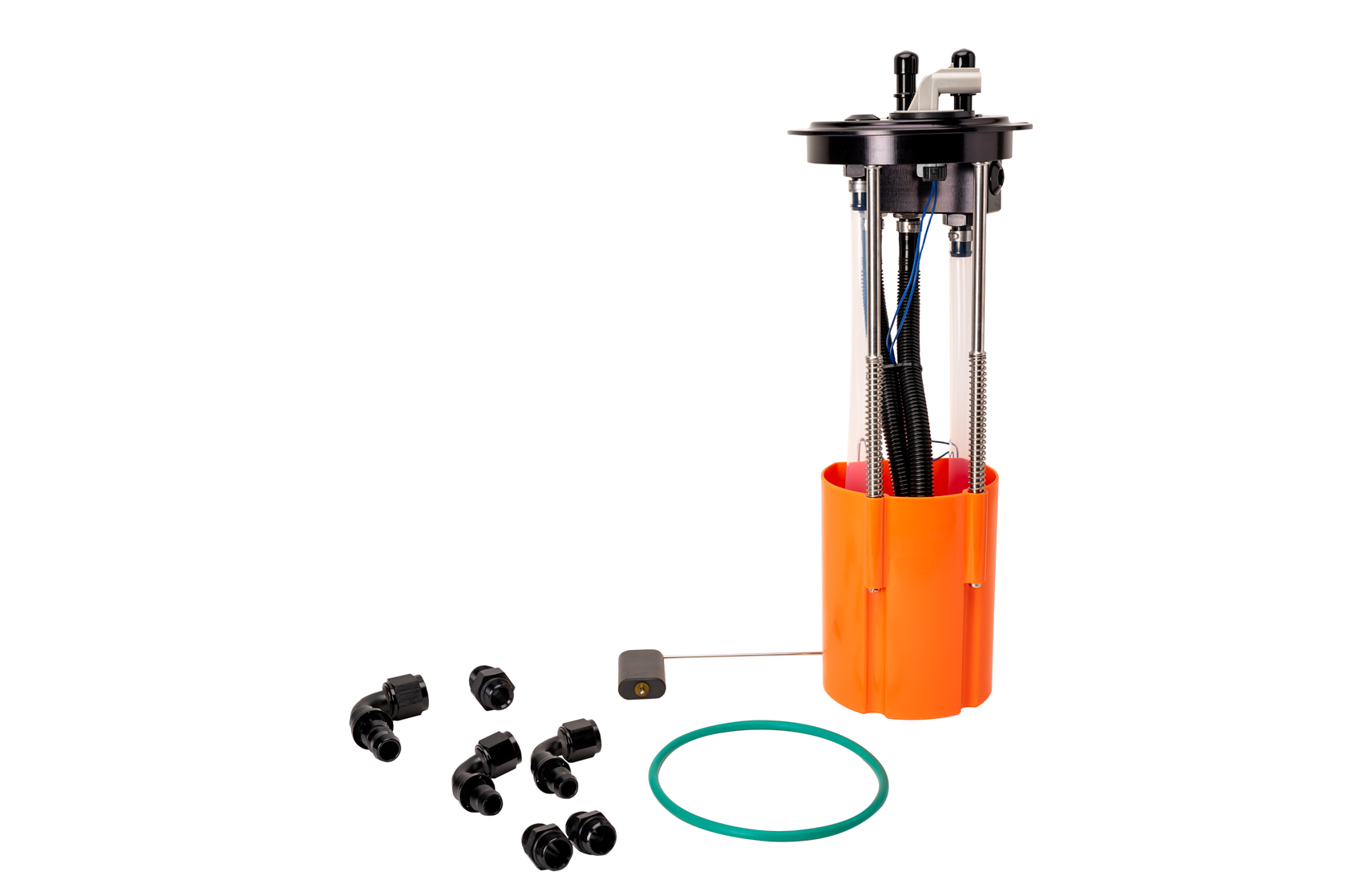

Fleece SureFlo Sending Unit for 2011-16 Ford F-250/F-350/F-450 Short Bed - FPE-SF-FMC-1116-SB

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-FMC-1116-SB
• Product Type: Performance fuel sending unit
• Tank Location: In-tank
• Bed Fitment: Short bed

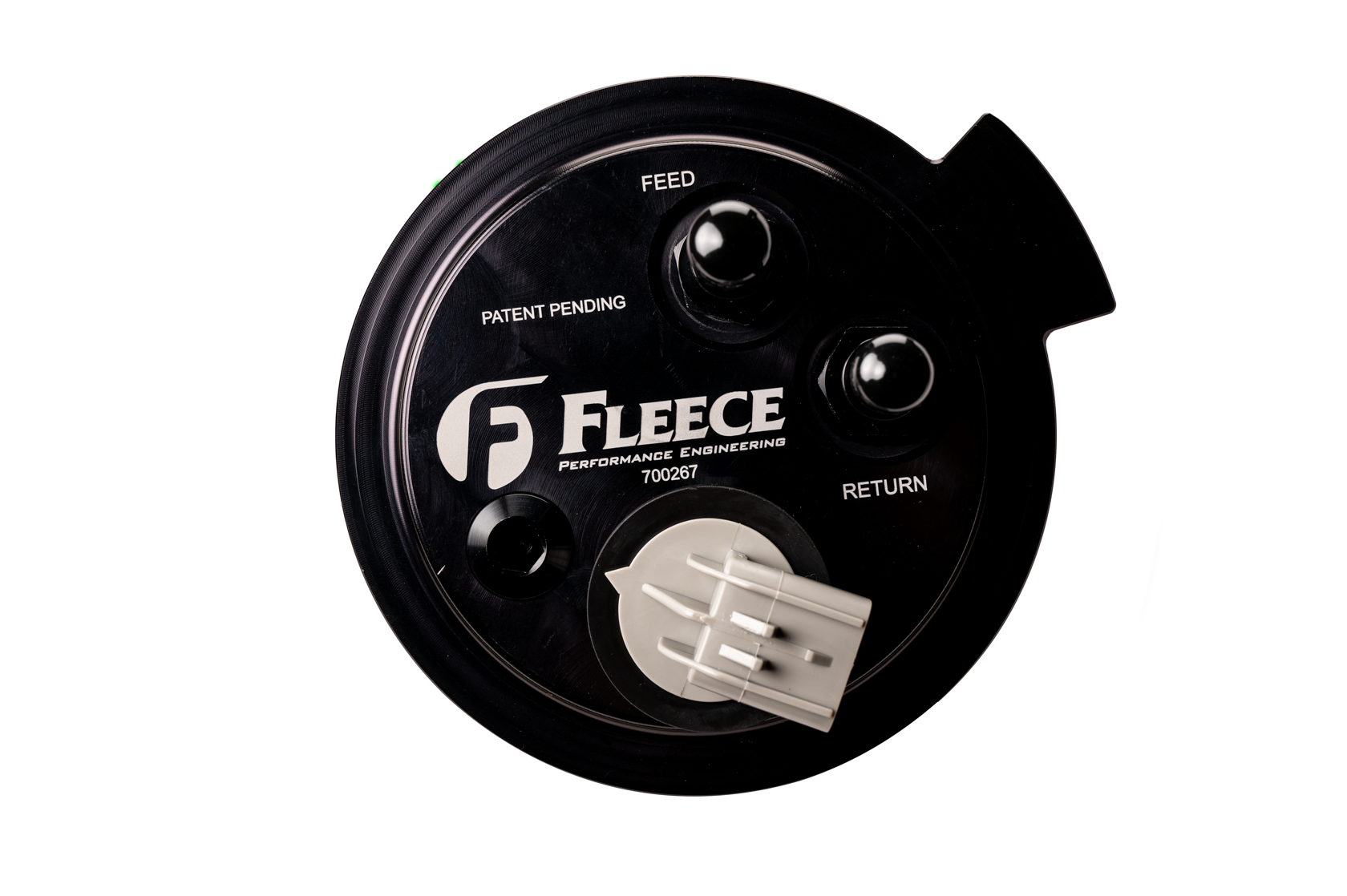

• Port Size: Dual -8 AN ports

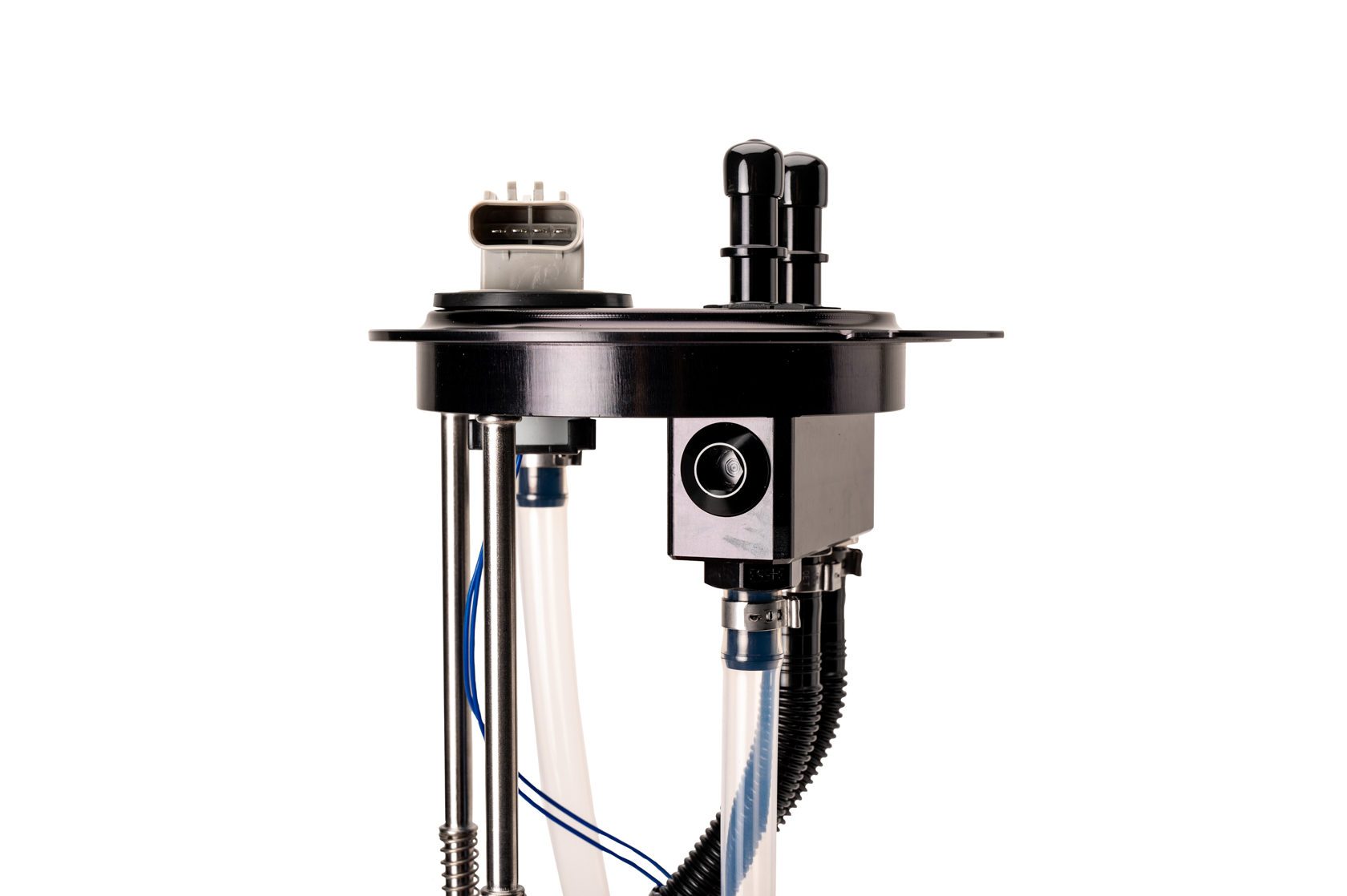

• Cap Material: Billet aluminum

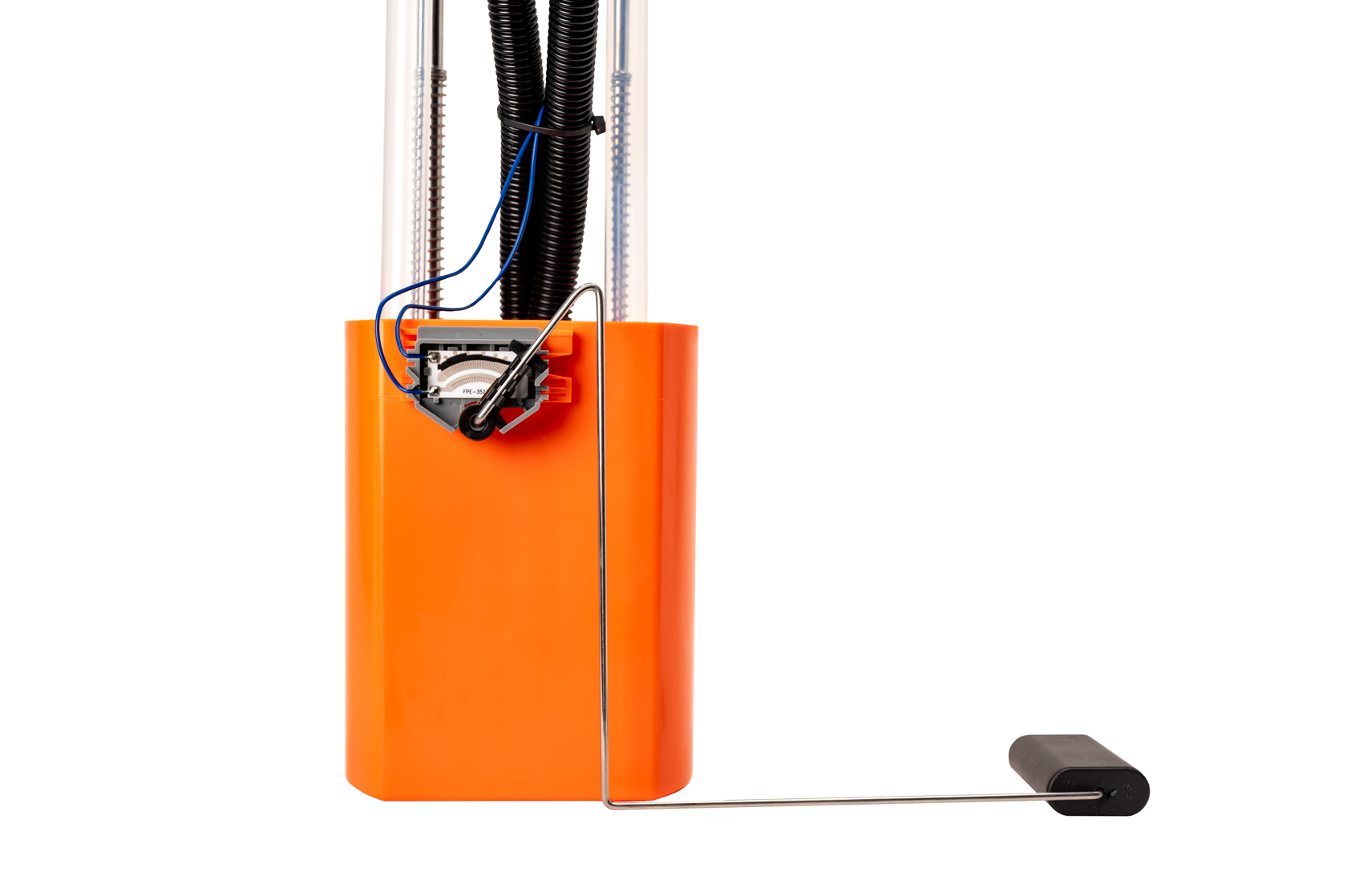

• Fuel Level Sender: New electronics and float included
• Fuel Line Connection: Factory-style quick disconnects

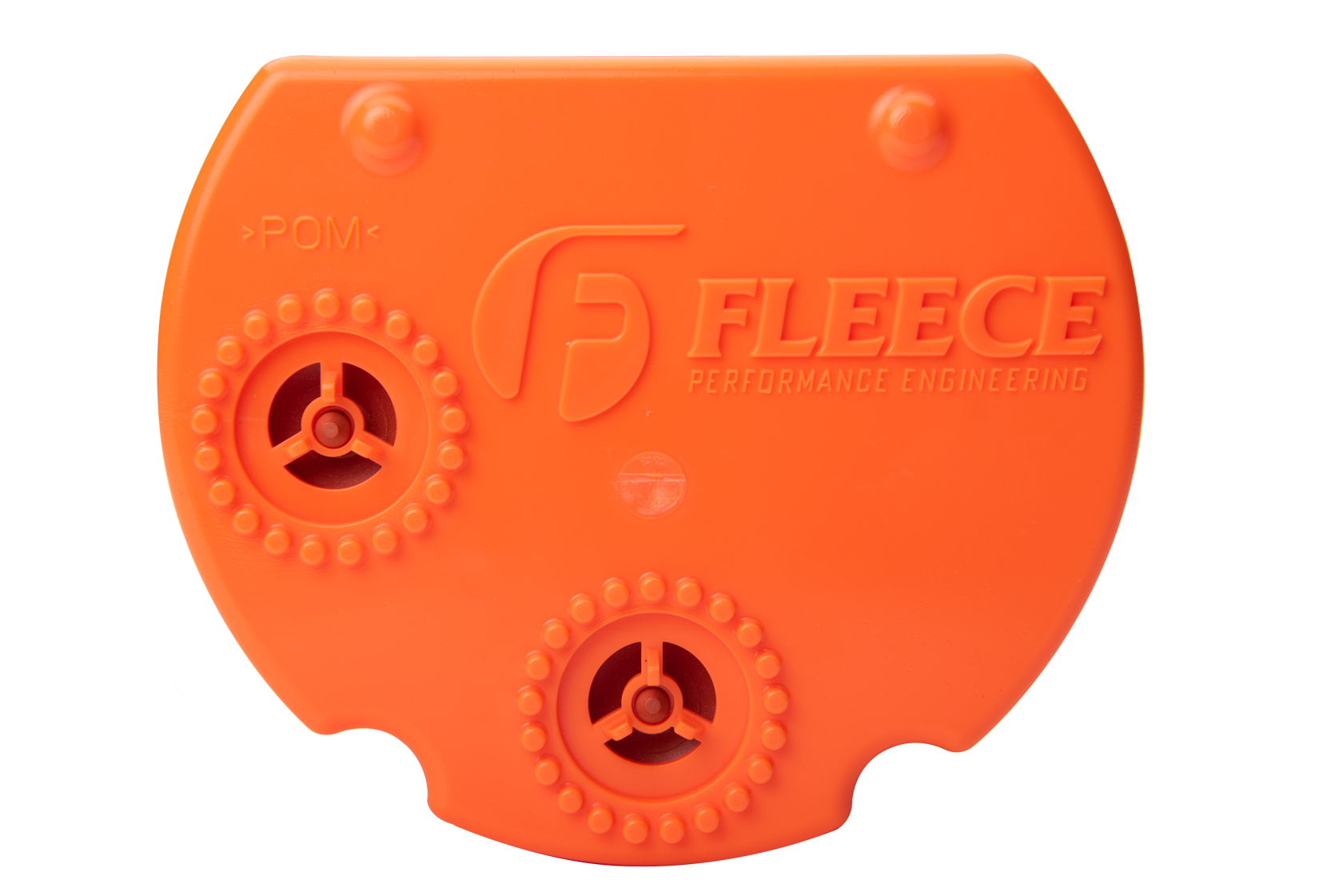

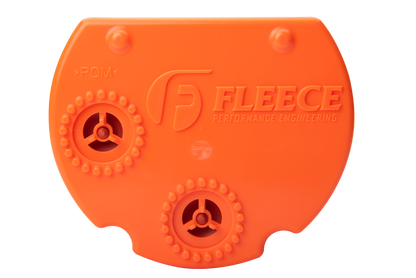

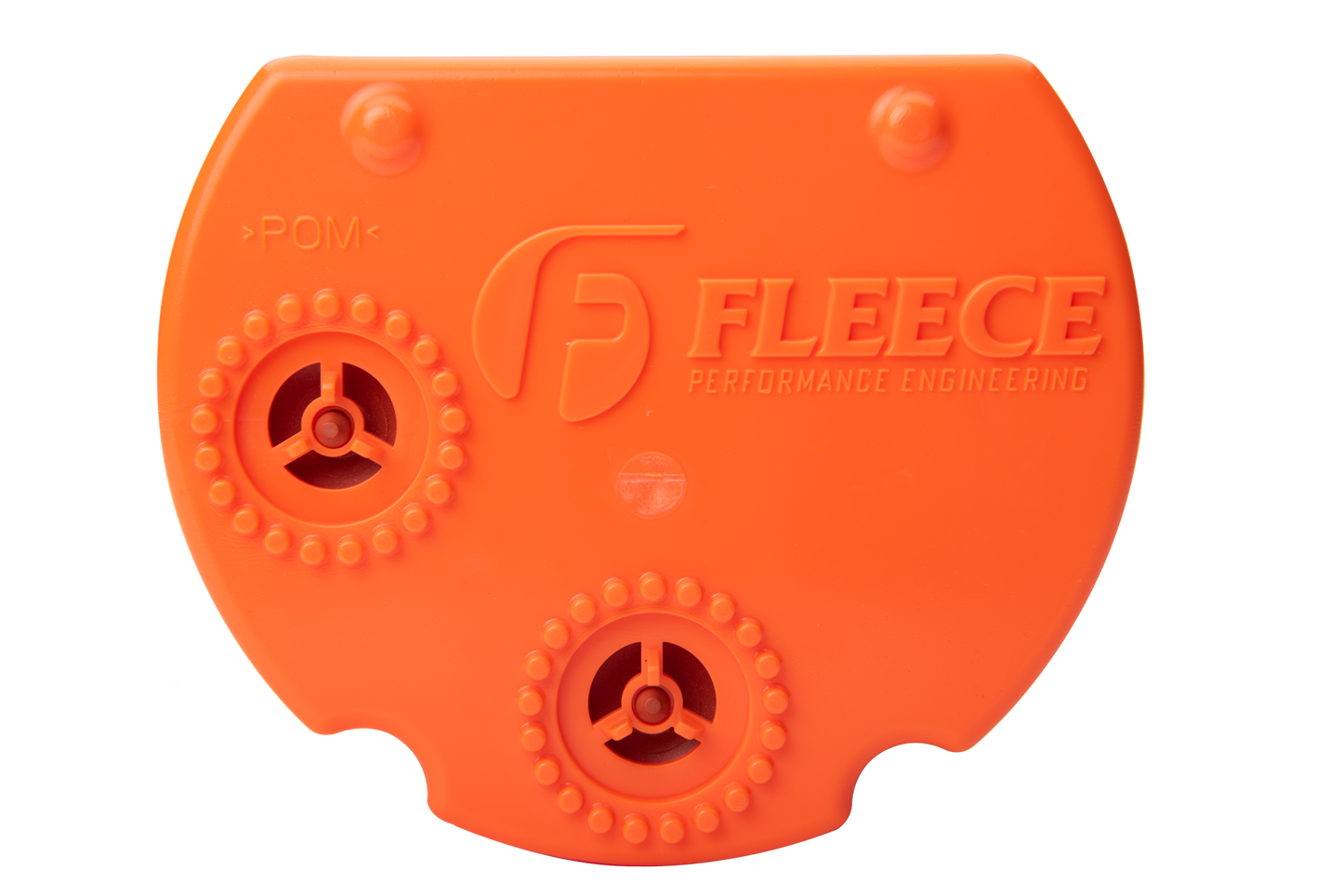

• Fuel Pickup: Integrated bucket with one-way check valves
• Installation: No tank cutting, drilling, sump, or draw straw required
• Aftermarket Pump Use: Designed for external lift pump systems
• Tested Pump Compatibility: AirDog II-5G and FASS 140/180 GPH high-pressure pumps
• Flow Capacity: Tested with pump configurations up to 240 GPH
• Aftermarket Tank Fitment: Confirmed for Titan and S&B fuel tanks
• OEM Replacement Numbers: BC3Z-9275-A, BC3Z-9A299-A
• Important Note: Not for Cab & Chassis applications

Fitment:

• 2011-2016 Ford F-250 Super Duty 6.7L Power Stroke (Short Bed)
• 2011-2016 Ford F-350 Super Duty 6.7L Power Stroke (Short Bed)
• 2011-2016 Ford F-450 Super Duty 6.7L Power Stroke (Short Bed)

The Fleece Performance SureFlo Sending Unit provides a clean, direct-fit fuel pickup solution for 2011-2016 Ford F-250, F-350, and F-450 short bed trucks running an external aftermarket lift pump. It installs in the factory sending-unit location without drilling the tank or adding a sump or draw straw. The integrated bucket assembly draws and returns fuel at the bottom of the tank to help prevent air ingestion and common quarter-tank fuel supply issues. It also includes new fuel-level electronics and a float, making it an excellent option for replacing a failed factory sender or plumbing a custom fuel system.
