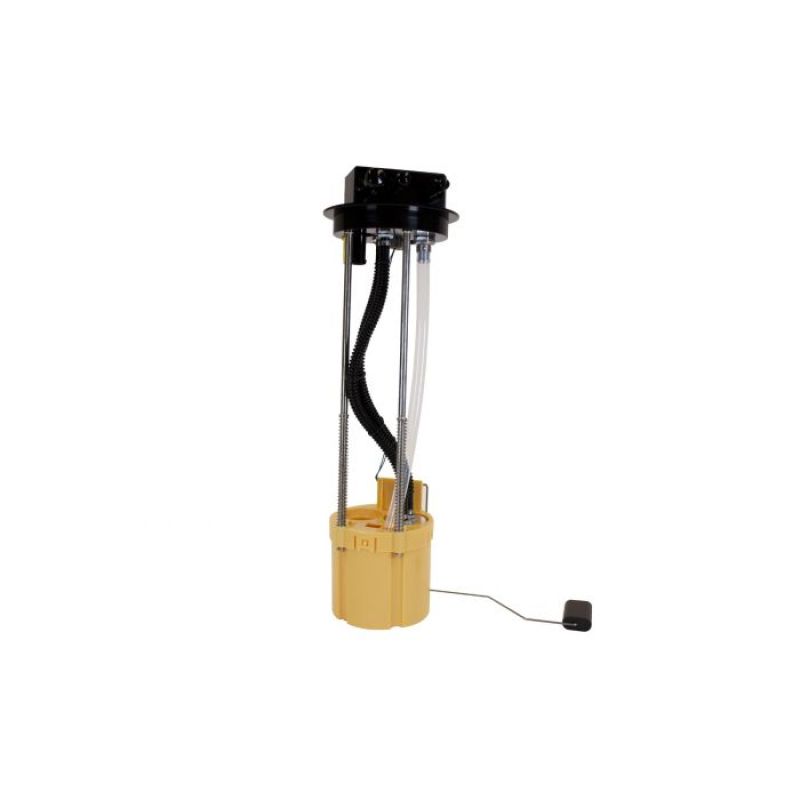

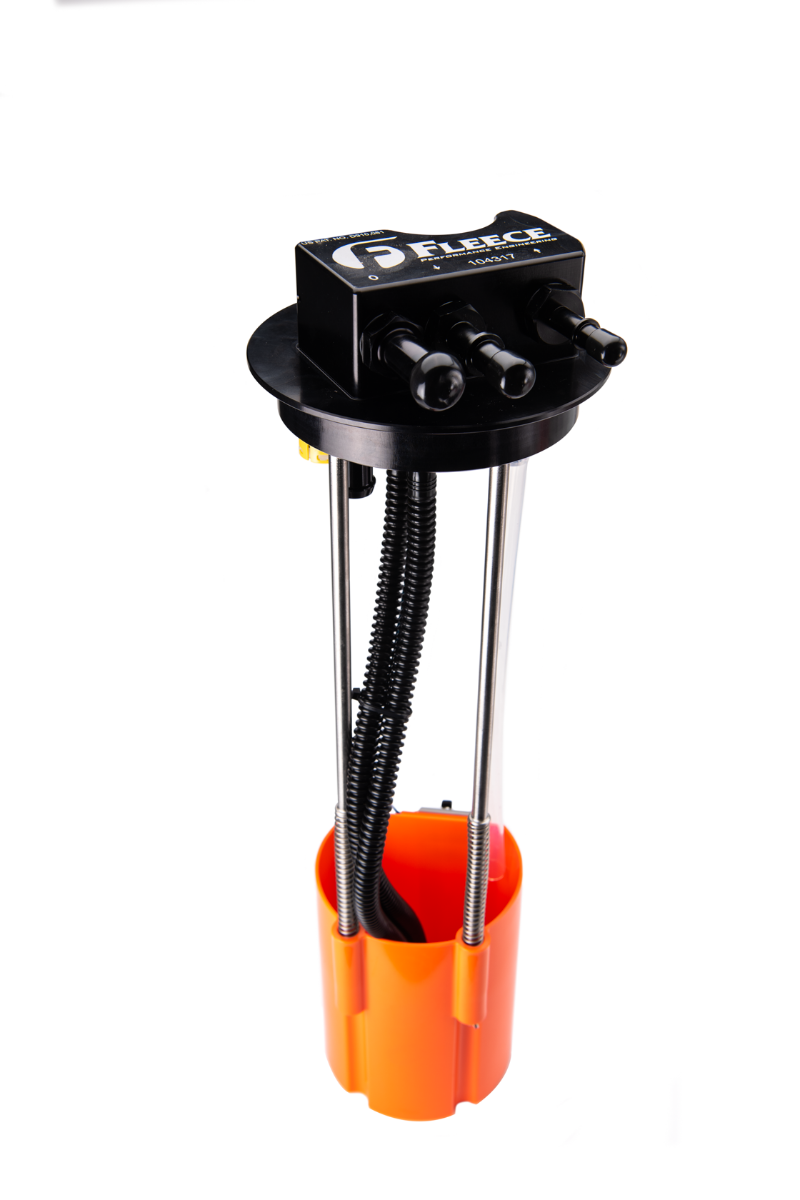

Fleece SureFlo Sending Unit 2011-16 Chevy/GMC 2500HD/3500HD Short Bed - FPE-SF-GM-1116-SB

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-GM-1116-SB
• Product Type: Performance sending unit
• Lift Pump Included: No
• Tank Location: In-tank
• Bed Fitment: Short bed

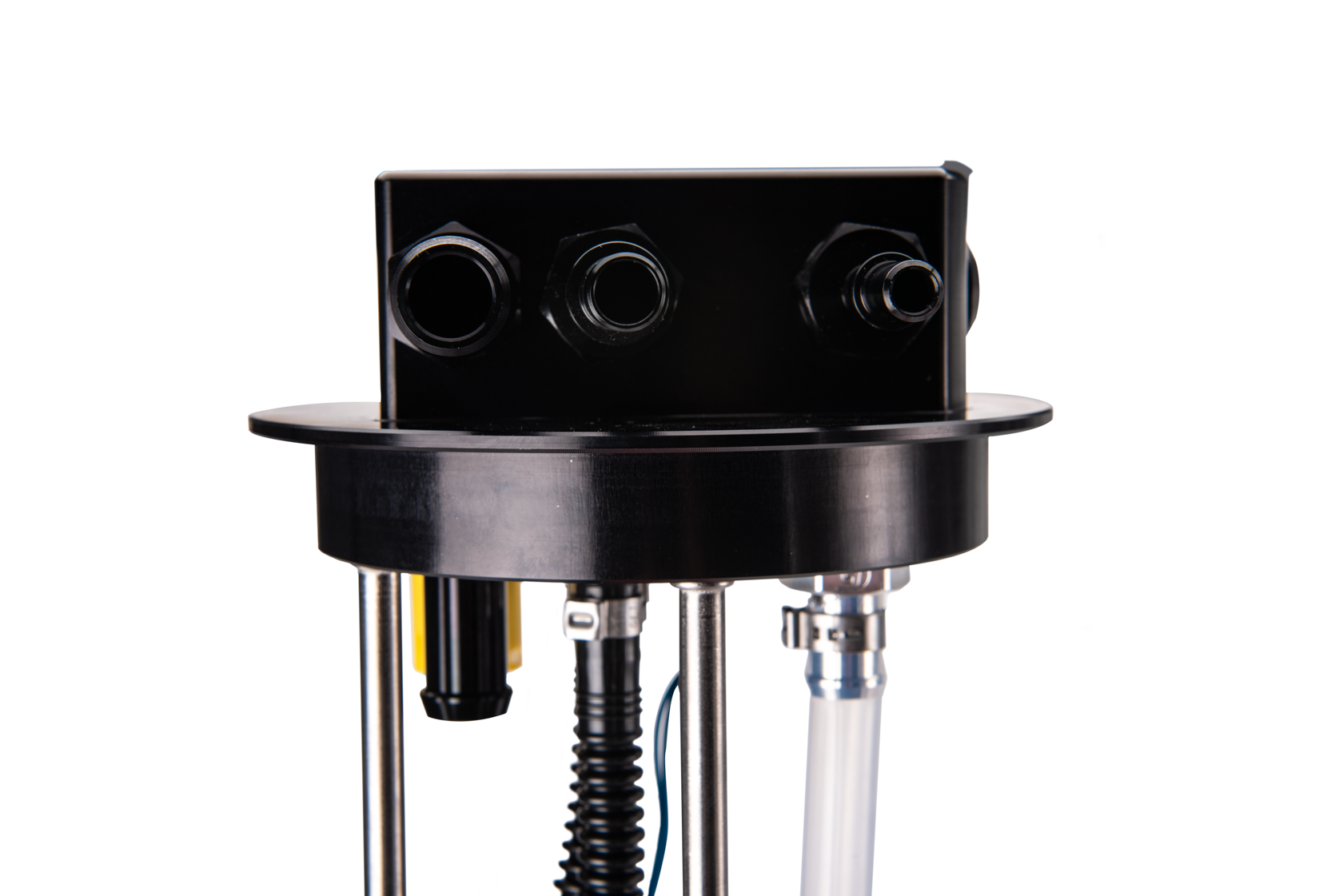

• Port Size: Dual -8 AN

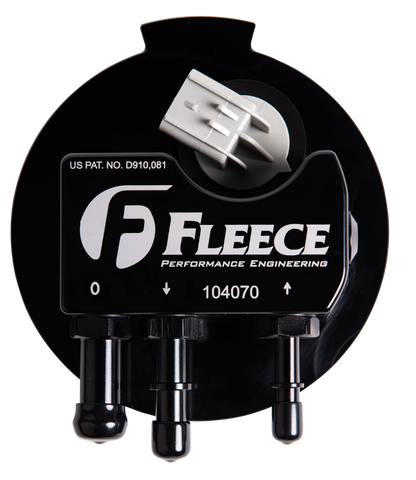

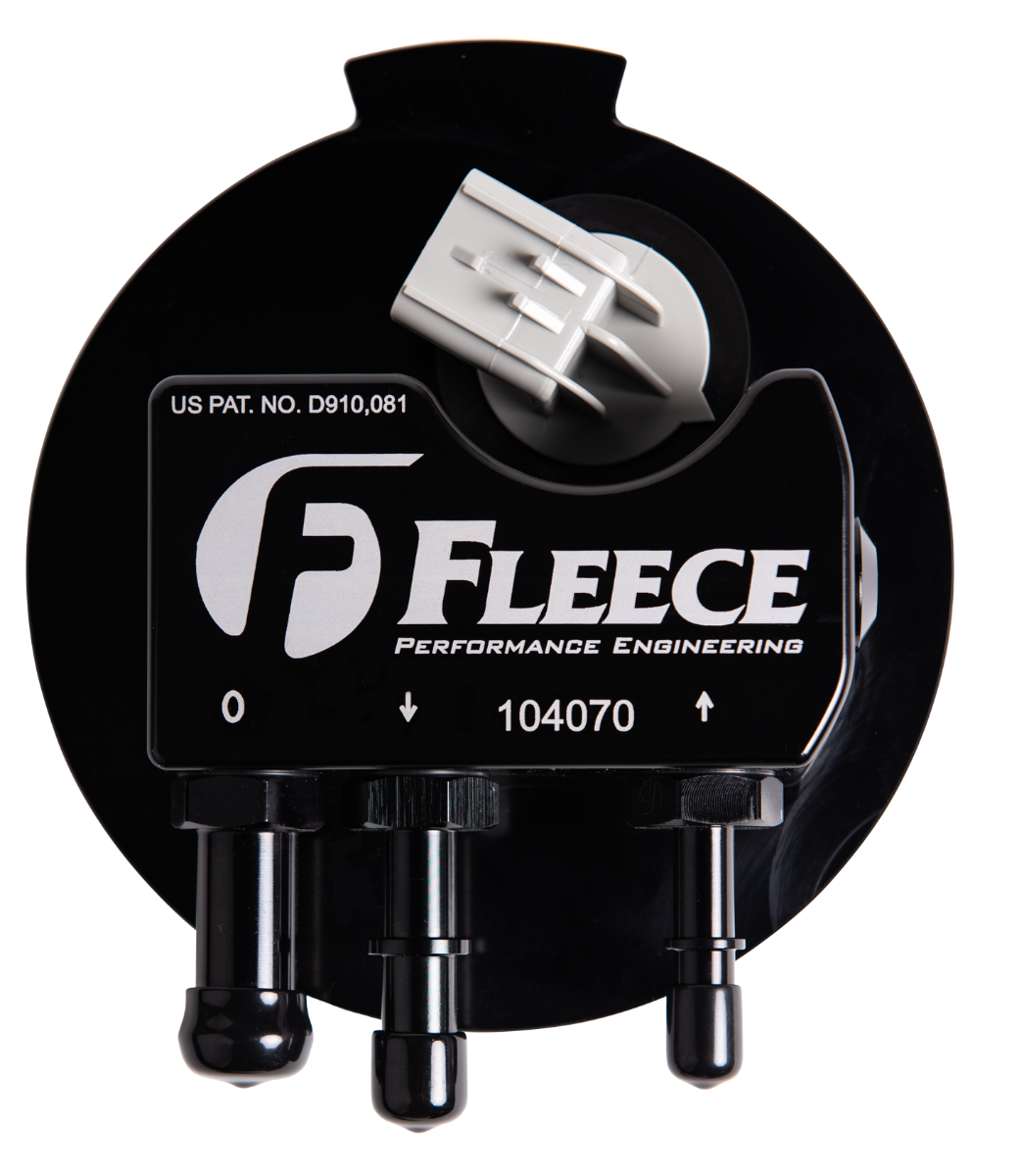

• Cap Material: Billet aluminum
• Fuel Sender: New level electronics and float

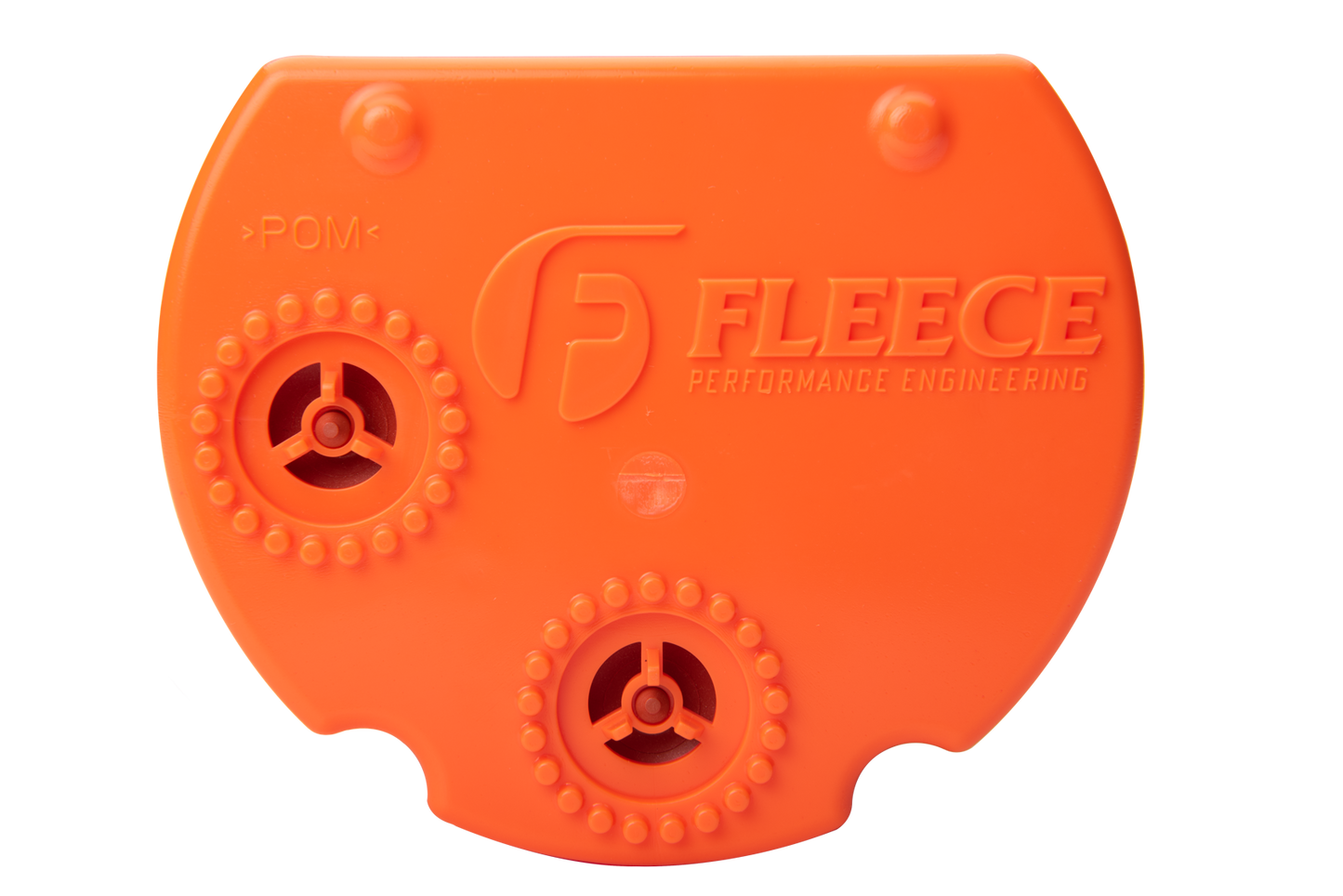

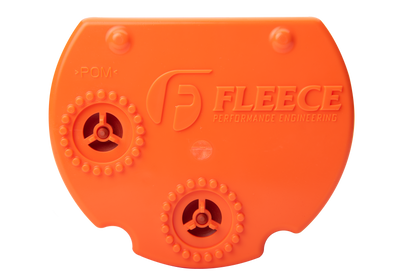

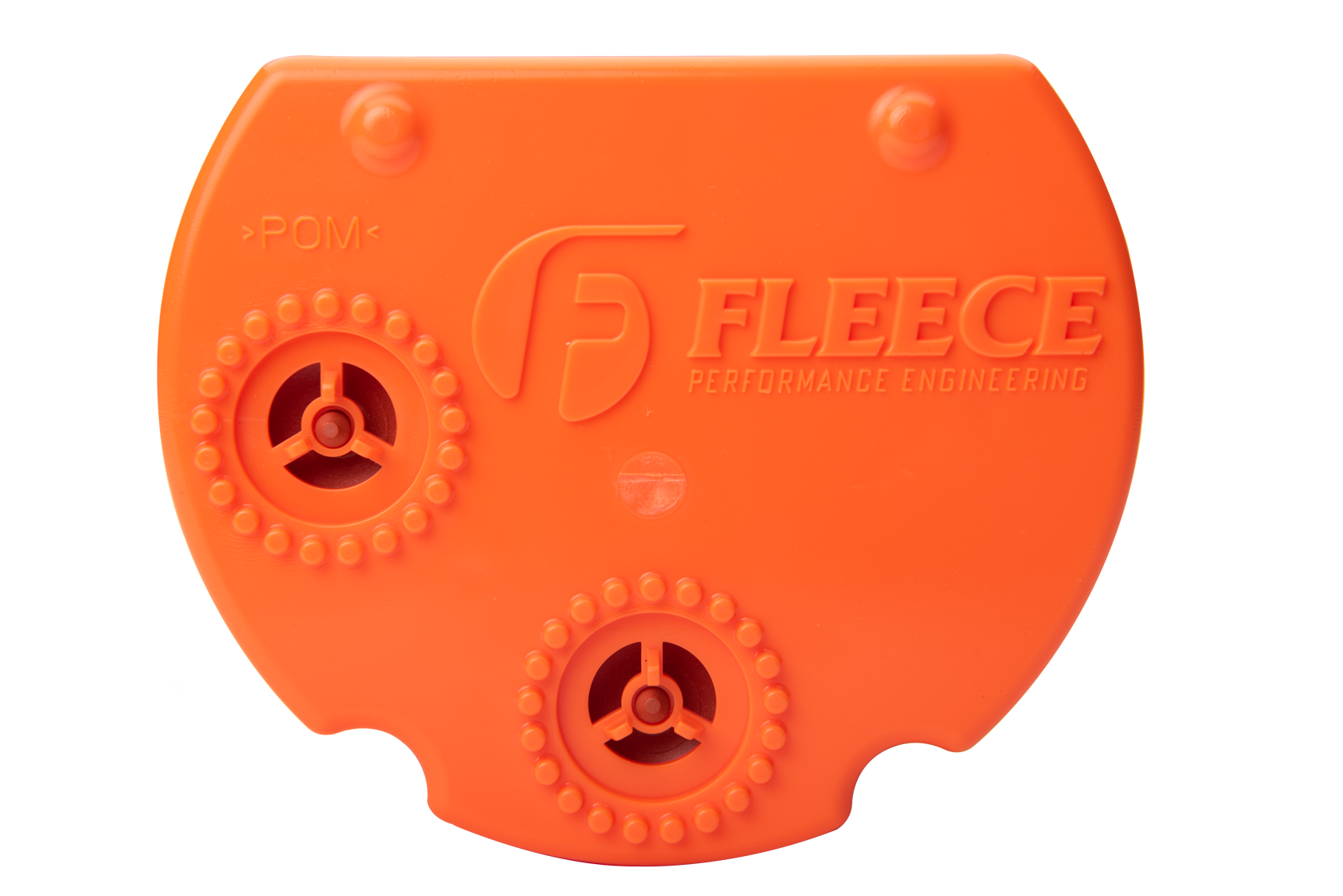

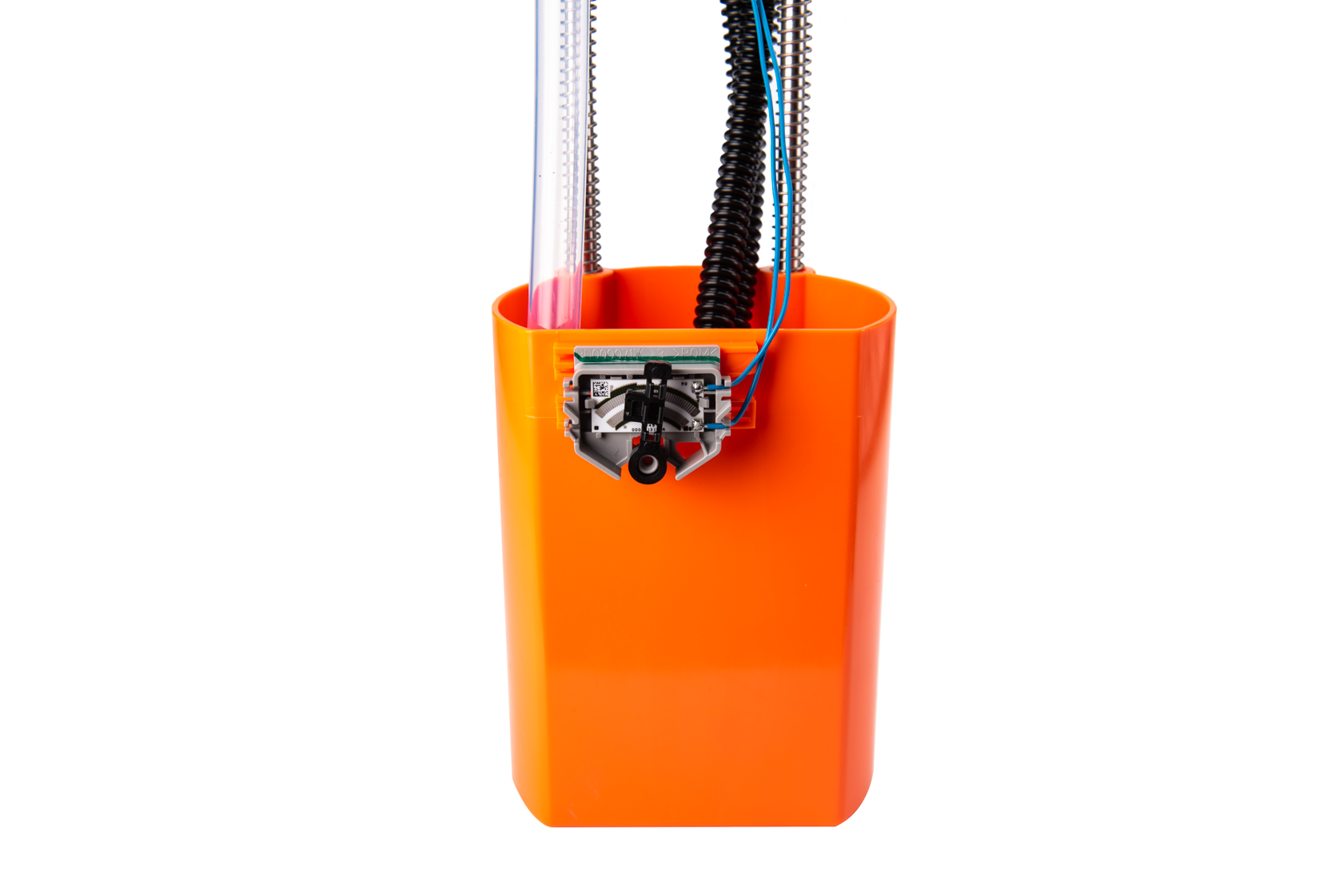

• Fuel Pickup: Integrated bucket with one-way check valves
• Fuel Line Connection: Factory-style quick disconnects
• Installation: No cutting, drilling, sump, or draw straw required
• Pump Use: External aftermarket lift pumps
• AirDog Compatibility: Tested up to 220 GPH
• FASS Compatibility: Tested up to 100 GPH
• Seal Included: New O-ring or flange seal
• Aftermarket Tanks: Verify Titan tank fitment; not compatible with S&B tanks
• OEM Replacement Numbers: ACDelco M100022, ACDelco MU1977, GM 13578389, GM 19257327
• Warranty: 1-year limited parts warranty

Fitment:

• 2011-2016 Chevrolet Silverado 2500HD 6.6L LML Duramax (Short Bed)
• 2011-2016 Chevrolet Silverado 3500HD 6.6L LML Duramax (Short Bed)
• 2011-2016 GMC Sierra 2500HD 6.6L LML Duramax (Short Bed)
• 2011-2016 GMC Sierra 3500HD 6.6L LML Duramax (Short Bed)

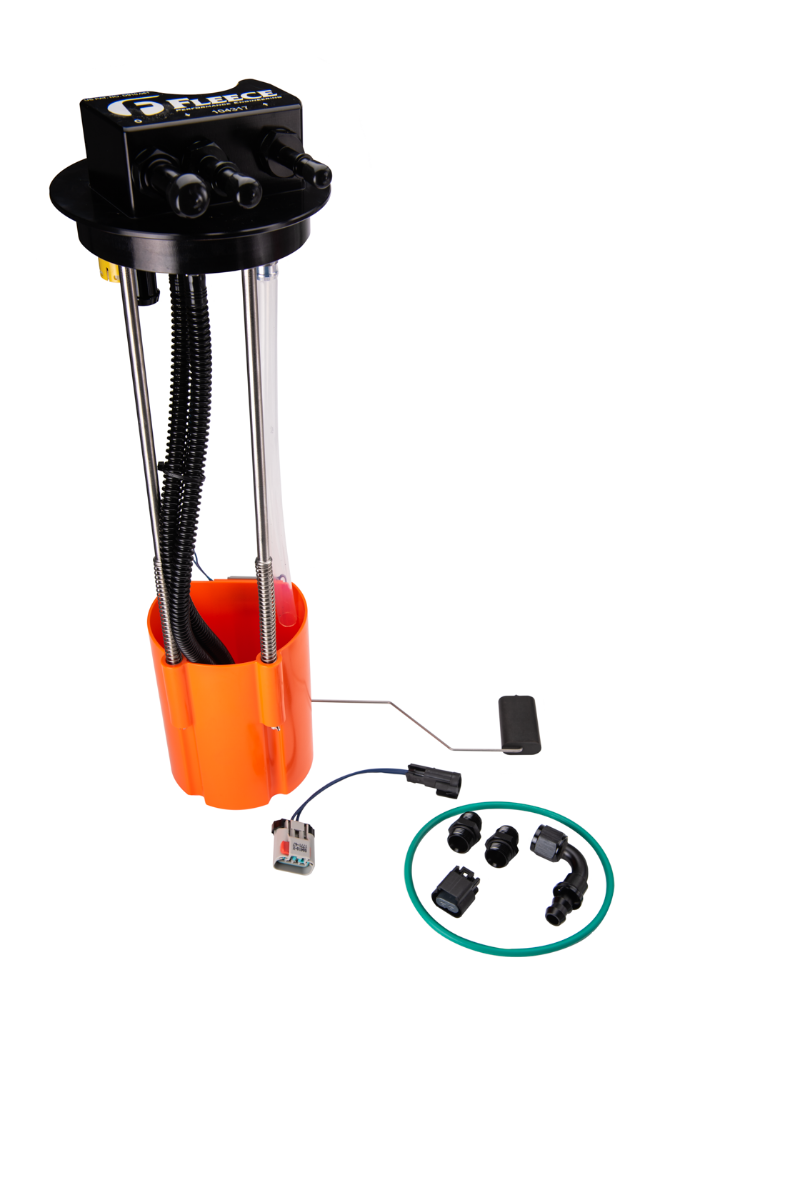

Upgrade fuel pickup on your 2011-2016 Chevrolet Silverado or GMC Sierra 2500HD/3500HD short bed Duramax with the Fleece Performance SureFlo Sending Unit. Part FPE-SF-GM-1116-SB installs in the factory sending-unit location for a clean connection to an external aftermarket lift pump or custom fuel system. Its integrated fuel bucket draws and returns fuel at the bottom of the tank to help reduce air ingestion and quarter-tank fuel supply issues without drilling, cutting, adding a sump, or using a draw straw. This is a sending unit only and does not include a lift pump.
