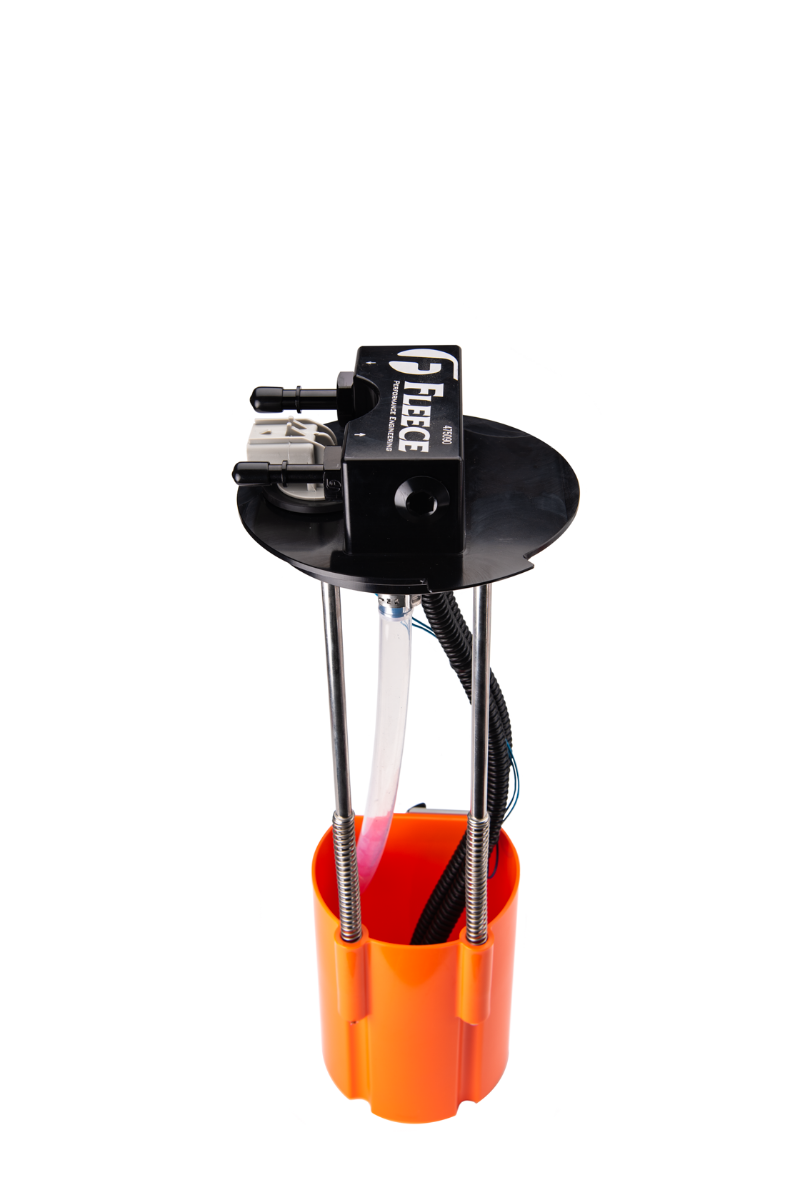

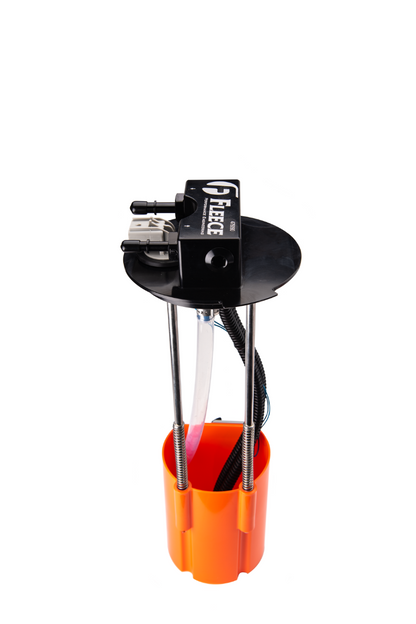

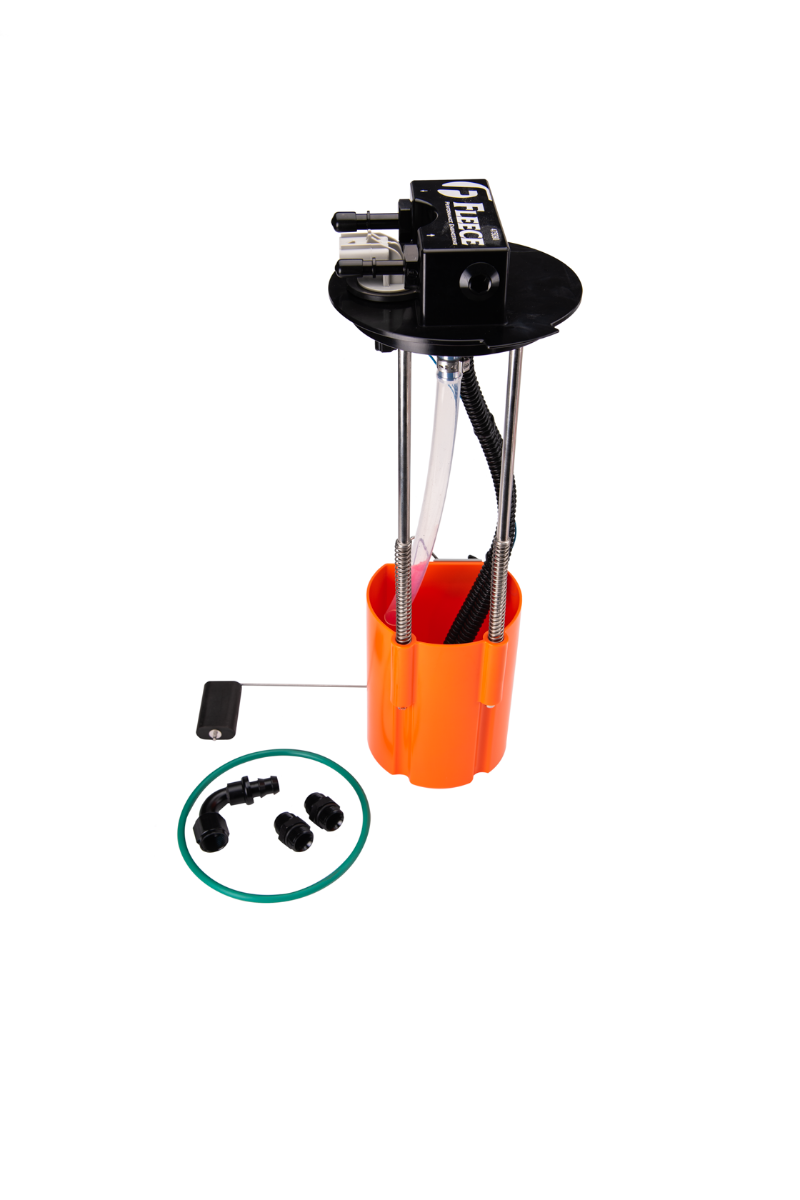

Fleece SureFlo Sending Unit for 2011-24 Ram 2500/3500 - FPE-SF-CUMM-1121

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-CUMM-1121
• Product Type: Performance sending unit
• Lift Pump Included: No
• Tank Location: In-tank
• Port Size: Dual -8 AN

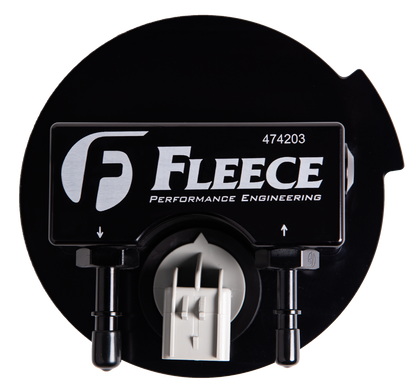

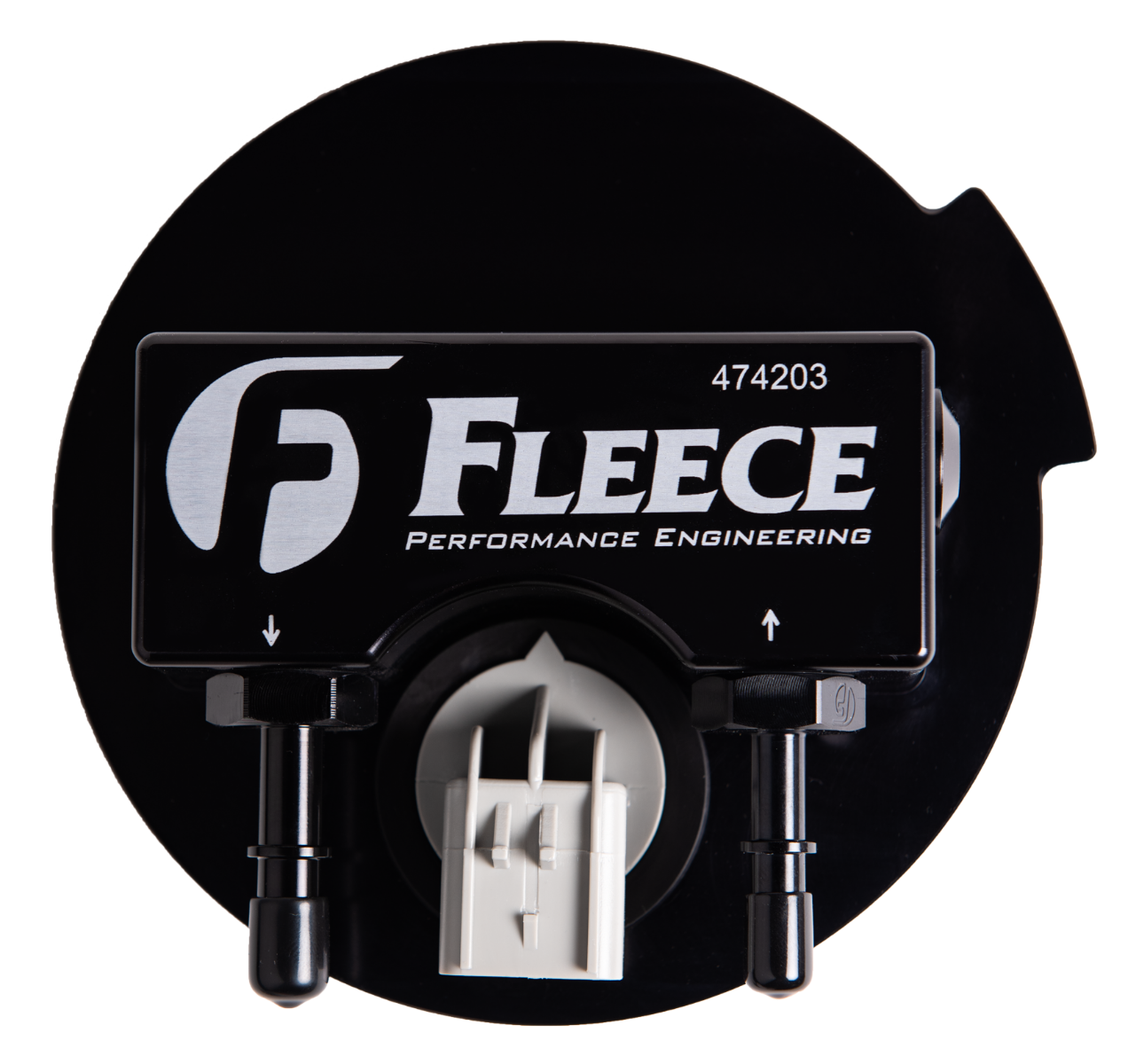

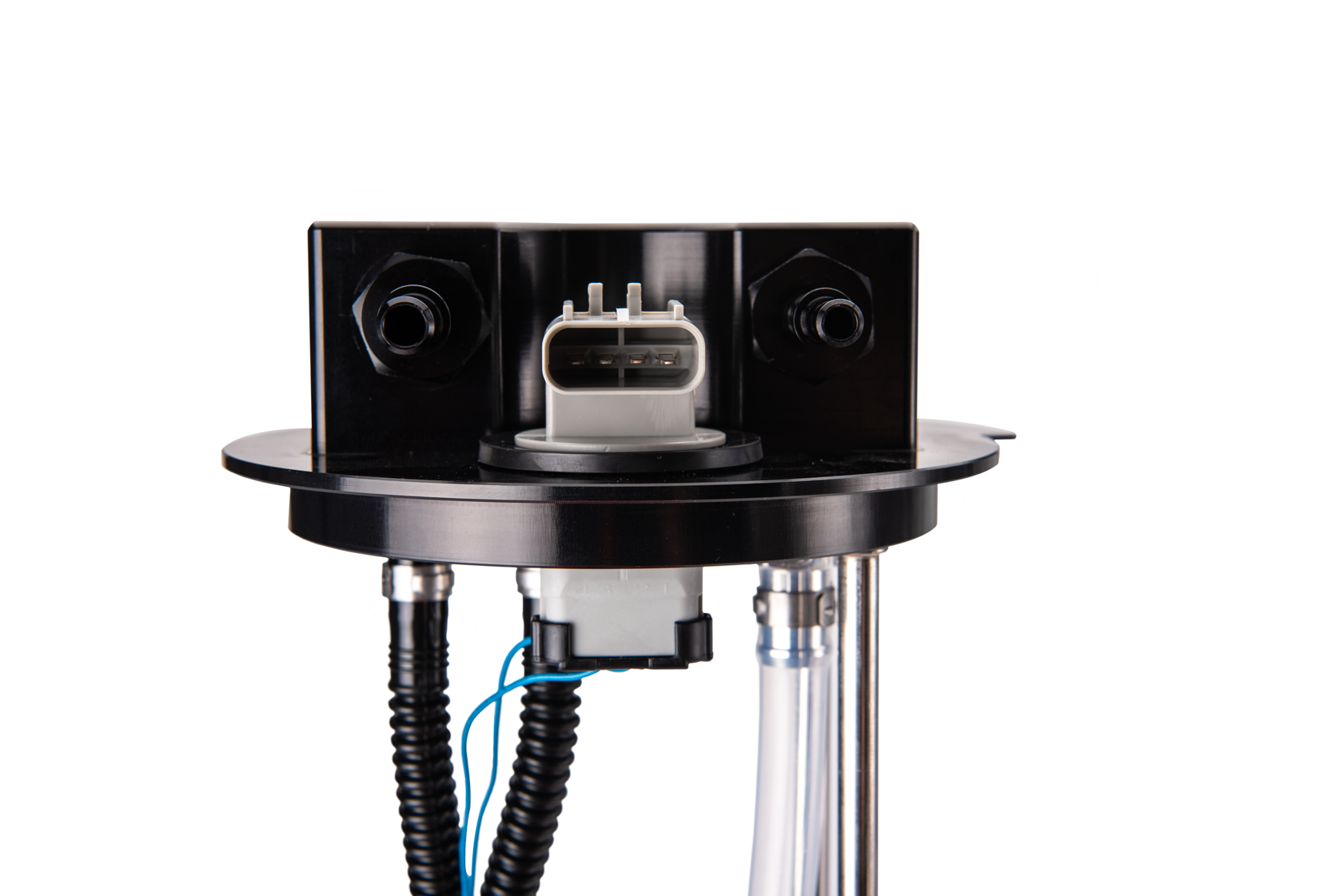

• Cap Material: Billet aluminum
• Fuel Sender: New level electronics and float

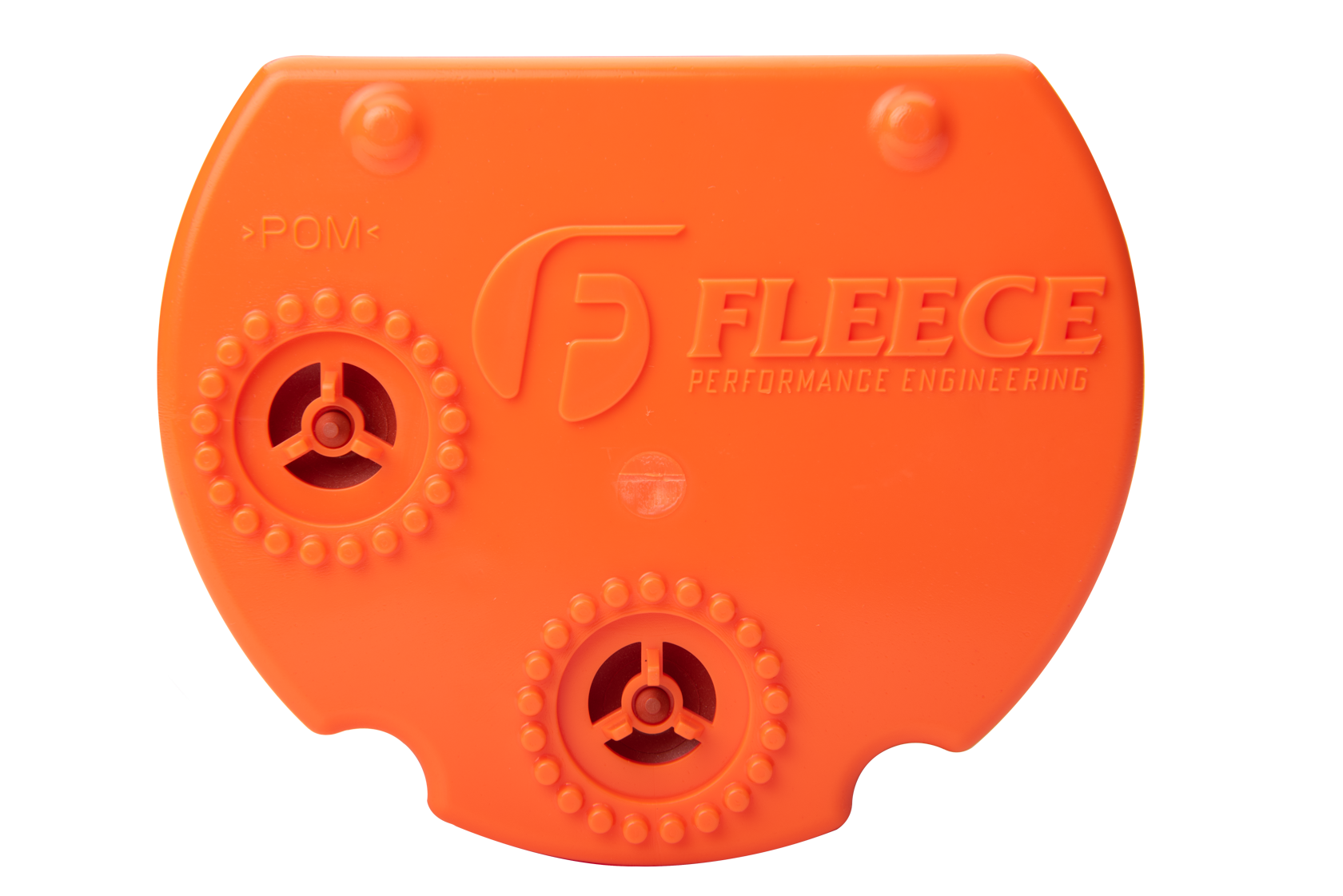

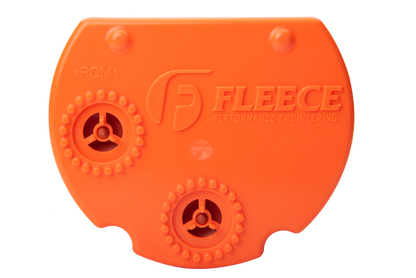

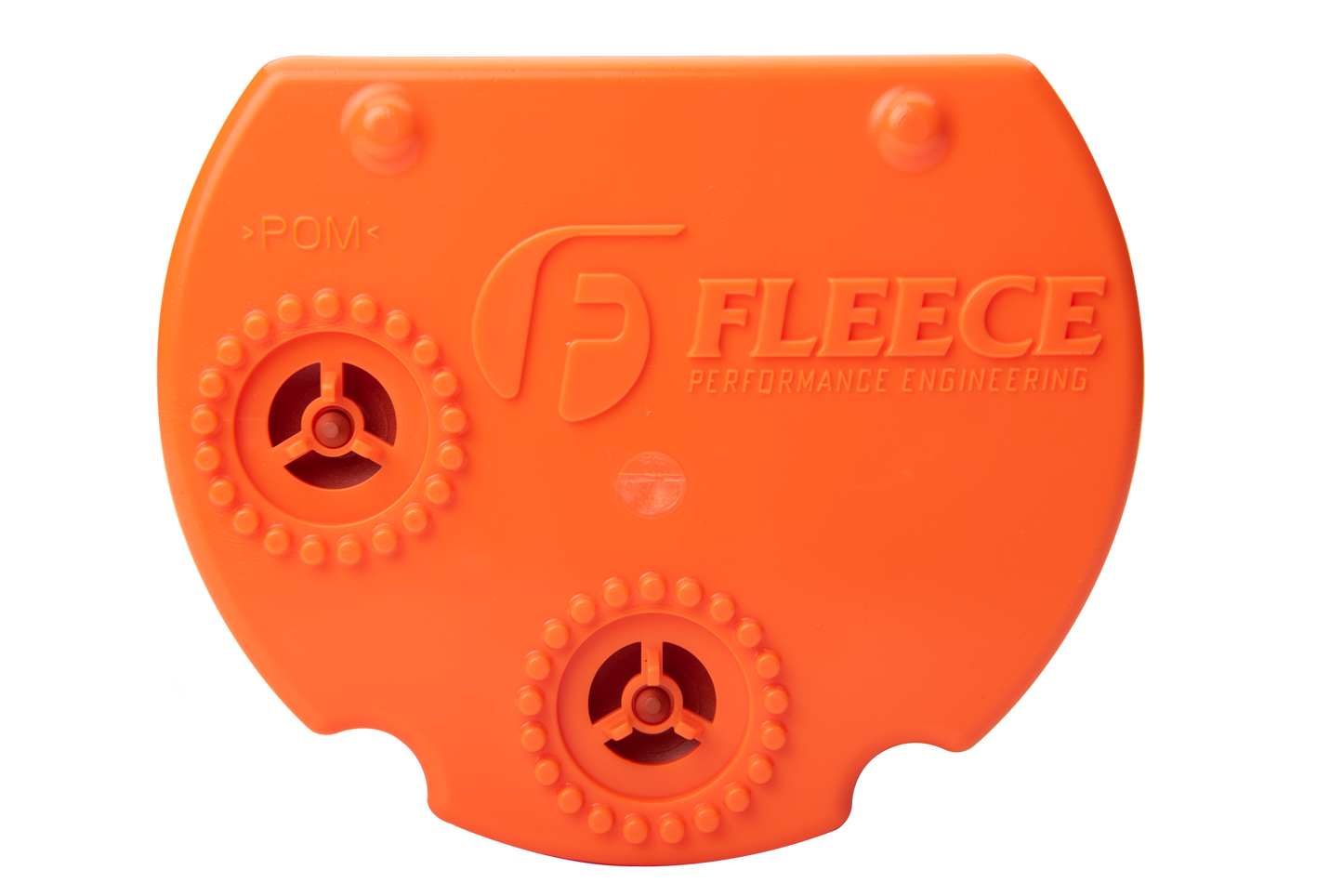

• Fuel Pickup: Integrated bucket with one-way check valves
• Fuel Line Connection: Factory-style quick disconnects
• Installation: No cutting, drilling, sump, or draw straw required
• Pump Use: External aftermarket lift pumps
• AirDog Compatibility: Tested up to 220 GPH
• FASS Compatibility: Tested up to 290 GPH
• Seal Included: New O-ring or flange seal
• OEM Replacement Number: 5145571AA
• Aftermarket Tanks: Refer to Fleece fitment data for Titan and S&B tanks
• Warranty: 1-year limited parts warranty
• 2020-2024 Note: Does not fit factory 50-gallon fuel tank option; use FPE-SF-CUMM-2024-50

Fitment:

• 2011-2018 Ram 2500 6.7L Cummins
• 2011-2018 Ram 3500 6.7L Cummins
• 2019-2024 Ram 2500 6.7L Cummins
• 2019-2024 Ram 3500 6.7L Cummins

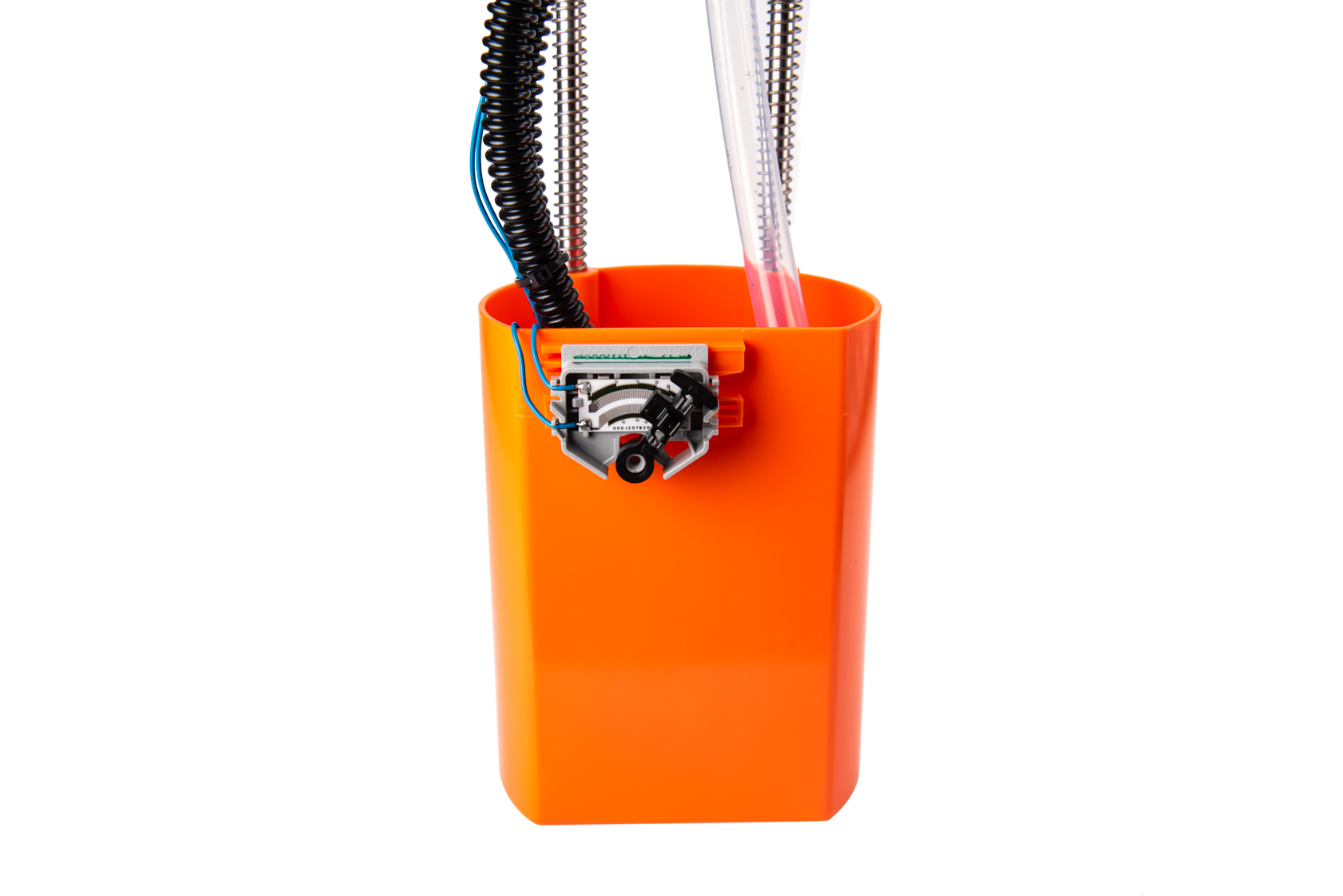

Upgrade fuel pickup in your 2011-2024 Ram 2500 or 3500 Cummins with the Fleece Performance SureFlo Sending Unit. Part FPE-SF-CUMM-1121 installs directly in the factory sending-unit location for a clean connection to an external aftermarket lift pump or custom fuel system. Its integrated bucket draws and returns fuel at the bottom of the tank to help reduce air ingestion and quarter-tank fuel supply issues, without a tank sump, draw straw, drilling, or cutting. This is a sending unit only and does not include a lift pump.
