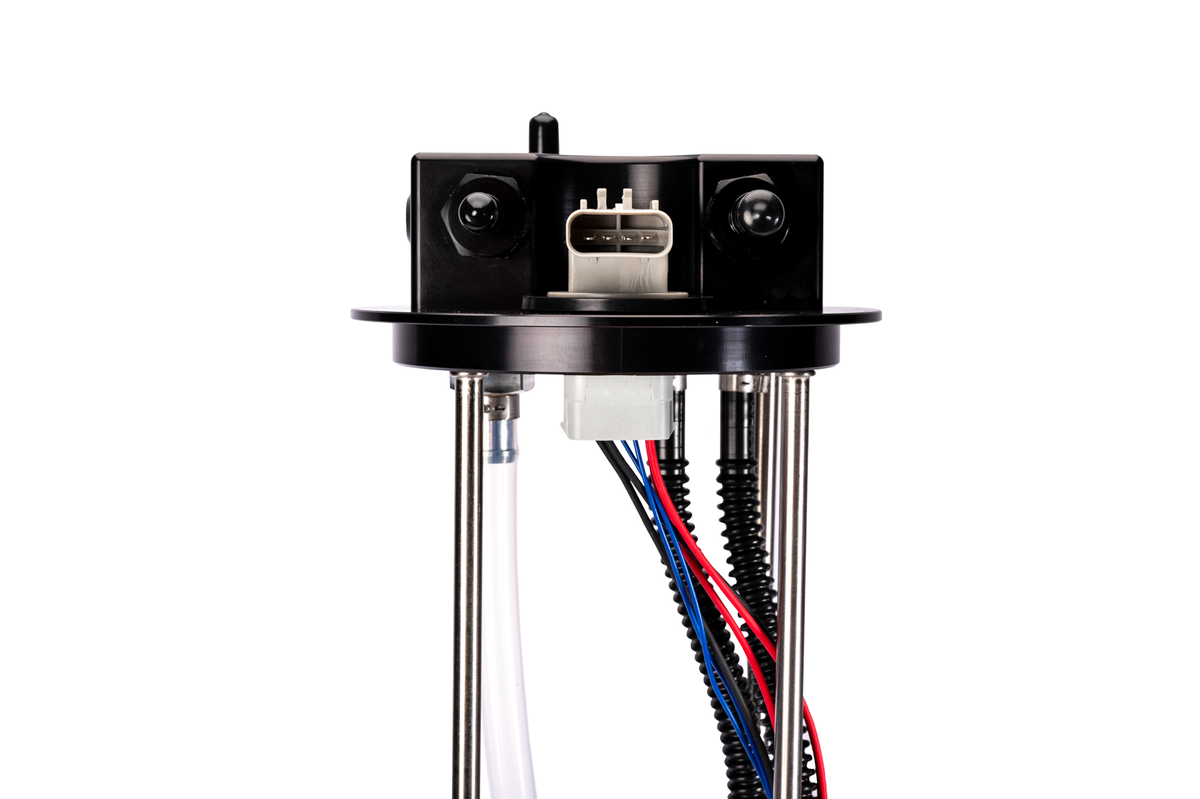

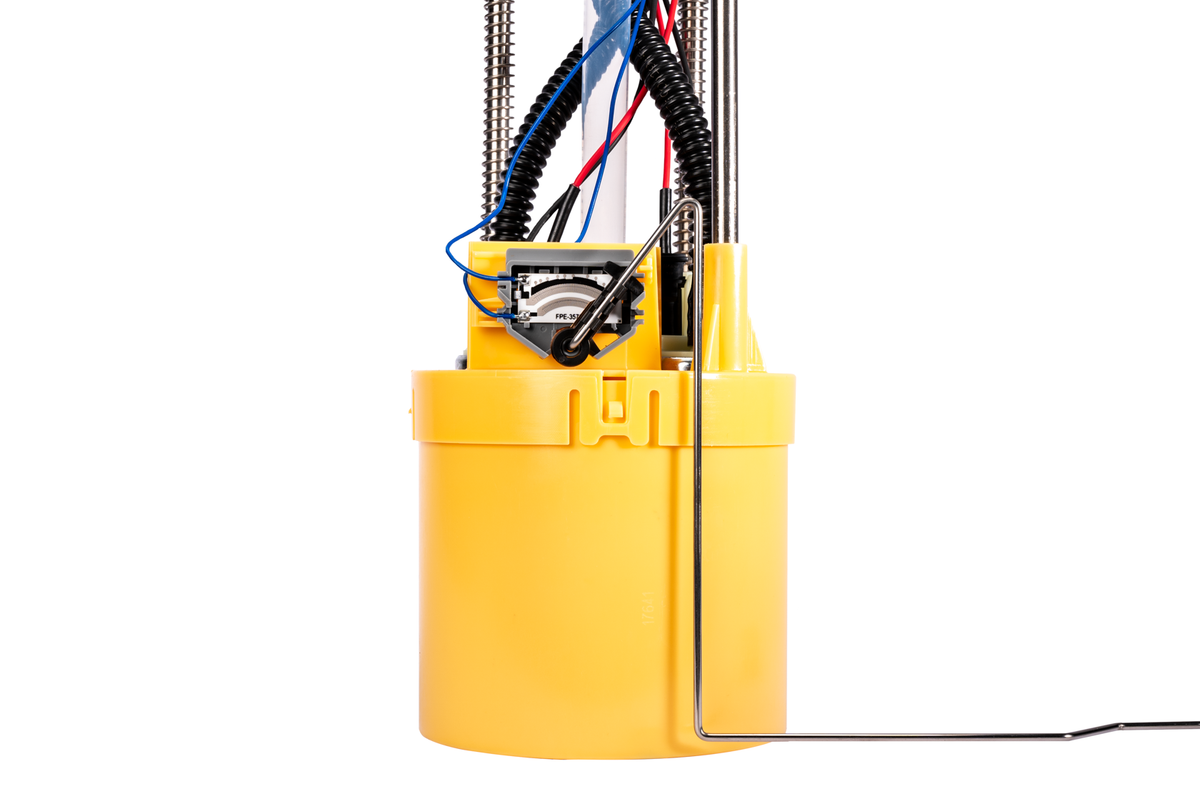

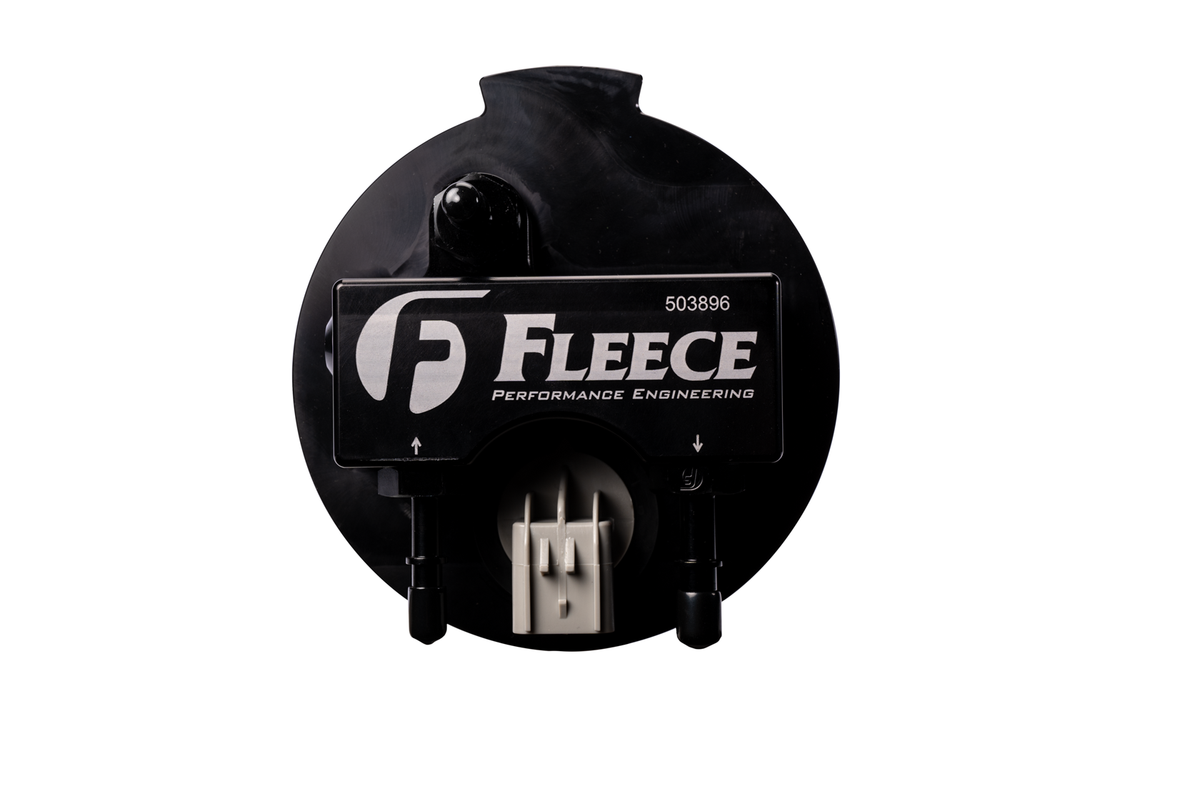

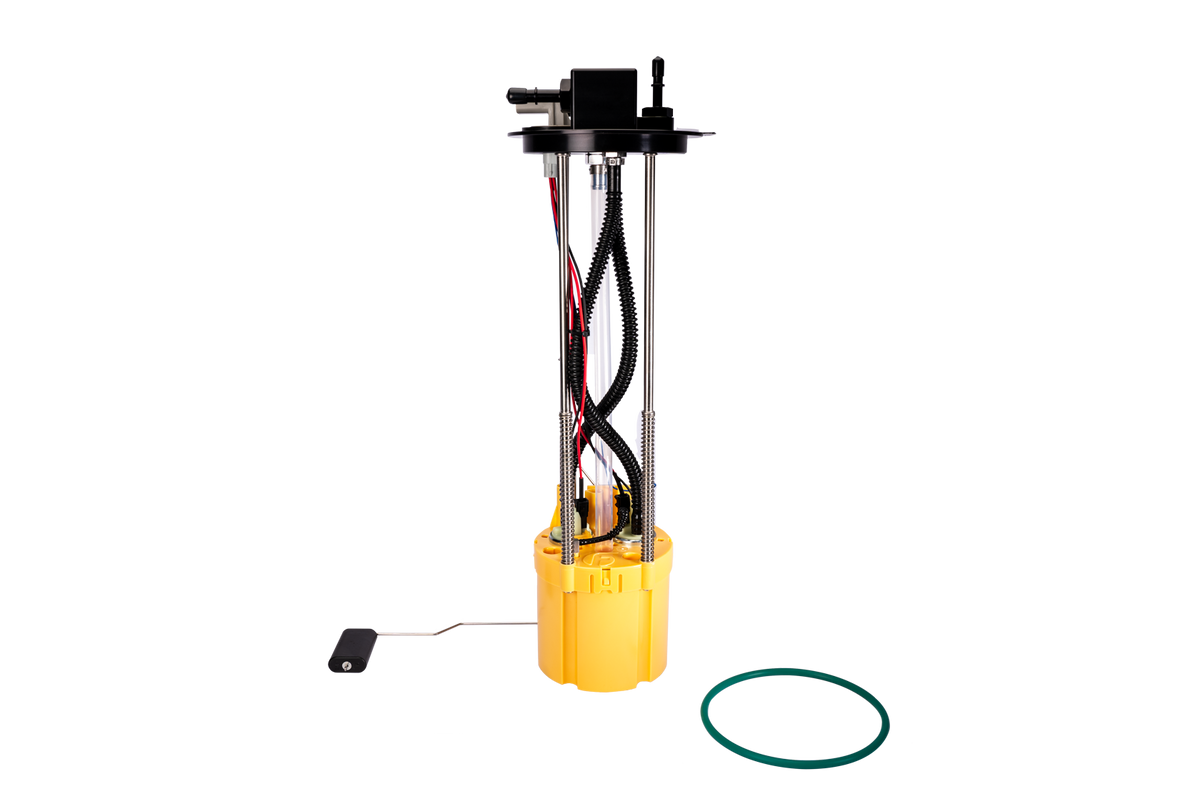

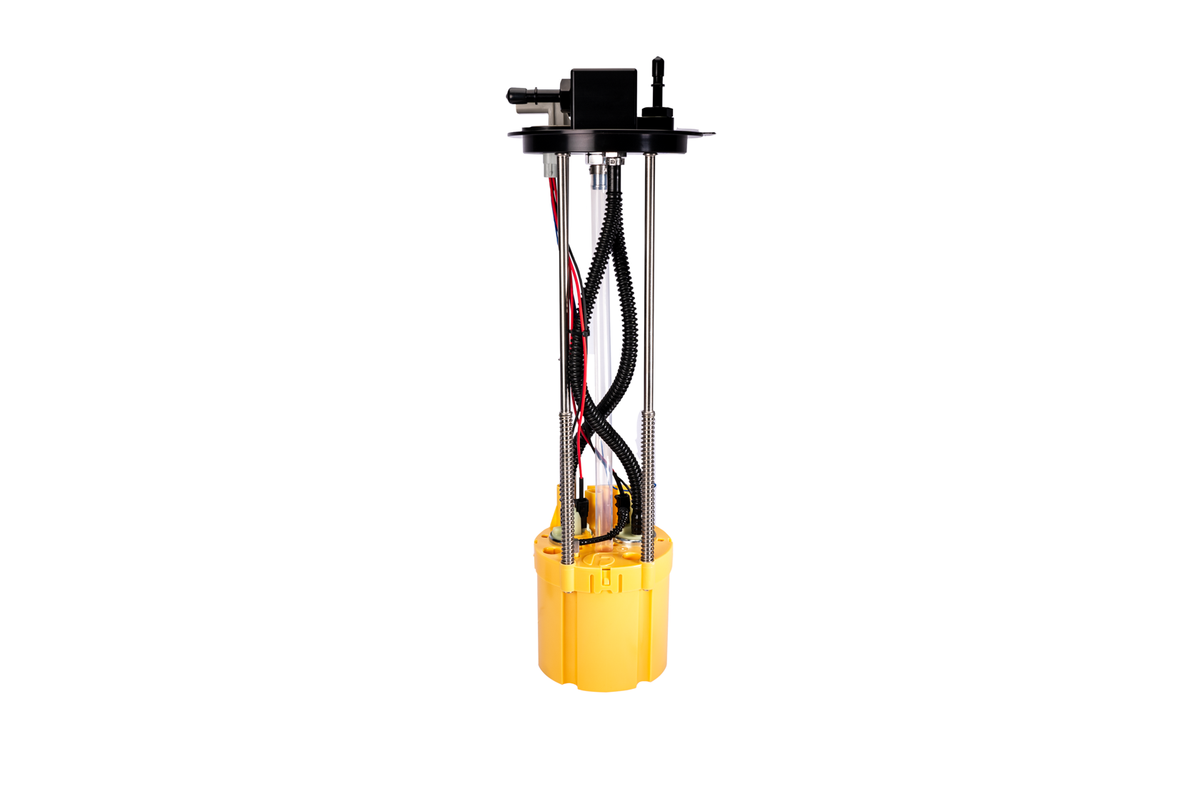

Fleece PowerFlo Lift Pump 2011-24 Ram 4500/5500 C&C 22 Gal - FPE-PF-CUMM-1124-CCMS

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-PF-CUMM-1124-CCMS
• Tank Location: Midship
• Tank Capacity: 22 gallon
• Installation Location: In-tank
• Vehicle Type: Cab & Chassis only
• Pump Type: Dual gerotor
• Fuel Pressure: 18-20 PSI at idle
• Power Support: Up to 800 HP
• Fitting Thread: 3/4"-16
• Fitting Style: -8 O-ring outlet and return
• Fuel Compatibility: Up to B20 biodiesel
• Factory Components Retained: Fuel lines, water-in-fuel sensor, and fuel heaters
• Fuel Pickup Design: Active fill bucket
• Installation: Direct OEM-style replacement; no sump, draw straw, cutting, or splicing required
• OEM Replacement Numbers: 68064422AB, 04560227AC

Fitment:

• 2011-2024 Ram 4500 6.7L Cummins Cab & Chassis (22-Gallon Midship Tank)
• 2011-2024 Ram 5500 6.7L Cummins Cab & Chassis (22-Gallon Midship Tank)

Upgrade the fuel delivery system in your 2011-2024 Ram 4500 or 5500 Cab & Chassis with the Fleece Performance PowerFlo Lift Pump. The FPE-PF-CUMM-1124-CCMS is a direct in-tank replacement for trucks equipped with the 22-gallon midship fuel tank. Dual OEM-quality gerotor pumps and an active fill bucket provide dependable fuel delivery for applications up to 800 horsepower while retaining the factory fuel lines, water-in-fuel sensor, and fuel heaters. No tank sump, draw straw, cutting, or splicing is required.
