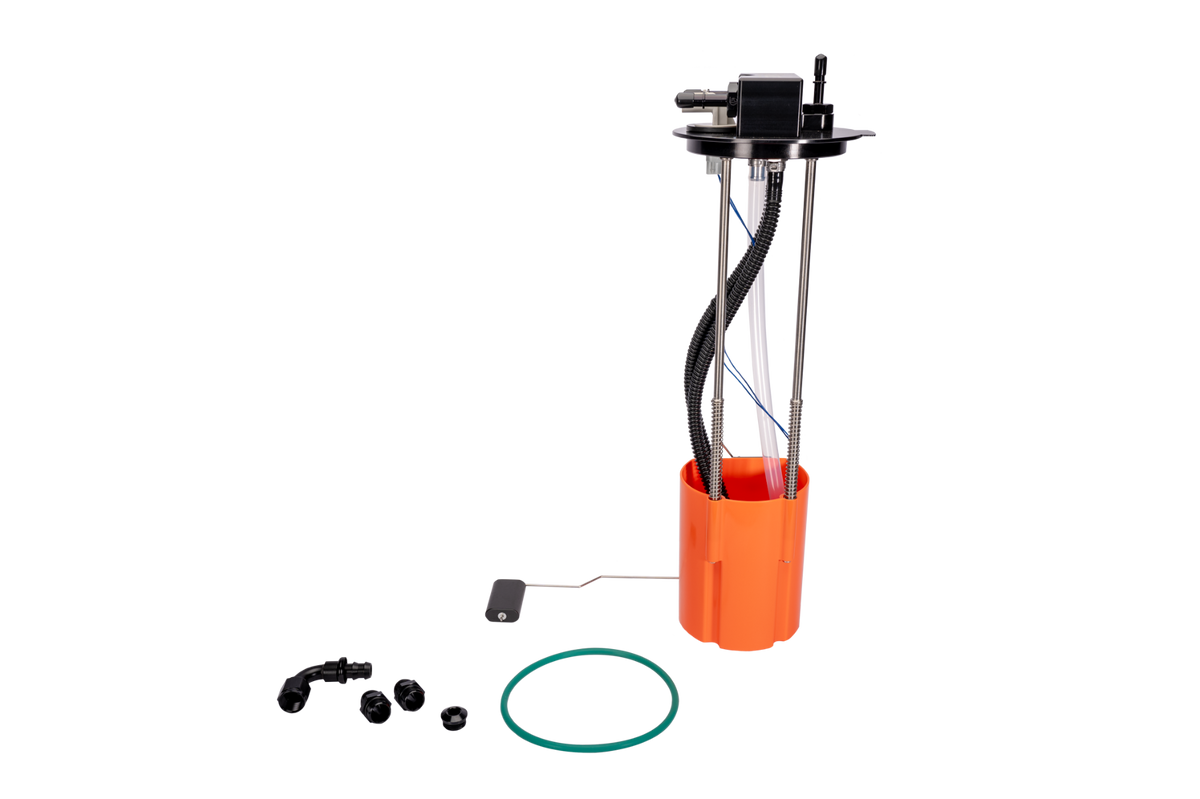

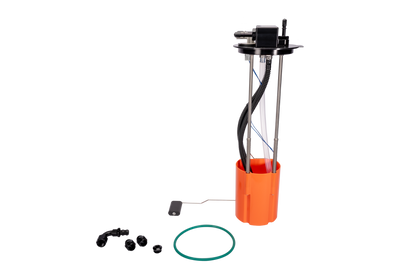

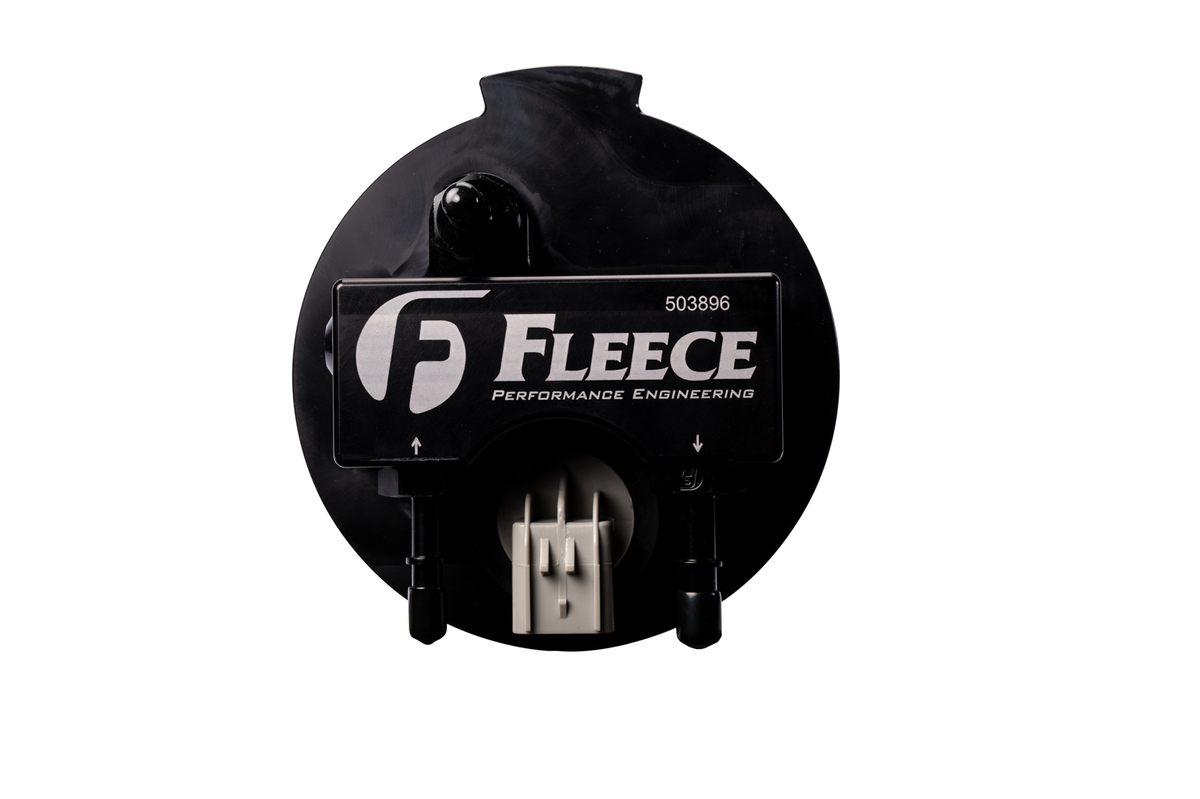

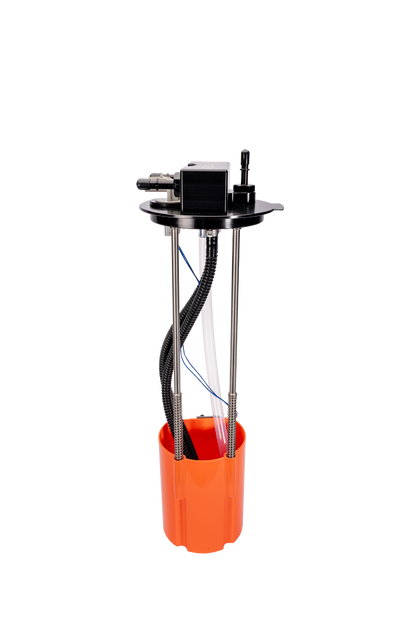

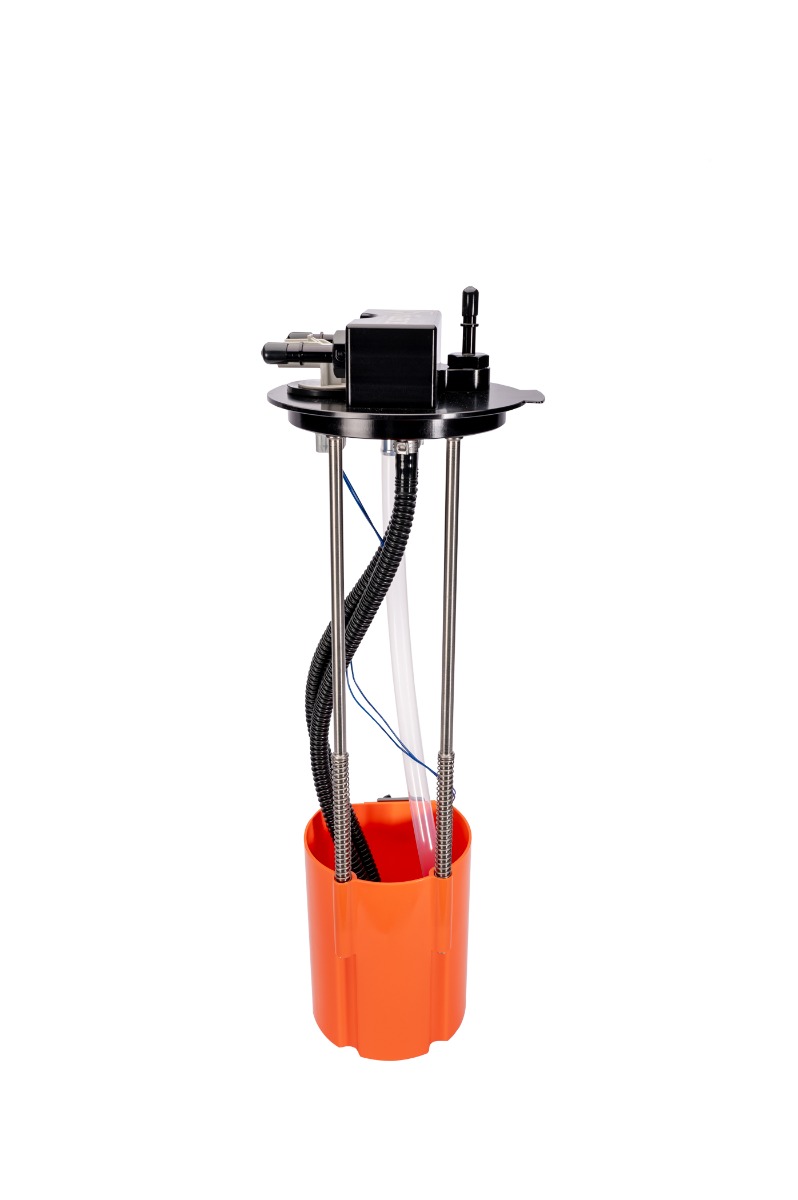

Fleece SureFlo Sending Unit 2011-24 Ram 4500/5500 C&C 22-Gal - FPE-SF-CUMM-1124-CCMS

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-CUMM-1124-CCMS
• Product Type: Performance sending unit
• Lift Pump Included: No
• Tank Location: Midship
• Tank Capacity: 22 gallon
• Vehicle Type: Cab & Chassis only
• Port Size: Dual -8 AN

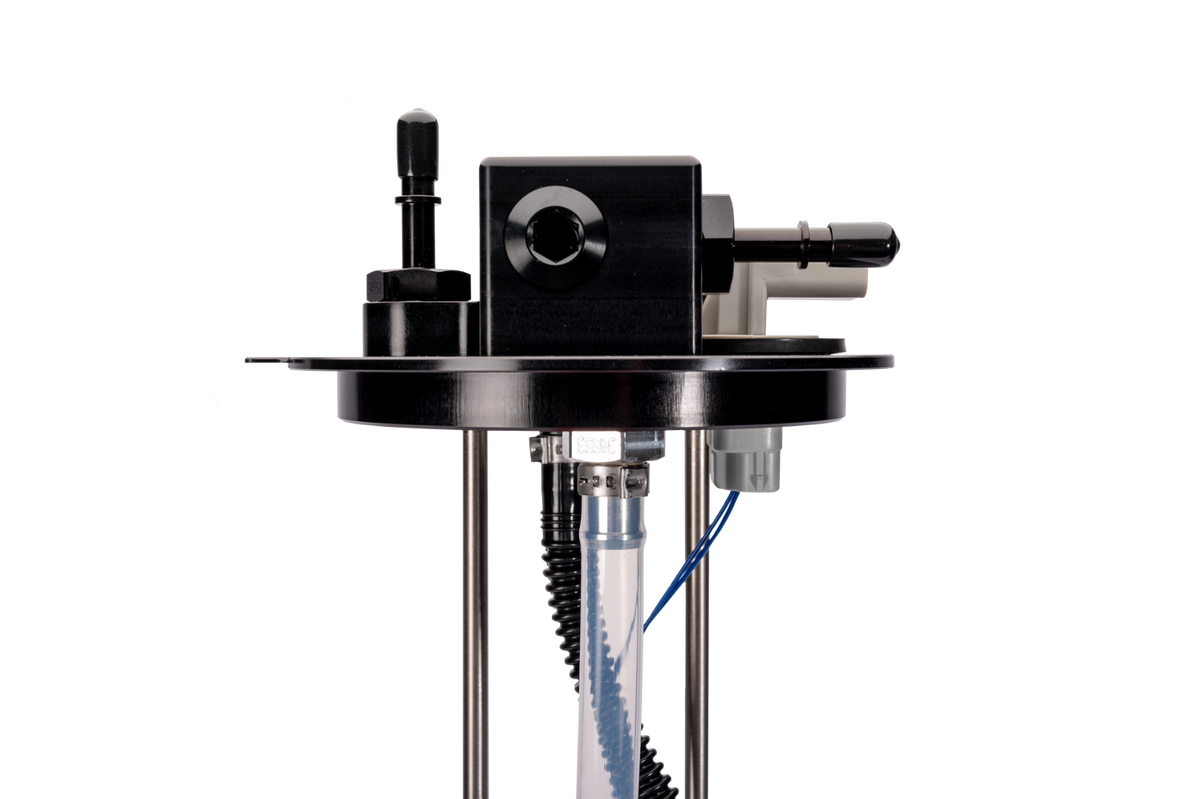

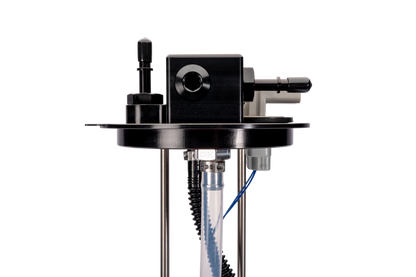

• Cap Material: Billet aluminum

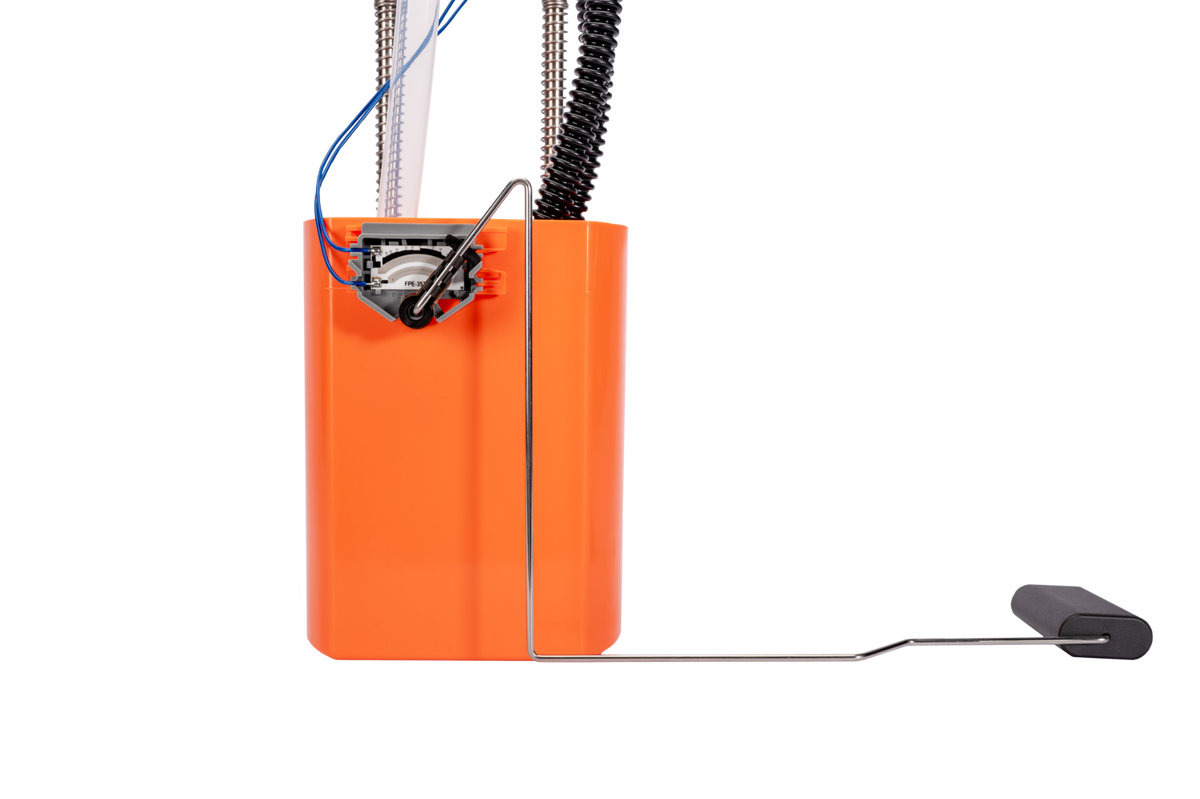

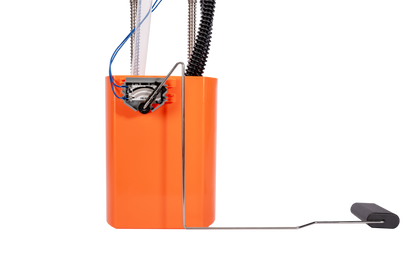

• Fuel Sender: New level electronics and float

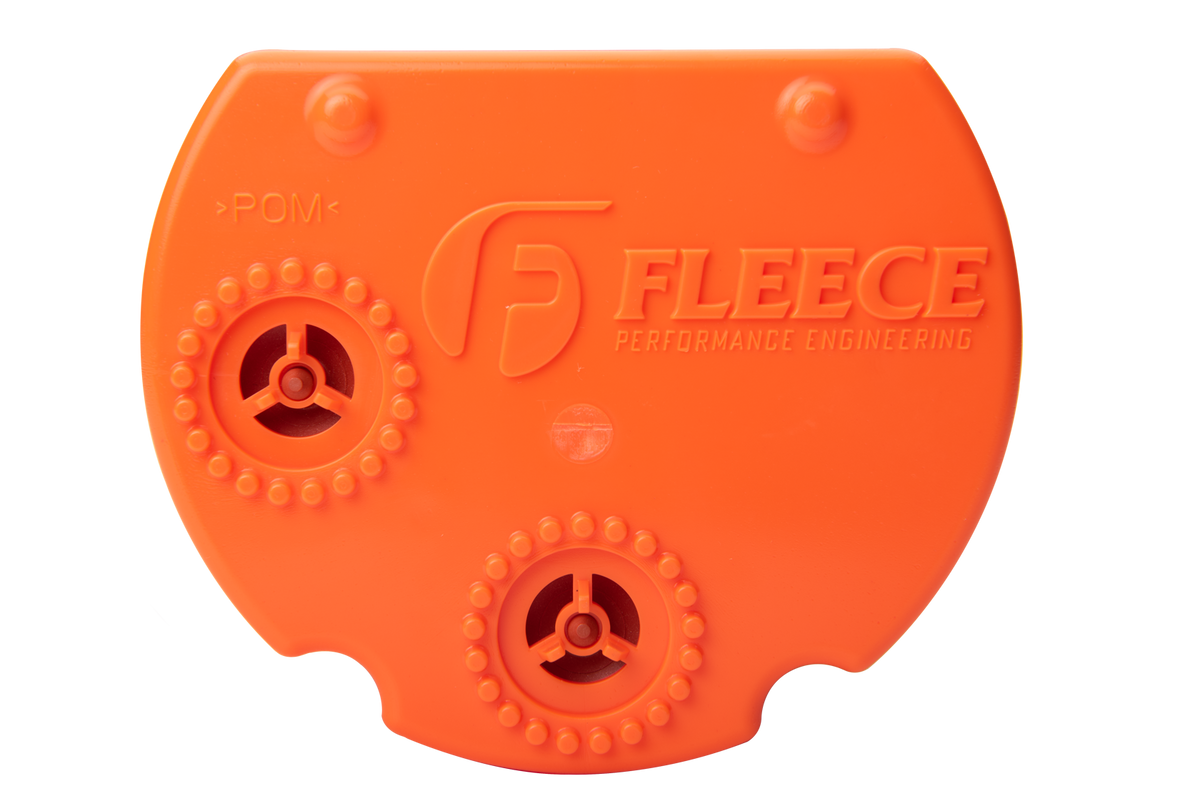

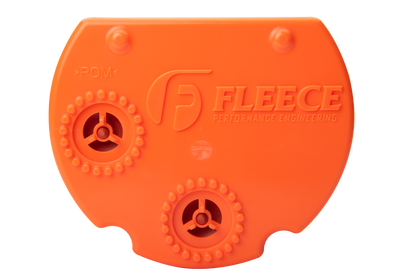

• Fuel Pickup: Integrated bucket with one-way check valves
• Fuel Line Connection: Factory-style quick disconnects
• Installation: No drilling, cutting, sump, or draw straw required
• Pump Use: External frame-mounted lift pumps
• AirDog Compatibility: Tested up to 220 GPH
• FASS Compatibility: Tested up to 290 GPH
• Seal Included: New O-ring or flange seal
• OEM Reference: 68064422AB
• Warranty: 1-year limited parts warranty

Fitment:

• 2011-2024 Ram 4500 6.7L Cummins Cab & Chassis (22-Gallon Midship Tank)
• 2011-2024 Ram 5500 6.7L Cummins Cab & Chassis (22-Gallon Midship Tank)

Upgrade fuel pickup on your 2011-2024 Ram 4500 or 5500 Cab & Chassis with the Fleece Performance SureFlo Sending Unit. Part FPE-SF-CUMM-1124-CCMS is built for trucks with the 22-gallon midship fuel tank originally equipped with OEM lift pump 68064422AB. Designed for use with an external frame-mounted lift pump, the SureFlo installs in the factory tank opening and uses an integrated fuel bucket to draw and return fuel at the bottom of the tank. This helps prevent air ingestion and quarter-tank fuel supply issues without drilling, cutting, a sump, or a draw straw. This is a sending unit only and does not include a fuel pump.
