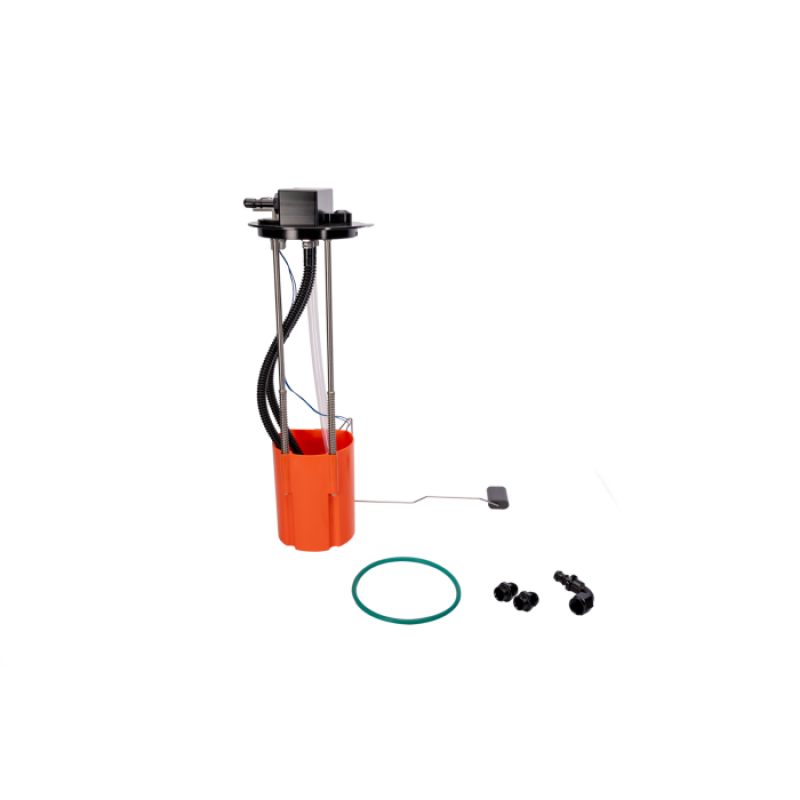

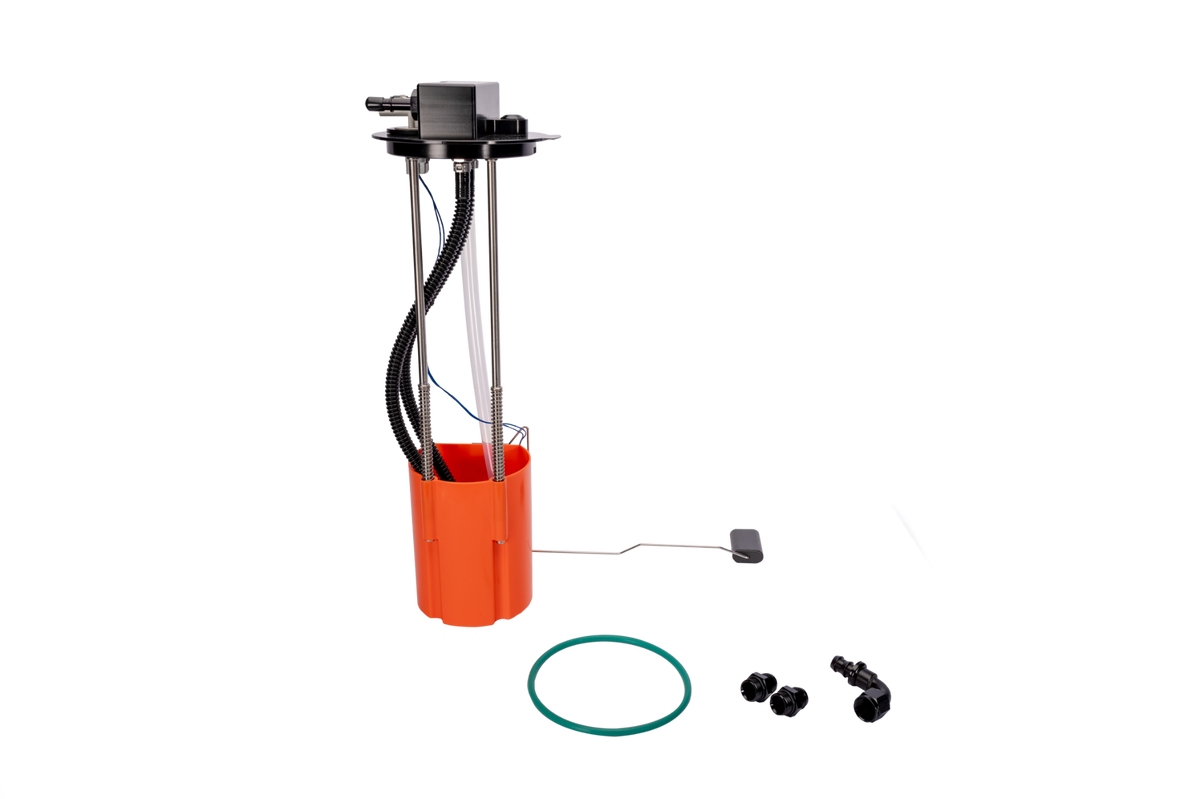

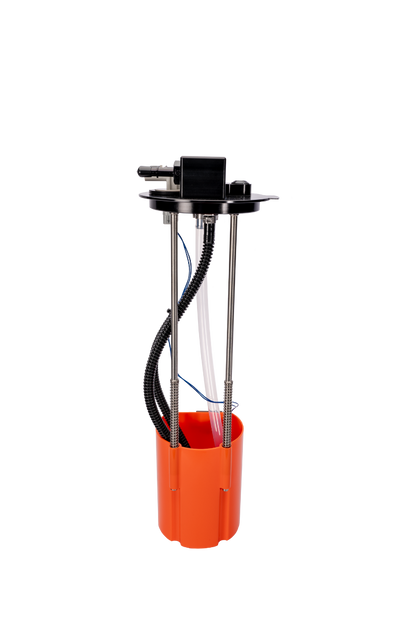

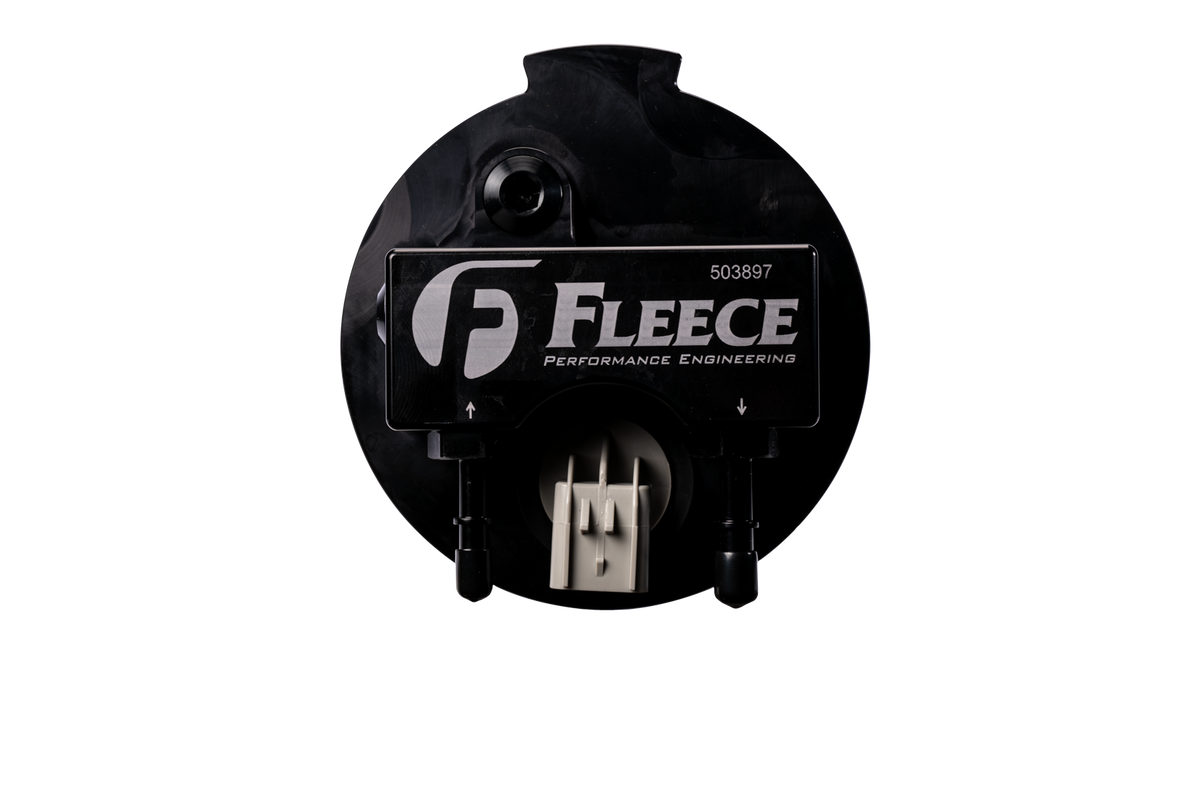

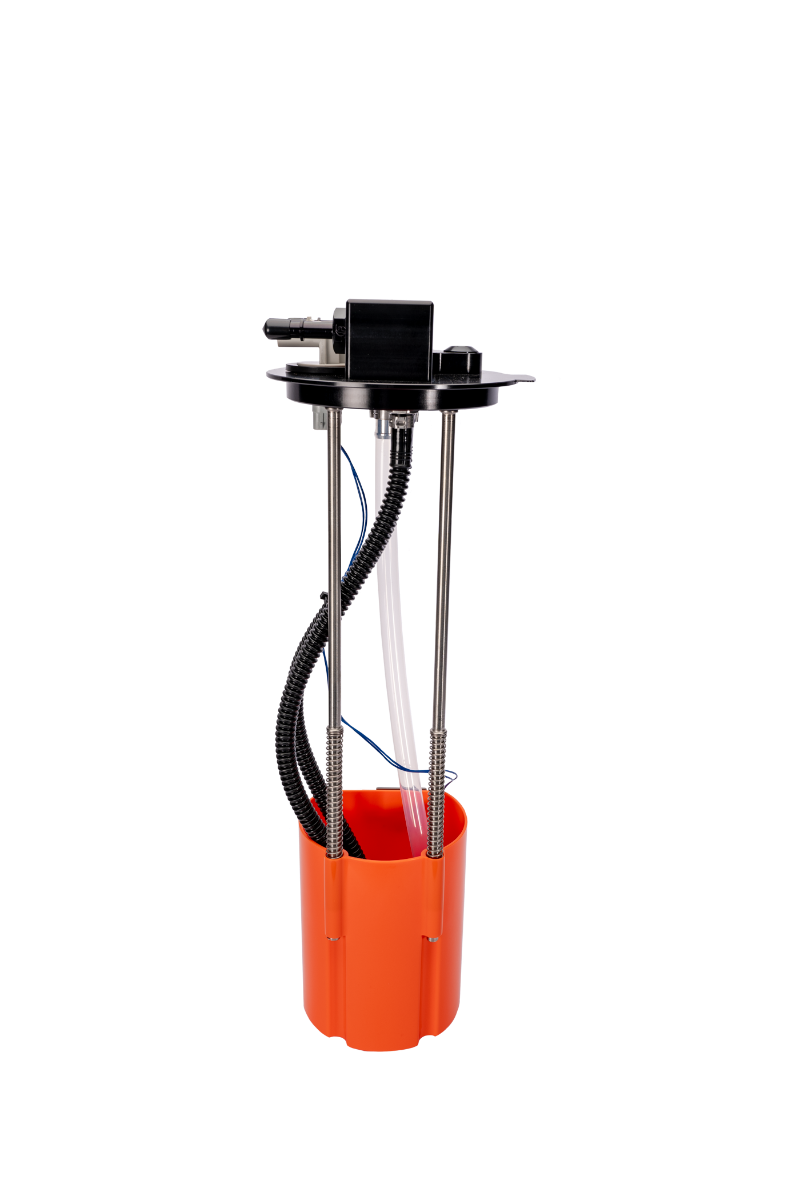

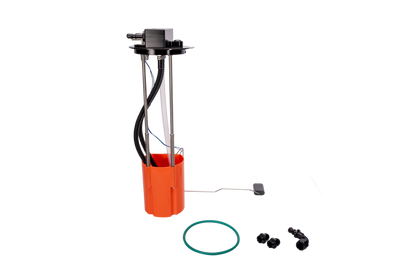

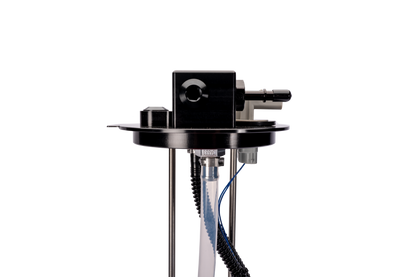

Fleece SureFlo Sending Unit for 2011-24 Ram 4500/5500 C&C Rear Tank - FPE-SF-CUMM-1124-CCOA

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-CUMM-1124-CCOA
• Product Type: Performance sending unit
• Lift Pump Included: No
• Tank Location: Rear / over-axle
• Tank Capacity: 52-gallon rear tank application
• Vehicle Type: Cab & Chassis only
• Port Size: Dual -8 AN

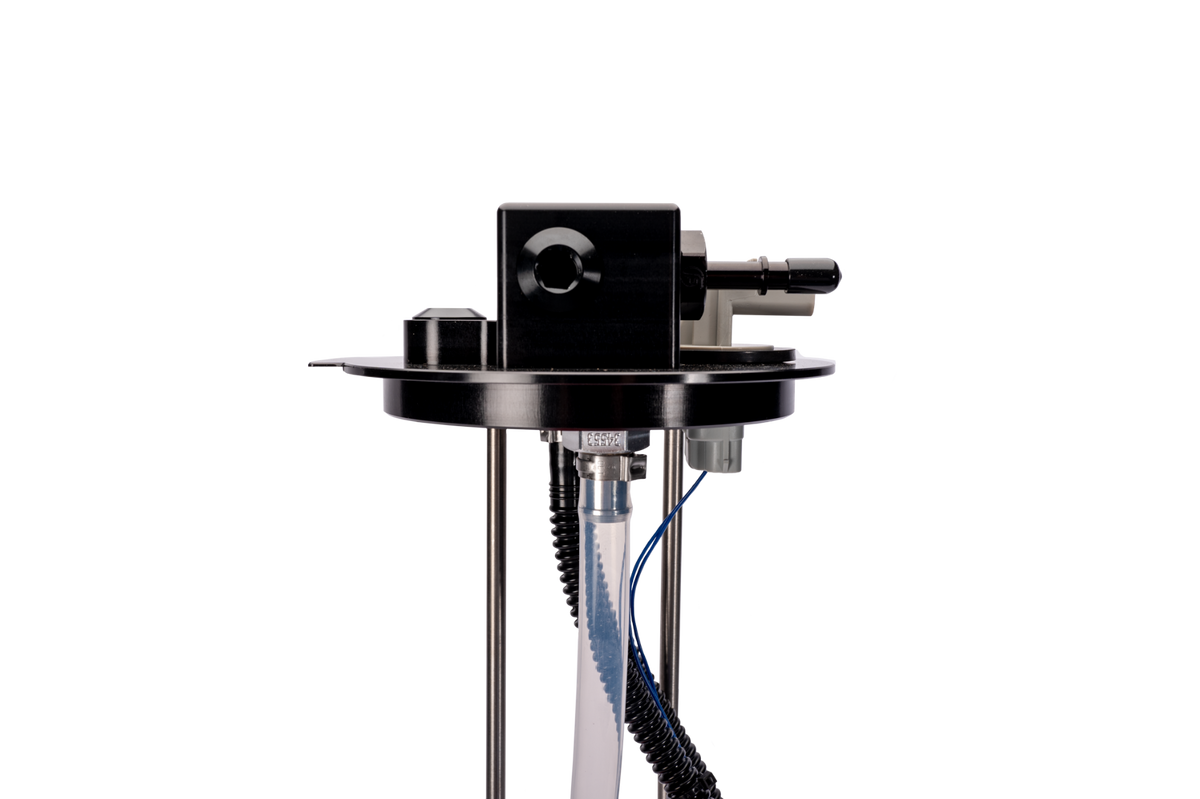

• Cap Material: Billet aluminum

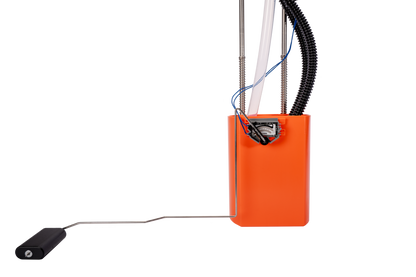

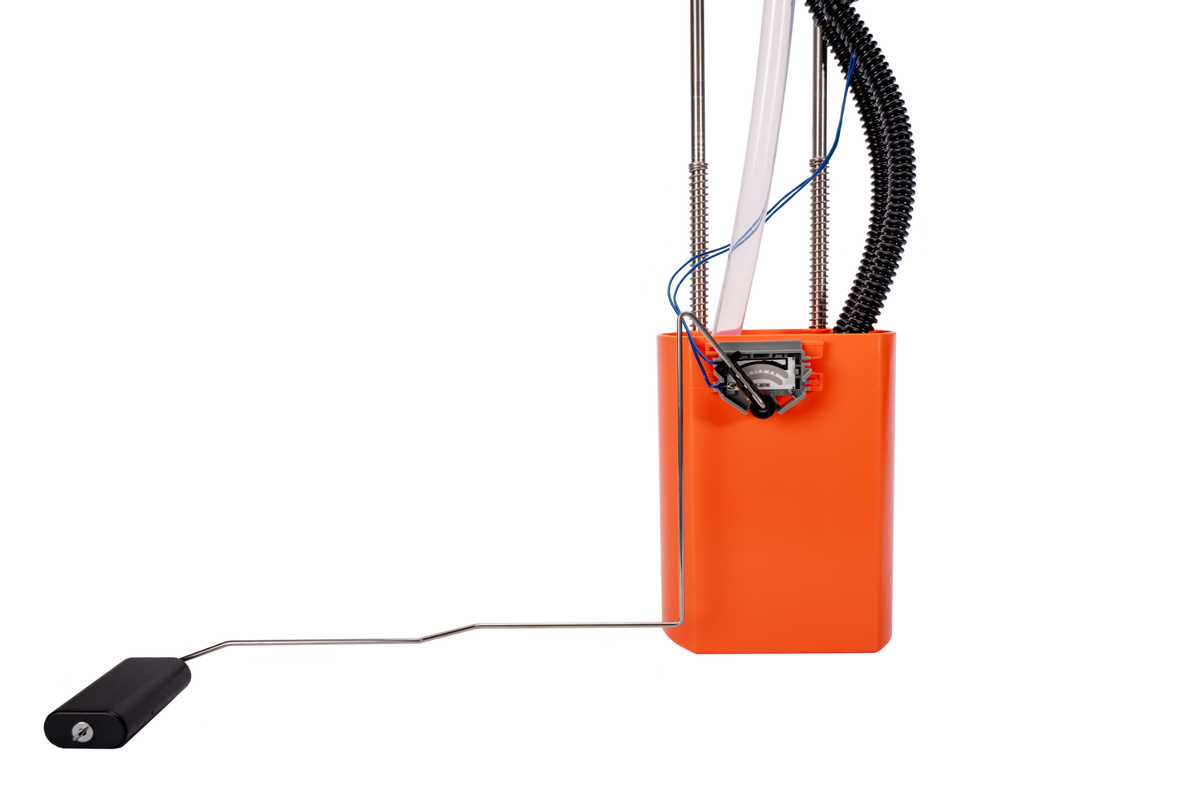

• Fuel Sender: New level electronics and float

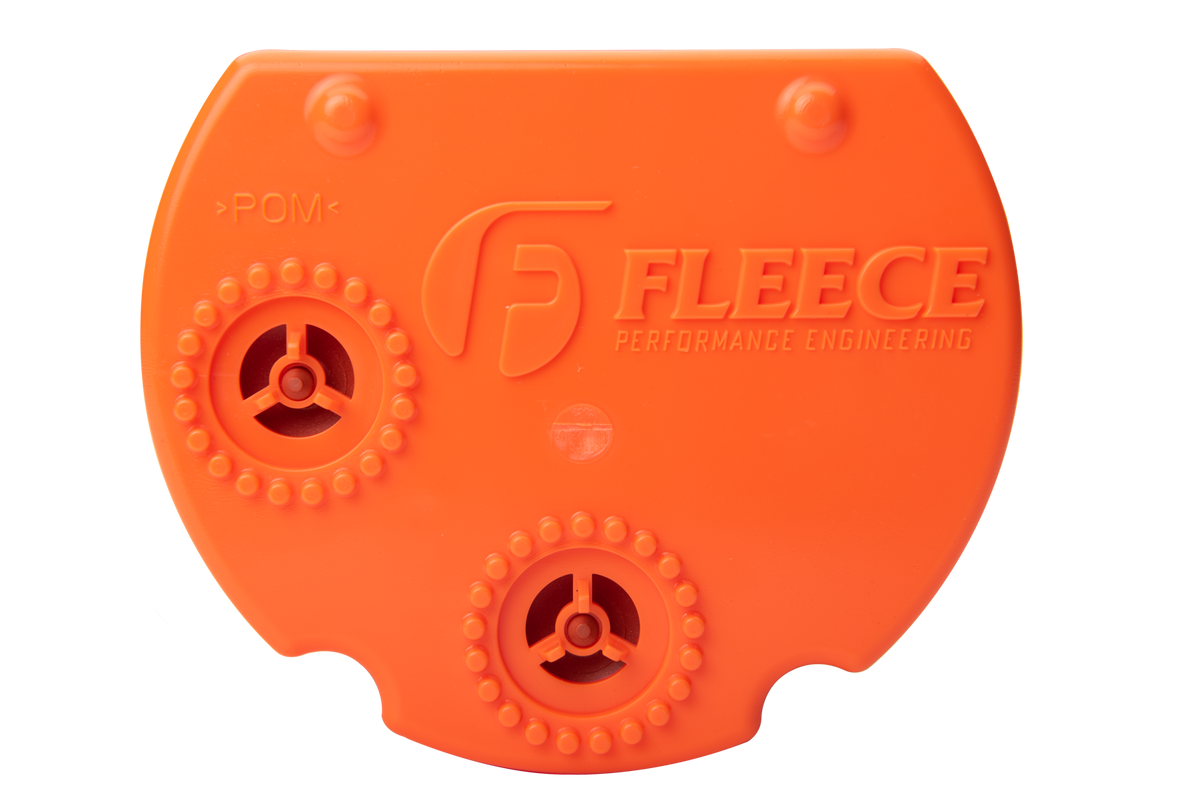

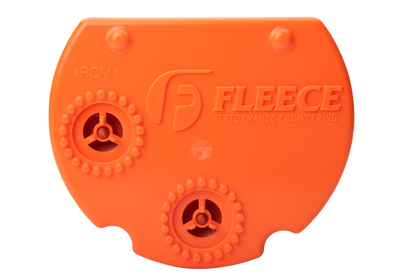

• Fuel Pickup: Integrated bucket with one-way check valves
• Fuel Line Connection: Factory-style quick disconnects
• Installation: No cutting, drilling, sump, or draw straw required
• Pump Use: External frame-mounted lift pumps
• AirDog Compatibility: Tested up to 220 GPH
• FASS Compatibility: Tested up to 290 GPH
• Seal Included: New O-ring or flange seal
• OEM Reference: 68064420AA
• Warranty: 1-year limited parts warranty

Fitment:

• 2011-2024 Ram 4500 6.7L Cummins Cab & Chassis (Rear Over-Axle Tank)
• 2011-2024 Ram 5500 6.7L Cummins Cab & Chassis (Rear Over-Axle Tank)

Upgrade fuel pickup on your 2011-2024 Ram 4500 or 5500 Cab & Chassis with the Fleece Performance SureFlo Sending Unit. Part FPE-SF-CUMM-1124-CCOA is designed for rear over-axle tank applications originally equipped with OEM lift pump 68064420AA and now using an external frame-mounted lift pump. The integrated fuel bucket draws and returns fuel at the bottom of the tank to help prevent air ingestion and quarter-tank fuel supply issues without drilling, cutting, a sump, or a draw straw. This is a sending unit only and does not include a fuel pump.
