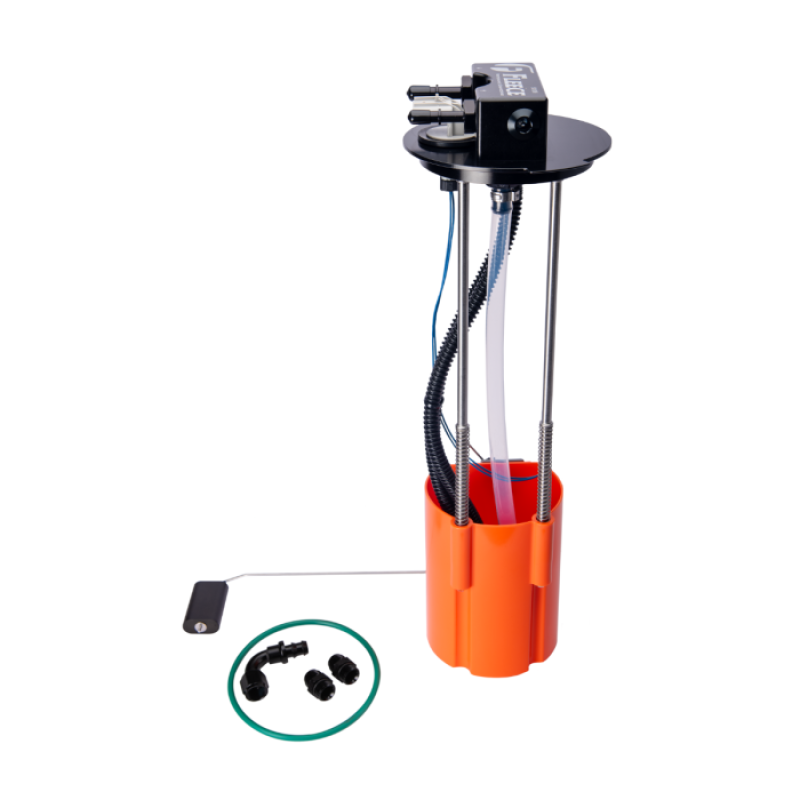

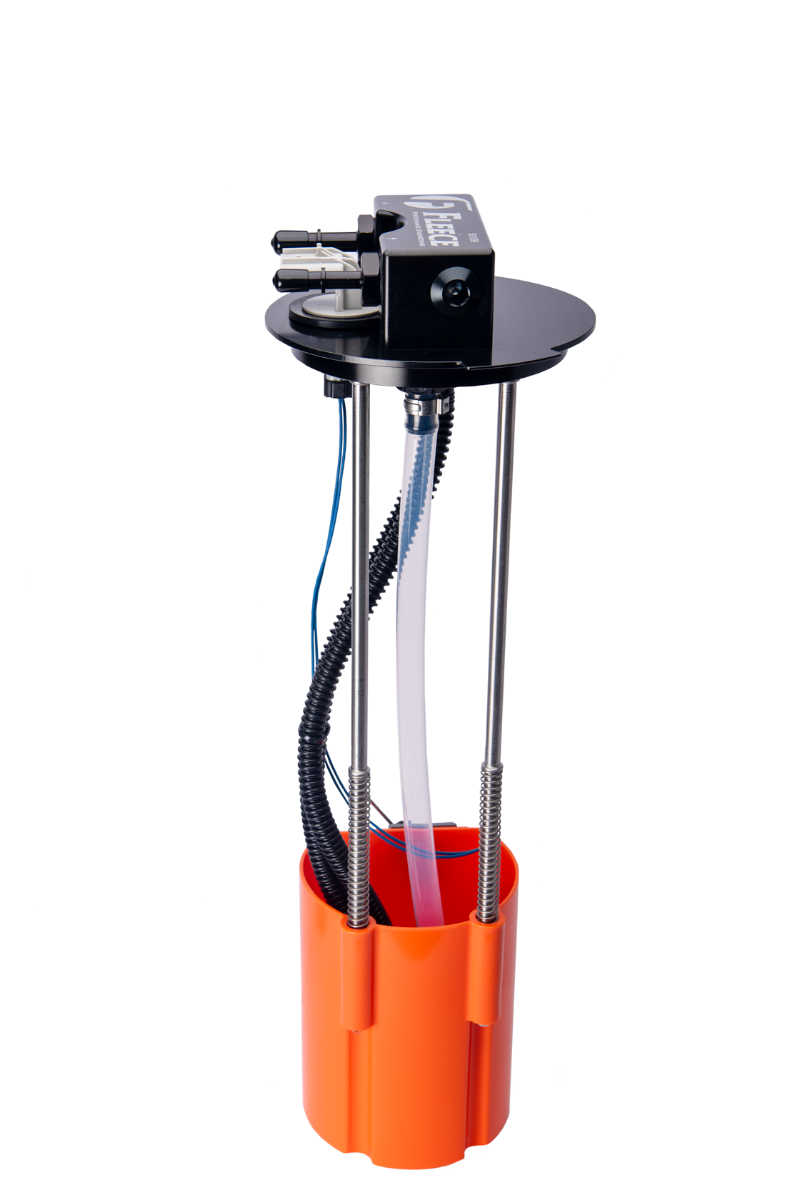

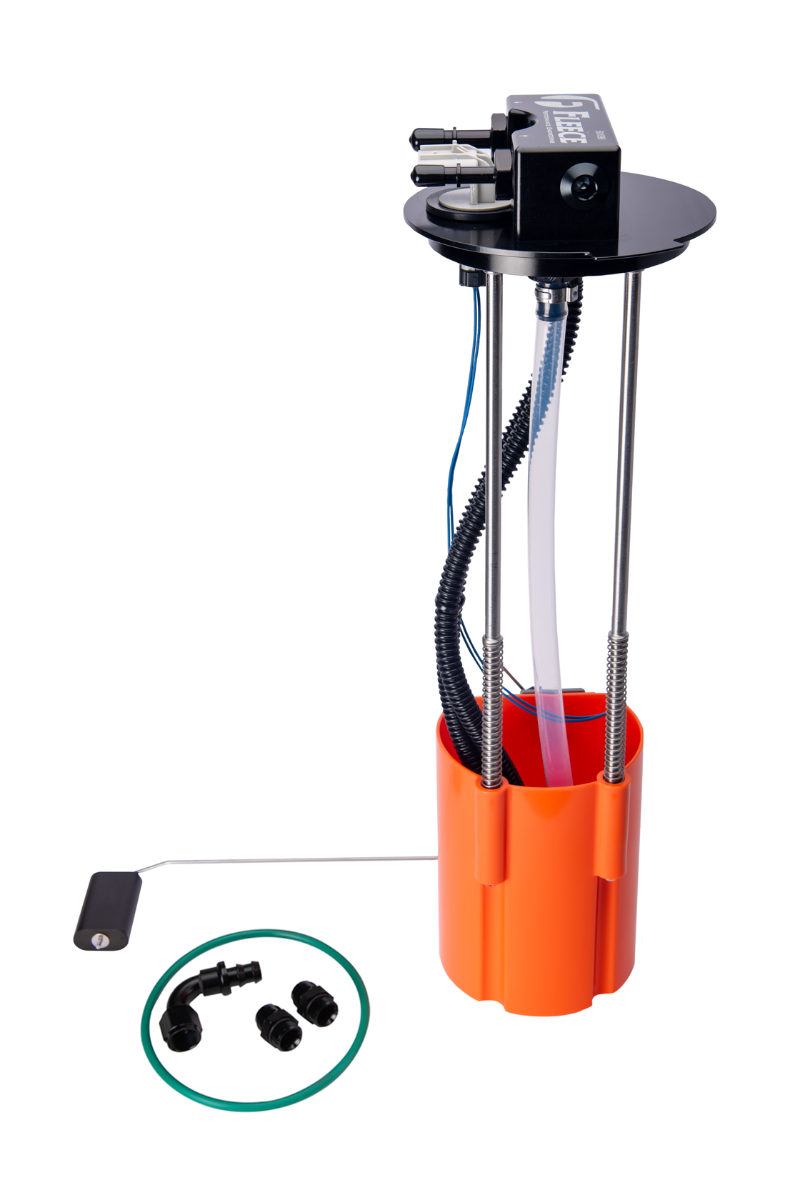

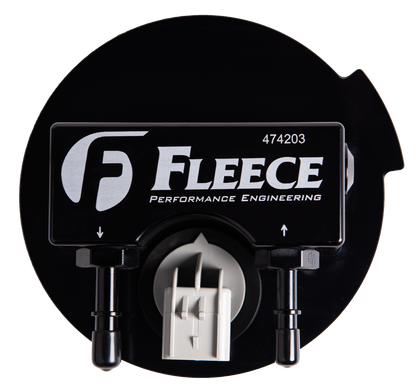

Fleece SureFlo Sending Unit for 2020-24 Ram 2500/3500 50-Gal Tank - FPE-SF-CUMM-2024-50

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-CUMM-2024-50
• Product Type: Performance sending unit
• Lift Pump Included: No
• Tank Location: In-tank
• Tank Capacity: Factory 50-gallon tank only

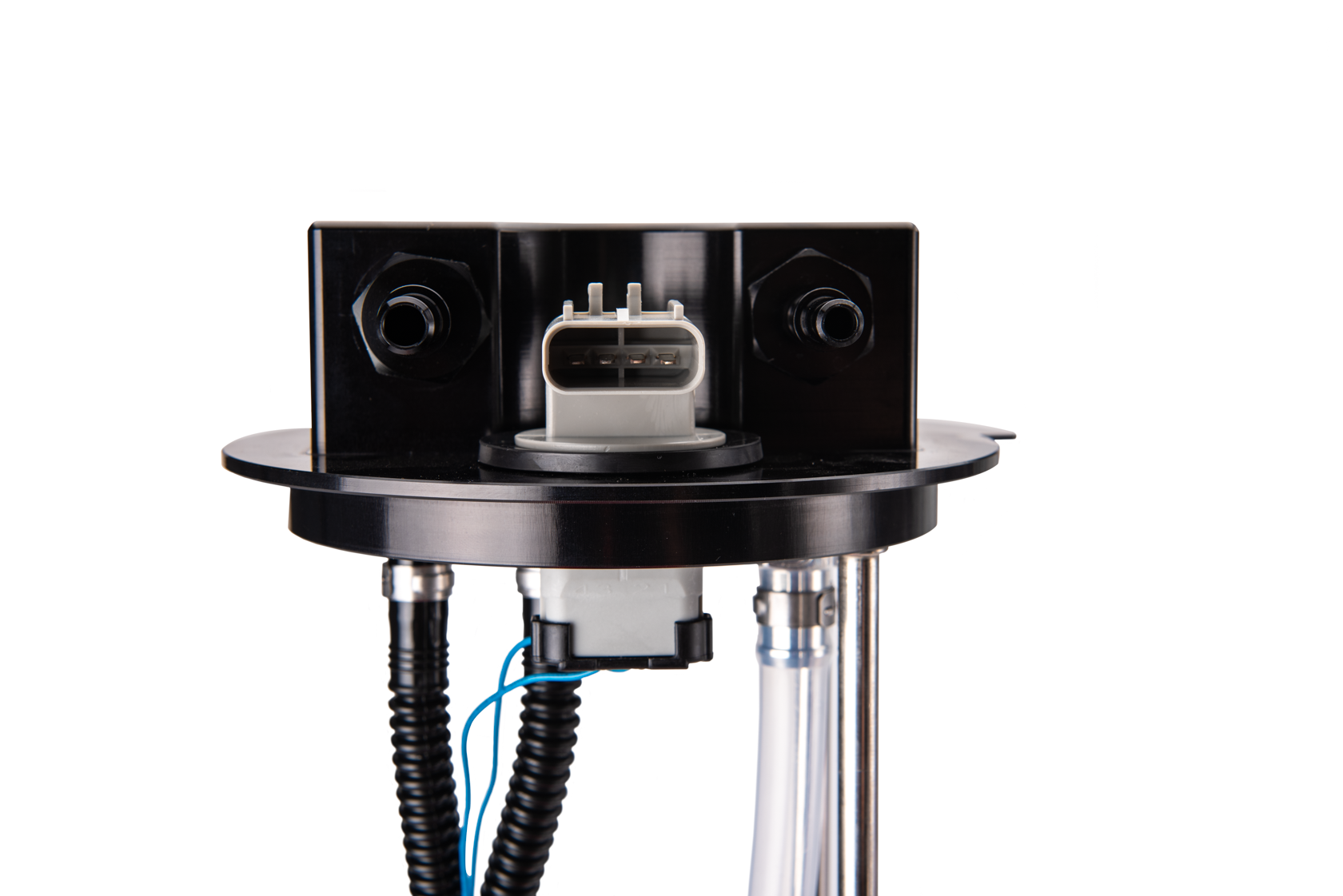

• Port Size: Dual -8 AN

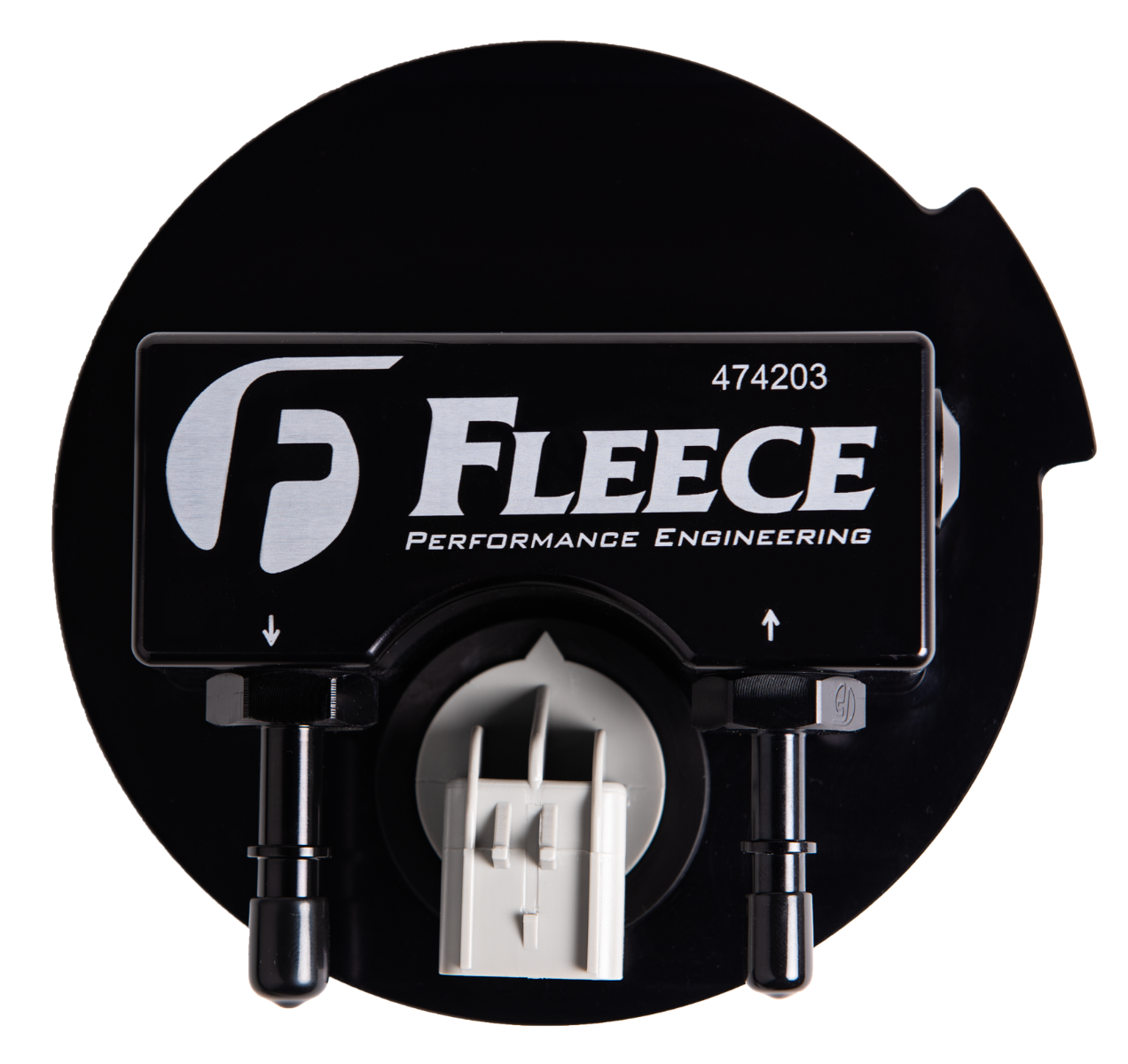

• Cap Material: Billet aluminum
• Fuel Sender: New level electronics and float

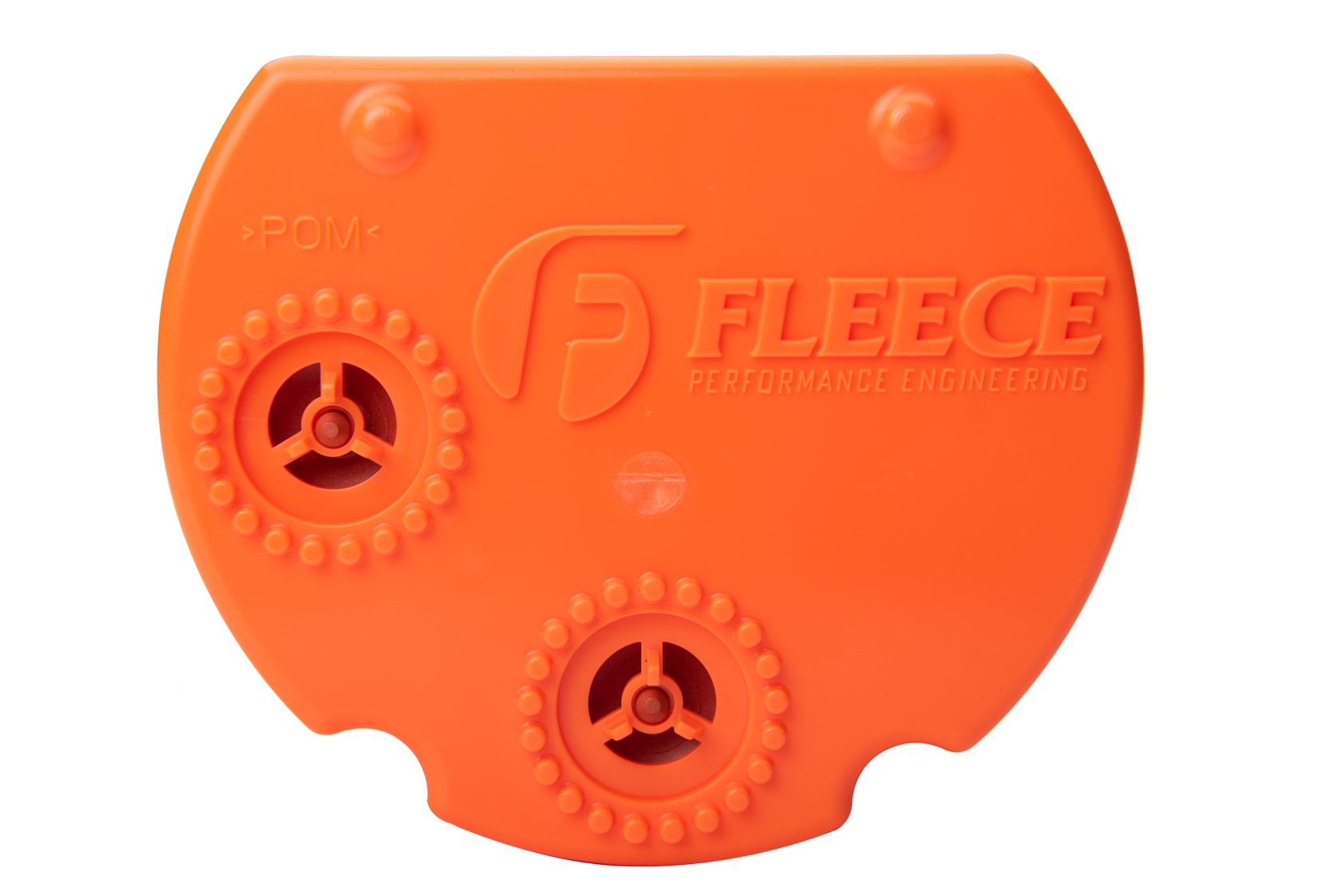

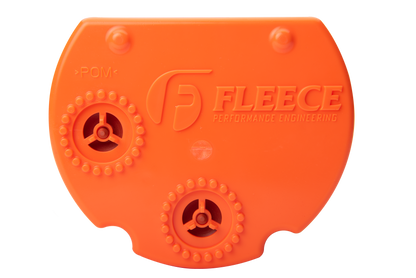

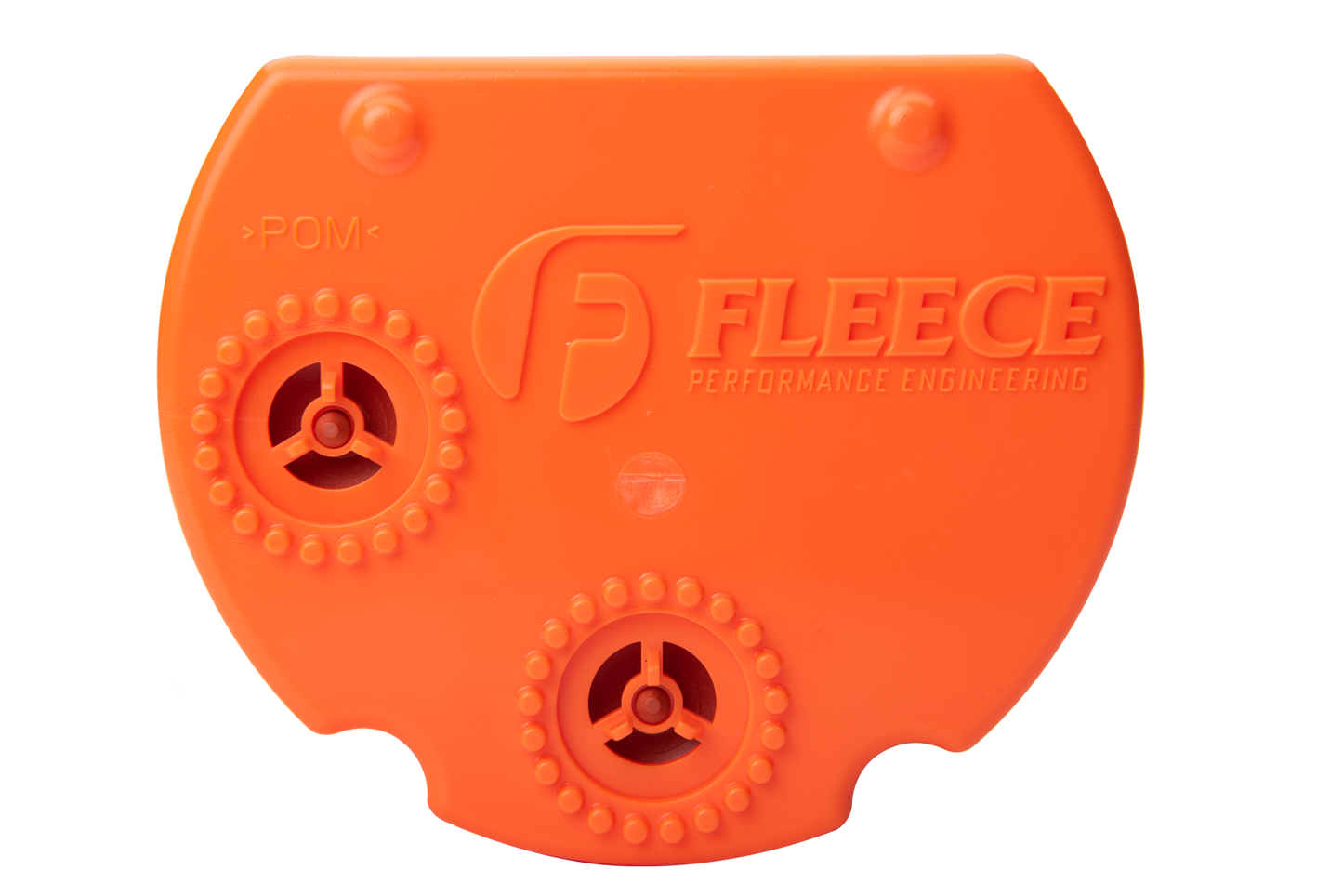

• Fuel Pickup: Integrated bucket with one-way check valves
• Fuel Line Connection: Factory-style quick disconnects
• Installation: No cutting, drilling, sump, or draw straw required
• Pump Use: External aftermarket lift pumps
• AirDog Compatibility: Tested up to 220 GPH
• FASS Compatibility: Tested up to 290 GPH
• Seal Included: New O-ring or flange seal
• OEM Replacement Numbers: 68490266AA, 68534612AB
• Vehicle Type: Pickup trucks only; not for Cab & Chassis models
• Tank Note: Not for aftermarket oversized fuel tanks
• Warranty: 1-year limited parts warranty

Fitment:

• 2020-2024 Ram 2500 6.7L Cummins (Factory 50-Gallon Fuel Tank)
• 2020-2024 Ram 3500 6.7L Cummins (Factory 50-Gallon Fuel Tank)

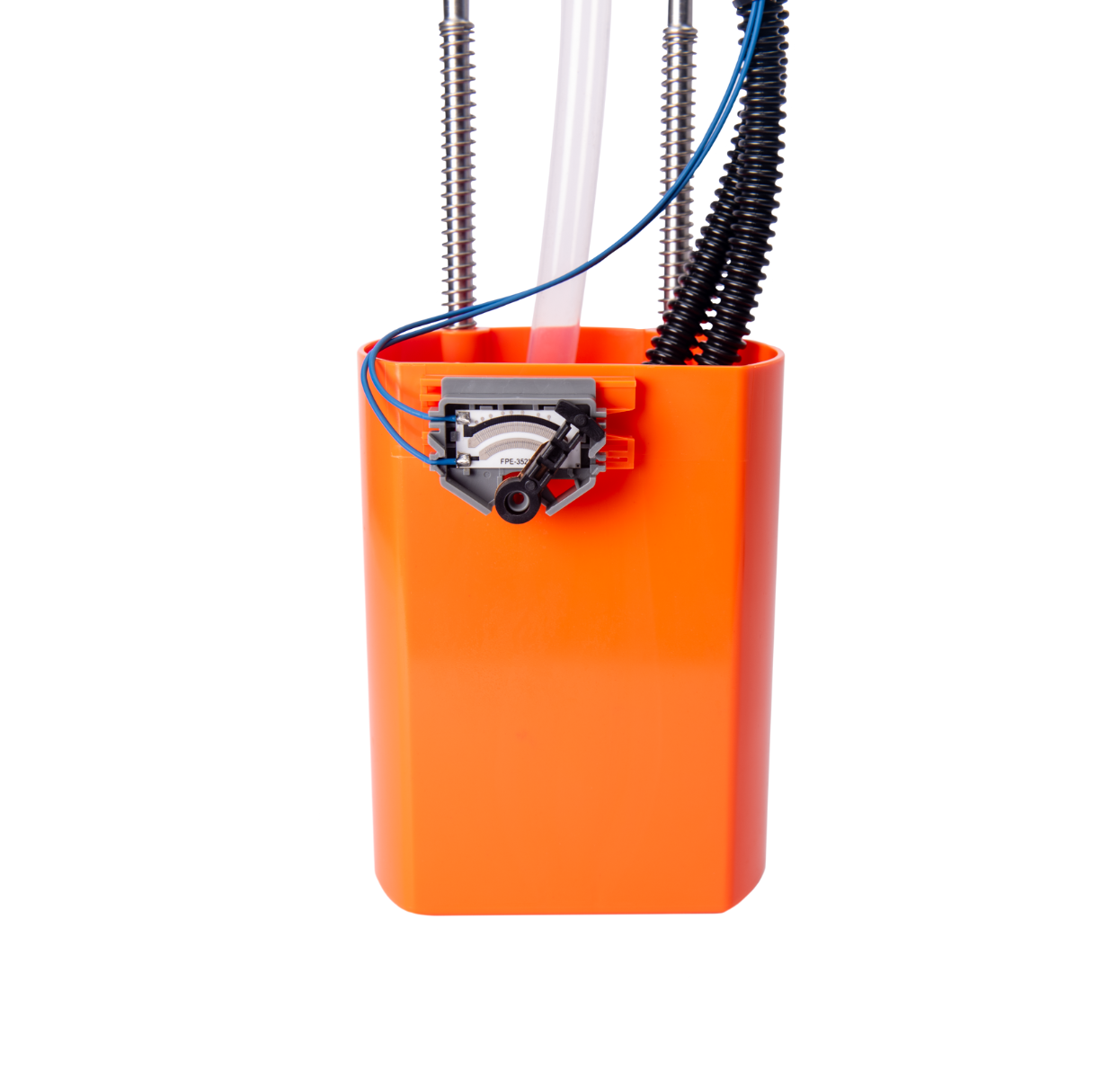

Upgrade fuel pickup in your 2020-2024 Ram 2500 or 3500 Cummins equipped with the factory 50-gallon fuel tank using the Fleece Performance SureFlo Sending Unit. Part FPE-SF-CUMM-2024-50 installs directly in the factory tank opening for a clean connection to an external aftermarket lift pump or custom fuel system. Its integrated fuel bucket draws and returns fuel at the bottom of the tank to help reduce air ingestion and quarter-tank fuel supply issues without drilling, cutting, a sump, or a draw straw. This is a sending unit only and does not include a lift pump.
