Fleece SureFlo Sending Unit 1991-97 Dodge Ram D250/D350/2500/3500 - FPE-SF-CUMM-9197

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-CUMM-9197
• Product Type: Performance sending unit
• Tank Location: In-tank
• Vehicle Fitment: 1991-1997 Dodge Ram Cummins

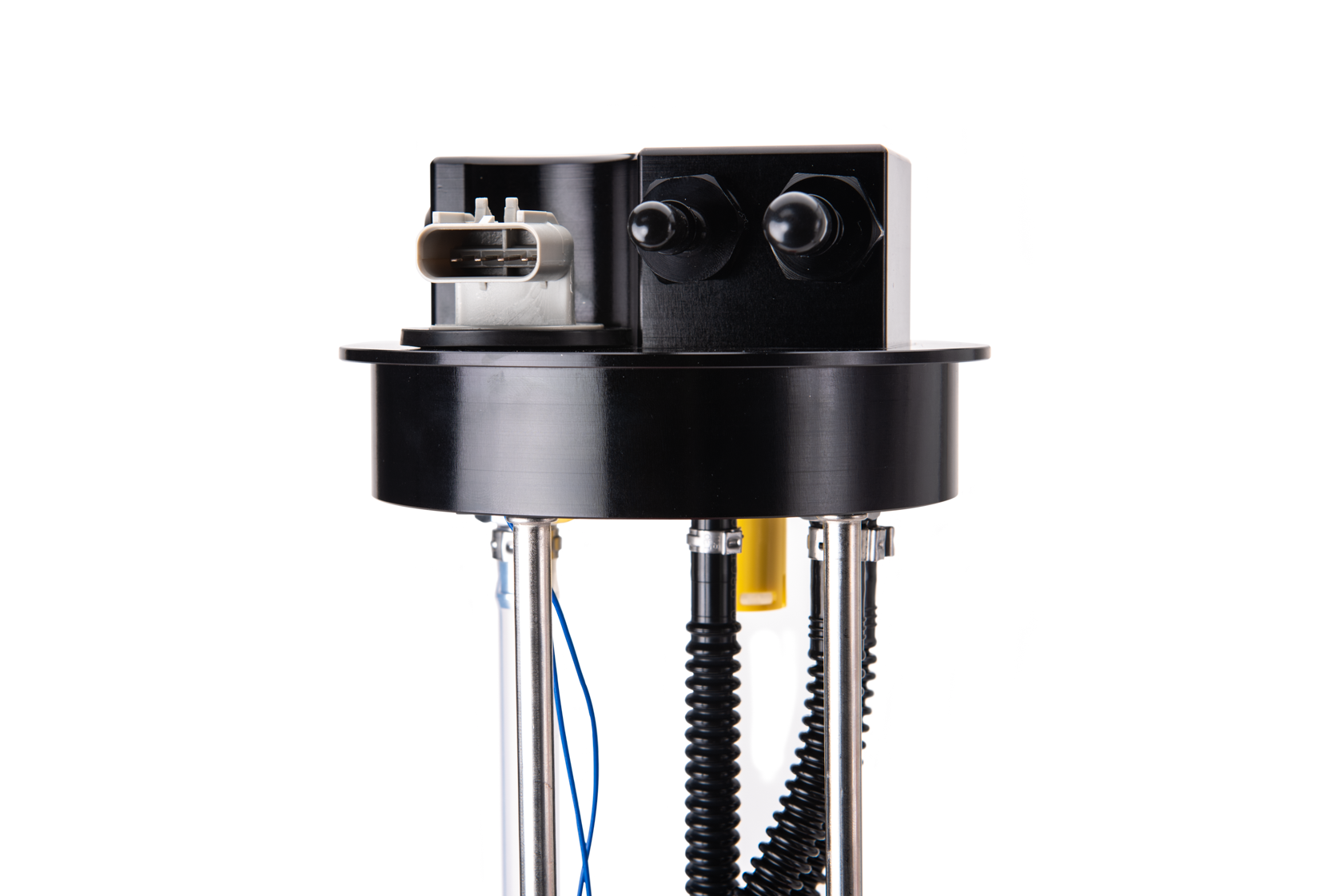

• Port Size: Dual -8 AN

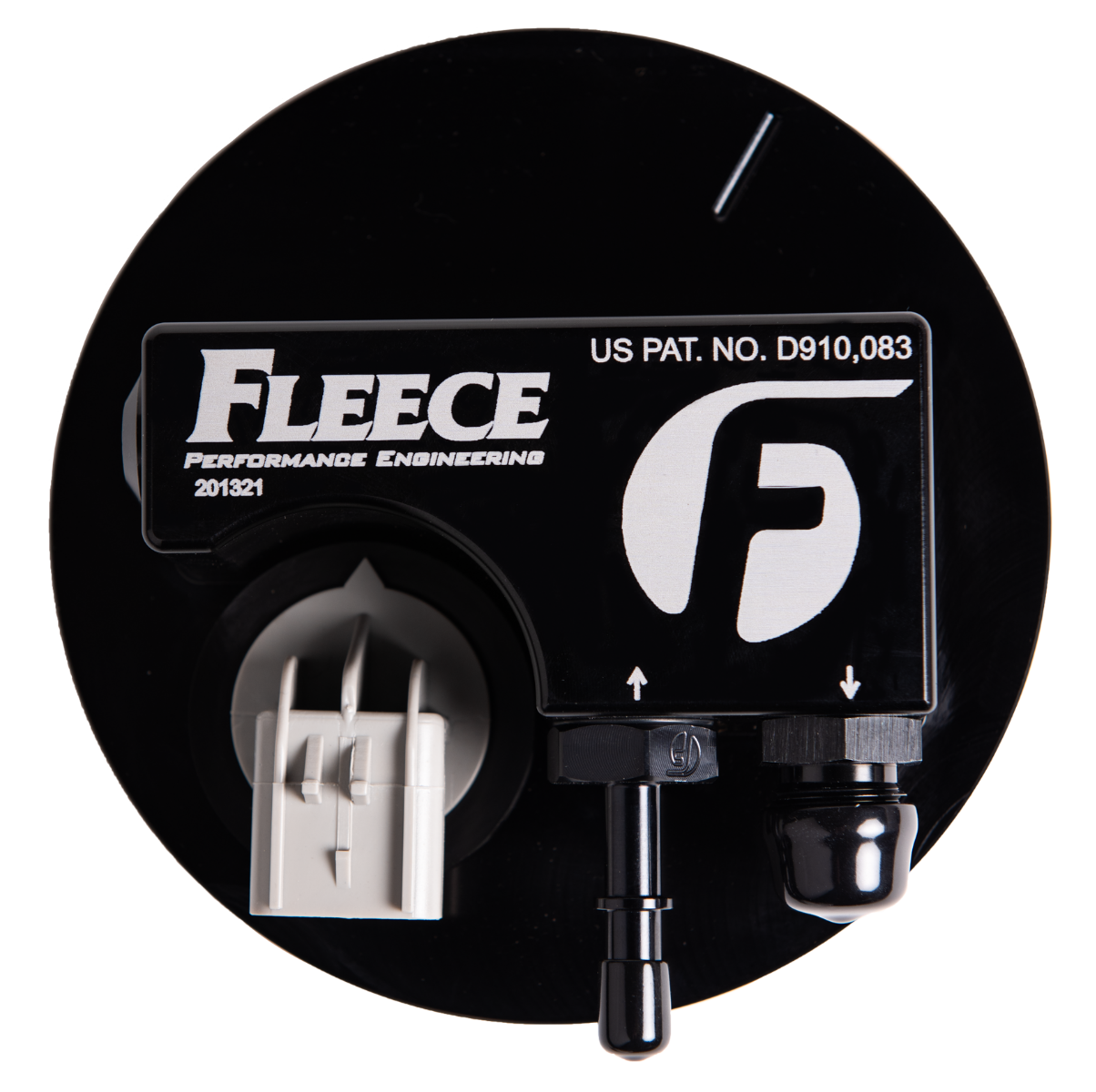

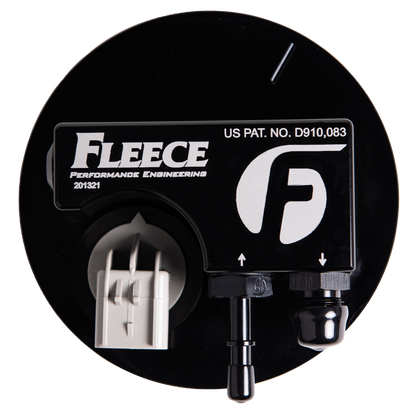

• Cap Material: Billet aluminum
• Fuel Sender: New level electronics and float

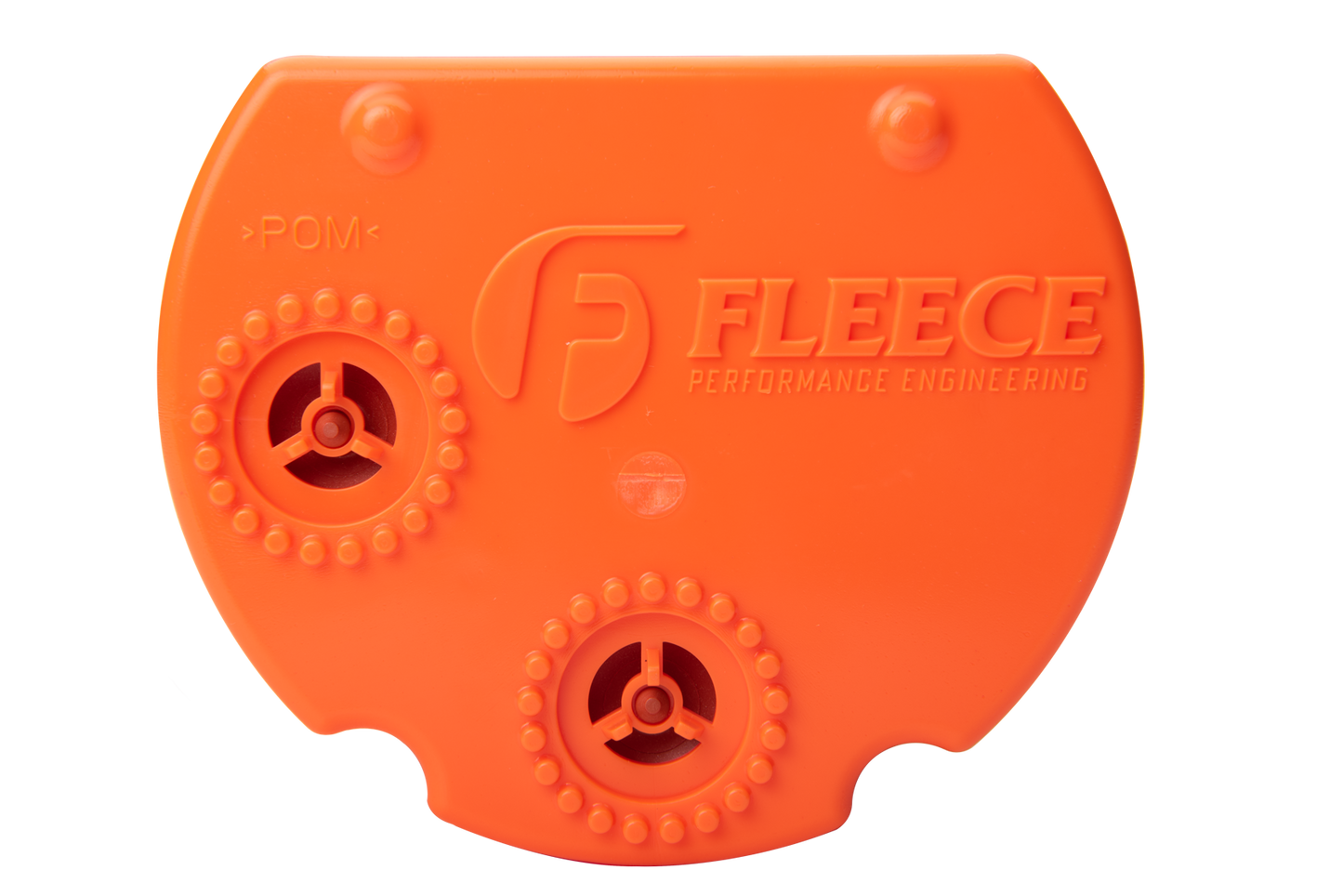

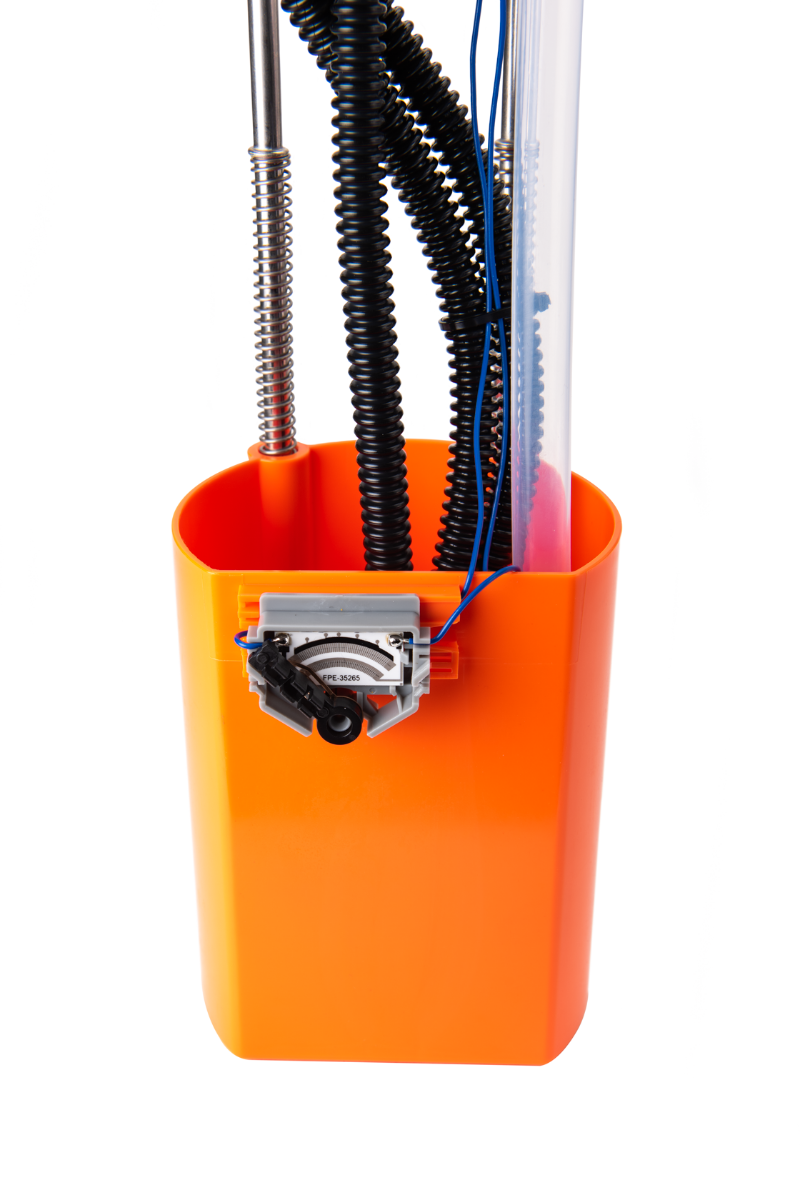

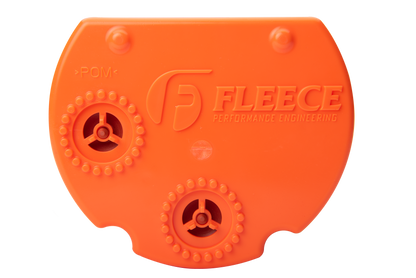

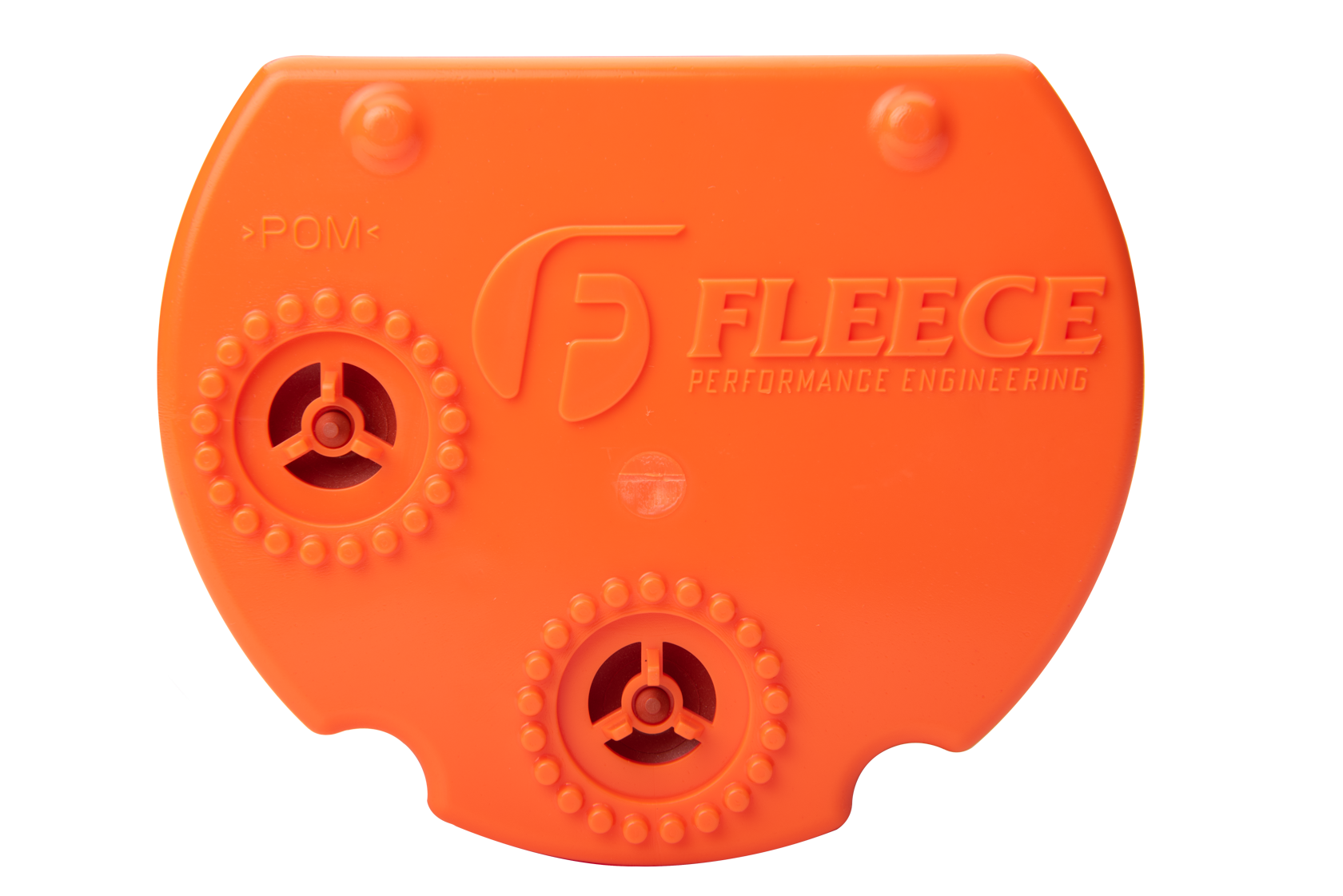

• Fuel Pickup: Integrated bucket with one-way check valves
• Fuel Line Connection: Factory-style quick disconnects
• Installation: No drilling, cutting, sump, or draw straw required
• Custom Fuel Systems: Compatible with external lift pumps and custom fuel lines
• Seal Included: New tank flange seal
• Wiring Included: Adapter pigtail connector
• Low Fuel Lamp: Does not retain low-fuel warning lamp function
• OEM Replacement Numbers: 4798671, 4864209, 4864735, 52018309

Fitment:

• 1991-1993 Dodge Ram D250 5.9L 12V Cummins
• 1991-1993 Dodge Ram D350 5.9L 12V Cummins
• 1994-1997 Dodge Ram 2500 5.9L 12V Cummins
• 1994-1997 Dodge Ram 3500 5.9L 12V Cummins

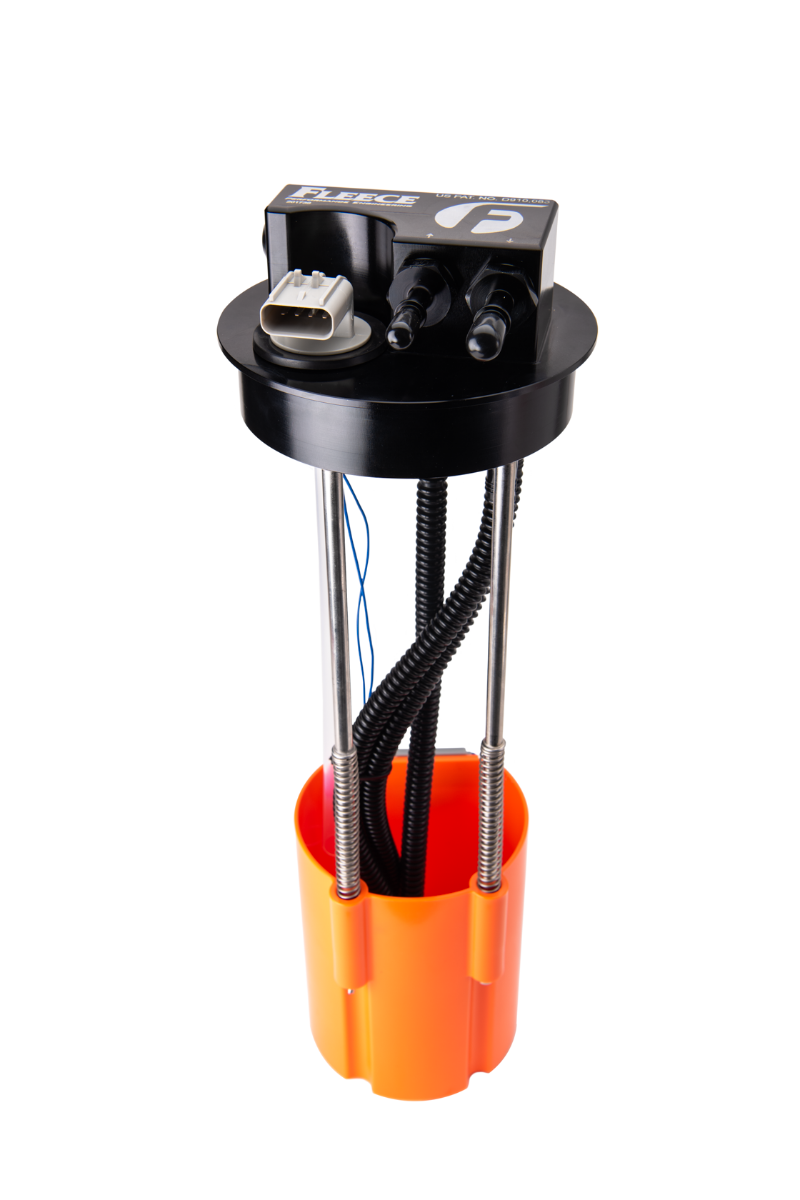

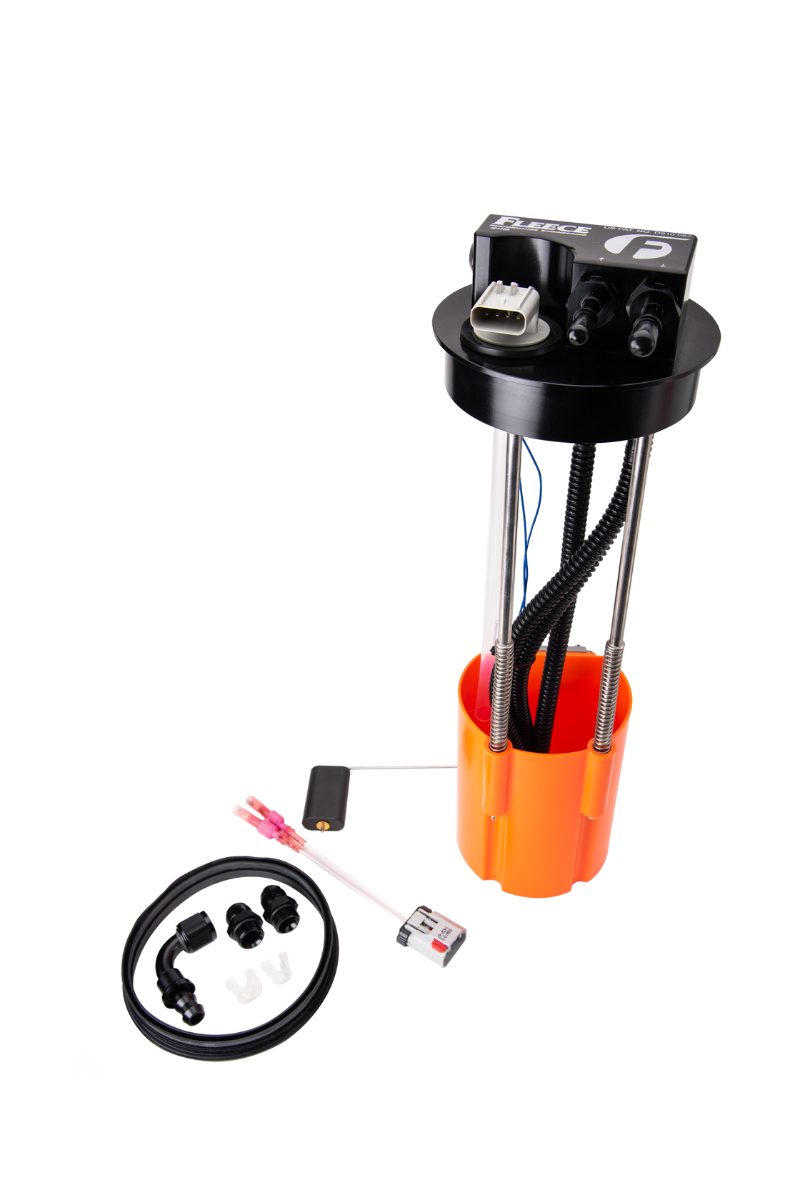

Upgrade the fuel pickup system on your 1991-1997 Dodge Ram Cummins with the Fleece Performance SureFlo Sending Unit. Part FPE-SF-CUMM-9197 installs in the factory tank opening and is designed for trucks using an external aftermarket lift pump or custom fuel lines. Its integrated fuel bucket draws and returns fuel at the bottom of the tank to help prevent air ingestion and common quarter-tank fuel supply issues without drilling the tank or installing a sump or draw straw. New fuel-level electronics, a float, and an adapter pigtail are included for a clean, complete installation.
