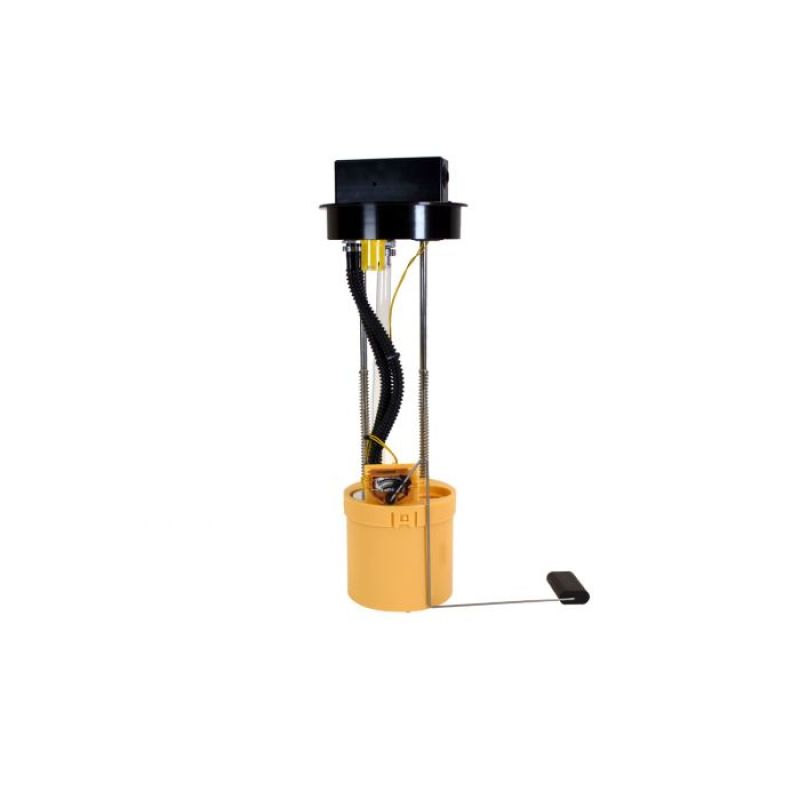

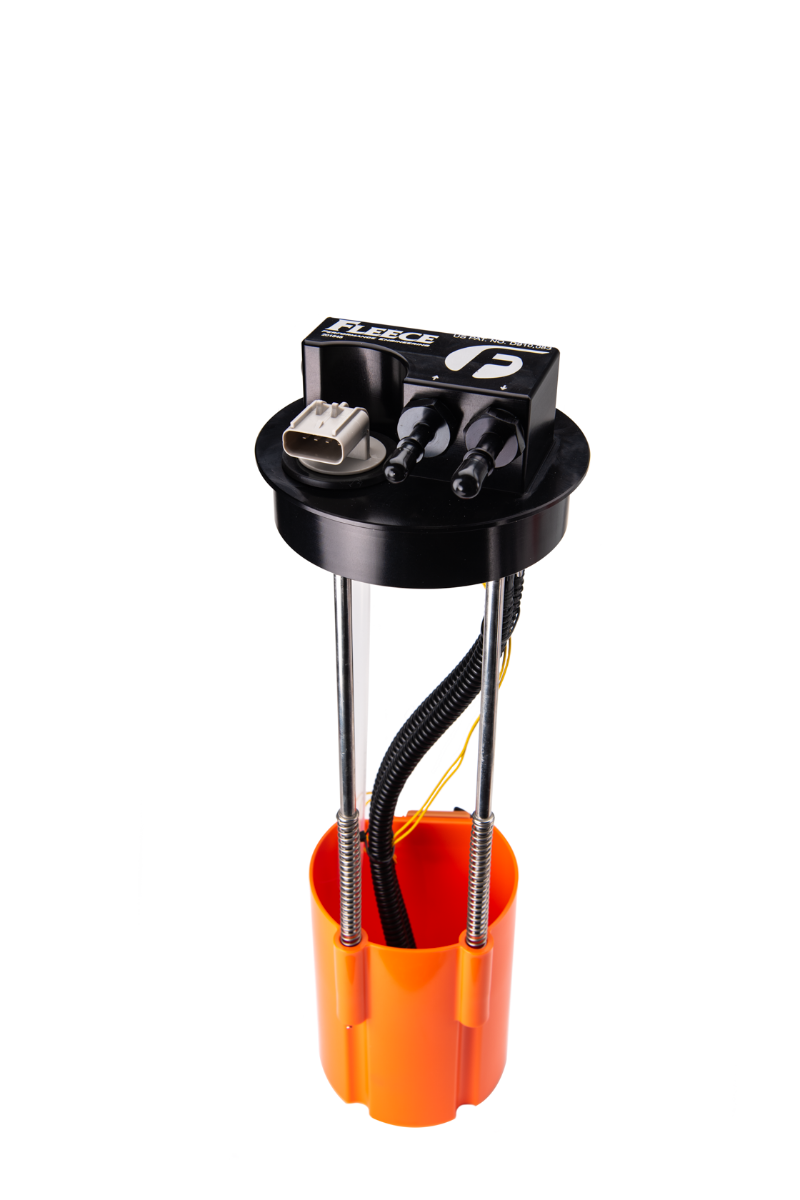

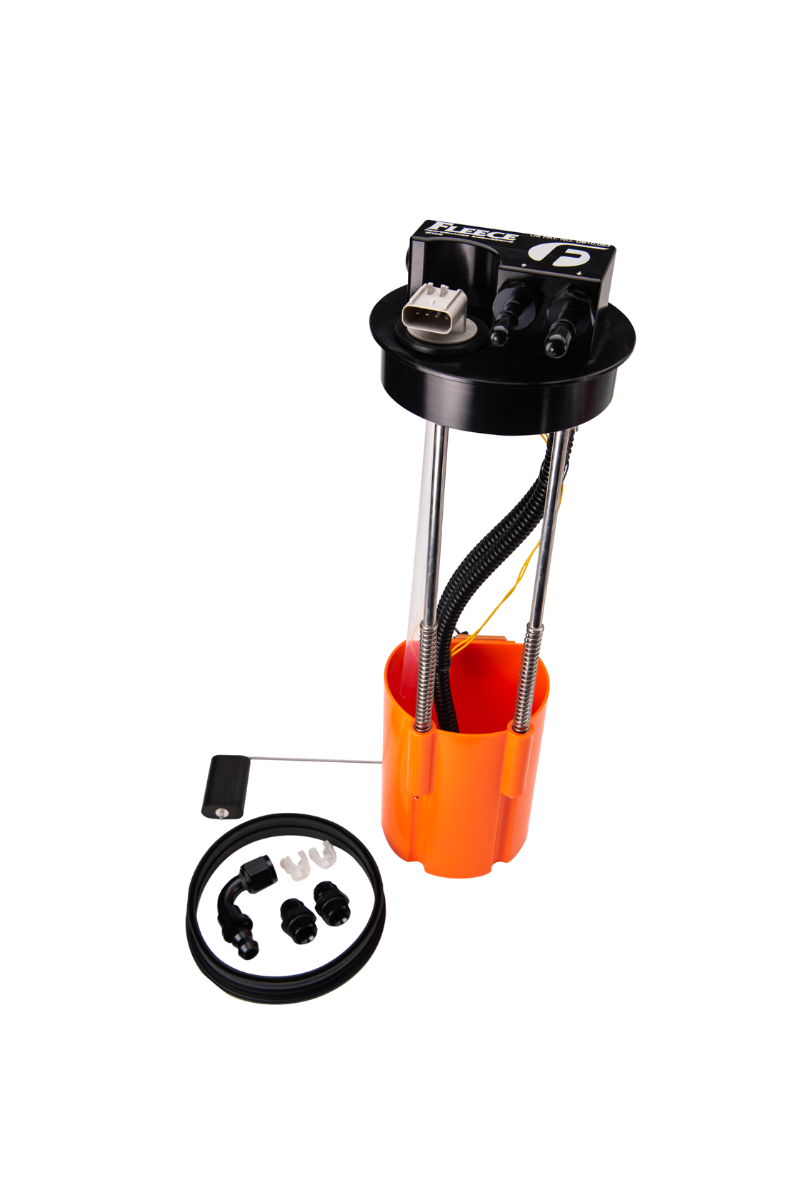

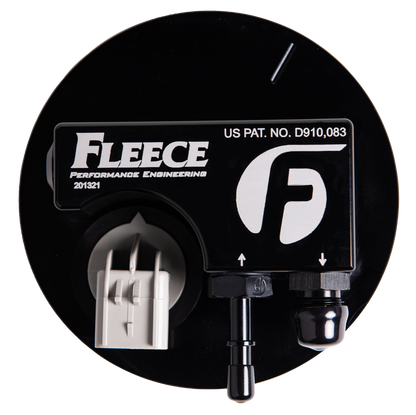

Fleece SureFlo Sending Unit for 1998-2002 Dodge Ram 2500/3500 - FPE-SF-CUMM-9802

Key Features & Specs:

• Brand: Fleece Performance
• Part Number: FPE-SF-CUMM-9802
• Product Type: Performance sending unit
• Tank Location: In-tank

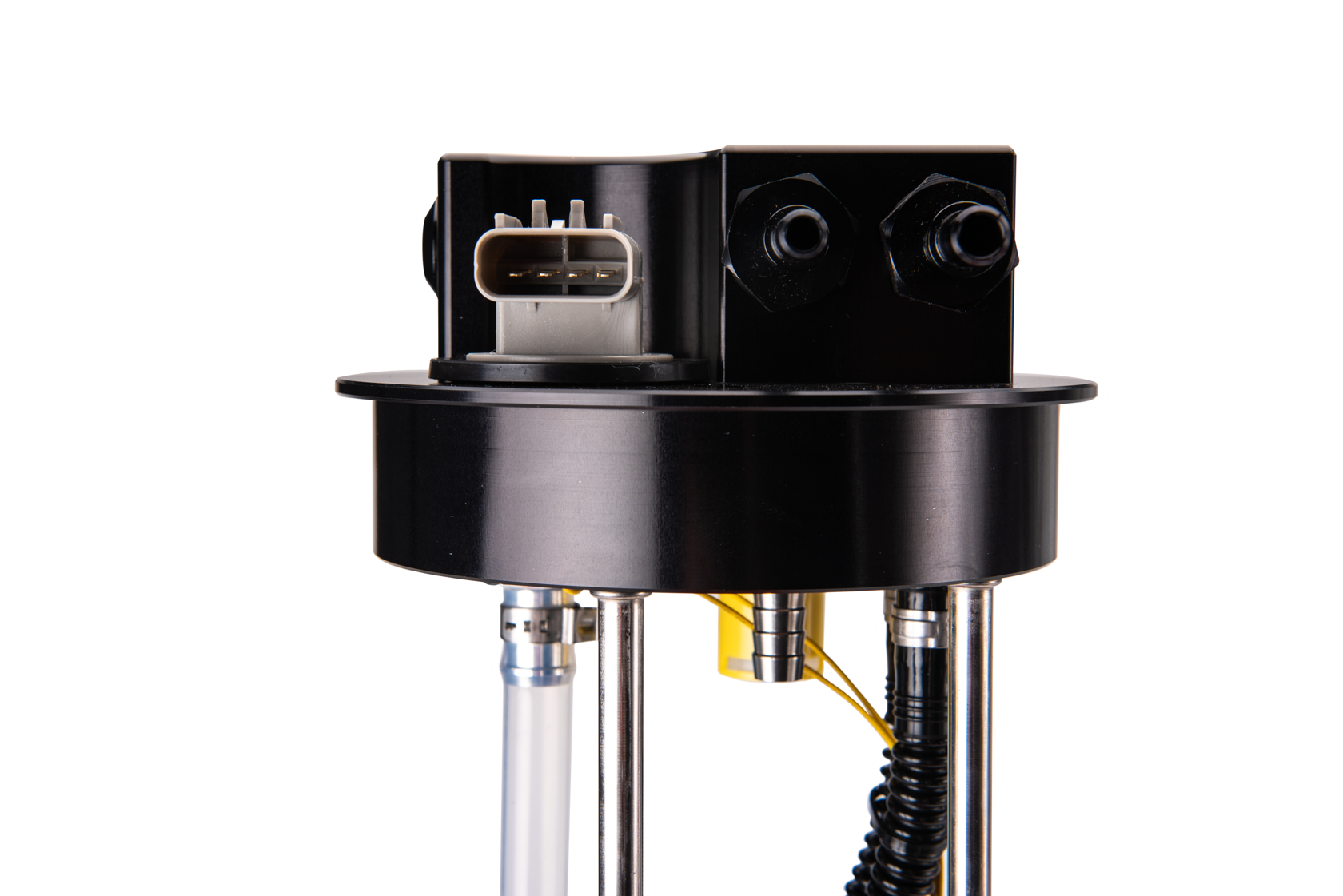

• Port Size: Dual -8 AN

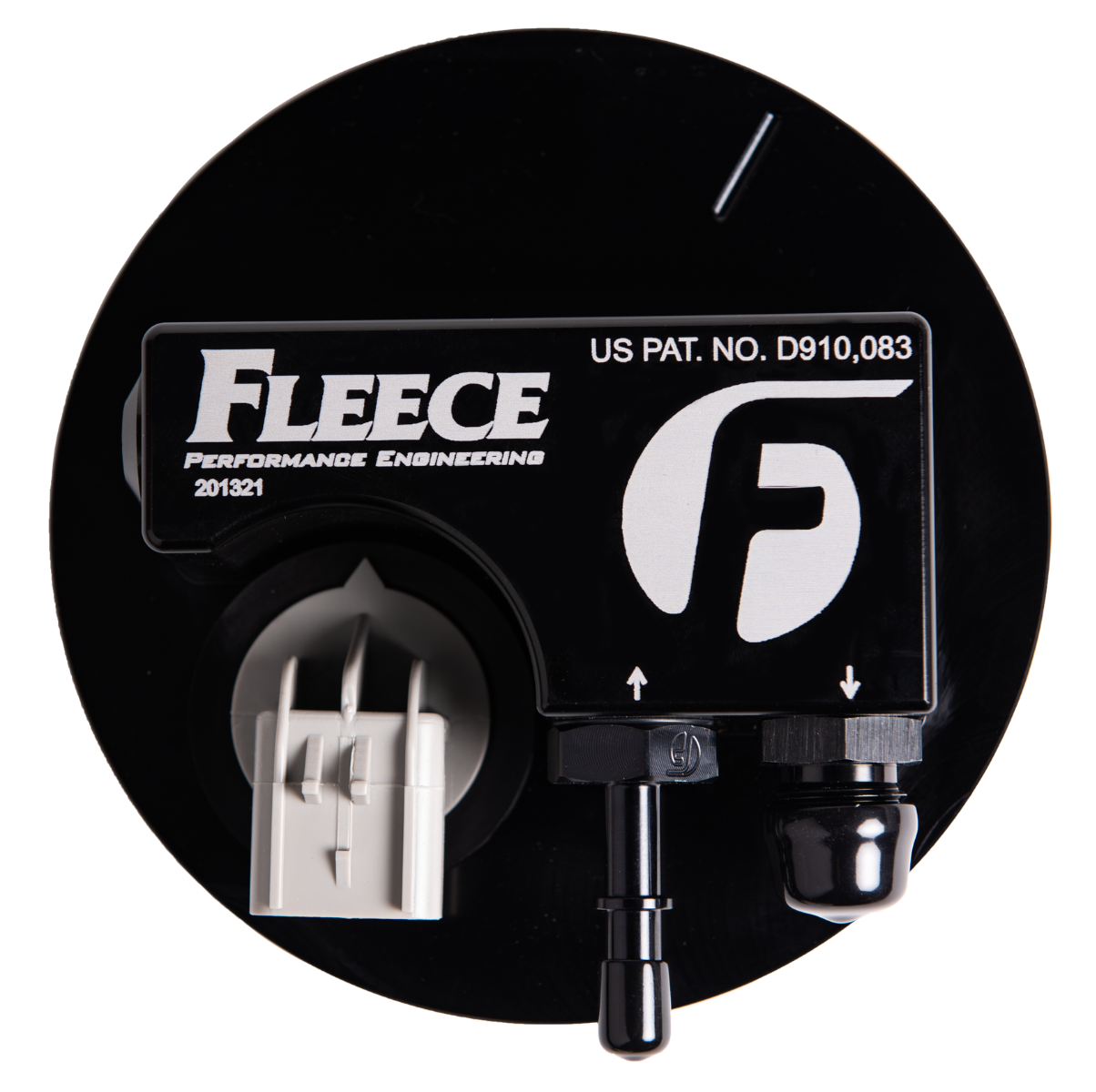

• Cap Material: Billet aluminum
• Fuel Sender: New electronics and float

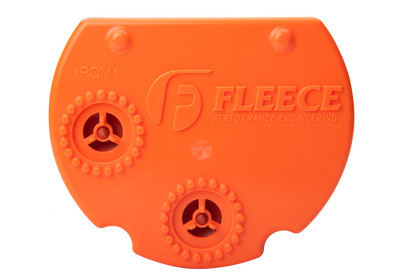

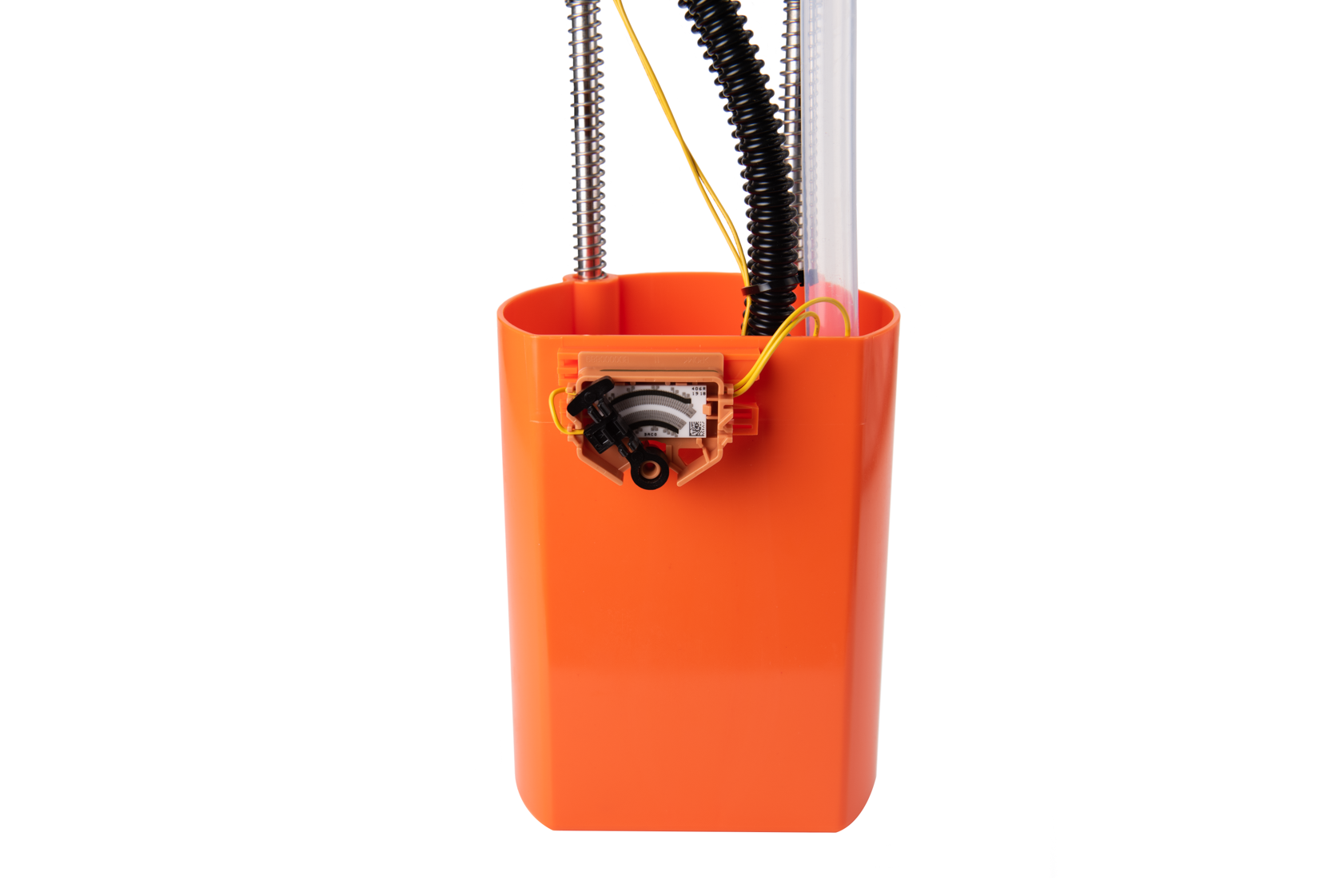

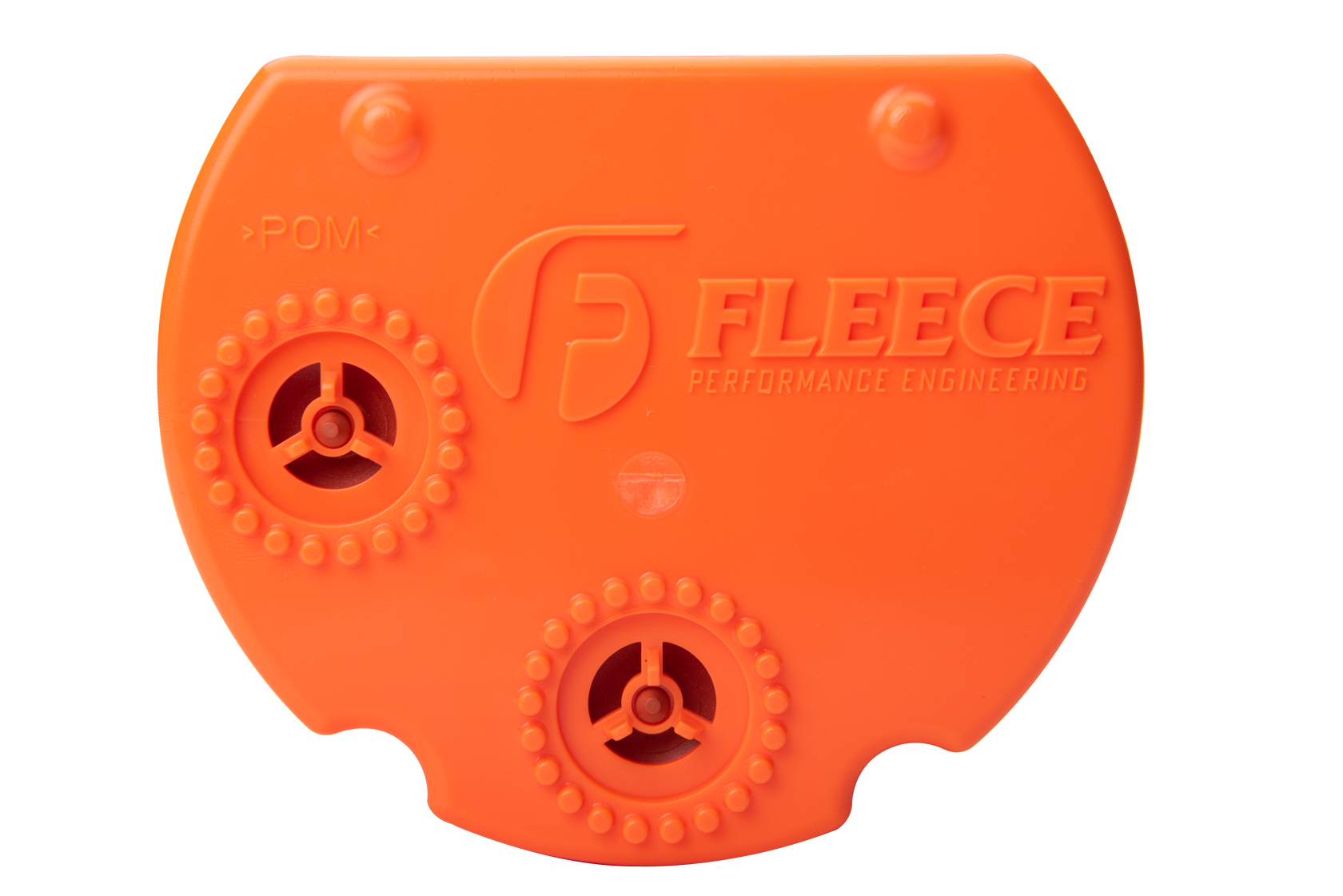

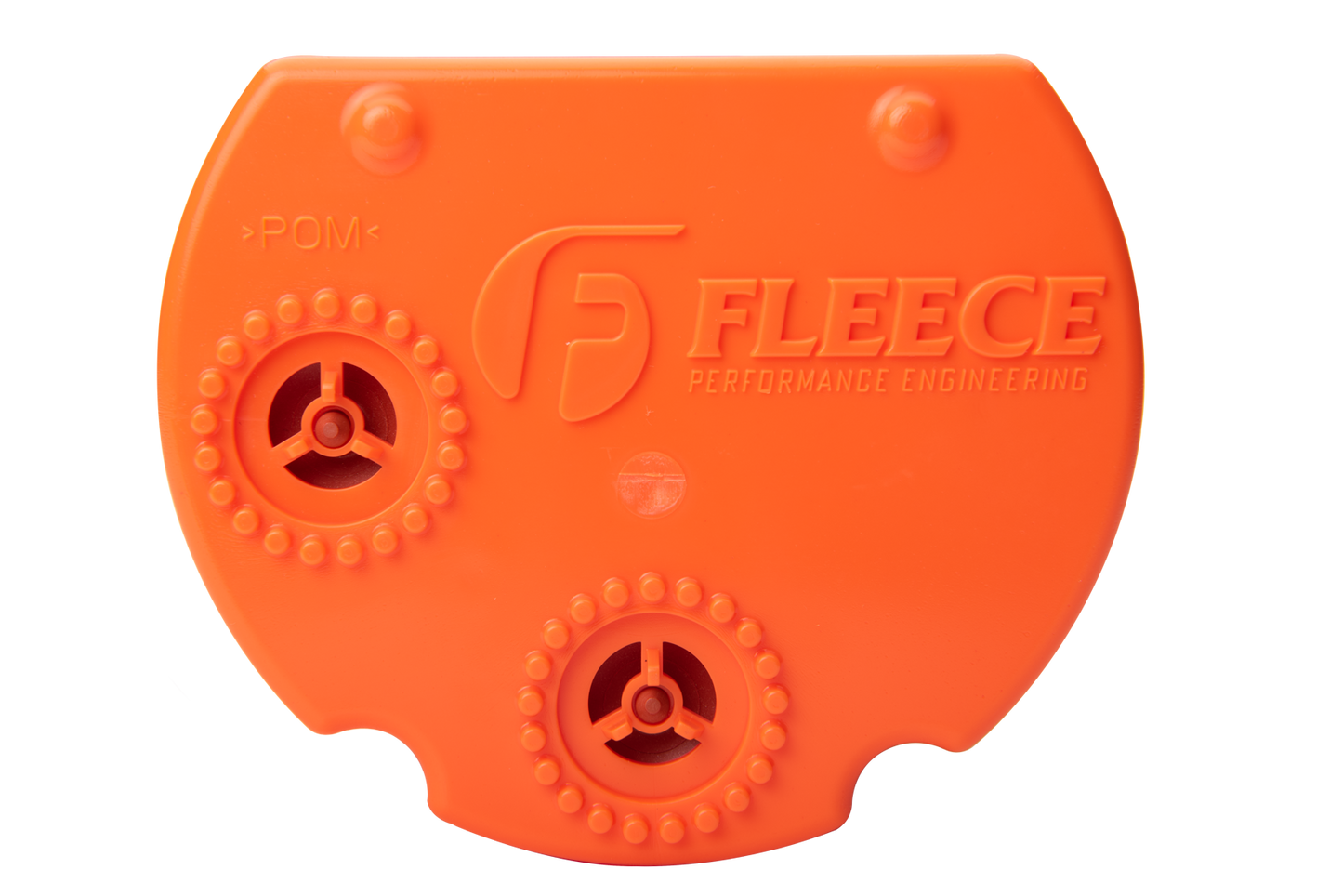

• Fuel Pickup: Integrated bucket with one-way check valves
• Fuel Line Connection: Factory-style quick disconnects
• Installation: No drilling, cutting, sump, or draw straw required
• Pump Use: External aftermarket lift pumps
• AirDog Compatibility: Tested up to 220 GPH
• FASS Compatibility: Tested up to 290 GPH
• Seal Included: New O-ring or flange seal
• Sender Resistance: 20-220 ohms
• Warranty: 1-year limited parts warranty
• OEM Replacement Numbers: 5202815, 04897668AF, 04897668AG, 04897668AH, 4897668AF, 4897668AG, 4897668AH, 4897668AI, P77364M, SP7062M

Fitment:

• 1998 Dodge Ram 2500 5.9L 12-Valve Cummins
• 1998 Dodge Ram 3500 5.9L 12-Valve Cummins
• 1998.5-2002 Dodge Ram 2500 5.9L 24-Valve VP Cummins
• 1998.5-2002 Dodge Ram 3500 5.9L 24-Valve VP Cummins

Upgrade the fuel pickup system on your 1998-2002 Dodge Ram 2500 or 3500 Cummins with the Fleece Performance SureFlo Sending Unit. Part FPE-SF-CUMM-9802 installs in the factory sending-unit location for a clean connection to external aftermarket lift pumps or custom fuel lines. Its integrated fuel bucket draws and returns fuel at the bottom of the tank to help prevent air ingestion and common quarter-tank fuel supply issues without drilling the tank or installing a sump or draw straw. New fuel-level electronics and a float are included to restore dependable fuel-gauge operation.
