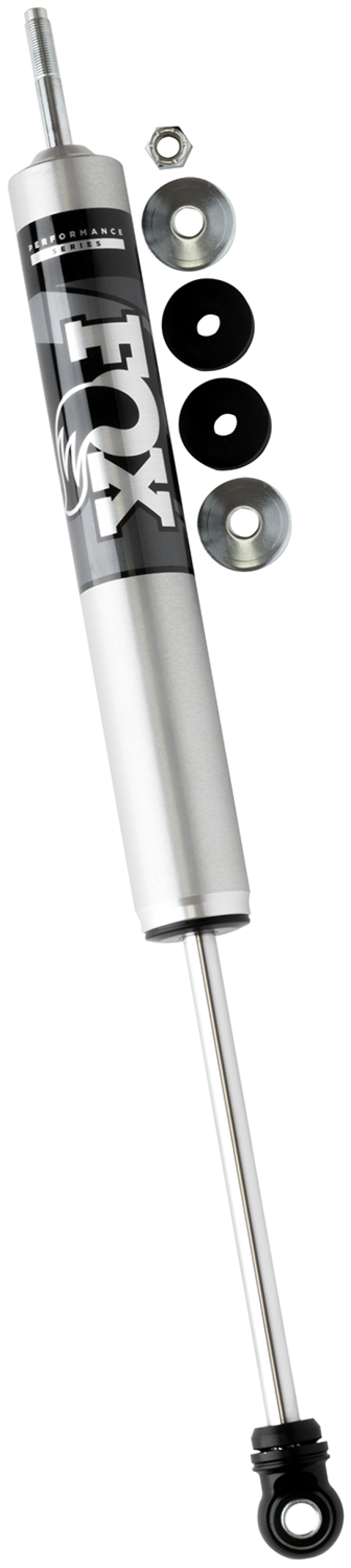

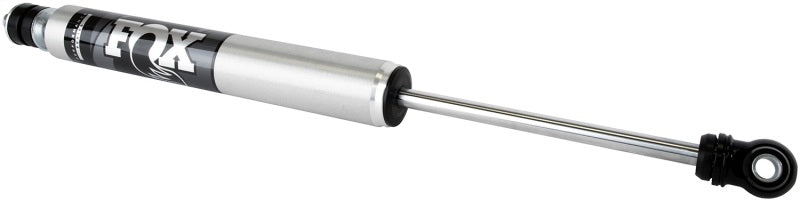

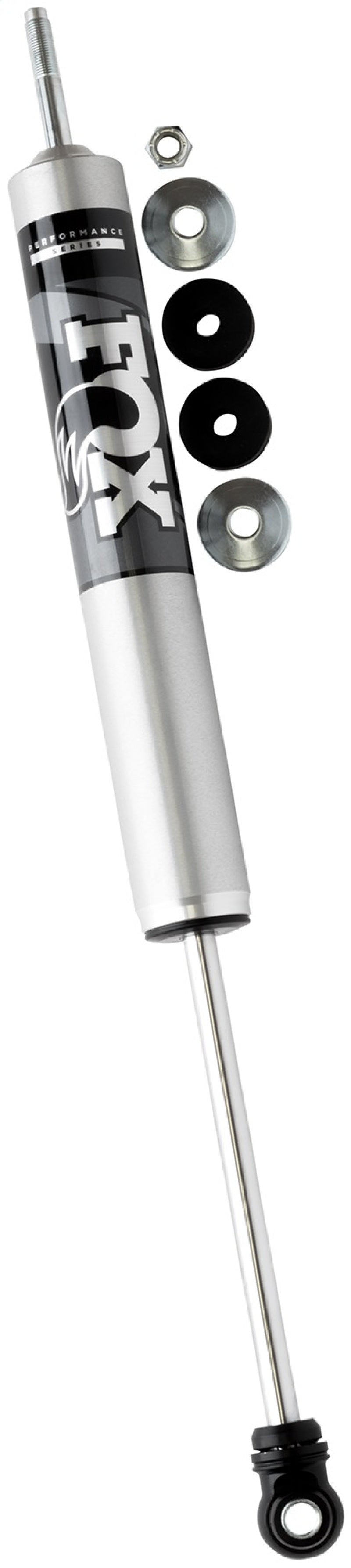

FOX 2.0 Performance Front Smooth Body Shock IFP for Ford F-250/F-350 Super Duty - 985-24-156

Front | 2.0in body | 9.63in travel | Ford F-250/F-350 Super Duty | Sold as Each

FOX 985-24-156 2.0 Performance Front Smooth Body Shock is configured for Ford F-250/F-350 Super Duty. The internal floating piston separates damping oil from pressurized nitrogen, helping maintain controlled damping as the suspension works. Choose the listed axle and lift configuration to match this FOX version to your vehicle. Key dimensions are body diameter: 2.0in; travel: 9.63in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 985-24-156
• Series: 2.0 Performance Shock
• Type: Smooth Body
• Body diameter: 2.0in
• Extended length: 25.98in
• Compressed length: 16.1in
• Travel: 9.63in

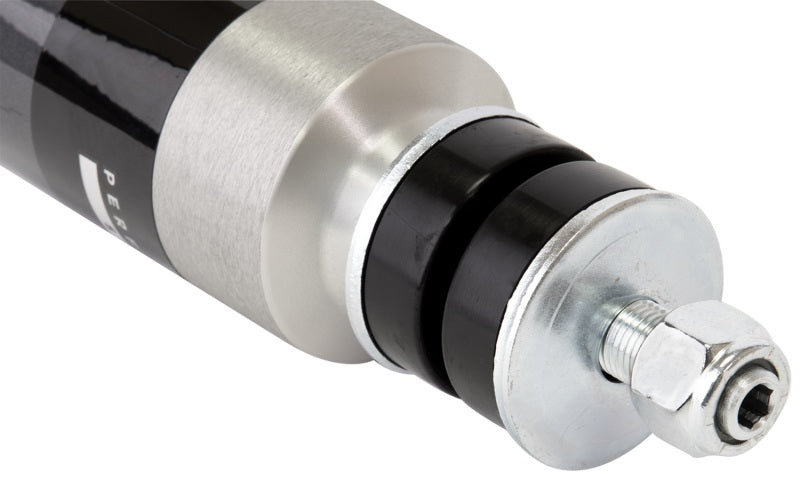

• Top mount: SM3

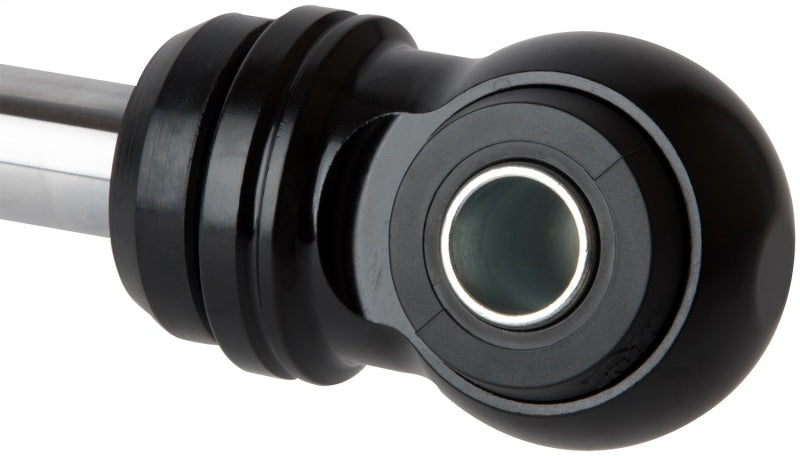

• Bottom mount: ES7
• Reservoir / oil separation: Internal floating piston (IFP)
• Material: Aluminum
• Sold as: Each
• Top mount reference: 803-00-701
• Bottom mount reference: 213-28-001-B
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Internal floating piston (IFP)
• FOX tuning developed for the specific vehicle application
• Aluminum body helps dissipate heat faster than steel
• Internal floating piston (IFP) separates the oil from high-pressure nitrogen gas
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2017-2019 Ford F-250 Super Duty | Front | 4WD drivetrain | Front lift: 4in
• 2020-2026 Ford F-250 Super Duty | Front | 4WD drivetrain | Front lift: 4.5-5.5in | 2.5-3.5" lift on Tremor
• 2017-2019 Ford F-350 Super Duty Crew Cab Pickup | Front | 4WD drivetrain | Front lift: 4in
• 2020-2026 Ford F-350 Super Duty Crew Cab Pickup | Front | 4WD drivetrain | Front lift: 4.5-5.5in | 2.5-3.5" lift on Tremor
• 2017-2019 Ford F-350 Super Duty Extended Cab Pickup | Front | 4WD drivetrain | Front lift: 4in
• 2020-2026 Ford F-350 Super Duty Extended Cab Pickup | Front | 4WD drivetrain | Front lift: 4.5-5.5in | 2.5-3.5" lift on Tremor
• 2017-2019 Ford F-350 Super Duty Standard Cab Pickup | Front | 4WD drivetrain | Front lift: 4in
• 2020-2026 Ford F-350 Super Duty Standard Cab Pickup | Front | 4WD drivetrain | Front lift: 4.5-5.5in | 2.5-3.5" lift on Tremor
