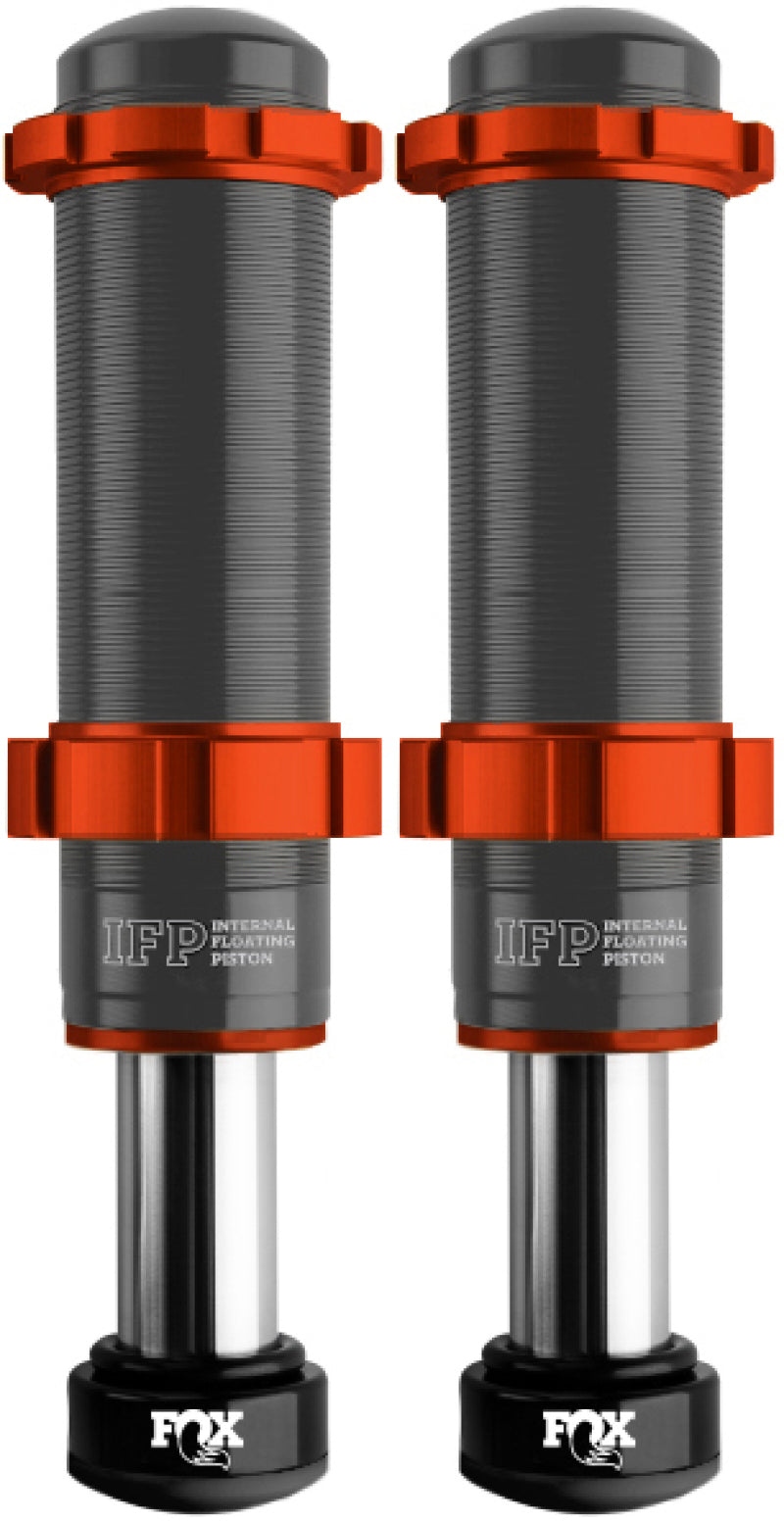

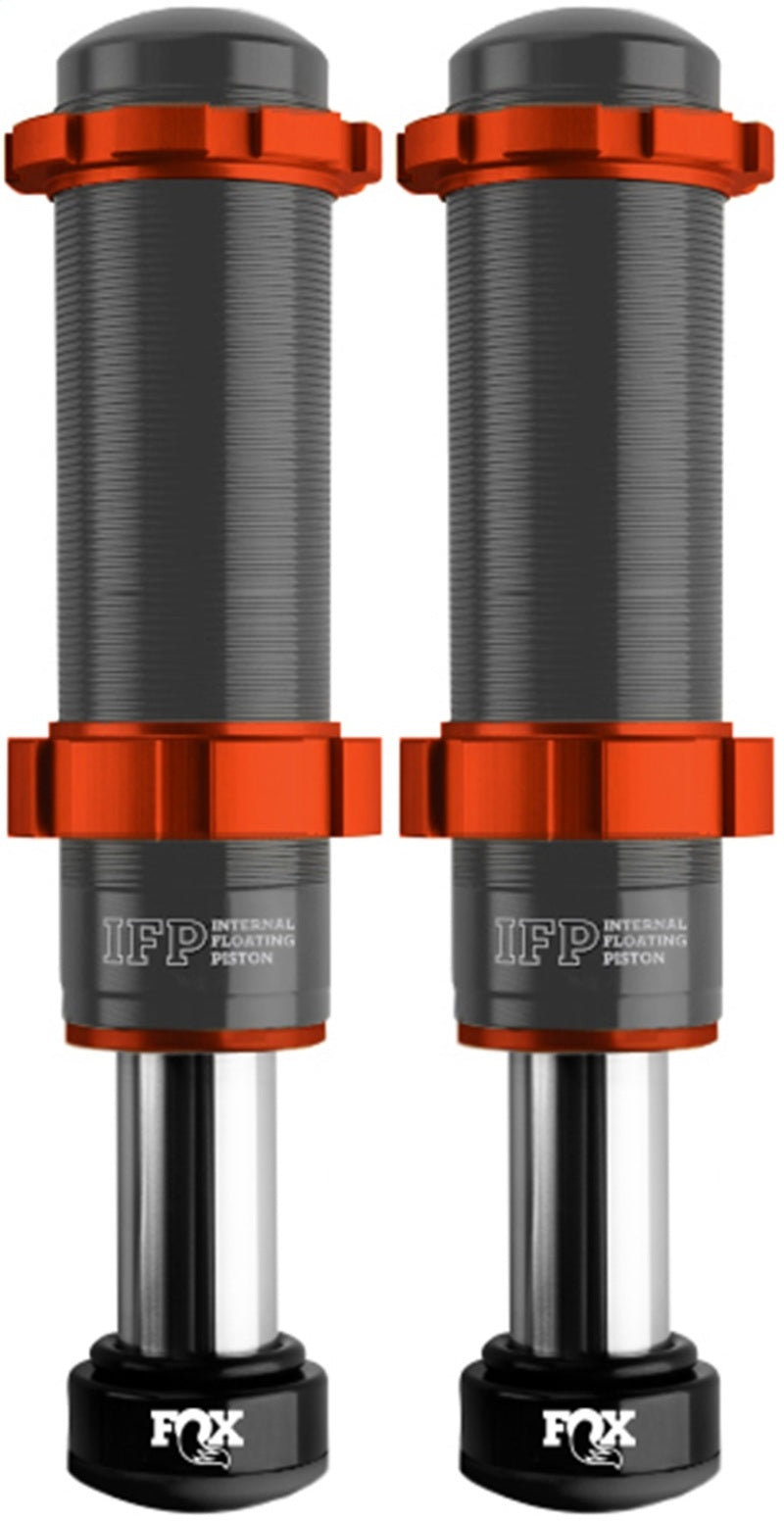

FOX 2.0 Factory Race Rear Hydraulic Bump Stop IFP for 2020-25 Jeep Gladiator JT - 883-02-169

Rear | 2.0in body | 1.85in travel | Jeep Gladiator JT | Sold as Pair

FOX 883-02-169 2.0 Factory Race Rear Hydraulic Bump Stop Kit is configured for 2020-2025 Jeep Gladiator JT. A hydraulic bump stop adds controlled damping near the end of suspension compression. Match its mounting configuration and travel to the suspension setup; bump-stop travel is separate from vehicle lift. Key dimensions are body diameter: 2.0in; travel: 1.85in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-02-169
• Series: 2.0 Factory Race Bump Stop
• Type: Bump Stop
• Body diameter: 2.0in
• Extended length: 10.04in
• Compressed length: 8.18in
• Travel: 1.85in
• Top mount: Threaded Body
• Bottom mount: None
• Reservoir / oil separation: Internal floating piston (IFP)
• Material: Aluminum
• Sold as: Pair
• Country of origin: Proudly made in the USA
• Position: Rear
• Technology / variant: Internal floating piston (IFP)
• Modifications Required
• FOX tuning developed for the specific vehicle application
• Aluminum body helps dissipate heat faster than steel
• Internal floating piston (IFP) separates the oil from high-pressure nitrogen gas
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2020-2025 Jeep Gladiator JT | Rear | All drivetrains | Requires at least 2.5" lift
