FOX 2.5 Performance Elite DSC Rear Smooth Body Shock Piggyback Reservoir for Ram 1500 DT - 883-26-079

Rear | 2.5in body | 0-2in lift | Ram 1500 DT | DSC | Sold as Pair

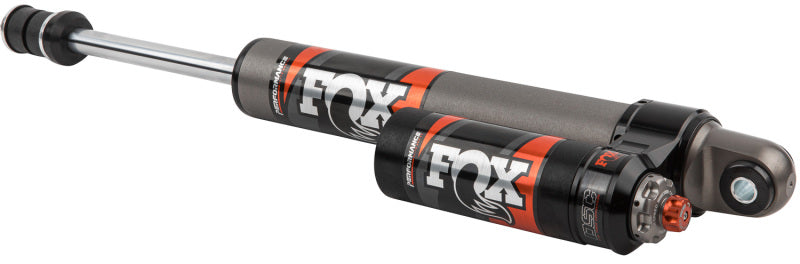

FOX 883-26-079 2.5 Performance Elite DSC Rear Smooth Body Shock Kit is configured for Ram 1500 DT. With Dual Speed Compression adjustment, you can tune suspension response as driving conditions change. The body, reservoir layout and mounting configuration below identify this particular FOX version. Key dimensions are body diameter: 2.5in; travel: 8.79in; listed lift: 0-2in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-26-079
• Series: 2.5 Performance Elite Shocks
• Type: Smooth Body
• Body diameter: 2.5in
• Extended length: 25.63in
• Compressed length: 16.84in
• Travel: 8.79in

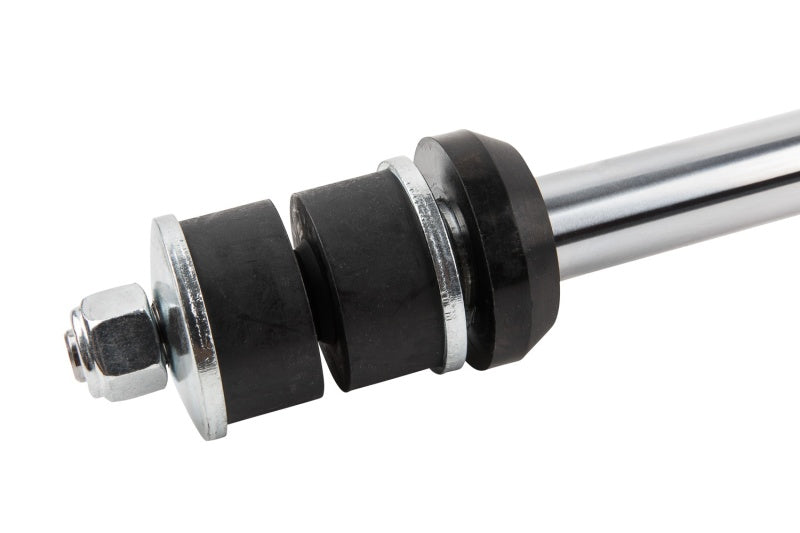

• Top mount: ES7
• Bottom mount: SM2
• Reservoir / oil separation: Piggyback
• Material: Aluminum

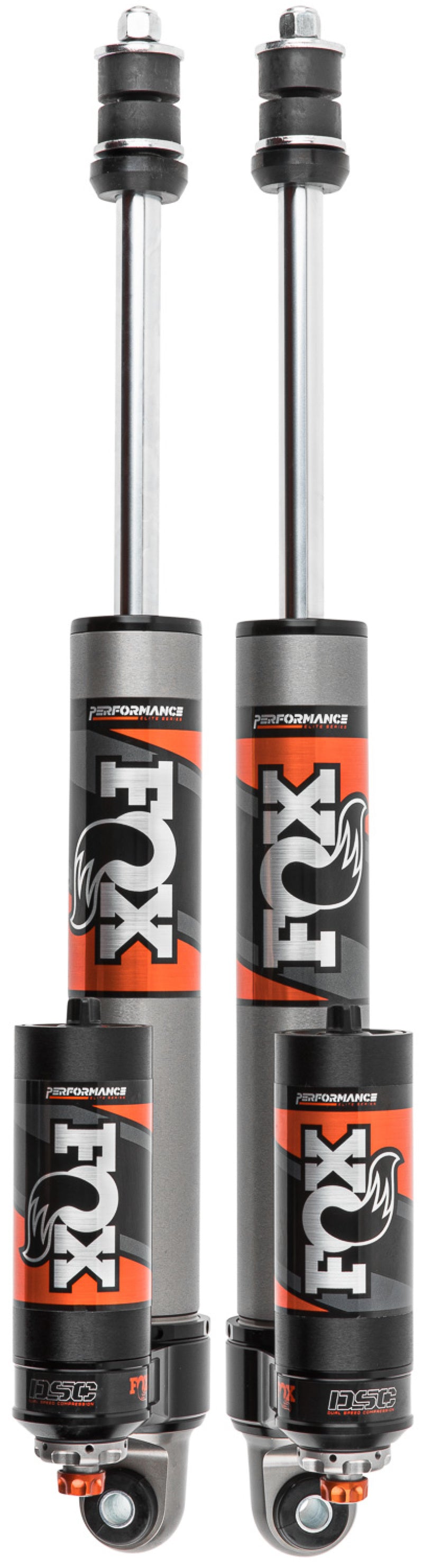

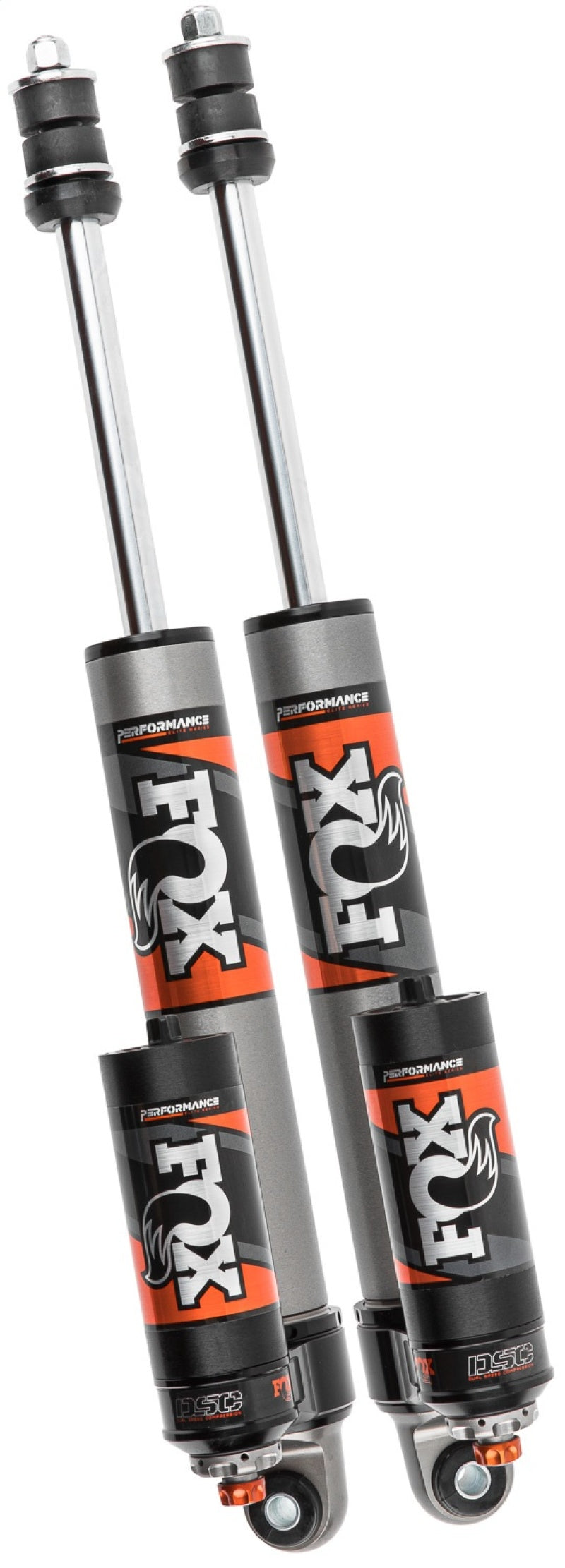

• Sold as: Pair
• Top mount reference: 213-28-001-B
• Bottom mount reference: 803-00-221-A
• Country of origin: Proudly made in the USA
• Position: Rear

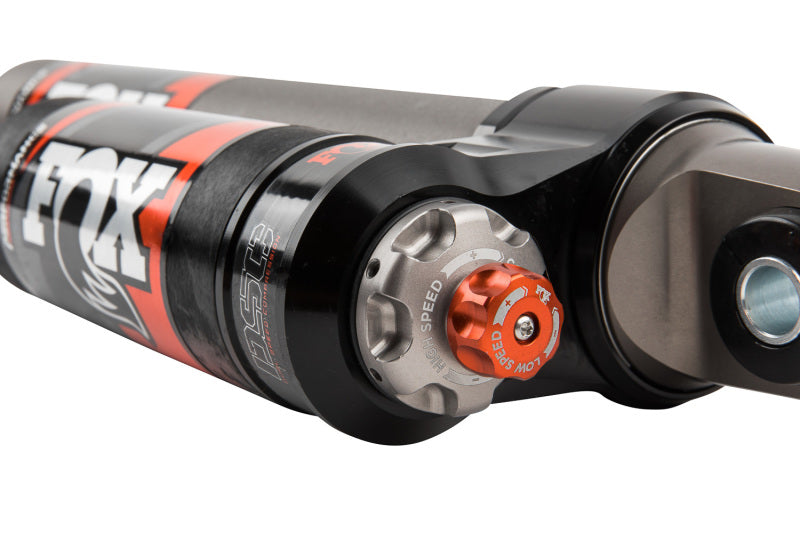

• Technology / variant: Dual Speed Compression (DSC)
• FOX tuning developed for the specific vehicle application
• Aluminum body helps dissipate heat faster than steel
• External reservoir helps dissipate heat during operation
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2019-2020 Ram 1500 DT | Rear | All drivetrains | Rear lift: 0-2in | Does Not Fit Air Ride Models
• 2021-2026 Ram 1500 DT | Rear | All drivetrains | Rear lift: 0-2in | Excludes TRX and Air Ride Models
