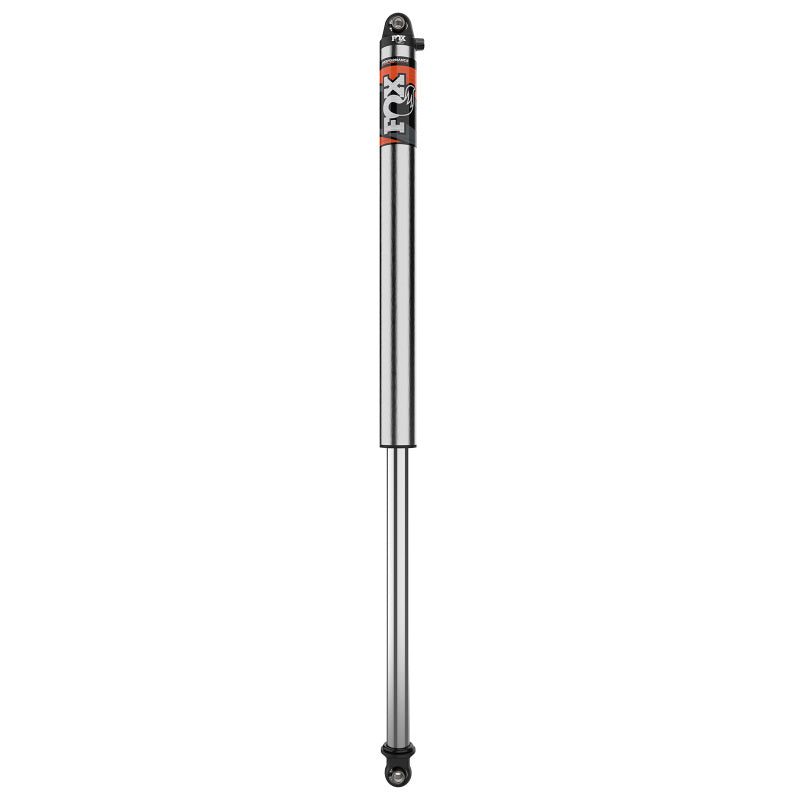

FOX 2.0 x 4.0in Performance Elite Air Shock Emulsion - 981-20-045

2.0in body | 4.01in travel | 2.0 x 4.0in nominal size | Sold as Each

FOX 981-20-045 2.0 Performance Elite Air Shock is configured for a custom motorsports suspension build. This air shock suits a suspension build that is selected by dimensions and mounts. Use its listed configuration when choosing a pressure-adjustable spring and damping component for the chassis. Key dimensions are body diameter: 2.0in; extended length: 15.36in; compressed length: 11.35in; travel: 4.01in. Check the full mounting requirements before selecting parts for the chassis.

Key Features & Specs:

• Brand: FOX
• Part number: 981-20-045
• Series: 2.0 Performance Elite Air Shock
• Type: Air Shock
• Body diameter: 2.0in
• Extended length: 15.36in
• Compressed length: 11.35in
• Travel: 4.01in
• Top mount: Eyelet
• Bottom mount: Eyelet
• Reservoir / oil separation: Emulsion
• Material: Steel
• Sold as: Each
• Country of origin: Proudly made in the USA
• Nominal size designation: 2.0 x 4.0in
• Seamless alloy body with zinc plating and a protective clear coat
• hard chrome plated 4130 chromoly steel shaft
• Owner-serviceable and rebuildable construction
• JM92 MIL-SPEC oil developed for off-road racing

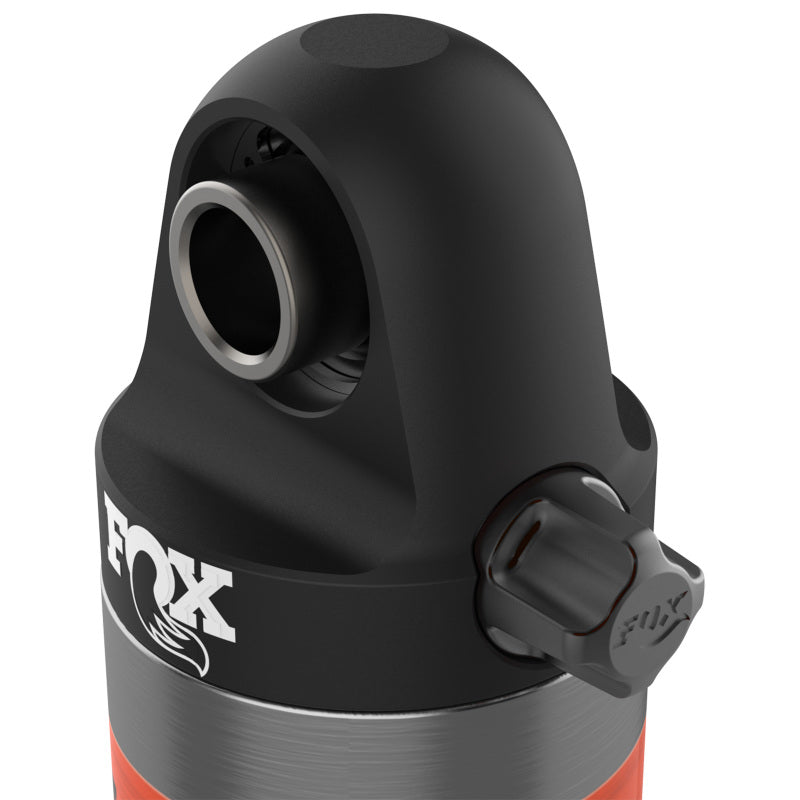

• Black-anodized, CNC-machined aluminum components

Fitment:

• No vehicle-specific application is provided in the FOX fit guide. Select using the supplied dimensions, mounting configuration, and custom-build requirements.
