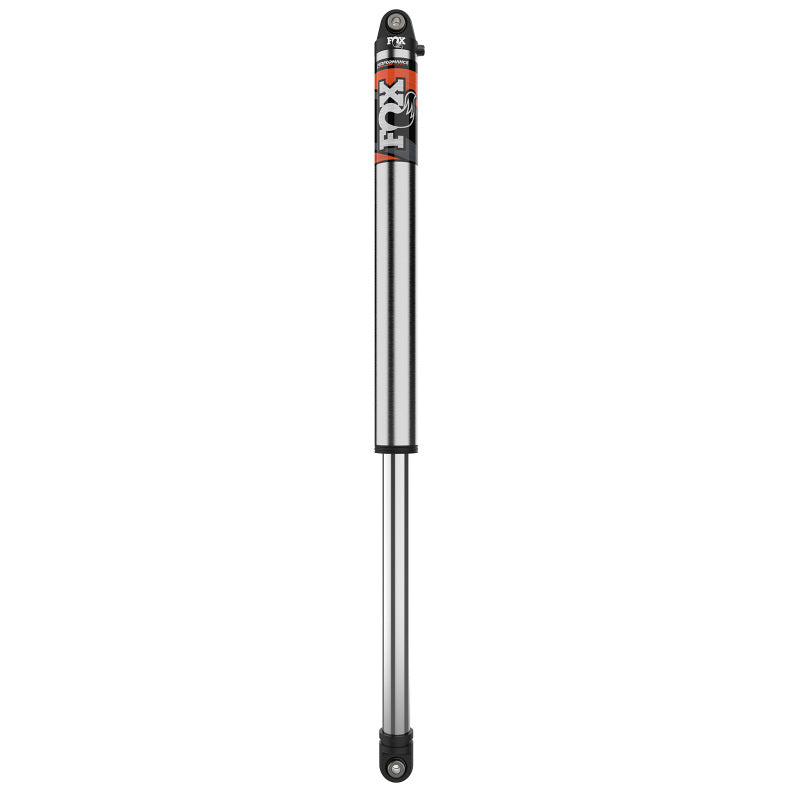

FOX 2.5 x 16.0in Performance Elite Air Shock Emulsion - 981-25-053

2.5in body | 16.13in travel | 2.5 x 16.0in nominal size | Sold as Each

FOX 981-25-053 2.5 Performance Elite Air Shock is configured for a custom motorsports suspension build. This air shock suits a suspension build that is selected by dimensions and mounts. Use its listed configuration when choosing a pressure-adjustable spring and damping component for the chassis. Key dimensions are body diameter: 2.5in; extended length: 42.78in; compressed length: 26.65in; travel: 16.13in. Check the full mounting requirements before selecting parts for the chassis.

Key Features & Specs:

• Brand: FOX
• Part number: 981-25-053
• Series: 2.5 Performance Elite Air Shock
• Type: Air Shock
• Body diameter: 2.5in
• Extended length: 42.78in
• Compressed length: 26.65in
• Travel: 16.13in
• Top mount: Eyelet
• Bottom mount: Eyelet
• Reservoir / oil separation: Emulsion
• Material: Steel
• Sold as: Each
• Country of origin: Proudly made in the USA
• Nominal size designation: 2.5 x 16.0in
• Seamless alloy body with zinc plating and a protective clear coat
• hard chrome plated 4130 chromoly steel shaft
• Owner-serviceable and rebuildable construction
• JM92 MIL-SPEC oil developed for off-road racing
• Black-anodized, CNC-machined aluminum components

Fitment:

• No vehicle-specific application is provided in the FOX fit guide. Select using the supplied dimensions, mounting configuration, and custom-build requirements.
