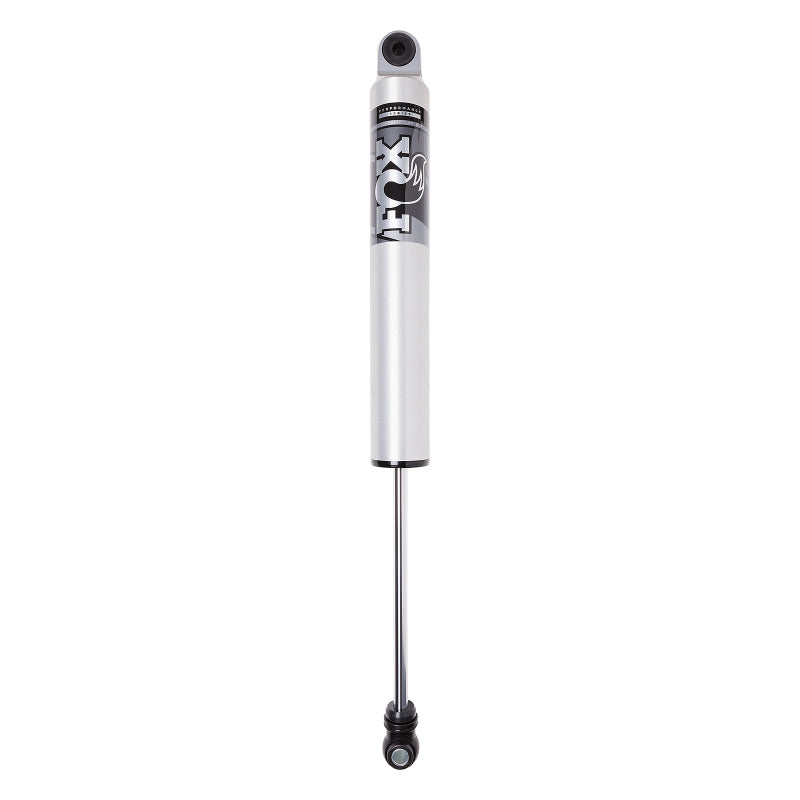

FOX 2.5 Performance HTO Universal Smooth Body Shock IFP - 987-24-038

2.5in body | 8.09in travel | Universal | HTO | Sold as Each

FOX 987-24-038 2.5 Performance HTO Smooth Body Shock is configured for universal dimension-based shock applications. The supplied Hydraulic Top Out feature adds control near full suspension extension. Choose the listed dimensions and mounting configuration for the specified application. Key dimensions are body diameter: 2.5in; extended length: 24.28in; compressed length: 16.19in; travel: 8.09in. Check the full mounting requirements before selecting parts for the chassis.

Key Features & Specs:

• Brand: FOX
• Part number: 987-24-038
• Series: 2.5 Performance Shock
• Type: Smooth Body
• Body diameter: 2.5in
• Extended length: 24.28in
• Compressed length: 16.19in
• Travel: 8.09in
• Top mount: EB2
• Bottom mount: EB2
• Reservoir / oil separation: Internal floating piston (IFP)
• Material: Aluminum
• Sold as: Each
• Country of origin: Proudly made in the USA
• Technology / variant: Hydraulic Top Out (HTO); Internal floating piston (IFP)
• 2.5” Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8” hard chrome shaft
• Internal floating piston (IFP)

Fitment:

• Universal application | EYELET - EYELET mounting configuration
