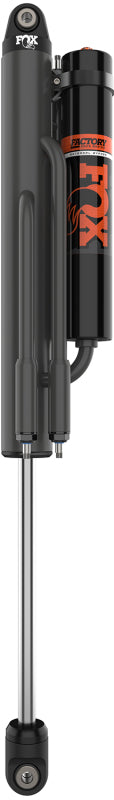

FOX 2.5 x 10in Factory Race Left 3-Tube External Bypass Shock Piggyback Reservoir - 981-25-402-L

2.5in body | 9.95in travel | 2.5 x 10in nominal size | Sold as Each

FOX 981-25-402-L 2.5 Factory Race Left 3-Tube External Bypass Shock is configured for a custom motorsports suspension build. For builders tuning a competition chassis, the external bypass layout provides a way to tailor damping through different portions of suspension travel. Match tube count, side, mounting configuration and usable stroke to the build. Key dimensions are body diameter: 2.5in; extended length: 28.5in; compressed length: 18.55in; travel: 9.95in. Check the full mounting requirements before selecting parts for the chassis.

Key Features & Specs:

• Brand: FOX
• Part number: 981-25-402-L
• Series: 2.5 Factory Race External Bypass
• Type: External Bypass
• Body diameter: 2.5in
• Extended length: 28.5in
• Compressed length: 18.55in
• Travel: 9.95in
• Top mount: Eyelet
• Bottom mount: Eyelet
• Reservoir / oil separation: Piggyback
• Material: Steel
• Sold as: Each
• Country of origin: Proudly made in the USA
• Technology / variant: Left-side version; 3-tube external bypass
• Nominal size designation: 2.5 x 10in
• Bypass tube count: 3
• Cerakote® protective ceramic coating over a zinc-plated base coat
• 17-4 H900 hard chrome plated stainless steel shaft
• Owner-serviceable and rebuildable construction
• JM92 MIL-SPEC oil developed for off-road racing
• Black-anodized, CNC-machined aluminum components

Fitment:

• No vehicle-specific application is provided in the FOX fit guide. Select using the supplied dimensions, mounting configuration, and custom-build requirements.
