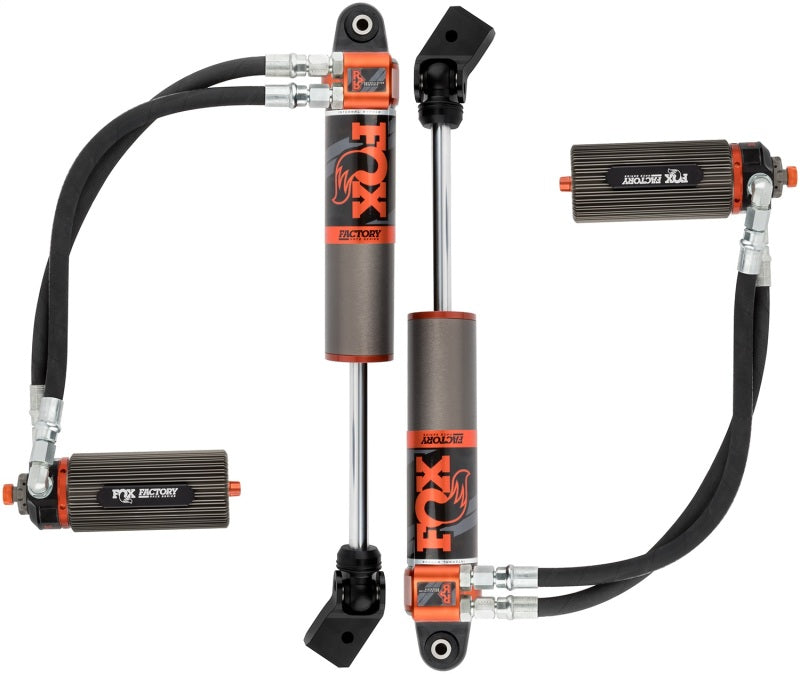

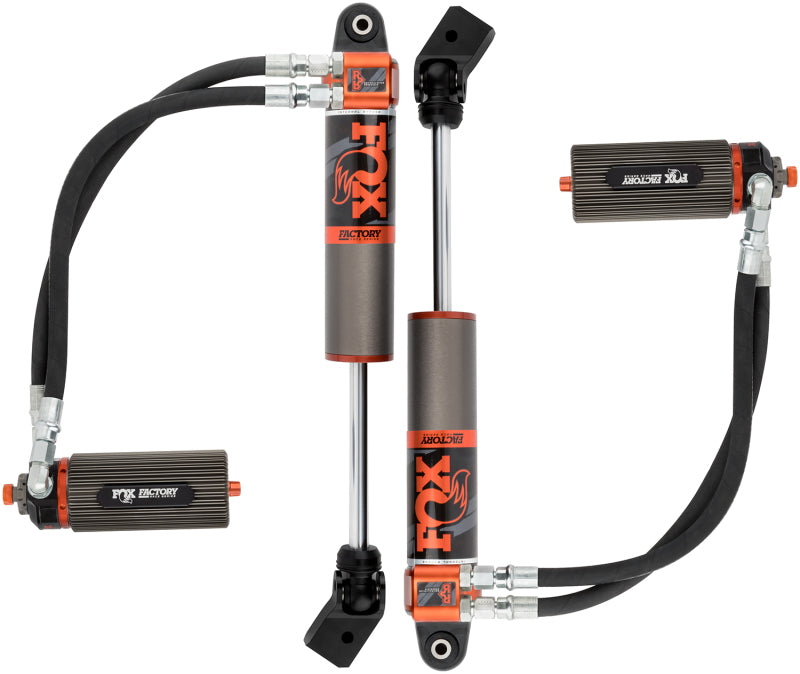

FOX 3.0 Factory Race DSC Front Internal Bypass Shock Remote Reservoir for 2020-26 Jeep Gladiator JT - 883-26-082

Front | 3.0in body | 3.5-4.5in lift | Jeep Gladiator JT | DSC | Sold as Pair

FOX 883-26-082 3.0 Factory Race DSC Front Internal Bypass Shock Kit is configured for 2020-2026 Jeep Gladiator JT. With Dual Speed Compression adjustment, you can tune suspension response as driving conditions change. The body, reservoir layout and mounting configuration below identify this particular FOX version. Key dimensions are body diameter: 3.0in; travel: 10.71in; listed lift: 3.5-4.5in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-26-082
• Series: 3.0 Factory Race Bypass Shocks
• Type: Smooth Body Internal Bypass
• Body diameter: 3.0in
• Extended length: 27.69in
• Compressed length: 16.98in
• Travel: 10.71in
• Top mount: EB2
• Bottom mount: EB2
• Reservoir / oil separation: Remote
• Material: Aluminum
• Sold as: Pair
• Top mount reference: 014-11-026
• Bottom mount reference: 014-11-003-A
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Dual Speed Compression (DSC); Internal bypass
• FOX tuning developed for the specific vehicle application
• Aluminum body helps dissipate heat faster than steel
• Multiple internal damping zones
• External reservoir helps dissipate heat during operation
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2020-2026 Jeep Gladiator JT | Front | All drivetrains | Front lift: 3.5-4.5in | Includes Universal Finned Reservoir Clamp | Requires Front Driveshaft
