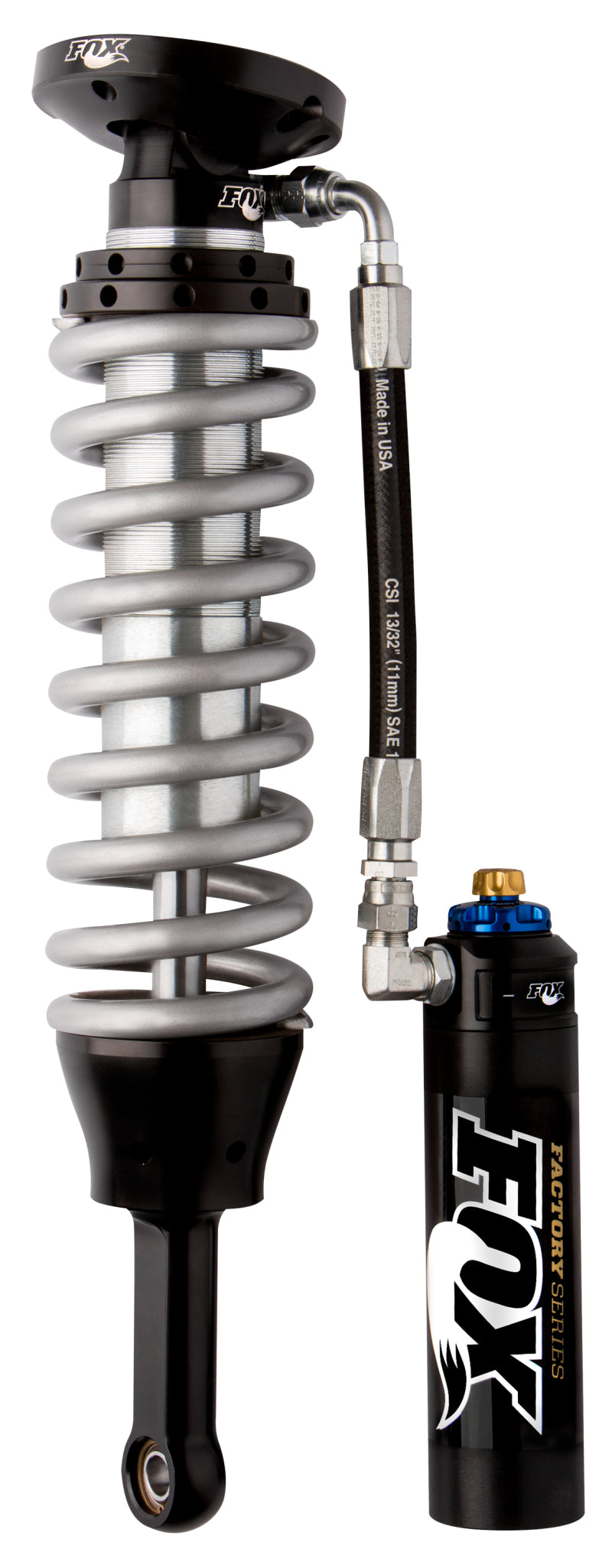

FOX 2.5 Factory Race DSC Front Coilover Shock Remote Reservoir for 2014-20 Ford F-150 - 883-06-114

Front | 2.5in body | 6in lift | Ford F-150 | DSC | Sold as Pair

FOX 883-06-114 2.5 Factory Race DSC Front Coilover Shock Kit is configured for 2014-2020 Ford F-150. With Dual Speed Compression adjustment, you can tune suspension response as driving conditions change. The body, reservoir layout and mounting configuration below identify this particular FOX version. Key dimensions are body diameter: 2.5in; travel: 5.36in; listed lift: 6in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-06-114
• Series: 2.5 Factory Race Coilover Shocks
• Type: Coilover
• Body diameter: 2.5in
• Extended length: 27.41in
• Compressed length: 22.05in
• Travel: 5.36in
• Top mount: TM
• Bottom mount: Bar Pin
• Reservoir / oil separation: Remote
• Material: Steel
• Sold as: Pair
• Top mount reference: TOP
• Bottom mount reference: 213-63-008
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Dual Speed Compression (DSC)
• FOX tuning developed for the specific vehicle application
• Seamless alloy body with a durable zinc-plated finish
• External reservoir helps dissipate heat during operation
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2014-2020 Ford F-150 | Front | 4WD drivetrain | Front lift: 6in
