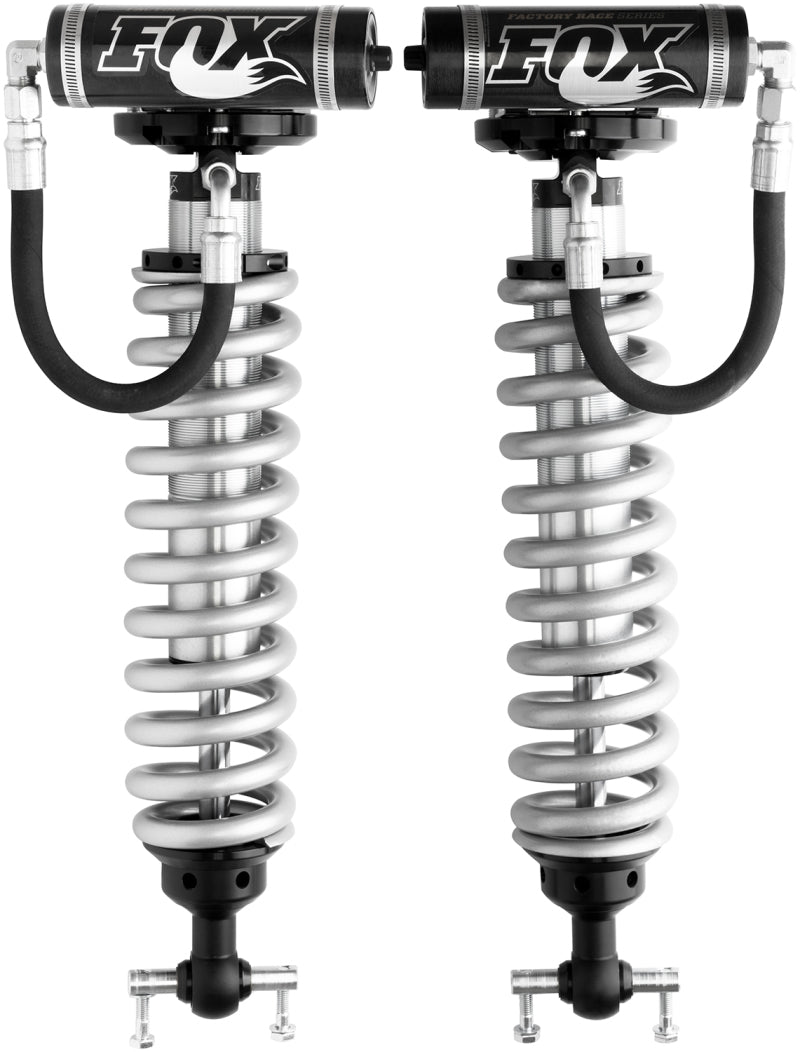

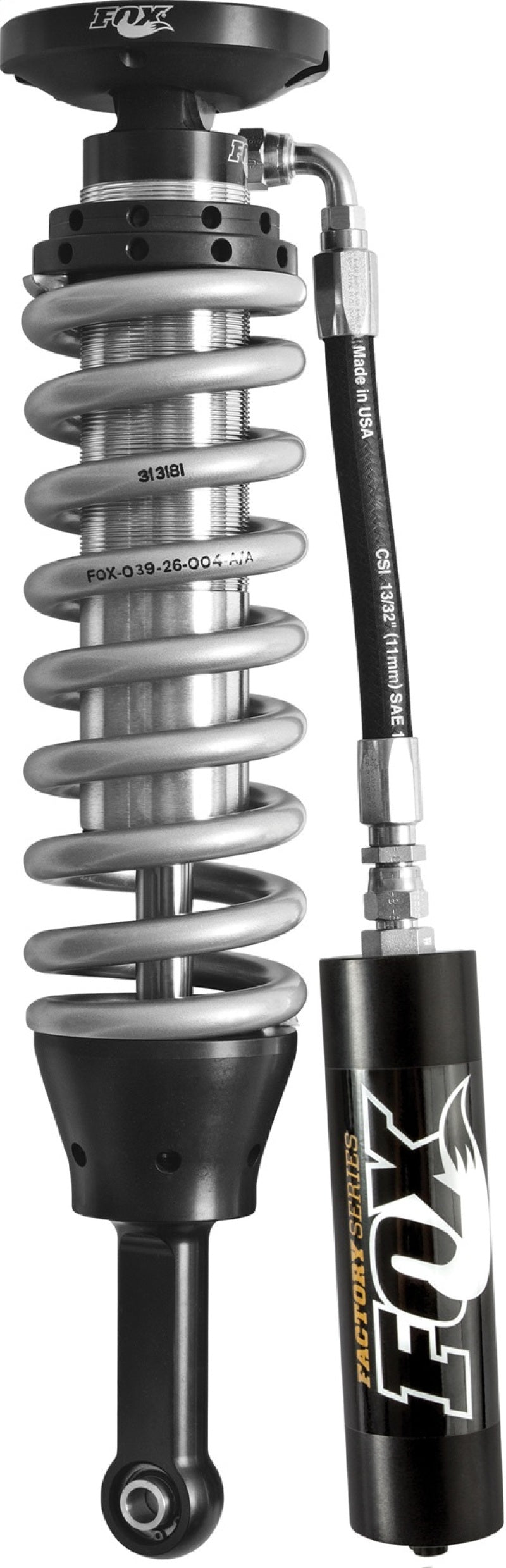

FOX 2.5 Factory Race Front Coilover Shock Remote Reservoir for 2014-20 Ford F-150 - 883-02-114

Front | 2.5in body | 6in lift | Ford F-150 | Sold as Pair

FOX 883-02-114 2.5 Factory Race Front Coilover Shock Kit is configured for 2014-2020 Ford F-150. The supplied body and reservoir design help manage heat while FOX’s application-specific configuration keeps the shock matched to the vehicle. It is a practical suspension upgrade when the listed axle, lift and mounting requirements match the build. Key dimensions are body diameter: 2.5in; travel: 5.36in; listed lift: 6in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-02-114
• Series: 2.5 Factory Race Coilover Shocks
• Type: Coilover
• Body diameter: 2.5in
• Extended length: 27.41in
• Compressed length: 22.05in
• Travel: 5.36in
• Top mount: TM
• Bottom mount: Bar Pin
• Reservoir / oil separation: Remote
• Material: Steel
• Sold as: Pair
• Top mount reference: TOP
• Bottom mount reference: 213-63-008
• Country of origin: Proudly made in the USA
• Position: Front
• FOX tuning developed for the specific vehicle application
• Seamless alloy body with a durable zinc-plated finish
• External reservoir helps dissipate heat during operation
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2014-2020 Ford F-150 | Front | 4WD drivetrain | Front lift: 6in
