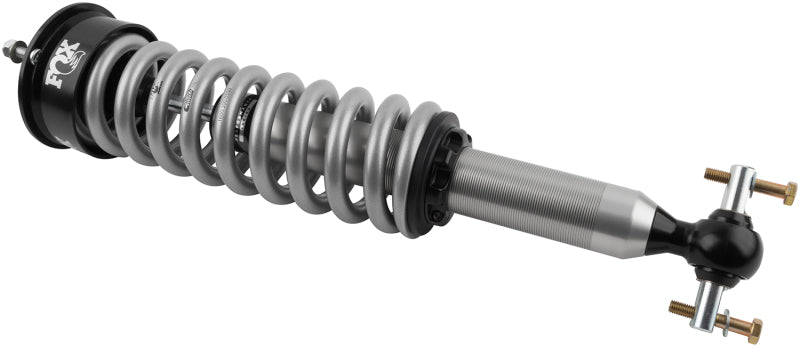

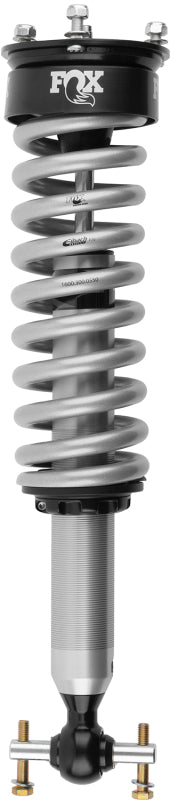

FOX 2.5 Performance Front Coilover Shock IFP for 2015-26 Ford F-150 - 987-02-013

Front | 2.5in body | 0-2.5in lift | Ford F-150 | Sold as Each

FOX 987-02-013 2.5 Performance Front Coilover Shock is configured for 2015-2026 Ford F-150. The internal floating piston separates damping oil from pressurized nitrogen, helping maintain controlled damping as the suspension works. Choose the listed axle and lift configuration to match this FOX version to your vehicle. Key dimensions are body diameter: 2.5in; travel: 5.21in; listed lift: 0-2.5in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 987-02-013
• Series: 2.5 Performance Shock
• Type: Coilover
• Body diameter: 2.5in
• Extended length: 22in
• Compressed length: 16.79in
• Travel: 5.21in
• Top mount: OEM
• Bottom mount: Bar Pin
• Reservoir / oil separation: Internal floating piston (IFP)
• Material: Aluminum
• Sold as: Each
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Internal floating piston (IFP)
• 2.5” Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8” hard chrome shaft
• Internal floating piston (IFP)

Fitment:

• 2015-2026 Ford F-150 | Front | 4WD drivetrain | Front lift: 0-2.5in | Zero lift on Tremor | 1.5" lift on Powerboost
