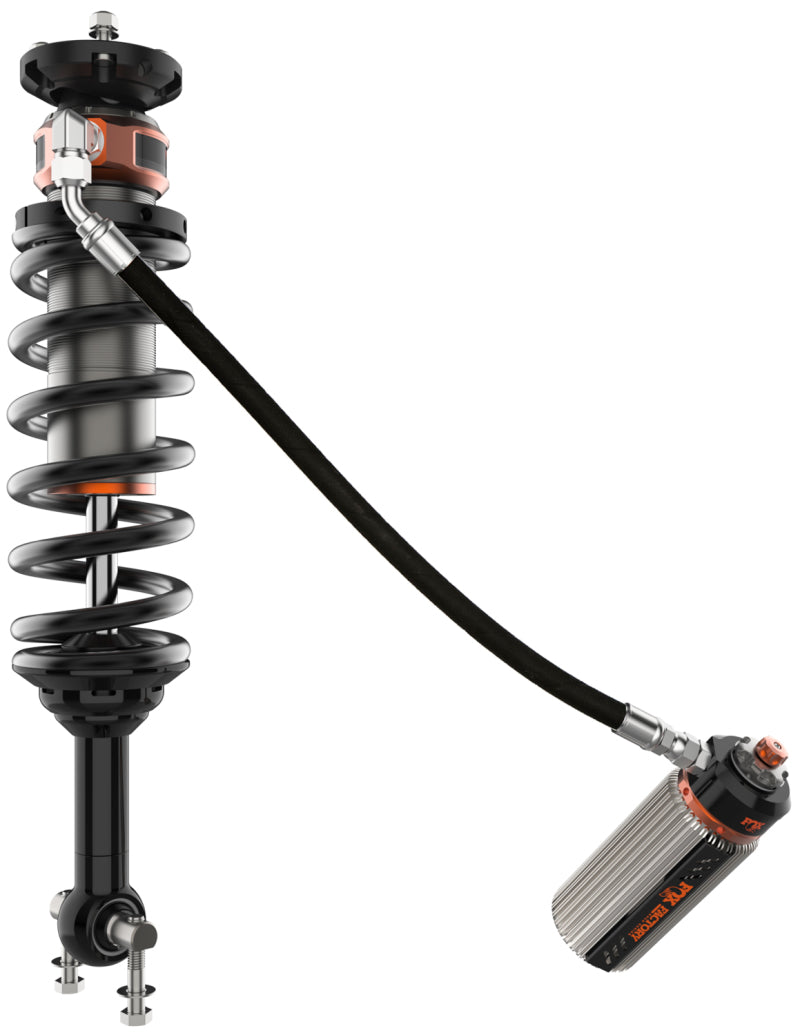

FOX 3.0 Factory Race DSC Front Internal Bypass Coilover Remote Reservoir for 2021-26 Ford Bronco - 883-06-204

Front | 3.0in body | 3-4.5in lift | Ford Bronco | DSC | Sold as Pair

FOX 883-06-204 3.0 Factory Race DSC Front Internal Bypass Coilover Kit is configured for 2021-2026 Ford Bronco. With Dual Speed Compression adjustment, you can tune suspension response as driving conditions change. The body, reservoir layout and mounting configuration below identify this particular FOX version. Key dimensions are body diameter: 3.0in; travel: 5.42in; listed lift: 3-4.5in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-06-204
• Series: 3.0 Factory Race Internal Bypass
• Type: Coilover Internal Bypass
• Body diameter: 3.0in
• Extended length: 23.44in
• Compressed length: 17.95in
• Travel: 5.42in
• Top mount: OEM
• Bottom mount: Bar Pin
• Reservoir / oil separation: Remote
• Material: Aluminum
• Sold as: Pair
• Bottom mount reference: 213-63-012
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Dual Speed Compression (DSC); Internal bypass
• FOX tuning developed for the specific vehicle application
• Aluminum body helps dissipate heat faster than steel
• External reservoir helps dissipate heat during operation
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2021-2026 Ford Bronco | Front | All drivetrains | Front lift: 3-4.5in | Requires Upper Control Arm | Excludes Raptor submodel | Maximum 4.5" back spacing required to properly clearance suspension components
