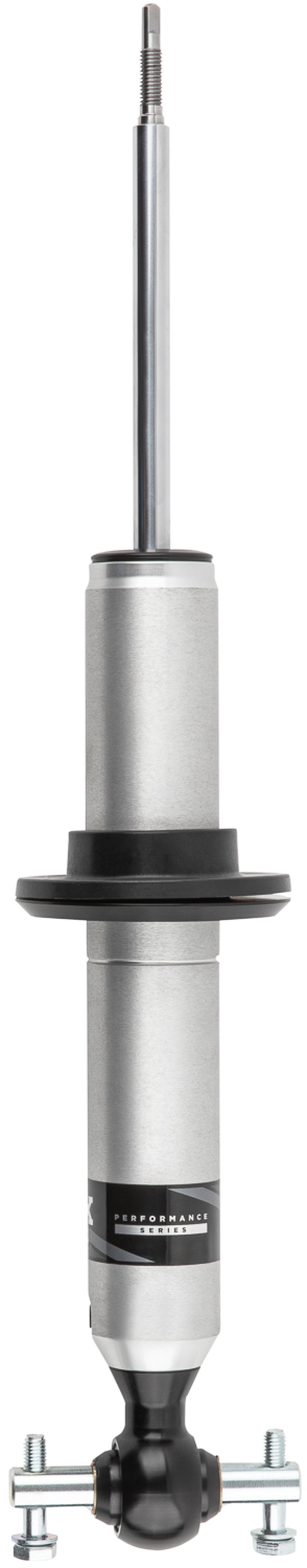

FOX 2.0 Performance Front Snap Ring Coilover Shock IFP for 2021-26 Ford F-150 - 985-62-013

Front | 2.0in body | 0-2.5in lift | Ford F-150 | Sold as Each

FOX 985-62-013 2.0 Performance Front Snap Ring Coilover Shock is configured for 2021-2026 Ford F-150. The internal floating piston separates damping oil from pressurized nitrogen, helping maintain controlled damping as the suspension works. Choose the listed axle and lift configuration to match this FOX version to your vehicle. Key dimensions are body diameter: 2.0in; travel: 5.65in; listed lift: 0-2.5in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 985-62-013
• Series: 2.0 Performance Coilover Shock
• Type: Snap Ring Coilover
• Body diameter: 2.0in
• Extended length: 22.5in
• Compressed length: 16.85in
• Travel: 5.65in
• Top mount: Reuses Stock Mounting Hardware
• Bottom mount: Bar Pin
• Reservoir / oil separation: Internal floating piston (IFP)
• Material: Aluminum
• Sold as: Each
• Bottom mount reference: 213-63-008
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Internal floating piston (IFP)
• New spring seat included; reuses the stock spring and mounting hardware
• FOX tuning developed for the specific vehicle application
• Aluminum body helps dissipate heat faster than steel
• Internal floating piston (IFP) separates the oil from high-pressure nitrogen gas

Fitment:

• 2021-2026 Ford F-150 | Front | 4WD drivetrain | Front lift: 0-2.5in | Excludes Tremor
