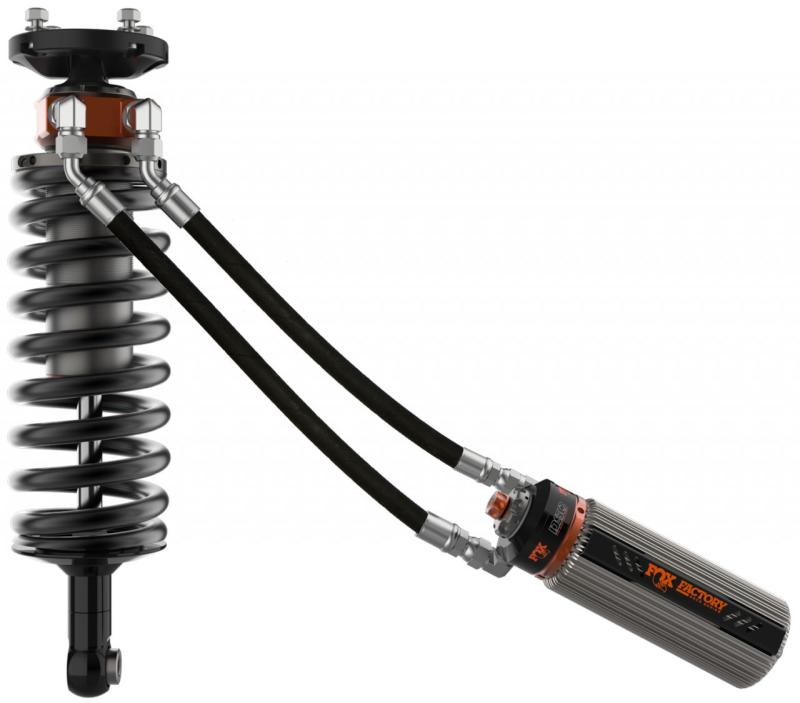

FOX 3.0 Factory Race DSC Front IBP Coilover for 2022-26 Toyota Tundra - 883-06-219

Front | 3.0in body | 2-2.25in lift | Toyota Tundra | DSC | Sold as Pair

FOX 883-06-219 3.0 Factory Race DSC Front Internal Bypass Coilover Kit is configured for 2022-2026 Toyota Tundra. With Dual Speed Compression adjustment, you can tune suspension response as driving conditions change. The body, reservoir layout and mounting configuration below identify this particular FOX version. Key dimensions are body diameter: 3.0in; travel: 5.37in; listed lift: 2-2.25in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-06-219
• Series: 3.0 Factory Race Coilover Shocks
• Type: Coilover Internal Bypass
• Body diameter: 3.0in
• Extended length: 21.69in
• Compressed length: 15.65in
• Travel: 5.37in
• Top mount: OEM
• Bottom mount: Eyelet
• Reservoir / oil separation: Recirculating Remote
• Material: Aluminum
• Sold as: Pair
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Dual Speed Compression (DSC); Internal bypass
• FOX tuning developed for the specific vehicle application
• Aluminum body helps dissipate heat faster than steel
• External reservoir helps dissipate heat during operation
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2022-2026 Toyota Tundra | Front | All drivetrains | Front lift: 2-2.25in | Requires Upper Control Arm | Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle)
