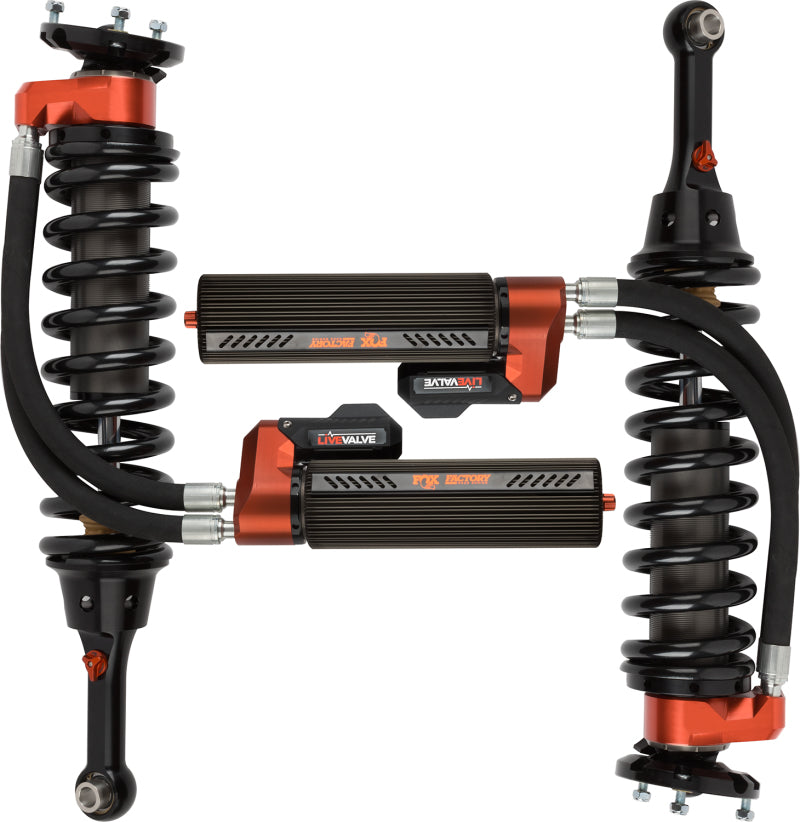

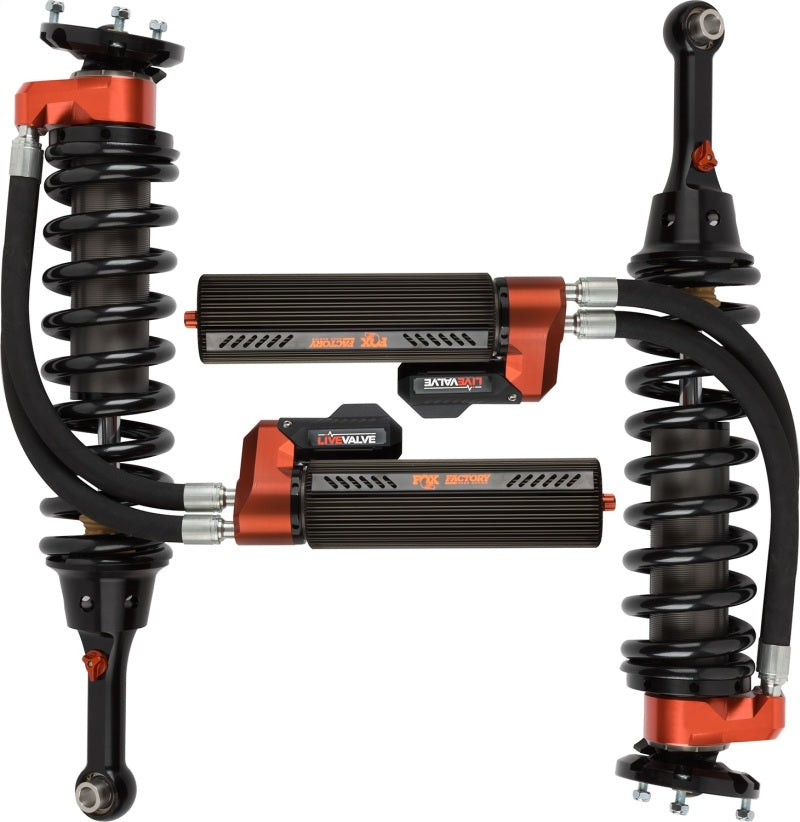

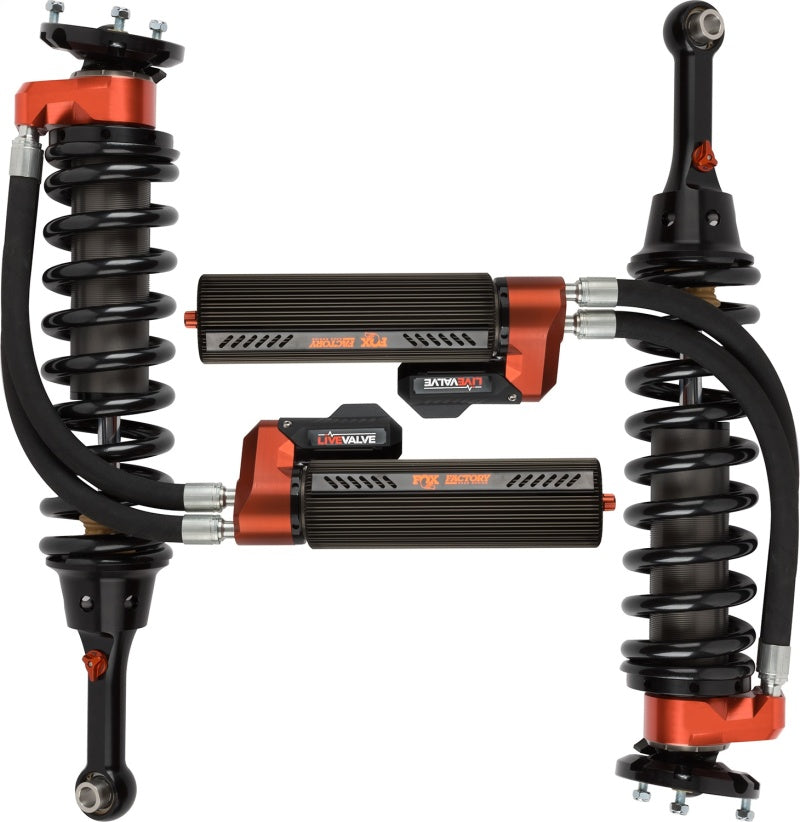

FOX 3.0 Factory Race Live Valve Front IBP Coilover for 2019-20 Ford F-150 Raptor - 883-06-153

Front | 3.0in body | 2in lift | Ford F-150 Raptor | Live Valve | Sold as Pair

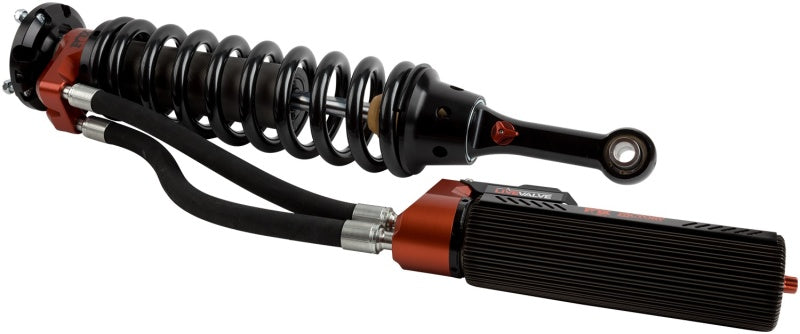

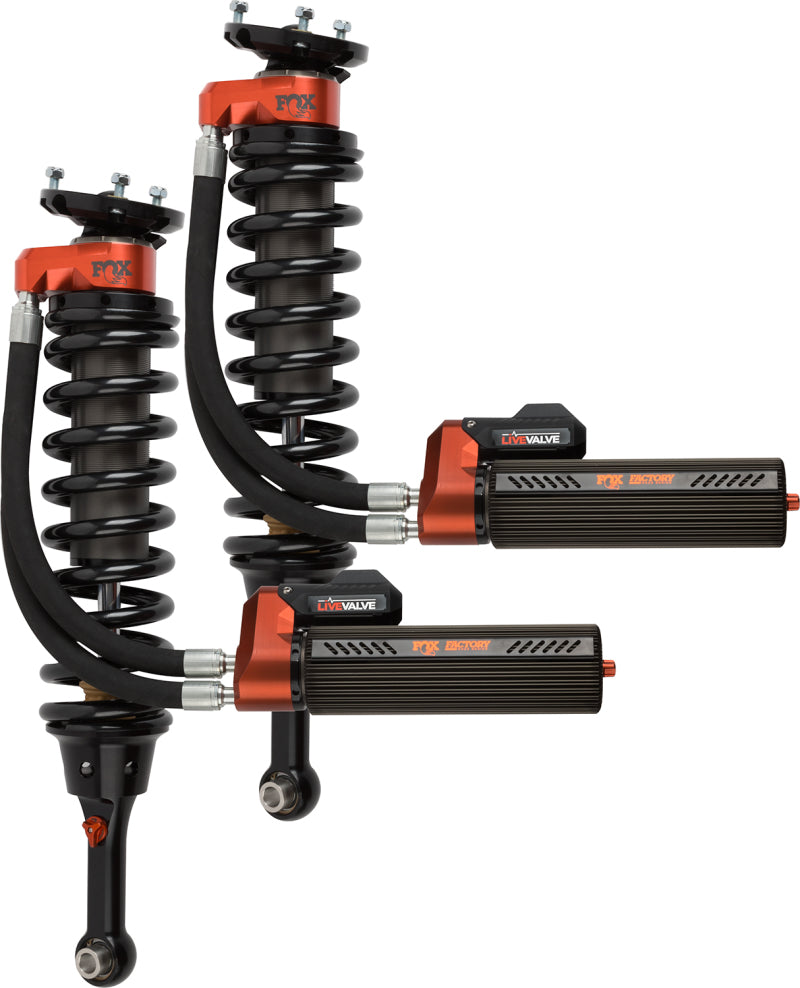

FOX 883-06-153 3.0 Factory Race Live Valve Front Internal Bypass Coilover Kit is configured for 2019-2020 Ford F-150 Raptor. This Live Valve version adds electronic damping control for the specified vehicle setup. It is important to match the listed suspension configuration and retain the application-specific electronics and installation requirements. Key dimensions are body diameter: 3.0in; travel: 7.89in; listed lift: 2in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-06-153
• Series: 3.0 Factory Race Bypass Shocks
• Type: Coilover Internal Bypass
• Body diameter: 3.0in
• Extended length: 28.49in
• Compressed length: 20.6in
• Travel: 7.89in

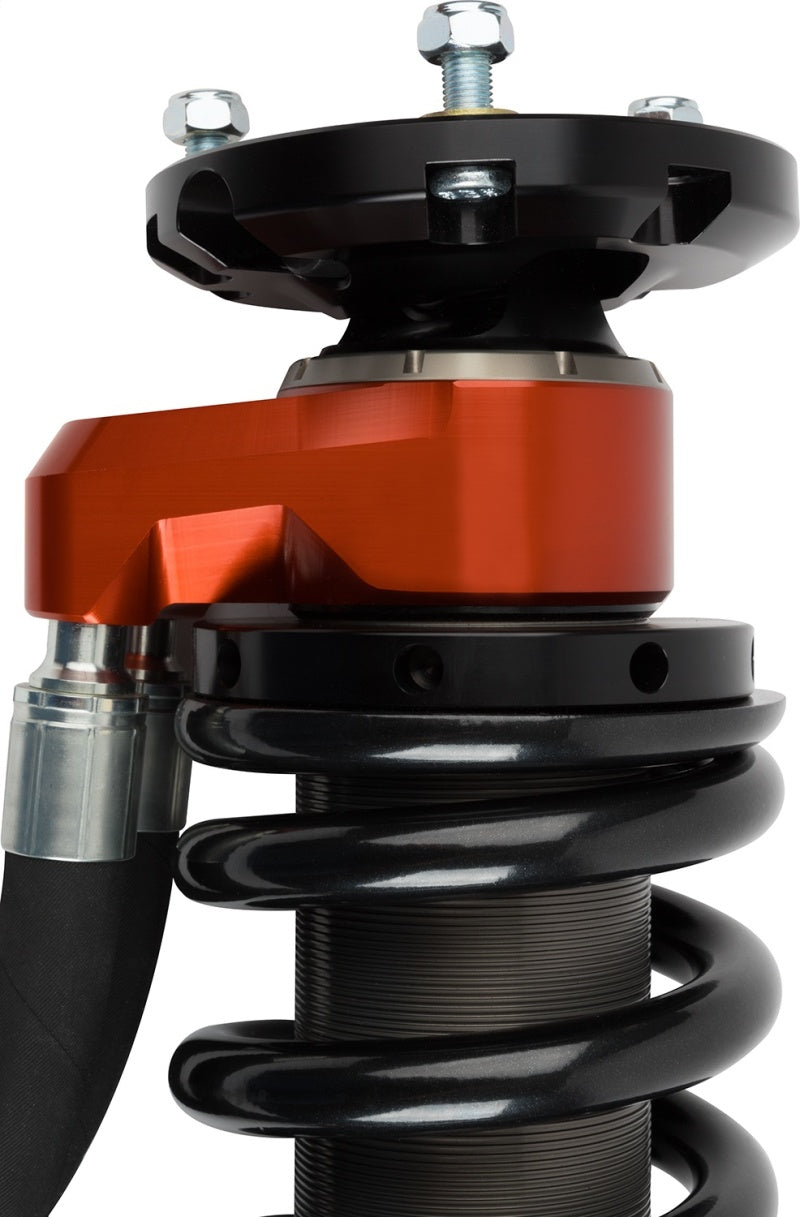

• Top mount: OEM

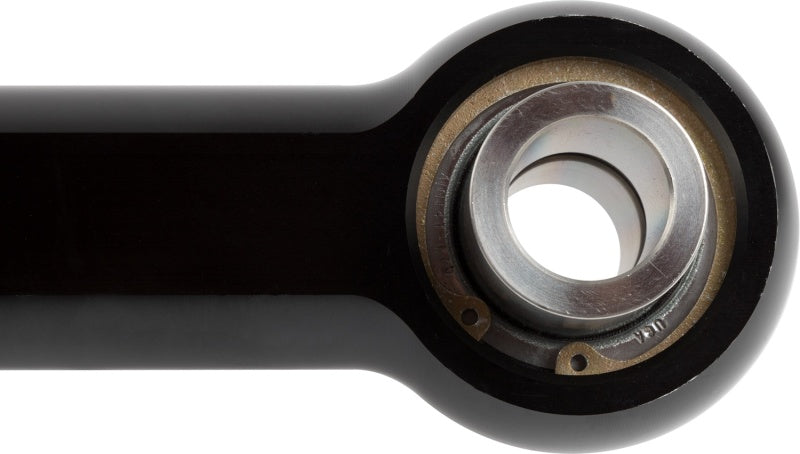

• Bottom mount: Eyelet

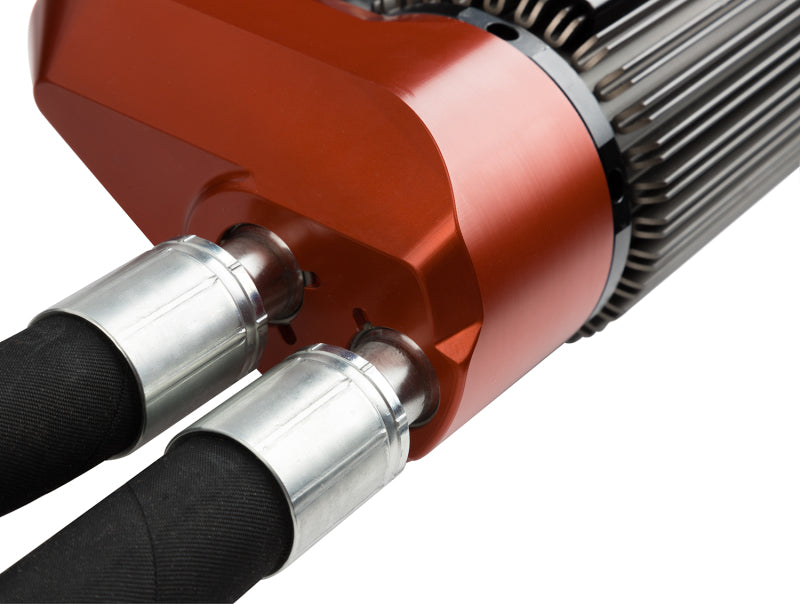

• Reservoir / oil separation: Remote
• Material: Aluminum
• Sold as: Pair
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Live Valve; Internal bypass
• FOX tuning developed specifically for the Raptor application

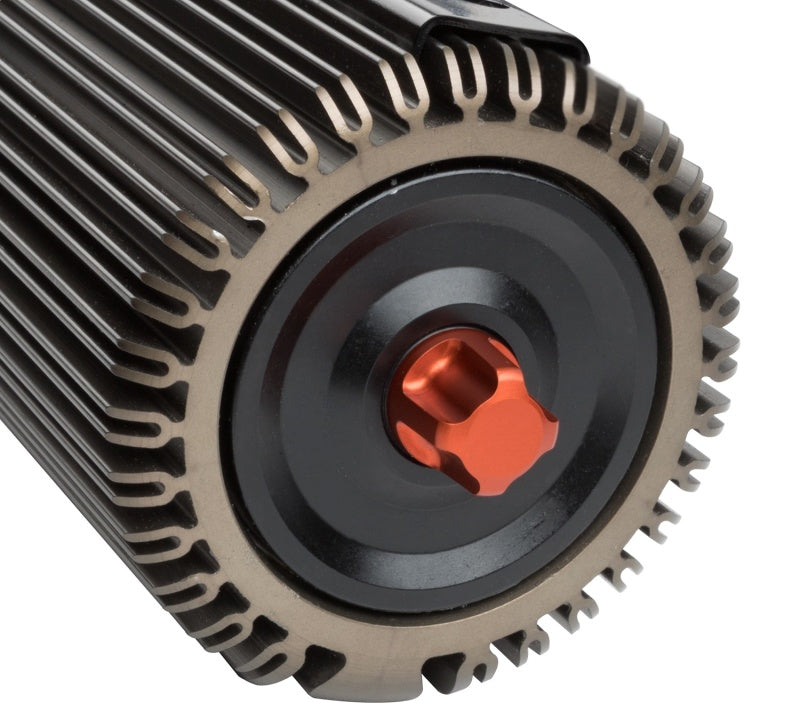

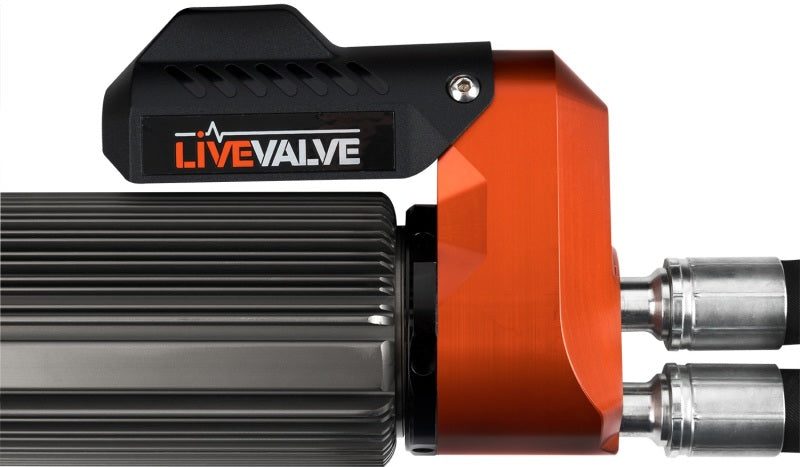

• Finned external reservoir helps dissipate heat during operation

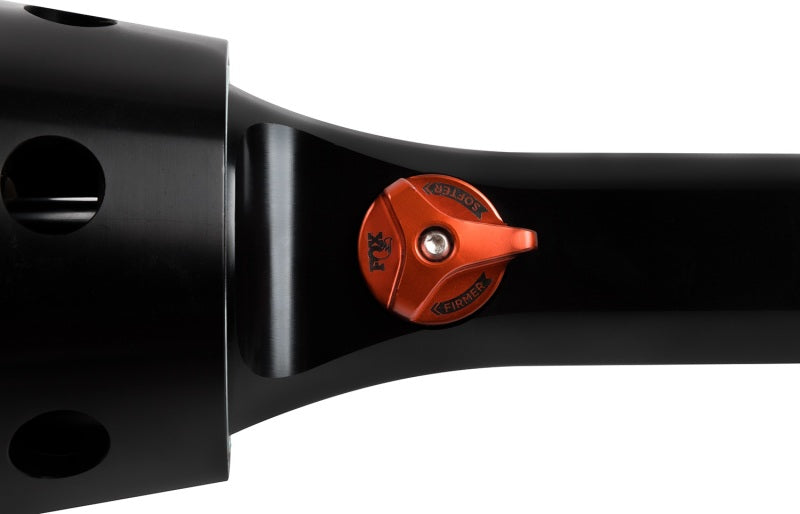

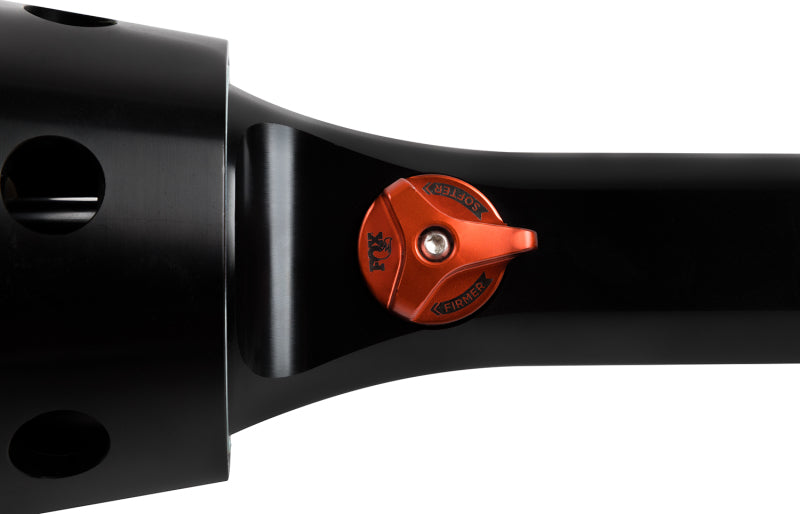

• Quick Switch compression and rebound adjusters
• Live Valve Terrain Adaptive Technology
• Black-anodized, CNC-machined aluminum components

Fitment:

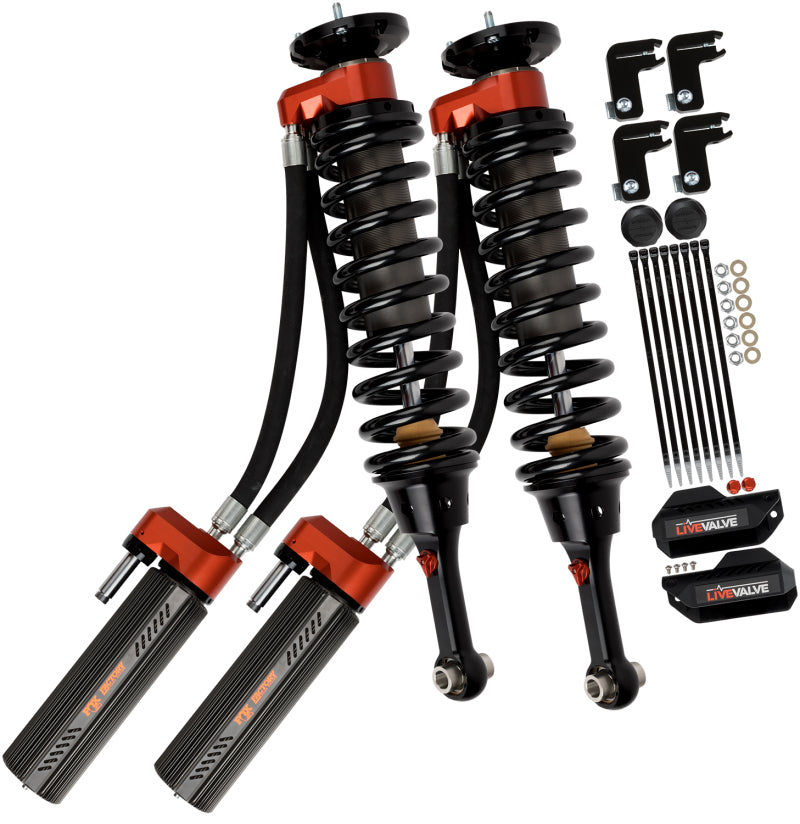

• 2019-2020 Ford F-150 Raptor | Front | All drivetrains | Front lift: 2in | Reservoir Mounting Hardware Included
