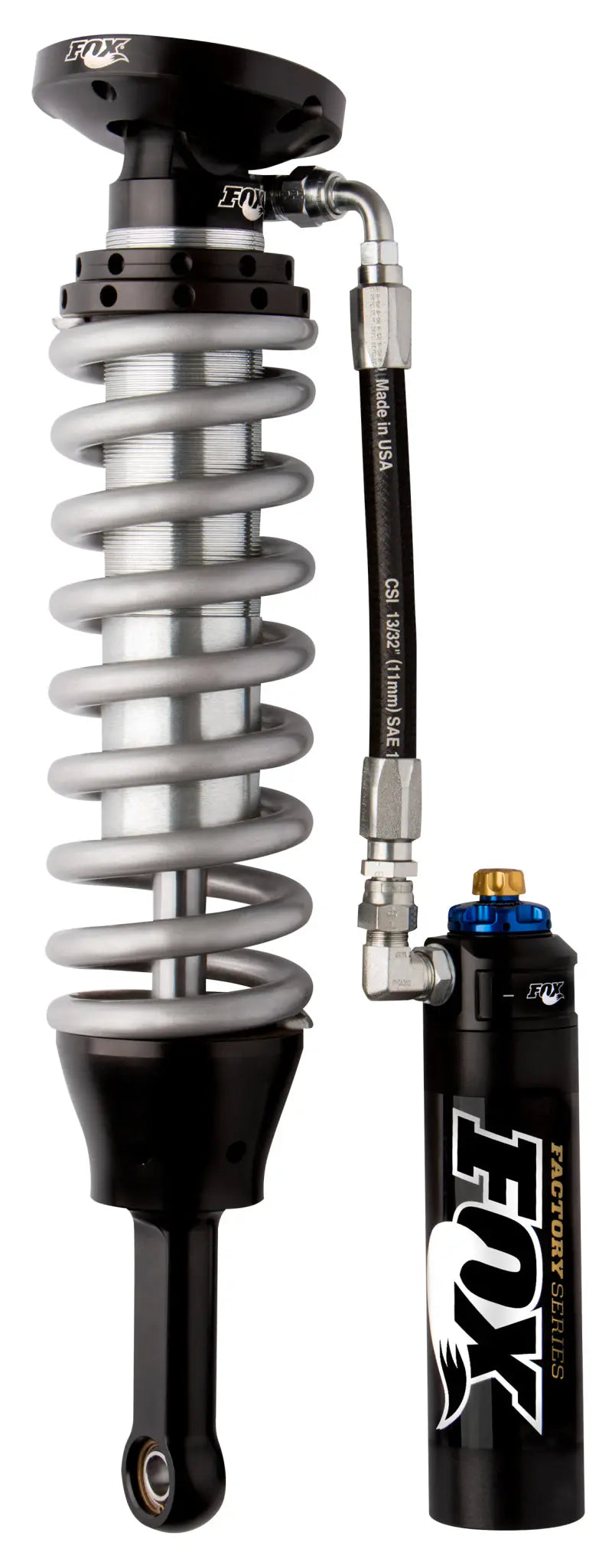

FOX 2.5 Factory Race Front Coilover Shock Remote Reservoir for Toyota Tacoma - 880-06-409

Front | 2.5in body | 0-3in lift | Toyota Tacoma | Sold as Pair

FOX 880-06-409 2.5 Factory Race Front Coilover Shock Kit is configured for Toyota Tacoma. The supplied body and reservoir design help manage heat while FOX’s application-specific configuration keeps the shock matched to the vehicle. It is a practical suspension upgrade when the listed axle, lift and mounting requirements match the build. Key dimensions are body diameter: 2.5in; travel: 5.3in; listed lift: 0-3in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 880-06-409
• Series: 2.5 Factory Race Coilover Shocks
• Type: Coilover
• Body diameter: 2.5in
• Extended length: 18.96in
• Compressed length: 13.66in
• Travel: 5.3in
• Top mount: TM
• Bottom mount: Eyelet
• Reservoir / oil separation: Remote
• Material: Steel
• Sold as: Pair
• Top mount reference: TOP
• Country of origin: Proudly made in the USA
• Position: Front
• Requires Upper Control Arm
• FOX tuning developed for the specific vehicle application
• Seamless alloy body with a durable zinc-plated finish
• External reservoir helps dissipate heat during operation
• Black-anodized, CNC-machined aluminum components

Fitment:

• 1995-2004 Toyota Tacoma | Front | 4WD drivetrain | Front lift: 0-3in | Requires Upper Control Arm
• 1998-2004 Toyota Tacoma | Front | RWD drivetrain | Front lift: 0-3in | Fits 6 lug version only | Requires Upper Control Arm
