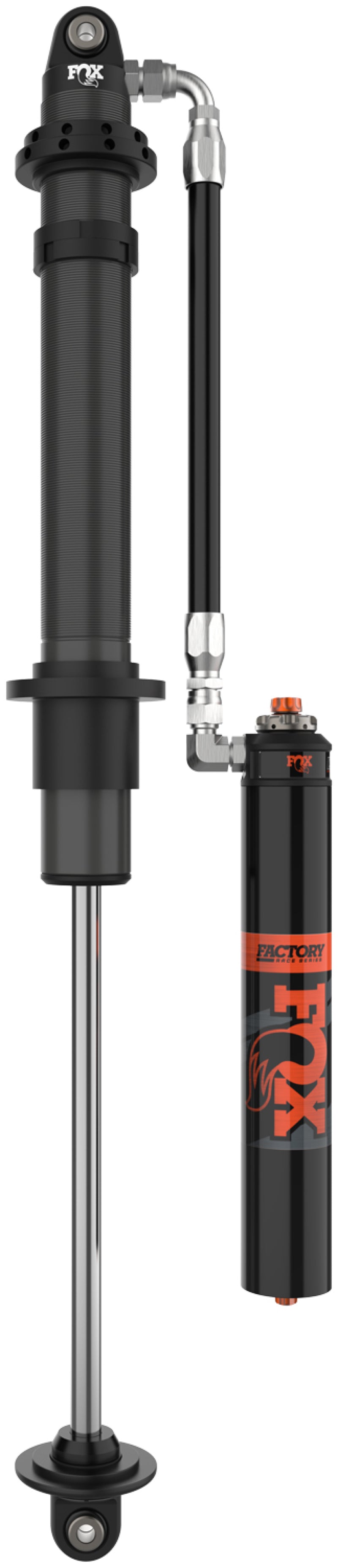

FOX 2.5 x 10in Factory Race Coilover Shock Remote Reservoir - 981-25-107

2.5in body | 9.95in travel | 2.5 x 10in nominal size | Sold as Each

FOX 981-25-107 2.5 Factory Race Coilover Shock is configured for a custom motorsports suspension build. For a custom suspension build, this coilover provides the FOX configuration identified below. Choose it around the required shock lengths, usable travel and mounts, and verify the spring configuration for the build. Key dimensions are body diameter: 2.5in; extended length: 28.45in; compressed length: 18.5in; travel: 9.95in. Check the full mounting requirements before selecting parts for the chassis.

Key Features & Specs:

• Brand: FOX
• Part number: 981-25-107
• Series: 2.5 Factory Race Coilover
• Type: Coilover
• Body diameter: 2.5in
• Extended length: 28.45in
• Compressed length: 18.5in
• Travel: 9.95in
• Top mount: Eyelet
• Bottom mount: Eyelet
• Reservoir / oil separation: Remote
• Material: Steel
• Sold as: Each
• Country of origin: Proudly made in the USA
• Nominal size designation: 2.5 x 10in
• Cerakote® protective ceramic coating over a zinc-plated base coat
• 17-4 H900 hard chrome plated stainless steel shaft
• Owner-serviceable and rebuildable construction
• JM92 MIL-SPEC oil developed for off-road racing
• Black-anodized, CNC-machined aluminum components

Fitment:

• No vehicle-specific application is provided in the FOX fit guide. Select using the supplied dimensions, mounting configuration, and custom-build requirements.
