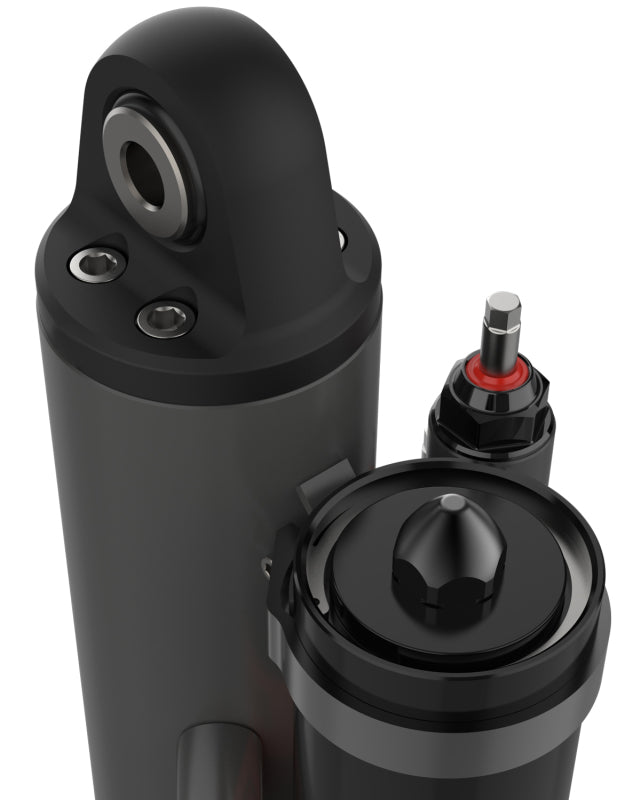

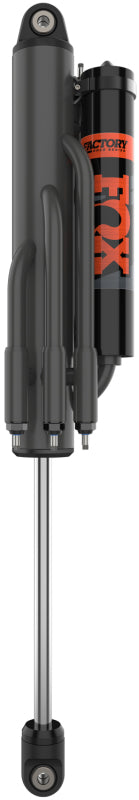

FOX 3.5 x 12in Factory Race Left 5-Tube External Bypass Shock Piggyback Reservoir - 981-35-400-L

3.5in body | 12in travel | 3.5 x 12in nominal size | Sold as Each

FOX 981-35-400-L 3.5 Factory Race Left 5-Tube External Bypass Shock is configured for a custom motorsports suspension build. For builders tuning a competition chassis, the external bypass layout provides a way to tailor damping through different portions of suspension travel. Match tube count, side, mounting configuration and usable stroke to the build. Key dimensions are body diameter: 3.5in; extended length: 33.45in; compressed length: 21.45in; travel: 12in. Check the full mounting requirements before selecting parts for the chassis.

Key Features & Specs:

• Brand: FOX
• Part number: 981-35-400-L
• Series: 3.5 Factory Race External Bypass
• Type: External Bypass
• Body diameter: 3.5in
• Extended length: 33.45in
• Compressed length: 21.45in
• Travel: 12in
• Top mount: Eyelet
• Bottom mount: Eyelet
• Reservoir / oil separation: Piggyback
• Material: Steel
• Sold as: Each
• Country of origin: Proudly made in the USA
• Technology / variant: Left-side version
• Nominal size designation: 3.5 x 12in
• Bypass tube count: 5
• Cerakote® protective ceramic coating over a zinc-plated base coat
• 17-4 H900 hard chrome plated stainless steel shaft
• Owner-serviceable and rebuildable construction
• JM92 MIL-SPEC oil developed for off-road racing
• Black-anodized, CNC-machined aluminum components

Fitment:

• No vehicle-specific application is provided in the FOX fit guide. Select using the supplied dimensions, mounting configuration, and custom-build requirements.
