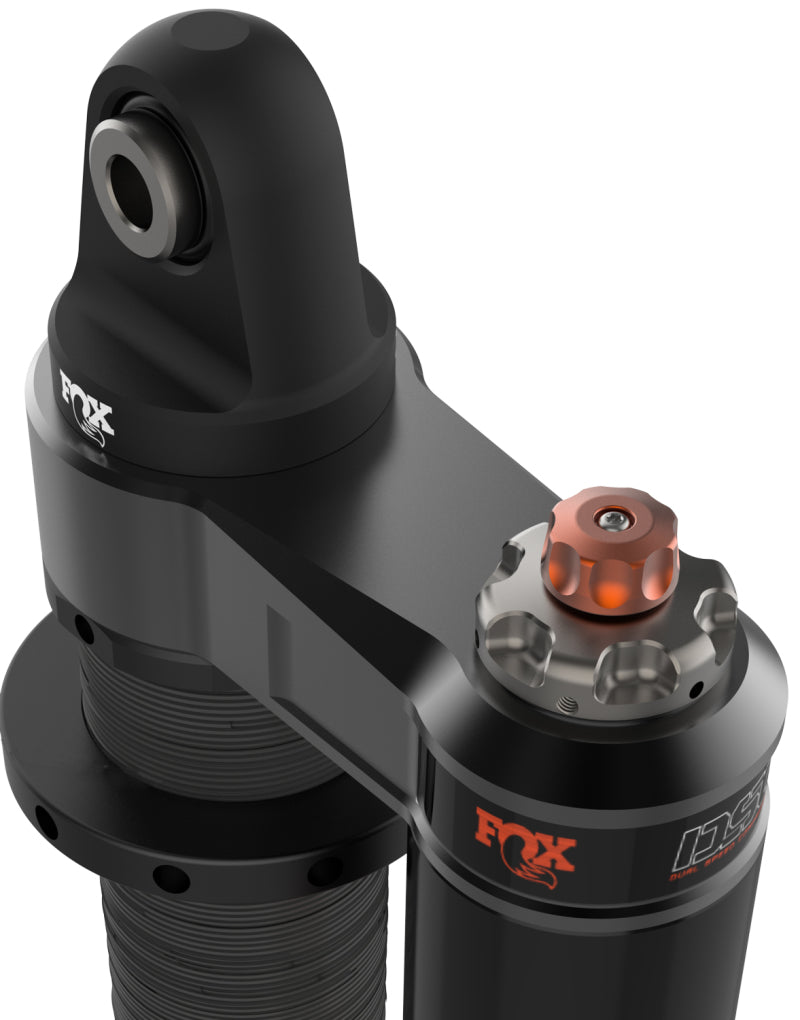

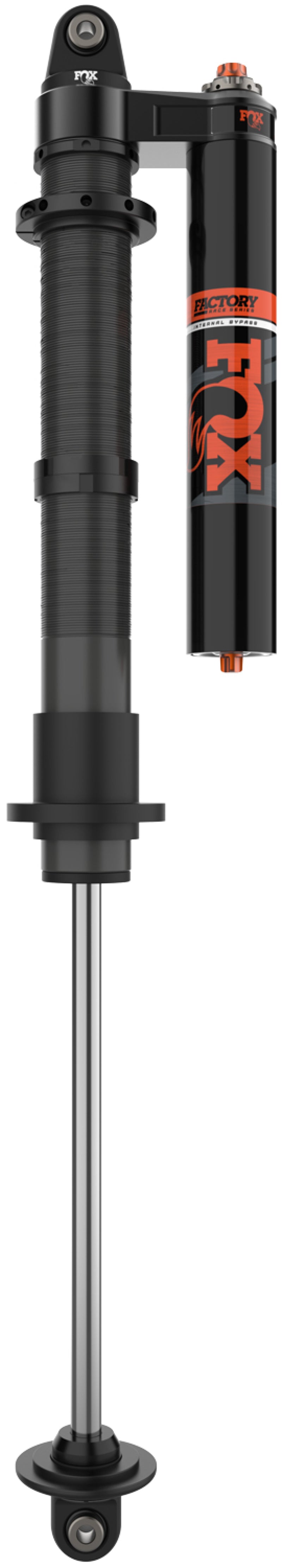

FOX 2.5 x 16in Factory Race DSC Internal Bypass Coilover Piggyback Reservoir - 981-25-603-3

2.5in body | 16.05in travel | 2.5 x 16in nominal size | DSC | Sold as Each

FOX 981-25-603-3 2.5 Factory Race DSC Internal Bypass Coilover is configured for a custom motorsports suspension build. With Dual Speed Compression adjustment, you can tune suspension response as driving conditions change. The body, reservoir layout and mounting configuration below identify this particular FOX version. Key dimensions are body diameter: 2.5in; extended length: 41.55in; compressed length: 25.5in; travel: 16.05in. Check the full mounting requirements before selecting parts for the chassis.

Key Features & Specs:

• Brand: FOX
• Part number: 981-25-603-3
• Series: 2.5 Factory Race Coilover Internal Bypass
• Type: Coilover Internal Bypass
• Body diameter: 2.5in
• Extended length: 41.55in
• Compressed length: 25.5in
• Travel: 16.05in
• Top mount: Eyelet
• Bottom mount: Eyelet
• Reservoir / oil separation: Piggyback
• Material: Steel
• Sold as: Each
• Country of origin: Proudly made in the USA
• Technology / variant: Dual Speed Compression (DSC); Internal bypass
• Nominal size designation: 2.5 x 16in
• Cerakote® protective ceramic coating over a zinc-plated base coat
• 17-4 H900 hard chrome plated stainless steel shaft
• Owner-serviceable and rebuildable construction
• JM92 MIL-SPEC oil developed for off-road racing
• Black-anodized, CNC-machined aluminum components

Fitment:

• No vehicle-specific application is provided in the FOX fit guide. Select using the supplied dimensions, mounting configuration, and custom-build requirements.
