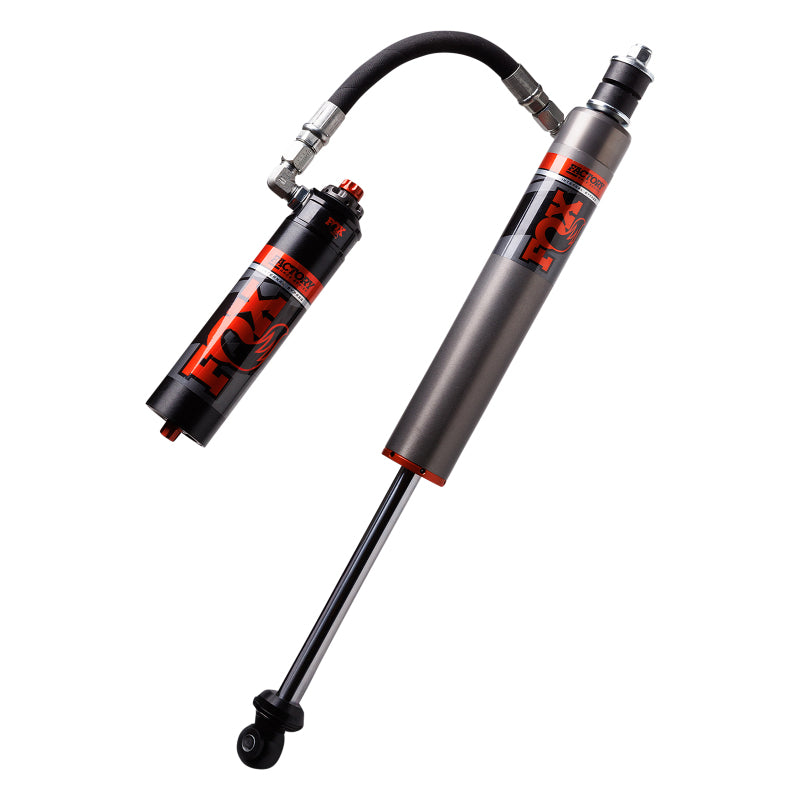

FOX 2.5 Factory Race DSC Front Smooth Body Shock Remote Reservoir for 2007-18 Jeep Wrangler JK - 883-26-109

Front | 2.5in body | 2.5-4in lift | Jeep Wrangler JK | DSC | Sold as Pair

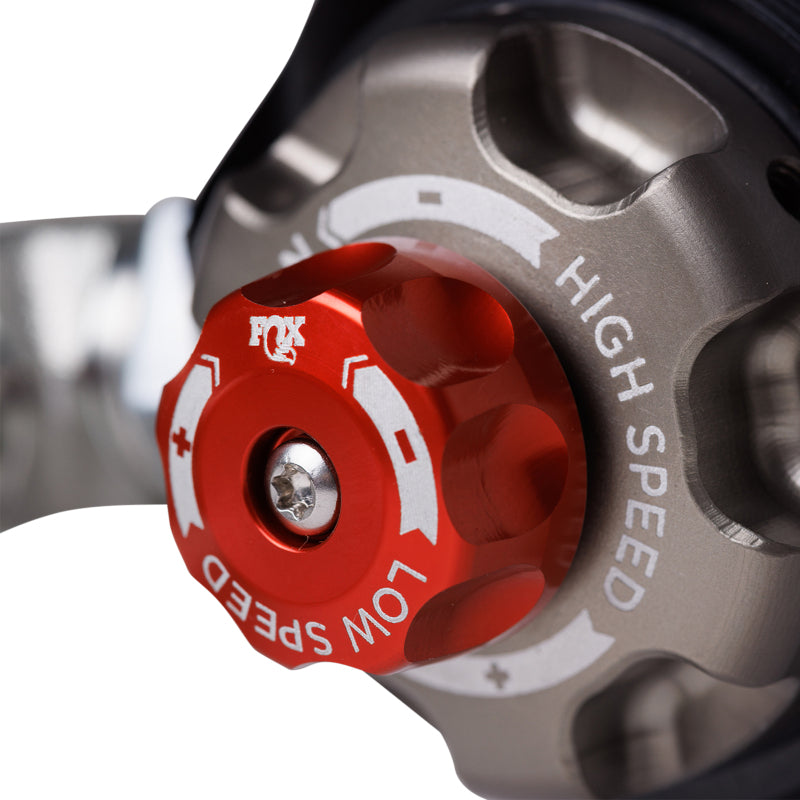

FOX 883-26-109 2.5 Factory Race DSC Front Smooth Body Shock Kit is configured for 2007-2018 Jeep Wrangler JK. With Dual Speed Compression adjustment, you can tune suspension response as driving conditions change. The body, reservoir layout and mounting configuration below identify this particular FOX version. Key dimensions are body diameter: 2.5in; travel: 9.79in; listed lift: 2.5-4in. Keep the full vehicle, lift, drivetrain and installation notes below with this part when checking compatibility.

Key Features & Specs:

• Brand: FOX
• Part number: 883-26-109
• Series: 2.5 Factory Race Shocks
• Type: Smooth Body
• Body diameter: 2.5in
• Extended length: 25.65in
• Compressed length: 15.86in
• Travel: 9.79in
• Top mount: Stem
• Bottom mount: Eyelet
• Reservoir / oil separation: Remote
• Material: Aluminum

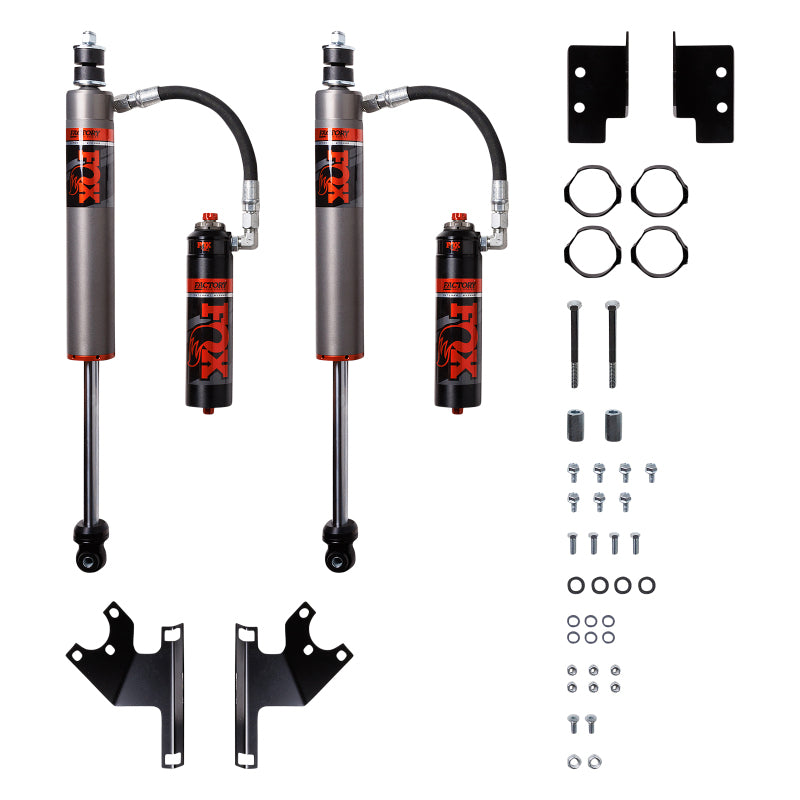

• Sold as: Pair
• Country of origin: Proudly made in the USA
• Position: Front
• Technology / variant: Dual Speed Compression (DSC); Internal bypass
• FOX tuning developed for the specific vehicle application
• Seamless alloy body with a durable zinc-plated finish
• External reservoir helps dissipate heat during operation
• Black-anodized, CNC-machined aluminum components

Fitment:

• 2007-2018 Jeep Wrangler JK | Front | All drivetrains | Front lift: 2.5-4in
