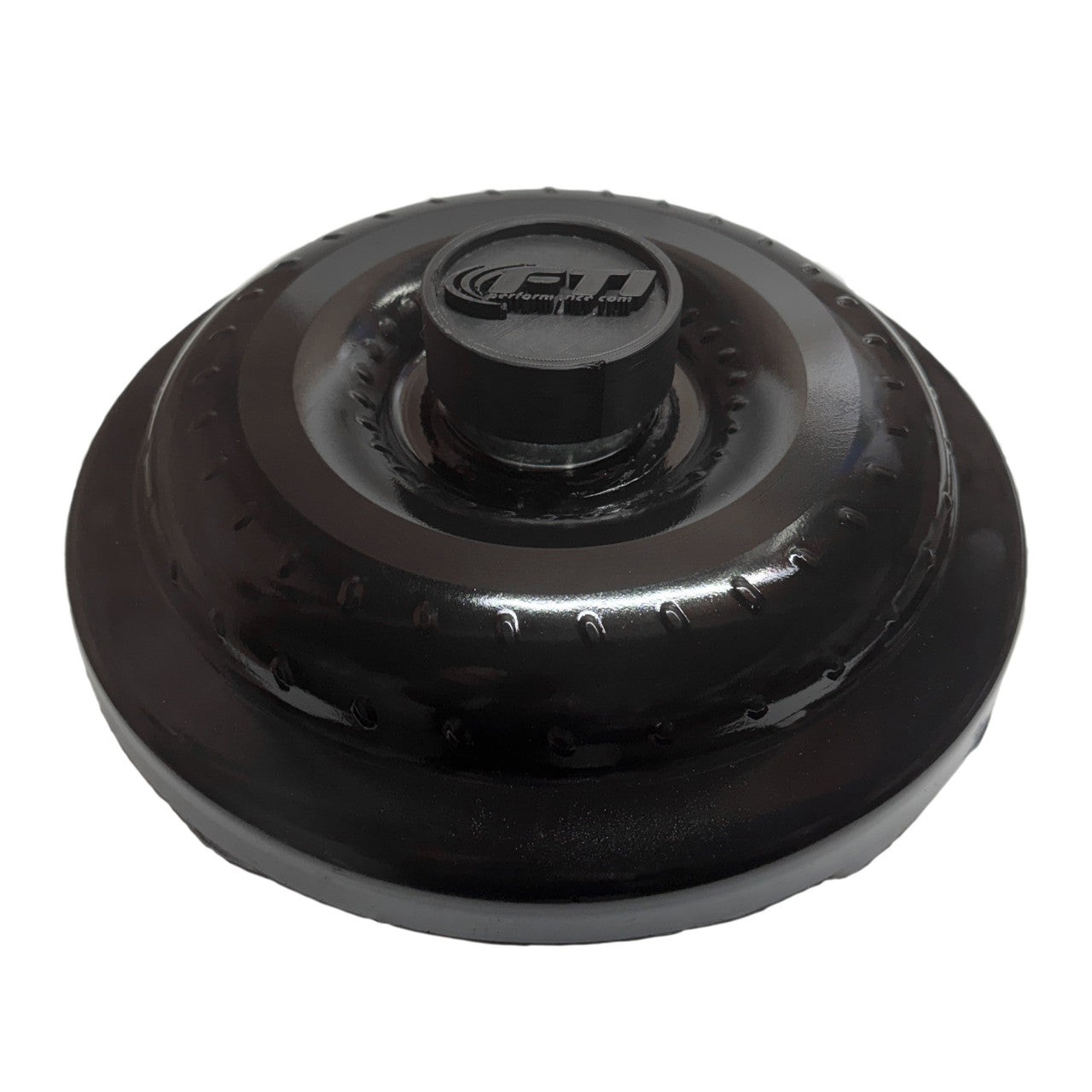

FTI Performance PML10R023 Billet Lock-Up Torque Converter Ford 10R80

FTI Performance PML10R023 PML Lock-Up Series Torque Converter

3200-3600 RPM Stall | 10 Inch | Billet Lock-Up | Ford 10R80 | 1000 HP Rated

Core Charge Notice

• 300 USD refundable core charge required for Ford 10R80
• Core charge refunded upon return of eligible core

The FTI Performance PML10R023 PML Lock-Up Torque Converter is a high horsepower billet converter engineered specifically for Ford 10R80 automatic transmissions. Designed for aggressive street, street-strip, and race applications, this converter features a 3200-3600 RPM stall range and is custom built to match your vehicle’s power level, weight, gearing, and intended use.

FTI’s PML Series torque converters utilize a CNC machined billet front cover, billet lock-up piston, and FTI CNC billet stator to eliminate premature clutch wear while delivering consistent lock-up performance. Combined with furnace brazed and TIG welded fins, a severe-duty sprague, and a flanged anti-ballooning impeller hub, the PML10R023 is built to survive extreme abuse.

Torque Converter Highlights

• 3200-3600 RPM custom stall configuration
• PML Lock-Up Series for extreme performance
• CNC machined billet front cover
• Billet lock-up piston for extended clutch life
• FTI CNC billet stator for optimized torque multiplication
• Furnace brazed and TIG welded internal fins
• Rated for up to 1000 horsepower
• Lock-up compatible for street and race use
• Built to order for your specific combination

Technical Specifications

• Diameter: 10 inch
• Stall Speed: 3200-3600 RPM (custom tuned)
• Transmission Compatibility: Ford 10R80
• Lock-Up Compatible: Yes
• Billet Stator: Yes
• Furnace Brazed: Yes
• Balanced: Yes
• Anti-Ballooning Plate: No
• Mounting Hardware Included: No

Available PML 10R80 Options

• PML10R023 - 3200-3600 RPM Custom Stall - Billet Stator (this listing)

• PML10R323 - Custom Stall - Billet Stator

Transmission Based Fitment:

• Ford 10R80 automatic transmissions

Common Applications Include:

• Ford Mustang GT 5.0L with 10R80

• Ford F-150 5.0L with 10R80

Warranty and Notes

• Warranty: 3 year limited
• Power Rating: Up to 1000 HP
• Core Charge: 300 USD refundable
• Custom built item - lead time may apply
• Professional installation recommended

Why Choose FTI Performance

FTI Performance is a leader in high horsepower billet torque converters, trusted by professional racers and performance builders worldwide. The PML Series represents the highest level of FTI engineering, delivering unmatched strength, precise stall characteristics, and long term reliability for modern performance transmissions.
