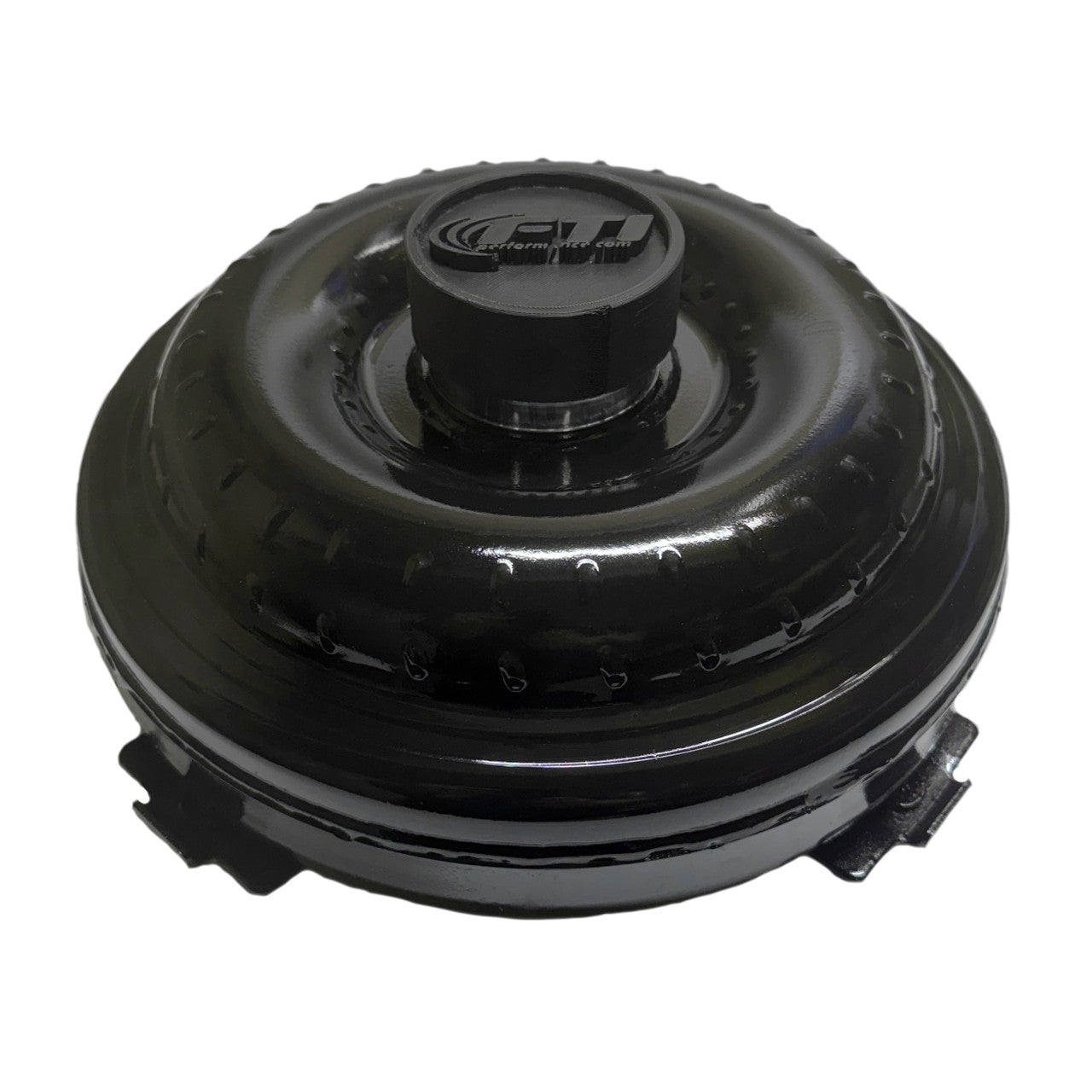

FTI Performance SRL10R323 Street Racer Lock-Up Torque Converter - Ford 10R80

FTI Performance SRL10R323 Street Racer Lock-Up Series Torque Converter

2800–3200 RPM Stall | 9.5" | Billet Stator | Ford 10R80 | 1000 HP Rated

Core Charge Notice

• $300.00 Core Charge Required (Ford 10R80)

• Core charge is refundable upon return of an eligible core

The FTI Performance SRL10R323 Street Racer Lock-Up Torque Converter is engineered for high-power street and street/strip Ford 10R80 applications that demand billet strength with excellent drivability. Featuring a 9.5-inch diameter and a 2800–3200 RPM stall range, this converter offers quick engine response and efficient torque multiplication while retaining lock-up functionality for street use.

Built as part of FTI’s SRL (Street Racer Lock-Up) Series, the SRL10R323 includes an FTI CNC billet stator, billet lock-up design, and race-proven internal construction. Rated for up to 1000 horsepower and backed by a 3-year warranty, it’s ideal for weekend warriors running boosted or high-output NA combinations with a 10R80.

Torque Converter Highlights

• 2800–3200 RPM Stall Range – Balanced street/strip performance

• Street Racer Lock-Up Series – Built for aggressive street use

• FTI CNC Billet Stator – Optimized torque multiplication and efficiency

• Billet Lock-Up Design – Improved durability and clutch life

• Rated to 1000 HP – Supports high-horsepower builds

• Lock-Up Compatible – Maintains cruising efficiency

• Furnace Brazed & TIG Welded – Maximum internal strength and reliability

• 3-Year Warranty – Long-term confidence

Technical Specifications

• Diameter: 9.5 in

• Stall Speed: 2800–3200 RPM

• Transmission Compatibility: Ford 10R80

• Lock-Up Compatible: Yes

• Billet Stator: Yes (FTI CNC Billet)

• Furnace Brazed: Yes

• TIG Welded Internal Fins: Yes

• Balanced: Yes

• Anti-Ballooning Plate: No

• Mounting Hardware Included: No

Available SRL 10R80 Options

• SRL10R023 – 3200–3600 RPM Stall, Billet Stator

• SRL10R323 – 2800–3200 RPM Stall, Billet Stator (this listing)

Vehicle & Transmission Fitment

Transmission Compatibility:

• Ford 10R80 Automatic Transmission

Warranty & Notes

• Warranty: 3-Year Limited Warranty

• Power Rating: Up to 1000 HP

• Core Charge: $300.00 (refundable)

• Professional installation recommended

Why Choose FTI Performance?

FTI Performance torque converters are engineered with real-world racing experience and advanced CNC design. The Street Racer Lock-Up Series delivers the ideal blend of billet strength, responsive stall characteristics, and street-friendly lock-up performance for modern high-power transmissions like the Ford 10R80.
