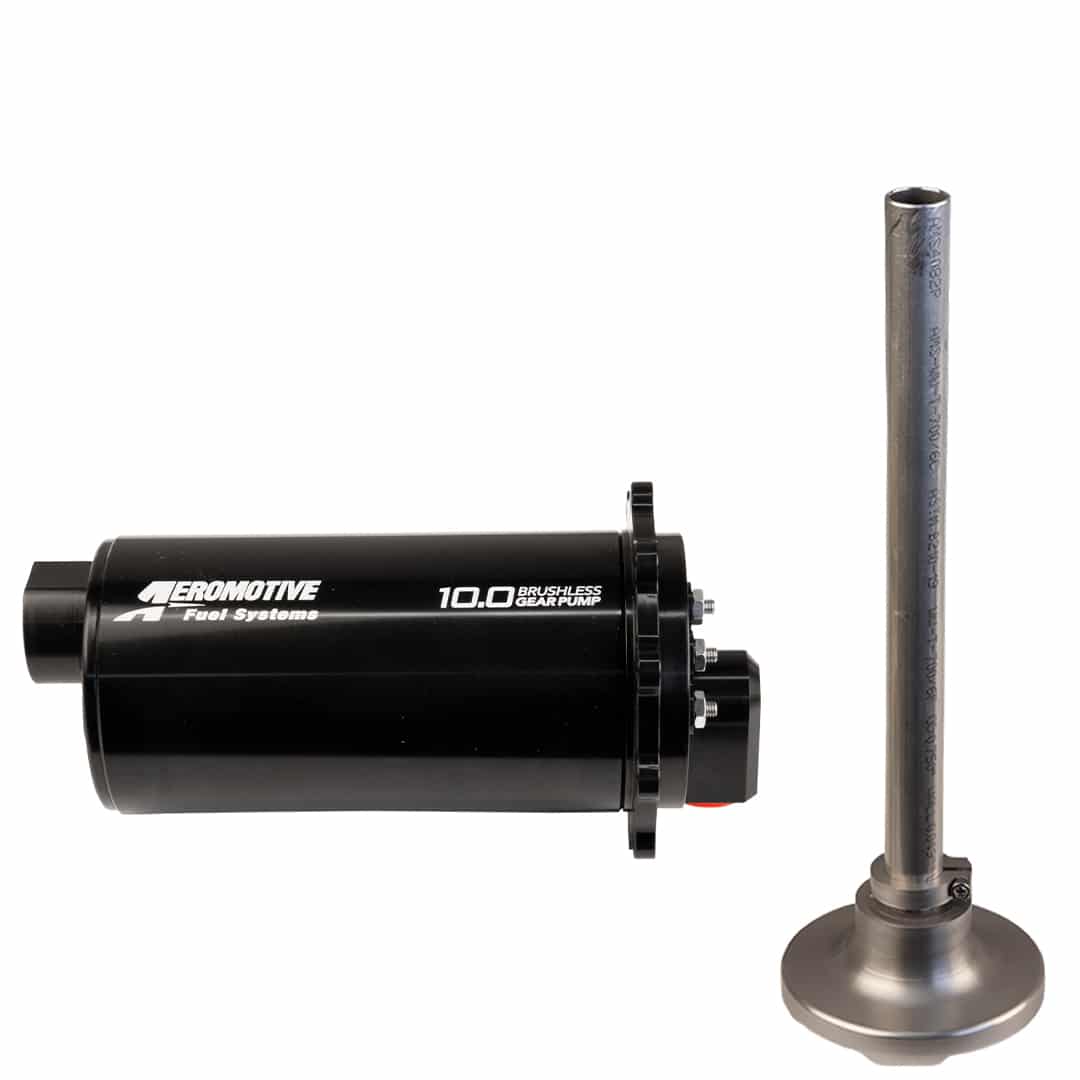

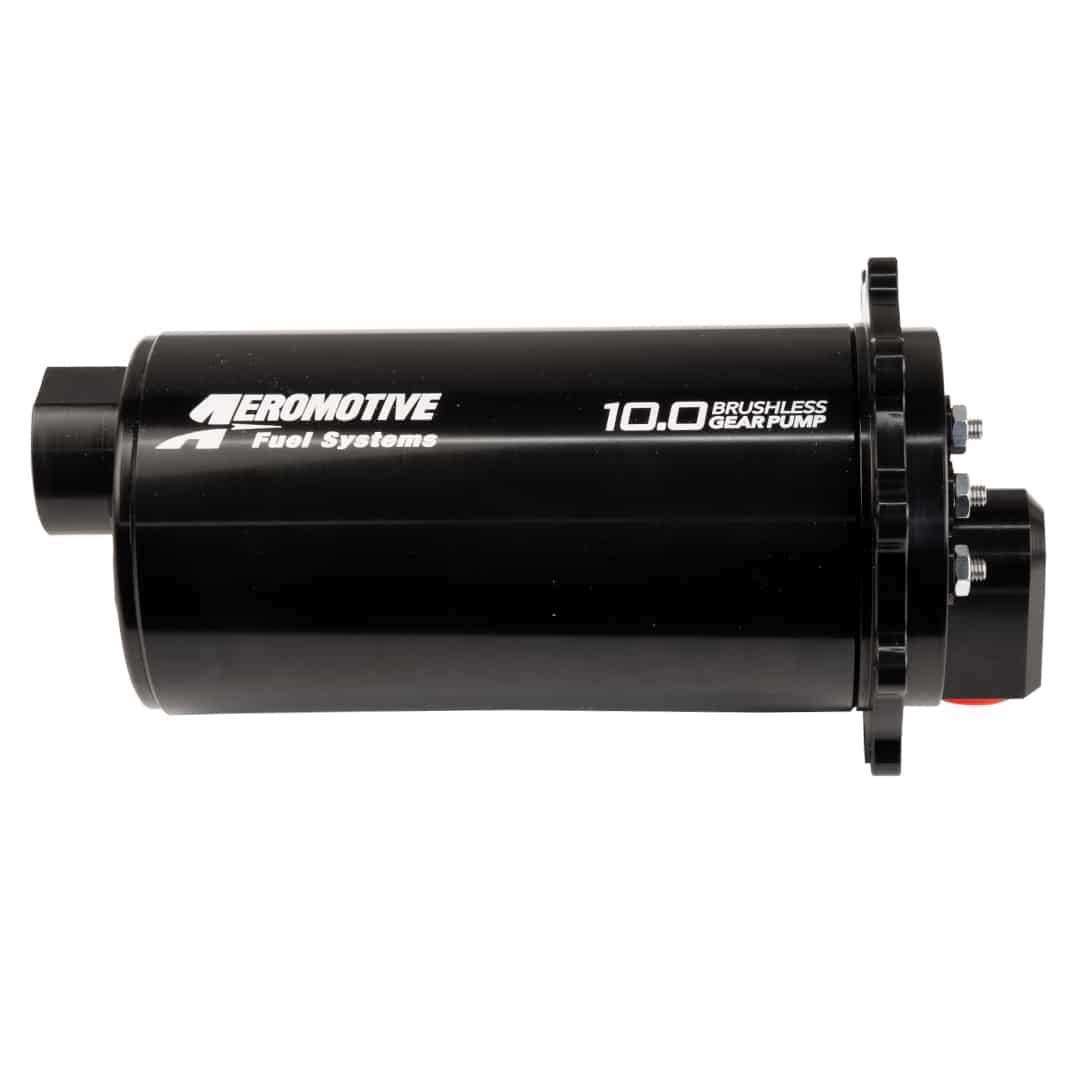

Fuel Pump, TVS, Universal In-Tank, 90-Deg Outlet, BL Spur Gear 10.0 P/N 19324

P/N 19324: Fuel Pump, TVS, Universal In-Tank, 90-Deg Outlet, BL Spur Gear 10.0
Ground Shaking Performance – Advanced Technology

• Supports

Fuel-injected engines:
– up to 6,900 FWHP on GAS – naturally-aspirated
– up to 4,900 FWHP on GAS – forced air induction

– up to 4,830 FWHP on E85 – naturally-aspirated
– up to 3,430 FWHP on E85 – forced air induction

– up to 2,415 FWHP on METHANOL – naturally-aspirated
– up to 1,715 FWHP on METHANOL – forced air induction

Carbureted Engines:
– up to 7,600 FWHP on GAS – naturally-aspirated
– up to 5,500 FWHP on GAS – forced air induction

– up to 5,300 FWHP on E85 – naturally-aspirated
– up to 3,850 FWHP on E85 – forced air induction

– up to 2,650 FWHP on METHANOL – naturally-aspirated
– up to 1,925 FWHP on METHANOL – forced air induction

• E85 Compatible, reduce max FWHP by 30%
• Lighter than the traditional external mount pumps.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
• ORB-12 inlet and ORB-10 outlet ports.
• Requires straight 12-VDC to a 16-VDC power supply.
• Not compatible with pulse-modulated systems or fuel pump speed controllers.

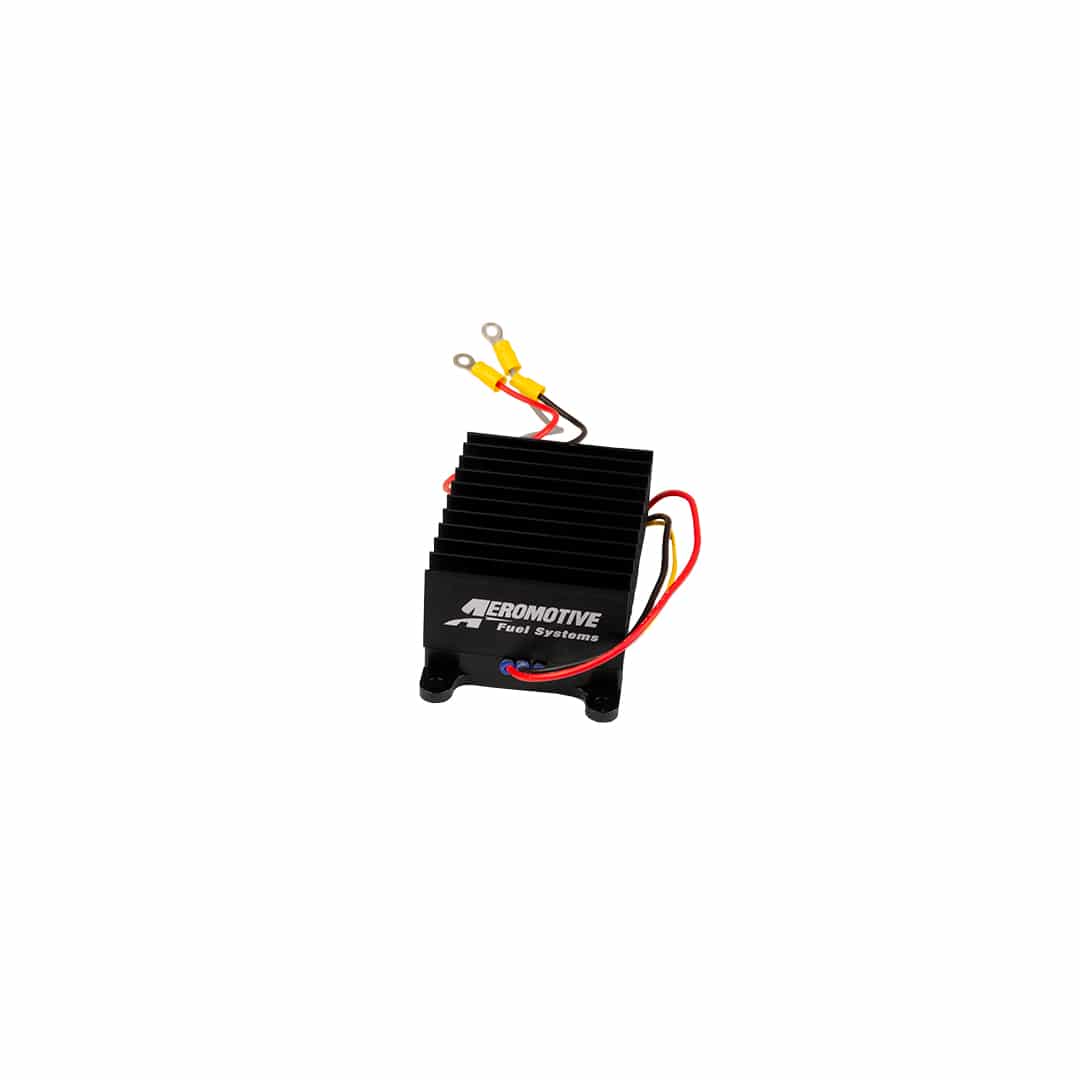

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Additional information

Mounting Configuration: In Tank
