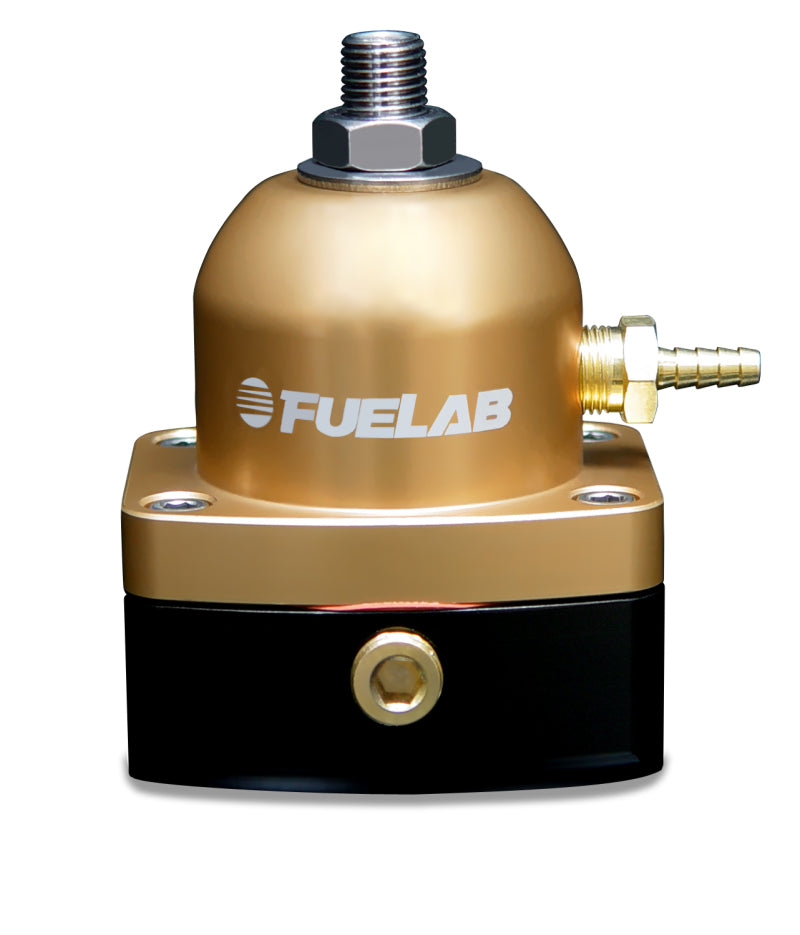

FUELAB 545 Series Mini TBI Fuel Pressure Regulator 10-25 PSI -6AN - 54502-5-T

The FUELAB 545 Series Mini TBI Fuel Pressure Regulator is designed to regulate fuel pressure in TBI systems using the exact pressure range and port configuration listed for this part. Part 54502-5-T uses a 10-25 PSI -6AN configuration. Gasoline, E85 & methanol compatible.

Key Specifications

• Brand: FUELAB
• Series: 545 Series
• Part Number: 54502-5-T
• GTIN/UPC: 00845096004354
• Pressure Range: 10-25 PSI
• Connections: (1) -6AN Inlet; (1) -6AN Return
• Regulator Style: Return-style bypass
• Body Material: Billet aluminum
• Fuel Compatibility: Gasoline, E85, methanol

Usage & Application Guide

• Use in TBI fuel systems that match the listed pressure range and port sizes.
• Install in a return-style system with the return line sized for stable pressure control.
• Verify pump flow, base-pressure requirements, boost/vacuum reference needs, and fitting sizes before ordering.
