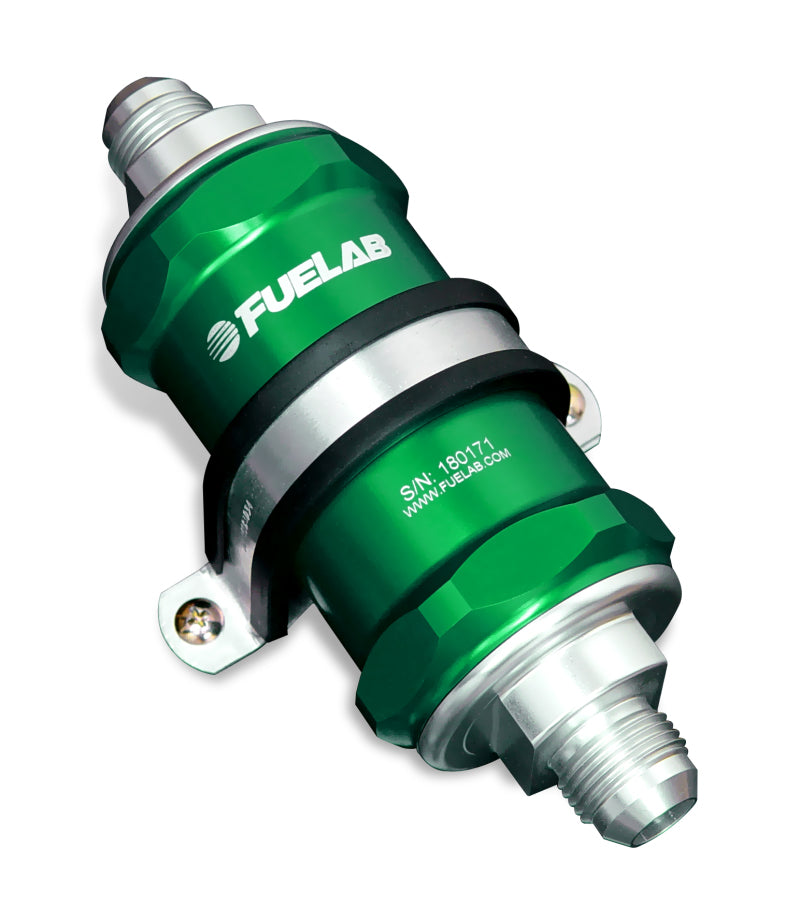

FUELAB 848 Series In-Line Fuel Filter -6AN 6 Micron 3in Check Valve - 84831-6

The FUELAB 848 Series In-Line Fuel Filter is designed to remove fuel-system contaminants before they reach sensitive pumps, regulators, or injectors. Part 84831-6 uses a -6AN 6 Micron 3in Check Valve configuration. Suitable for E85/methanol applications per FUELAB filter guidance.

Key Specifications

• Brand: FUELAB
• Series: 848 Series
• Part Number: 84831-6
• GTIN/UPC: 00845096003401
• Connections: -6AN Inlet/Outlet
• Filtration: 6 Micron
• Element Material: Micro-fiberglass
• Check Valve: Integrated
• Housing Pressure Rating: Up to 200 PSIG

Usage & Application Guide

• Use as fine post-pump filtration for high-pressure EFI, direct-injection, E85, or methanol systems.
• Integrated check valve helps retain line pressure after pump shutdown.
• Match inlet/outlet AN size, micron rating, fuel type, and expected system flow before ordering.
