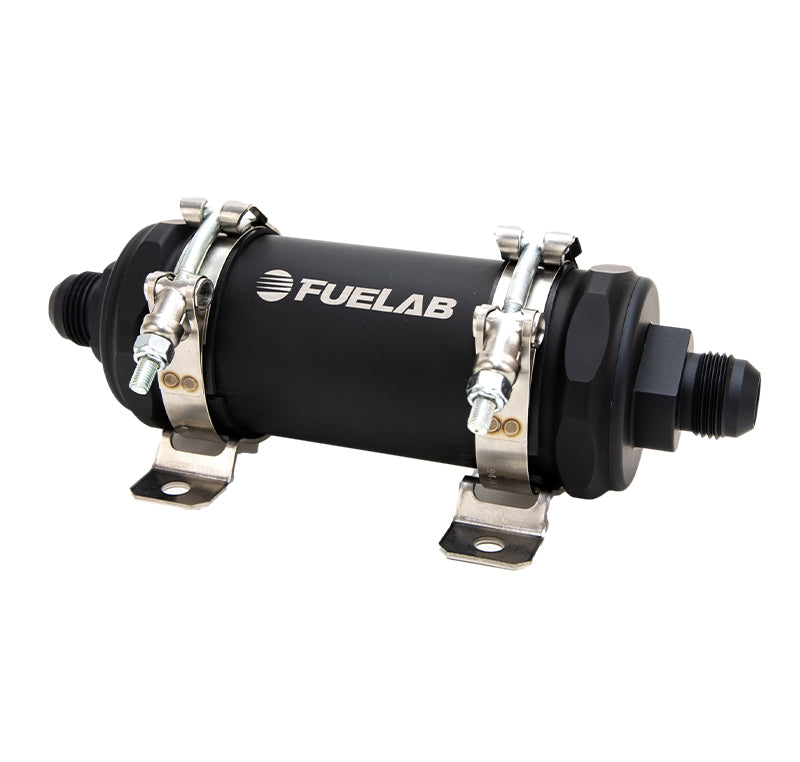

FUELAB PRO Series In-Line Fuel Filter 10GPM -12AN 6 Micron - 86830-12-10

The FUELAB PRO Series In-Line Fuel Filter is designed to remove fuel-system contaminants before they reach sensitive pumps, regulators, or injectors. Part 86830-12-10 uses a 10GPM -12AN 6 Micron configuration. Suitable for E85/methanol applications per FUELAB filter guidance.

Key Specifications

• Brand: FUELAB
• Series: PRO Series
• Part Number: 86830-12-10
• GTIN/UPC: 00845096015664
• Connections: -12AN Inlet/10AN Outlet
• Filtration: 6 Micron
• Flow: 10GPM
• Element Material: Micro-fiberglass

Usage & Application Guide

• Use as fine post-pump filtration for high-pressure EFI, direct-injection, E85, or methanol systems.
• Install with flow direction and service access considered for routine element inspection or replacement.
• Match inlet/outlet AN size, micron rating, fuel type, and expected system flow before ordering.
