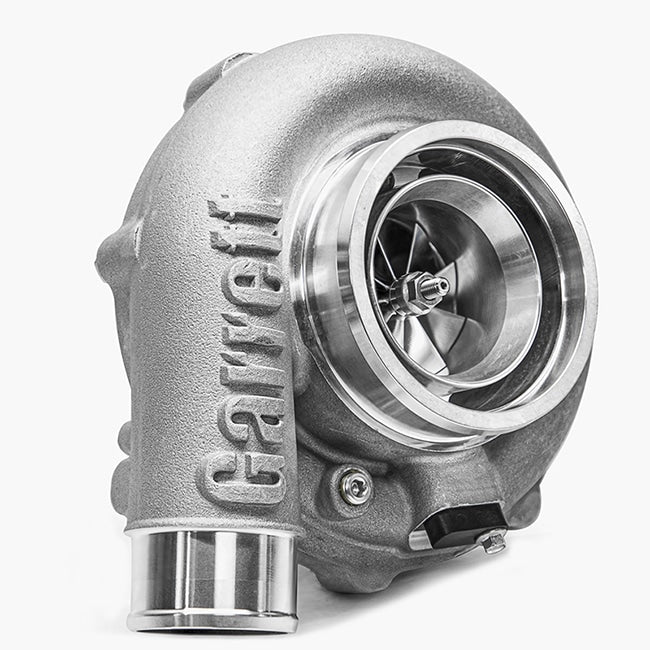

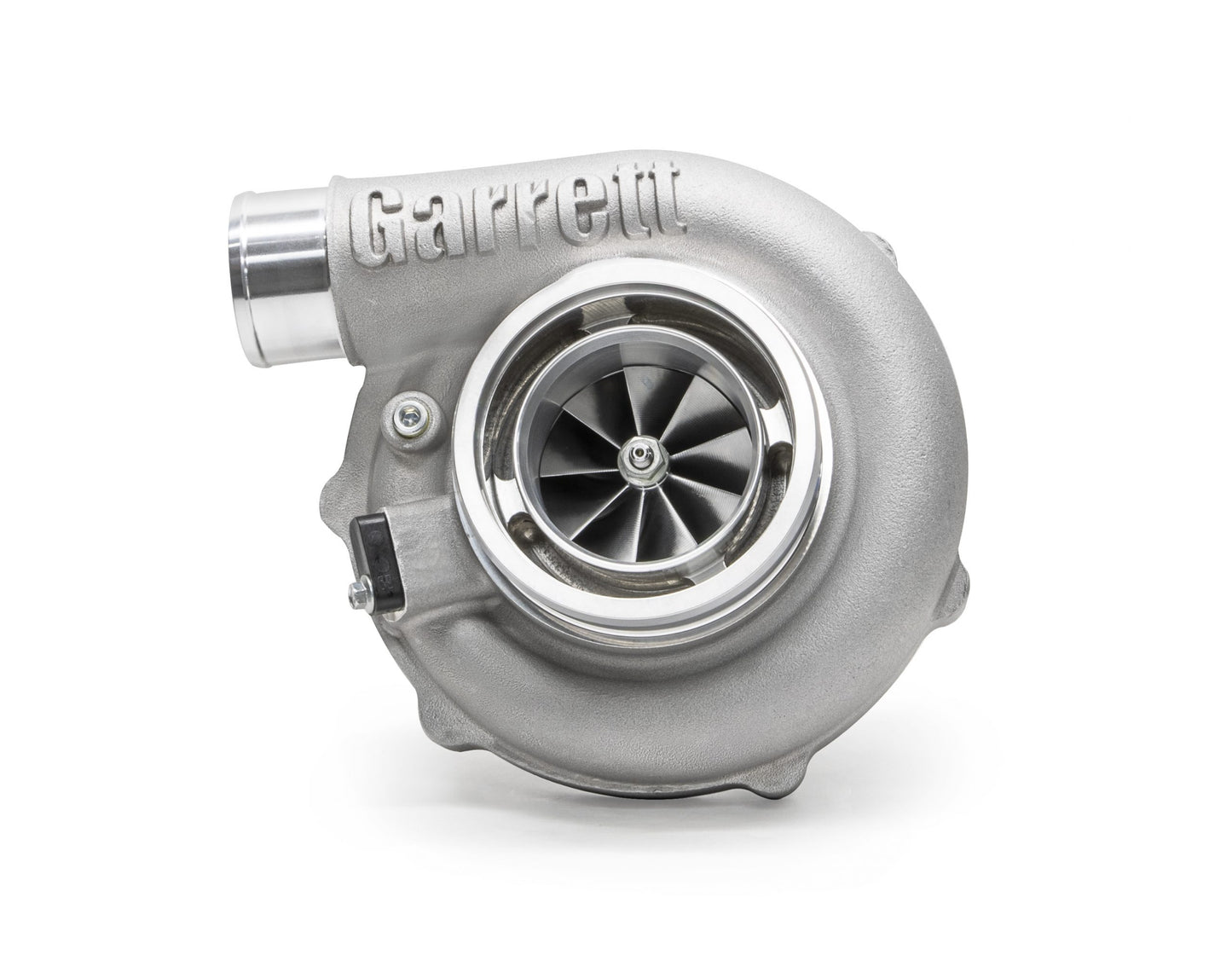

Supercore, Garrett G30-900, REVERSE ROTATION, Turbo W/O Turbine Housing, P/N 880694-5003S - eliteracefab.com
Supercore, Garrett G30-900, REVERSE ROTATION, Turbo W/O Turbine Housing, P/N 880694-5003S - eliteracefab.com
Click to zoom in

Supercore, Garrett G30-900, REVERSE ROTATION, Turbo W/O Turbine Housing, P/N 880694-5003S

2 sold in last 8 hours
Garrett
GRT880694-5003S
In stock
Super Core Assemblies
$2,852.72 $2,038.44
Product Description:Garrett® G30-900 REVERSE Rotation Supercore (Turbo without turbine housing).Product Features: New G Series compressor wheel aerodynamics Fully machined speed sensor and pressure ports Standard and reverse rotation configurations available...
$2,038.44

Supercore, Garrett G30-900, REVERSE ROTATION, Turbo W/O Turbine Housing, P/N 880694-5003S
Product Description:

Garrett® G30-900 REVERSE Rotation Supercore (Turbo without turbine housing).

Product Features:

  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F

Product Specifications:

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed fitting with .035" restrictor: ATP-OIL-021
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • Oil drain fasteners: Product Code: MIA-FST-034
  • Boost Pressure Port Fitting: ATP-FTG-198
          NOTE: Alternate coolant and oil fittings and flanges are available.



Compressor & Turbine Maps:



 Garrett Part Number:

  •  880694-5003S
