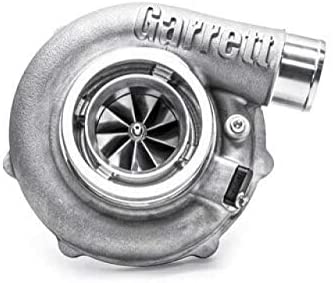

Supercore, Garrett G30-900, STANDARD ROTATION, Turbo W/O Turbine Housing, P/N 880693-5003S

Product Description:

Garrett® G30-900 STANDARD Rotation Supercore (Turbo without turbine housing).

Product Features:

• New G Series compressor wheel aerodynamics

• Fully machined speed sensor and pressure ports

• Standard and reverse rotation configurations available

• Oil restrictor and water fittings included with purchase

• One piece center housing and backplate for increased durability

• 4 water jacket ports for customizable installation

• Mar-M turbine wheel material rated up to 1050° C | 1922° F

Product Specifications:

• Compressor Wheel Inducer: 62mm

• Compressor Wheel Exducer: 76mm

• Compressor Wheel Trim: 65

• Compressor Housing A/R: 0.72

• Turbine Wheel Inducer: 60mm

• Turbine Wheel Exducer: 55mm

• Turbine Wheel Trim: 84

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

• Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines

• Oil feed fitting with .035" restrictor: ATP-OIL-021

• Oil drain flange: Product Code: ATP-FLA-010

• Oil drain gasket: Product Code: GRT-GSK-008

• Oil drain fasteners: Product Code: MIA-FST-034

• Boost Pressure Port Fitting: ATP-FTG-198


          NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:

Garrett Part Number:

• 880693-5003S
