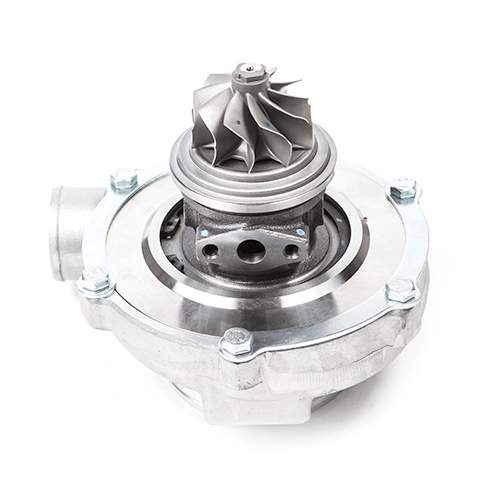

Supercore, Garrett, Gen2 GTX3584RS, P/N: 846098-5001S, HOSE CONNECTION

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3584RS dual ball bearing SuperCore (P/N: 846098-5001S) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). HOSE CONNECTION compressor housing. Advanced GEN2 billet compressor wheel capable of 1000HP!

PRODUCT FEATURES:

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

• Forged billet aluminum compressor wheel

• Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

• Compressor Wheel Inducer: 67 mm

• Compressor Wheel Exducer: 84 mm

• Compressor Wheel Trim: 64

• Turbine Wheel Inducer: 68 mm

• Turbine Wheel Exducer: 62 mm

• Turbine Wheel Trim: 84

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

• Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines

• Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)

• Oil drain flange: Product Code: ATP-FLA-010

• Oil drain gasket: Product Code: GRT-GSK-008

         NOTE: Alternate coolant and oil fittings are available.

COMPRESSOR & TURBINE MAPS:

 APPLICABLE GARRETT PART NUMBERS:

• Supercore P/N: 846098-5001S
