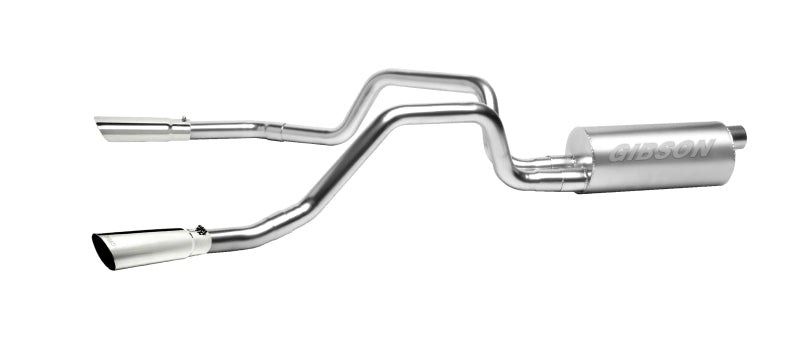

Gibson 00-03 S10/SONOMA 4.3L, ALUMINIZED DUAL SPLIT EXHAUST - 5532

• Tubing Diameter: 1.75- in. mandrel bent Aluminized tubing.
• Tip Description: 3in. Polished T304 Stainless; Round; Slash- Cut Tip; Clamp on.
• Tip Specification: Inlet 2.50 in.; Outlet 3 in.; L-8 in.
• Muffler Description: Baffled & Chambered Design, No internal Packing, Minimal Interior Drone, Aggressive Sound
• Muffler Dimension: 6 in. Round Body; 2.50 in. Center Inlet; 1.75in. Dual Outlet; L-16 in.
• Additional Description: Includes all hardware and factory style hangers for easy bolt on installation.

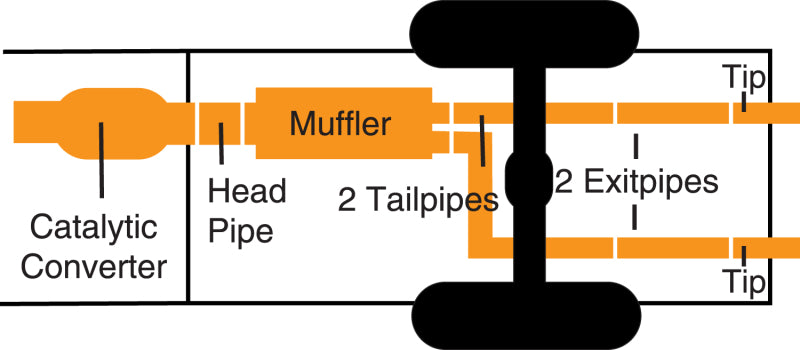

• Exit Position: Exit Is Straight Out The Back.
• Footnote: Will not fit with a rear sway bar
• Warranty: Lifetime Limited Warranty
• Item #: 5532

Installation Instruction Manual

APPLICATION LIST
Vehicle Fitment:
Year Make Model Submodel:
2000 CHEVROLET S10 PICKUP 4.3L, EXTENDED CAB W/73.1 IN./6 FT. 1.1 IN. BED
2000 GMC SONOMA PICKUP 4.3L, EXTENDED CAB W/73.1 IN./6 FT. 1.1 IN. BED
2001 CHEVROLET S10 PICKUP 4.3L, EXTENDED CAB W/73.1 IN./6 FT. 1.1 IN. BED
2002 CHEVROLET S10 PICKUP 4.3L, EXTENDED CAB W/73.1 IN./6 FT. 1.1 IN. BED
2003 GMC SONOMA PICKUP 4.3L, EXTENDED CAB W/73.1 IN./6 FT. 1.1 IN. BED
2001 GMC SONOMA PICKUP 4.3L, EXTENDED CAB W/73.1 IN./6 FT. 1.1 IN. BED
2002 GMC SONOMA PICKUP 4.3L, EXTENDED CAB W/73.1 IN./6 FT. 1.1 IN. BED
2003 CHEVROLET S10 PICKUP 4.3L, EXTENDED CAB W/73.1 IN./6 FT. 1.1 IN. BED
