Haltech Elite 1500 + Plug 'n' Play Adaptor Harness Kit for Mitsubishi Galant VR4 & Eclipse 1G Turbo (Manual) – HT-150942

The Haltech Elite 1500 + Plug 'n' Play Adaptor Harness Kit is a direct ECU replacement package for Mitsubishi Galant VR4 (Australian Delivered and JDM) and Eclipse 1G Turbo (JDM and USDM) models with manual transmissions. Designed for seamless integration and advanced engine control, this kit is perfect for motorsport enthusiasts, tuners, and high-performance builds.

Combining the proven capabilities of the Elite 1500 ECU with a plug-and-play adaptor harness, this solution offers intuitive installation, precise tuning, and powerful data logging features—all managed through Haltech’s Nexus Software Programmer (NSP). The system supports DBW, flex-fuel, variable cam control, and comprehensive race functions.

Key Features:

• Suits:

  • Mitsubishi Galant VR4 (Australian Delivered and JDM)

  • Mitsubishi Eclipse 1G Turbo (JDM and USDM)

  • Manual transmission only

• Plug 'n' Play compatibility with factory harness

• IP67-rated ECU for water and dust resistance

• Dual CAN Bus for expansion and digital dash support

• Drive-by-wire, knock control, flex fuel, VCT, anti-lag, launch control, and more

• Ideal for EFI conversions, turbo builds, and track-focused applications

• NOT CARB LEGAL

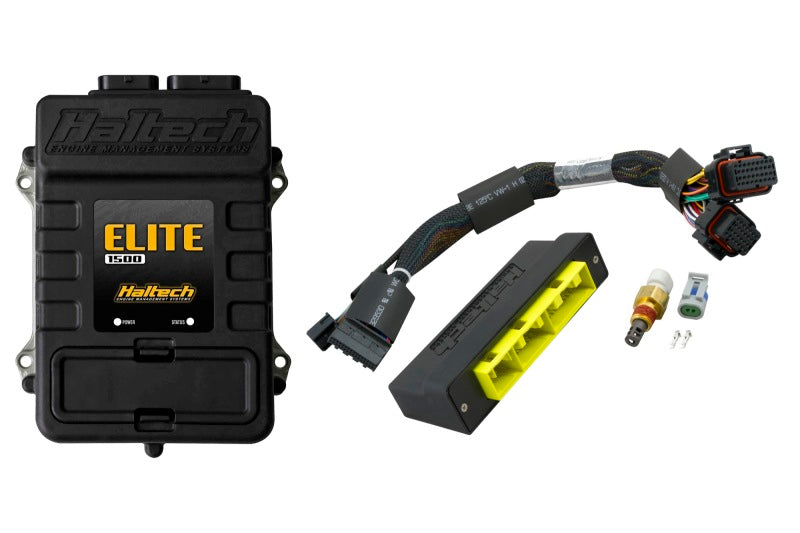

Included in Kit:

• Haltech Elite 1500 ECU with DBW and Race Functions

• Injection-molded plug 'n' play adaptor harness

• M14 x 1.5 air temperature sensor with matching plug and pins

• Auxiliary I/O 16-pin TYCO connector with pins

• USB programming cable

• NSP software and full ECU manual (on USB)

Advanced ECU Capabilities:

• 4 injector and 4 ignition outputs

• 12 digital outputs, 10 analog voltage inputs

• Knock, ignition switch, onboard MAP sensor inputs

• 2 crank/cam position inputs for flexible trigger configuration

• 32x32x8 tuning table resolution with 3D per-cylinder correction

• Supports up to 45 I/O expansion channels via CAN

• Up to 40 channels of onboard logging at 200Hz

• Custom boost strategies: by gear, speed, time, ride height, etc.

• Anti-lag, rolling launch, flat shift, CO₂ boost, trans brake

• Multi-stage nitrous control (up to 6 stages)

• Optional advanced torque management upgrade

Important Notes:

• Manual transmission vehicles only

• Designed for competition/off-road use—verify emissions compliance before purchase

Emissions Notice:
This product is intended for sanctioned off-road/competition use only. Use on public roads may be prohibited unless an exemption applies.
