Haltech Elite 1500 + Plug 'n' Play Adaptor Harness Kit for Mitsubishi EVO 1-3 (Manual Transmission) - HT-150936

Upgrade your Mitsubishi EVO 1-3 GSR/RVR (manual transmission only) with the Haltech Elite 1500 ECU and Plug 'n' Play Adaptor Harness Kit. This standalone engine management system is designed for high-performance street and motorsport applications, offering seamless installation via factory-style connectors and cutting-edge tuning features. Built in a rugged IP67-rated case, the Elite 1500 delivers advanced control over fuel, ignition, boost, and much more.

Important Emissions Notice:
This product is intended for off-road and competition use only and is not legal for street use unless an exemption applies.

Key Features:

• Plug 'n' Play ECU replacement for Mitsubishi EVO 1-3 GSR and RVR models

• Manual transmissions only

• Elite 1500 ECU includes:

  • Drive-by-Wire (DBW) throttle control

  • Dual channel knock control

  • Closed loop control for O2, idle, and boost

  • Flex fuel compatibility with ethanol tuning

  • Variable camshaft control (up to 4 cams)

  • Anti-lag, rolling launch, and flat shift support

  • Launch control, traction control, nitrous staging

  • Advanced 4D and per-cylinder 3D tuning

  • On-board and USB laptop data logging

  • Dual CAN Bus for Haltech dashes and modules

• NOT CARB LEGAL

ECU Technical Specs:

• 4 x Fuel Injection Outputs

• 4 x Ignition Outputs

• 12 x Digital Outputs

• 10 x Analog Voltage Inputs

• 4 x Synchronized Pulsed Inputs

• 3 x Dedicated Inputs (Knock, Ignition Switch, Onboard MAP Sensor)

• 2 x Engine Position Inputs

• Sealed IP67-rated enclosure

• USB interface with NSP Calibration Software

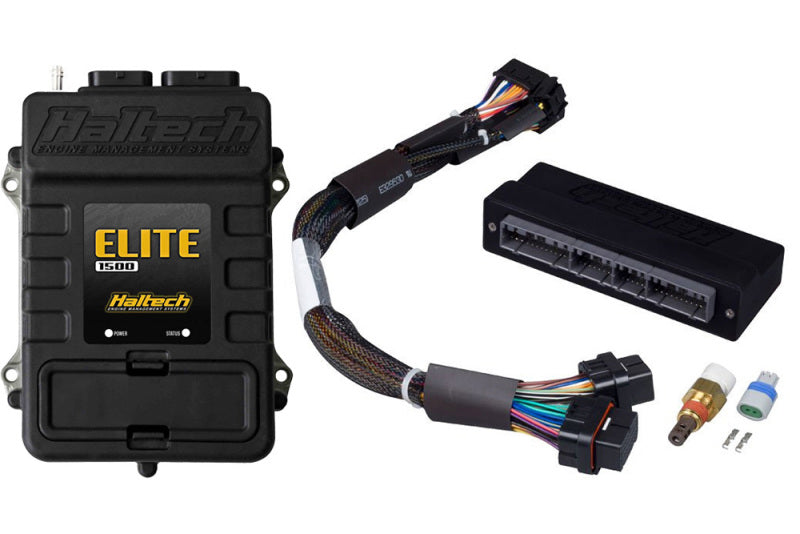

Includes:

• Haltech Elite 1500 ECU with DBW and Race Functions

• Injection-molded Plug 'n' Play adaptor harness

• M14 x 1.5 air temp sensor with matching plug and pins

• 16-pin TYCO auxiliary I/O plug and pins

• USB programming cable

Vehicle Fitment:

• Mitsubishi EVO 1–3 GSR / RVR – Manual transmission only

Brand: Haltech
SKU: HT-150936
